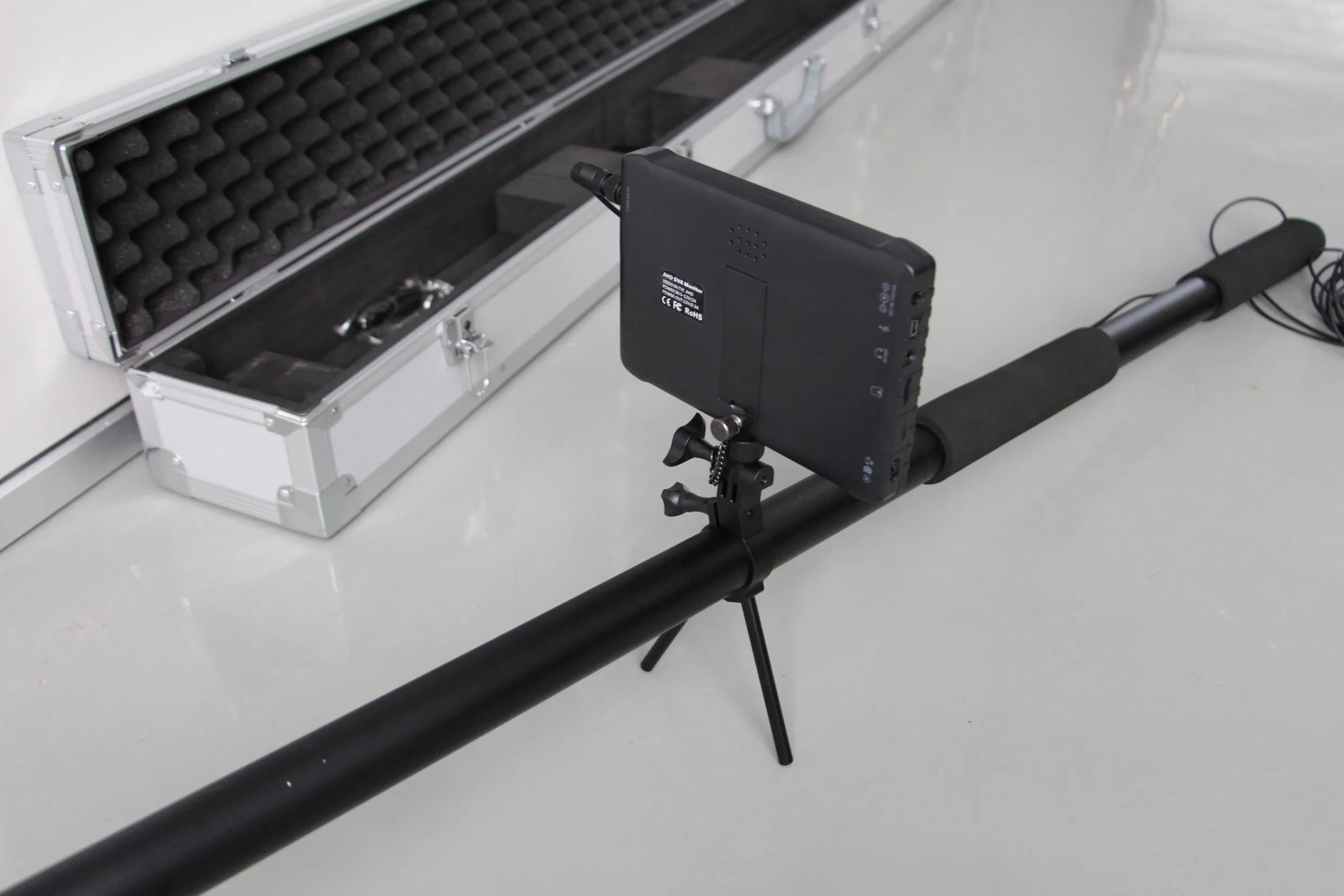

2MP Ahd 8m High Reach Telescopic Pole Inspection Camera system for Pipeline /Sewer Checking

1 / 5

2MP Ahd 8m High Reach Telescopic Pole Inspection Camera system for Pipeline /Sewer Checking

Customization:	Available
Technology:	Infrared
Style:	Mini Camera

Send Inquiry

Product Description

Basic Specifications

Model NO.:HD80

Type:CCTV Camera

Sensor:CMOS

HDMI Format:1080P

Certification:CE, FCC, CCC, RoHS

Sensor Size:1/3 inch

Product Name:5m Telescoping Inspection Camera System

Light:6 LED/IR Lamps

Pole Length:5m / 16 feet

Li-Battery:7500mAh

Product Description

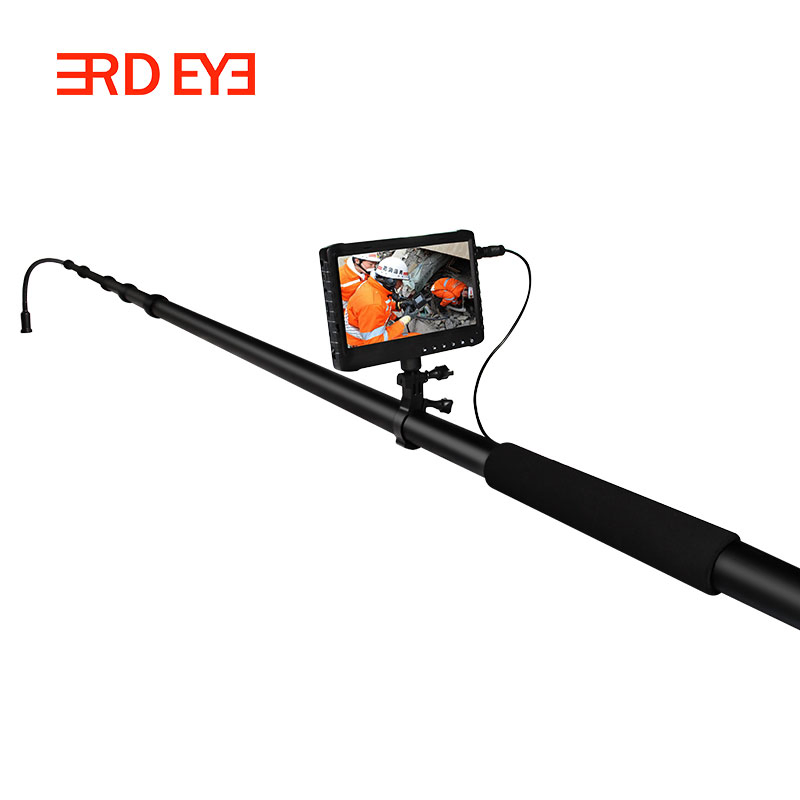

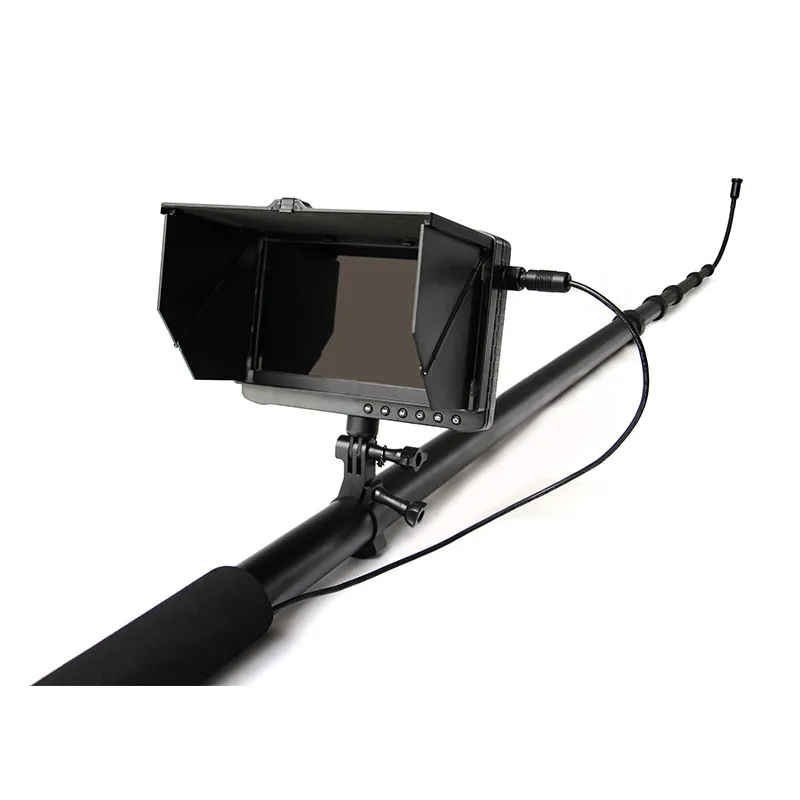

2MP AHD 8m High Reach Telescopic Pole Inspection Camera System
Model: HD80

HD80 is a handheld multi-functional 7" 1080P 8M Long Telescopic waterproof portable inspection camera DVR System. It extends your hands and eyes to every narrow corner to help take photos or make videos easily in hard-to-reach or dangerous areas. This portable inspection system is the perfect "3rd Eye" for professional inspectors.

7" HD color LCD screen for real-time live feed.
Supports up to 128GB TF card storage.
Functionality for Photo, Video, and Playback with zero delay.
IP68 waterproof rating for versatile inspections.

Technical Parameters

Telescopic Pole Camera Specifications
Optical Element	1/2.7" SONY CMOS
Sensitivity	0.005Lux

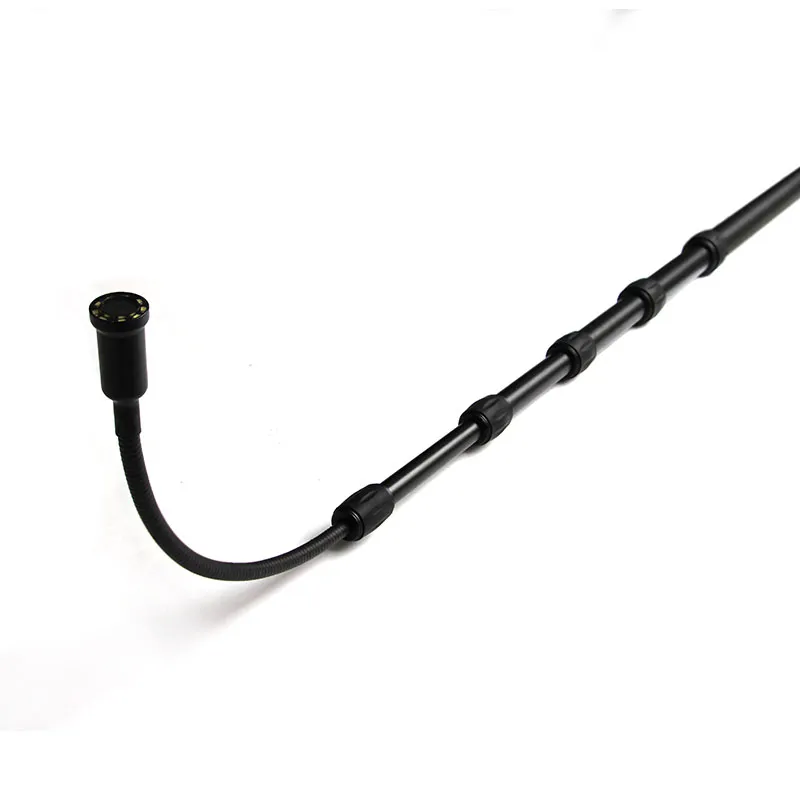

Light source	9pcs LEDs controlled on DVR
Audio monitor range	300 square meter
Pole style	Telescopic pole
Pole Length	LD80: Fold 1.6m, Unfold 8m / LD80L: Fold 1.95m, Unfold 10m

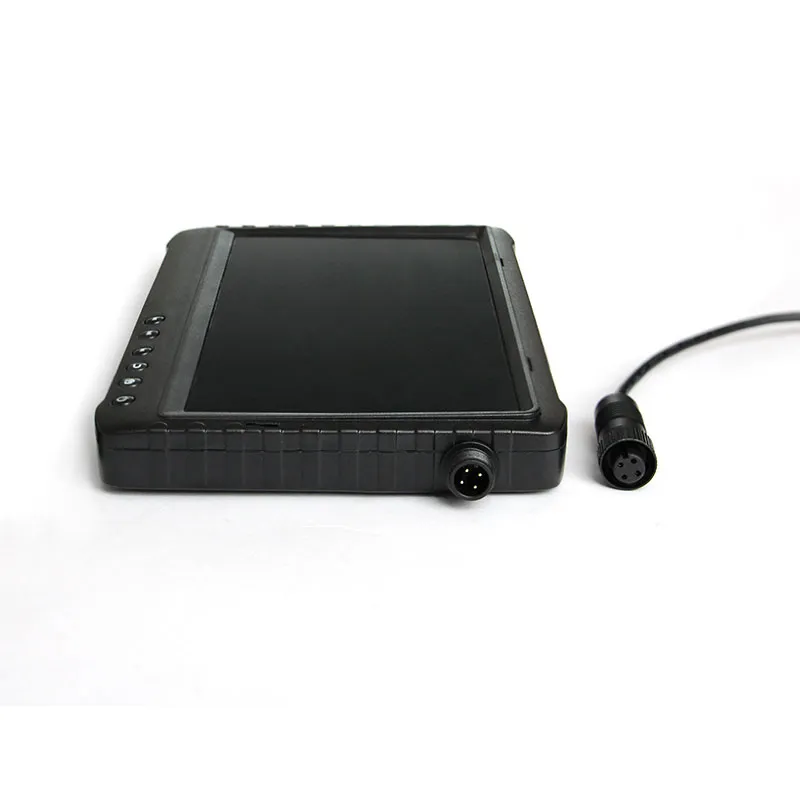

DVR resolution	800 X 480 Pixel 7 inch
Video Storage Pixels	1920 * 1080 (16:9)
Video Compression	H.264 / AVI
Built-in battery	7500mAh Li-battery

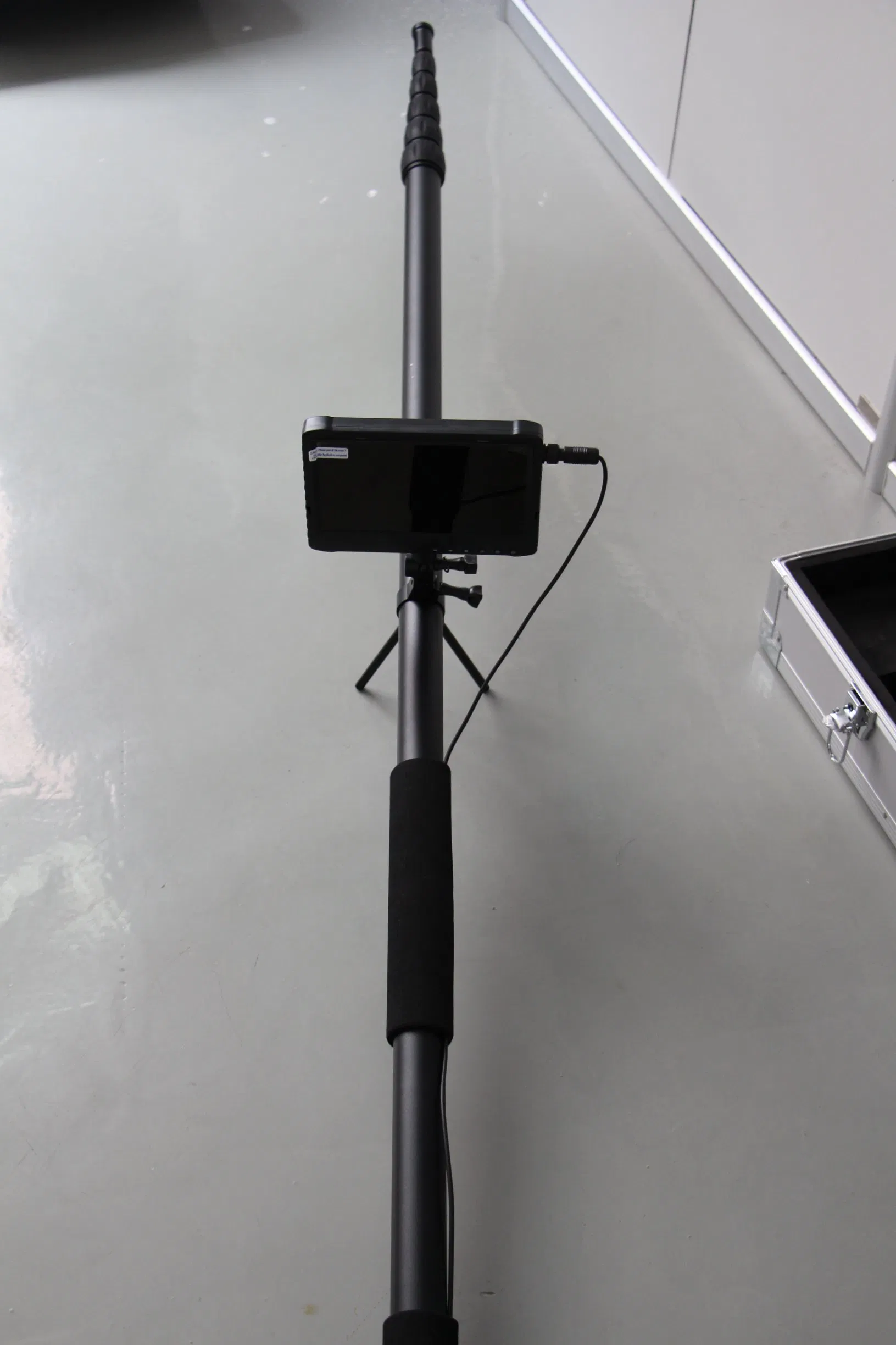

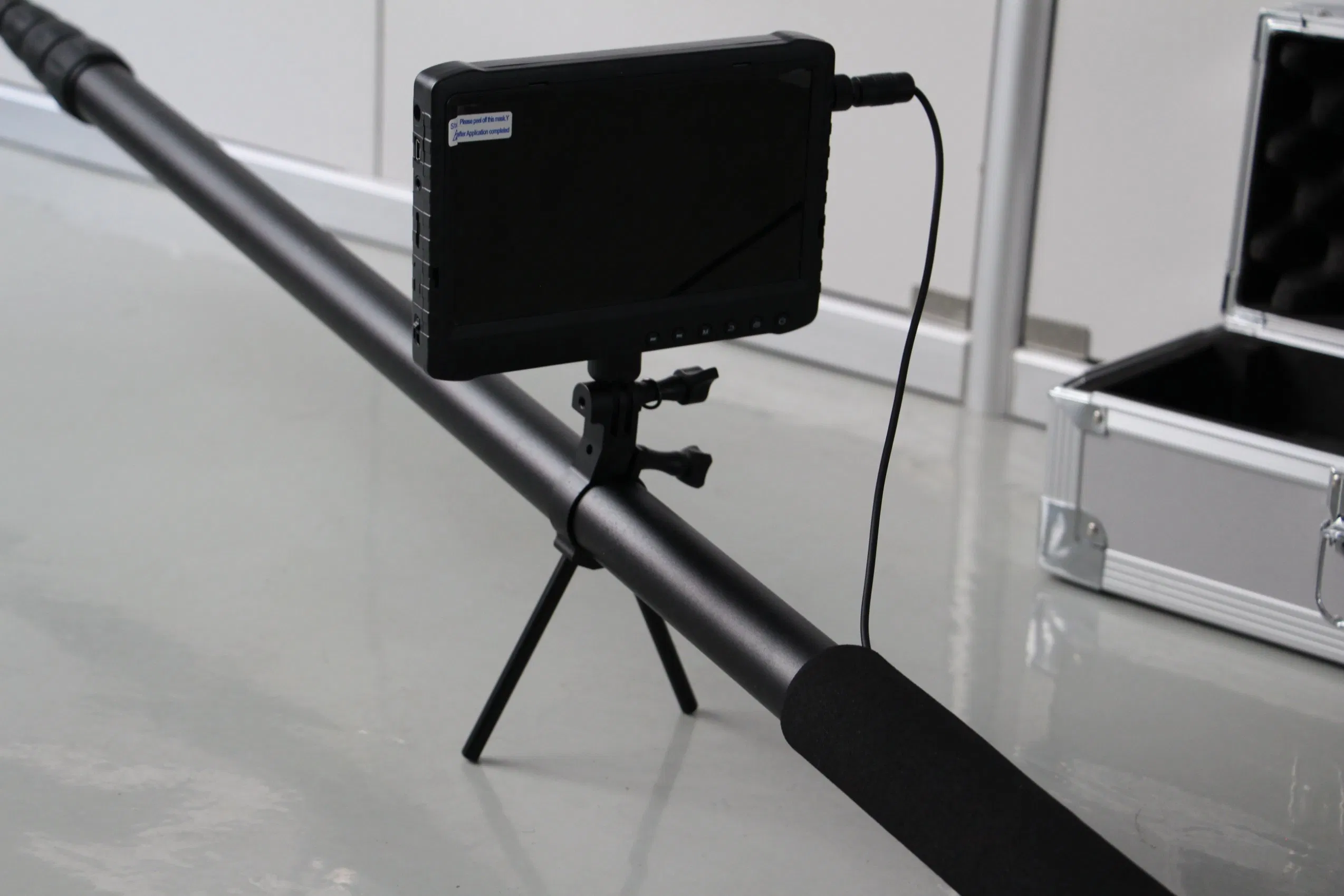

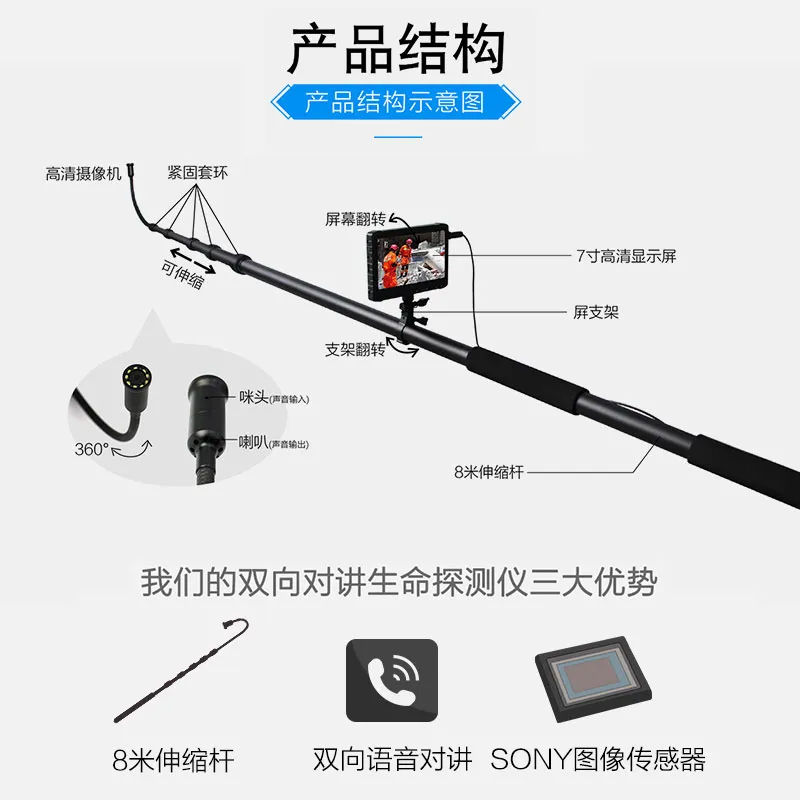

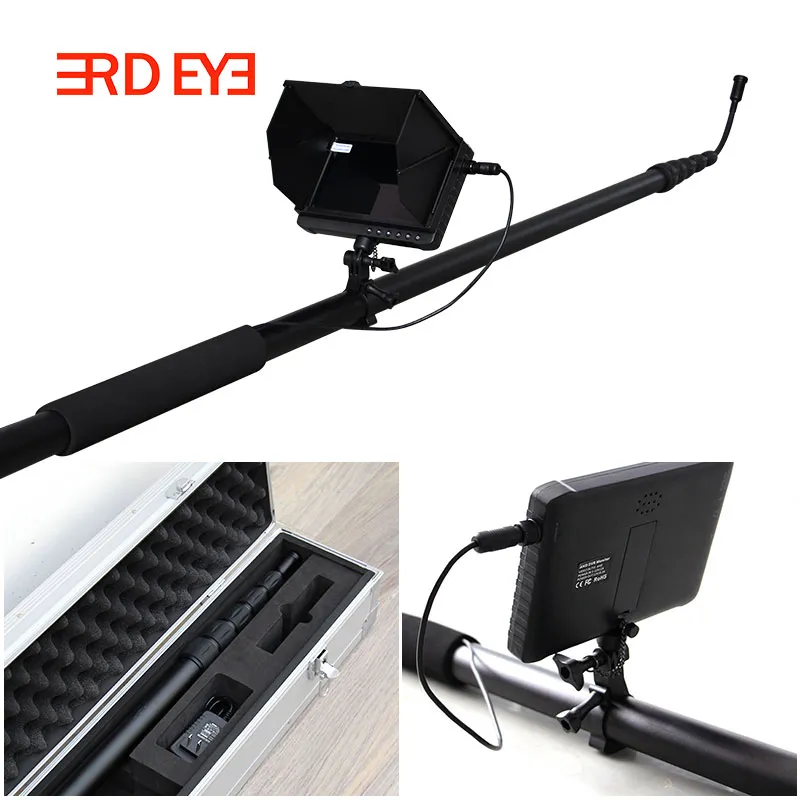

Detailed Views

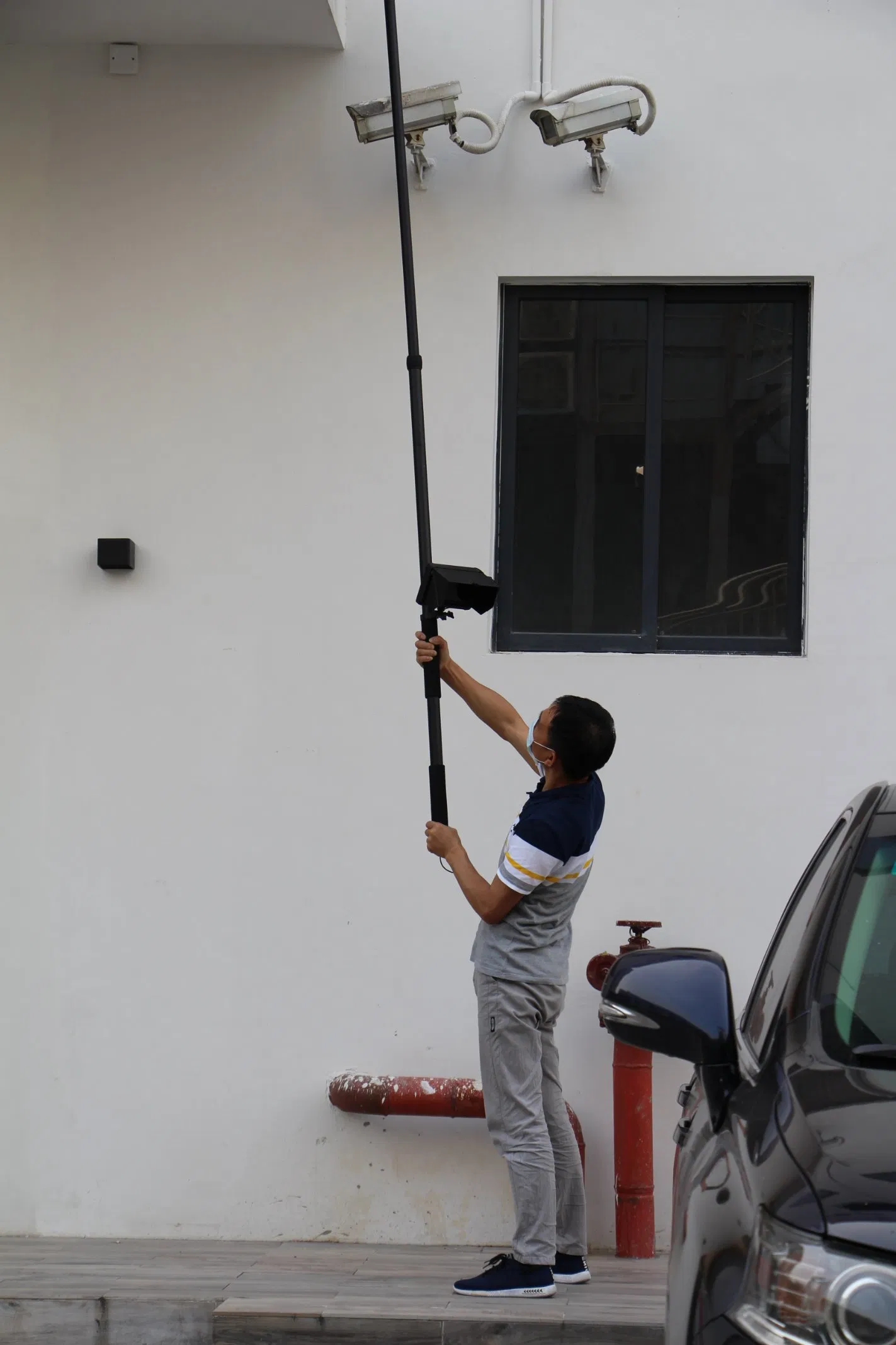

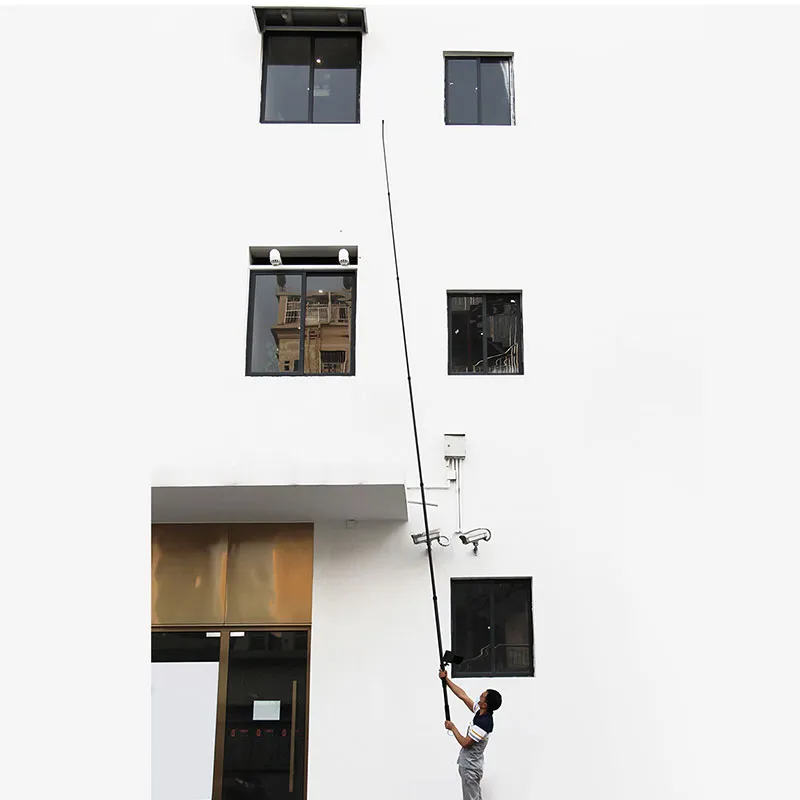

Wide Range of Applications

Underwater boat/structure surveys
Underwater wildlife inspection
Drain and sewer checking
Roof or gutter surveys
Harbour wall or pontoon inspections
Finding and recovering lost tools

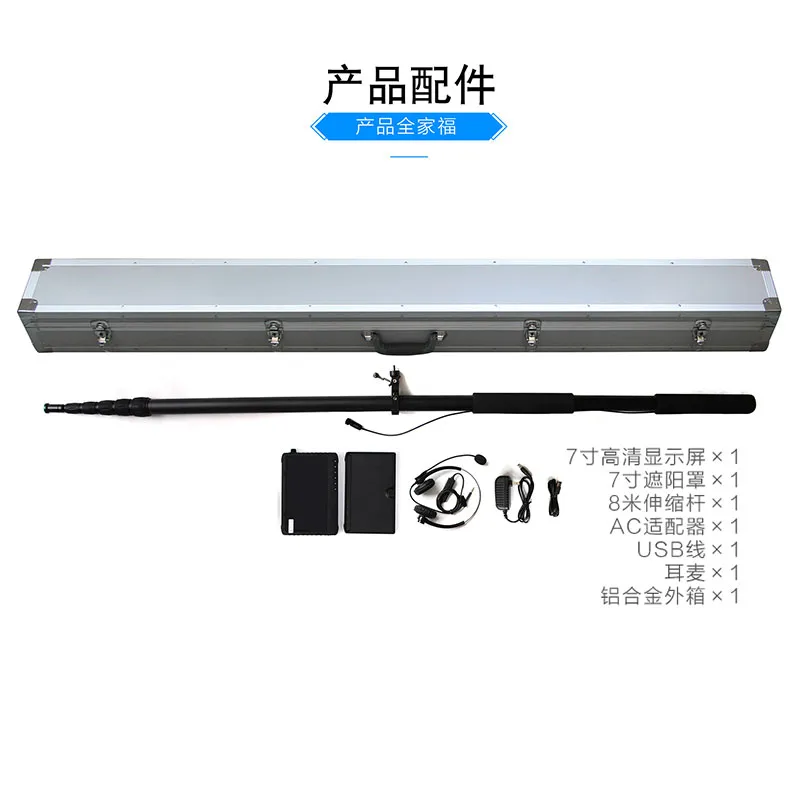

Package Contents

- 1 *8m Telescopic Rescue Camera

- 1 *7 inch Monitor with Sunshade

- 1 *AC Adapter

- 1 *User Manual

- 1 *Aluminium Alloy Case

Frequently Asked Questions

What is the maximum reach of the telescopic pole?

The HD80 model features an 8-meter (approx. 26 feet) telescopic pole, while the HD80L version extends up to 10 meters.

Is the camera head waterproof for underwater use?

Yes, the camera system is designed with an IP68 waterproof rating, making it suitable for underwater inspections, sewers, and drains.

How long does the battery last on a full charge?

The system is equipped with a high-capacity 7500mAh Li-battery, providing ample power for extended field inspection tasks.

Can I record audio along with the video?

Yes, the system includes an audio monitor range of approximately 300 square meters and a built-in 1W speaker for playback.

What kind of storage does the DVR use?

The 7-inch DVR monitor supports external TF (Micro SD) cards ranging from 2GB up to 128GB for storing photos and videos.

Does the system come with a carrying case?

Yes, the complete system is delivered in a professional, durable Aluminium Alloy case for safe transport and storage.
