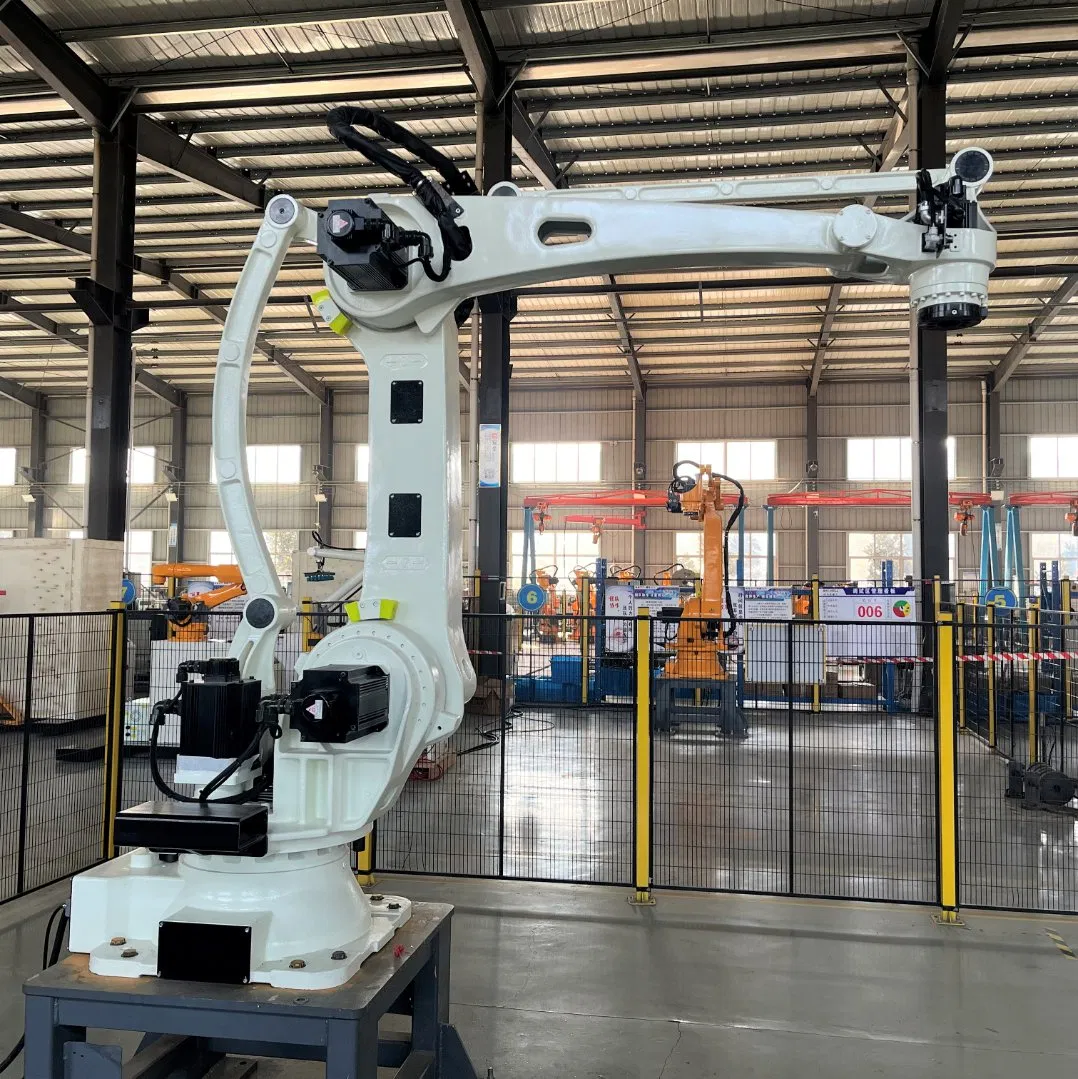

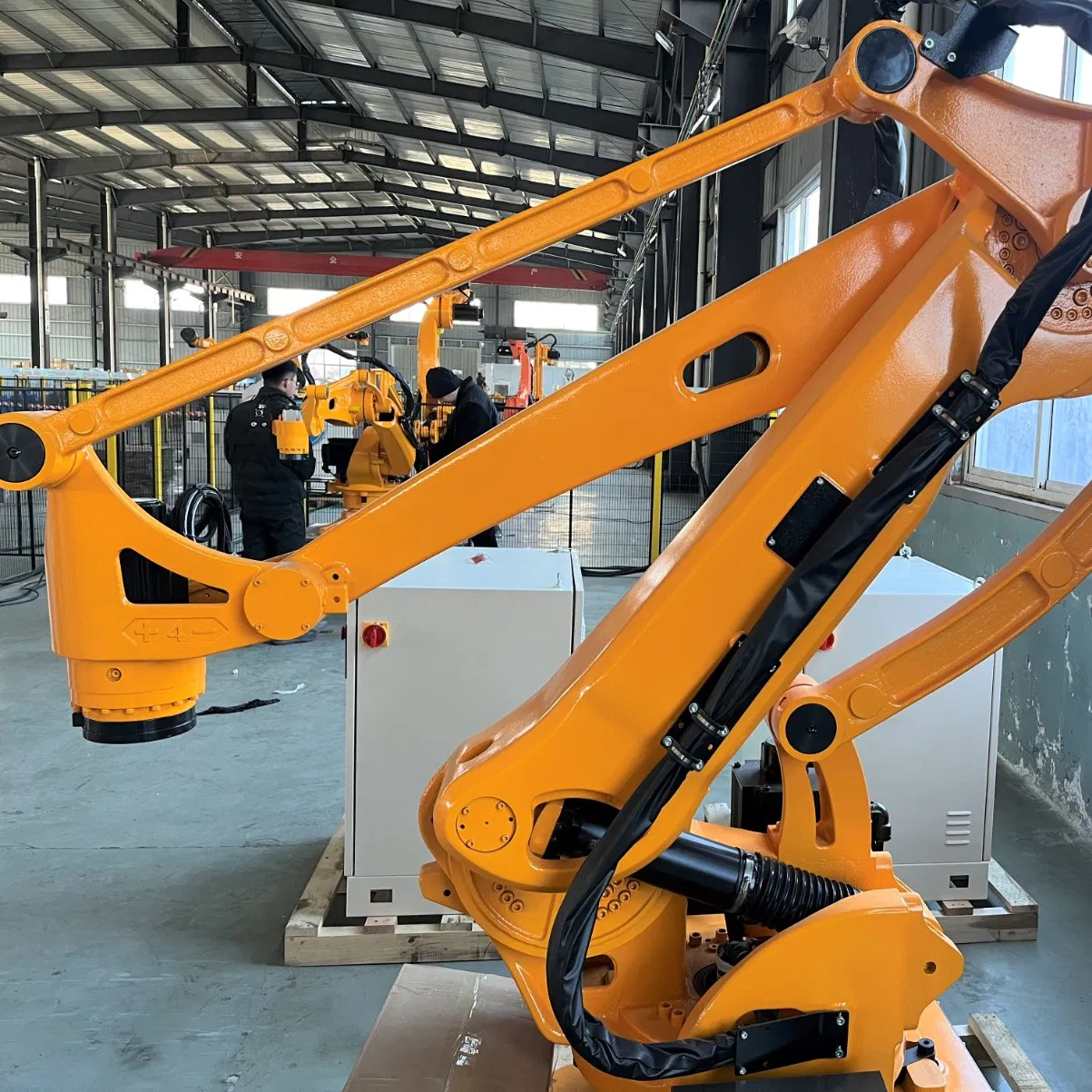

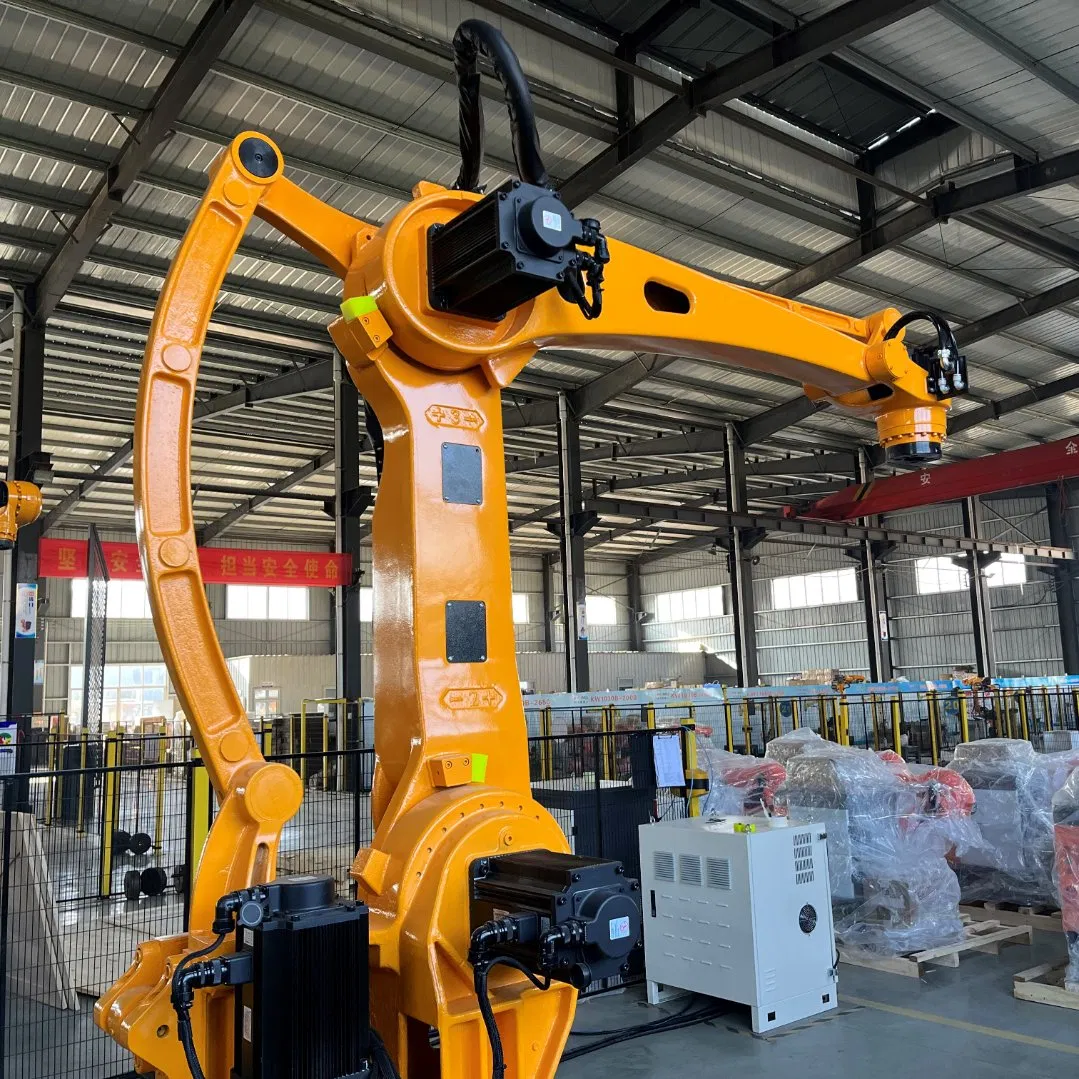

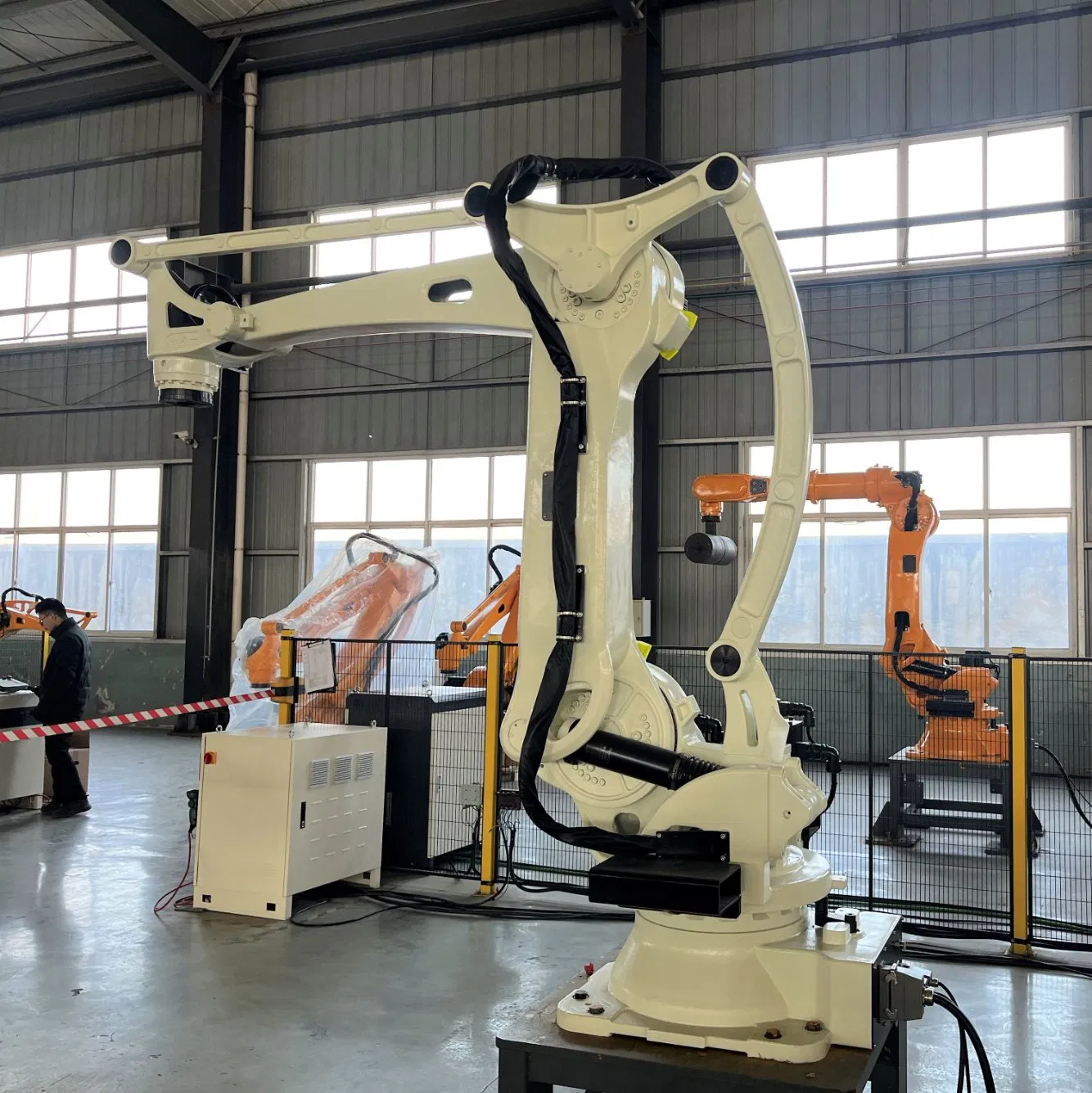

Full-Automatic Industrial Programmable Intelligent Large Payload Palletizing Robot

Customization: Available
Application: Automotive, Food and Beverage, Logistics, Pharmaceutical, Palletizing, Handling, Loading and Unloading
Control Mode: Continuous Path Control

Product Description

Basic Specifications
Model NO.
KW1180M-3200
Degrees of Freedom
4-axis
Drive Mode
Electric
Payload Capacity
180kg
Condition
New
Certification
ISO, CE
Warranty
1 Year
Production Capacity
2000 Sets/Month
Product Description
High Load Capacity: The 180kg payload handles heavy items like large bags, boxes, and barreled products across chemical, food, and logistics industries.
Long Arm Span Design: A 3200mm arm span covers extensive working areas, improving efficiency and reducing the need for equipment intervention.
Automatic Palletizing: Precisely moves products from production lines to stacking areas with high-speed automated procedures.
Adaptive Grasping: Equipped with vacuum cups or mechanical fixtures to handle various materials without damage.
Intelligent Control: Advanced scheduling and real-time monitoring through sensors ensure safe and stable operation.
Detailed Photos

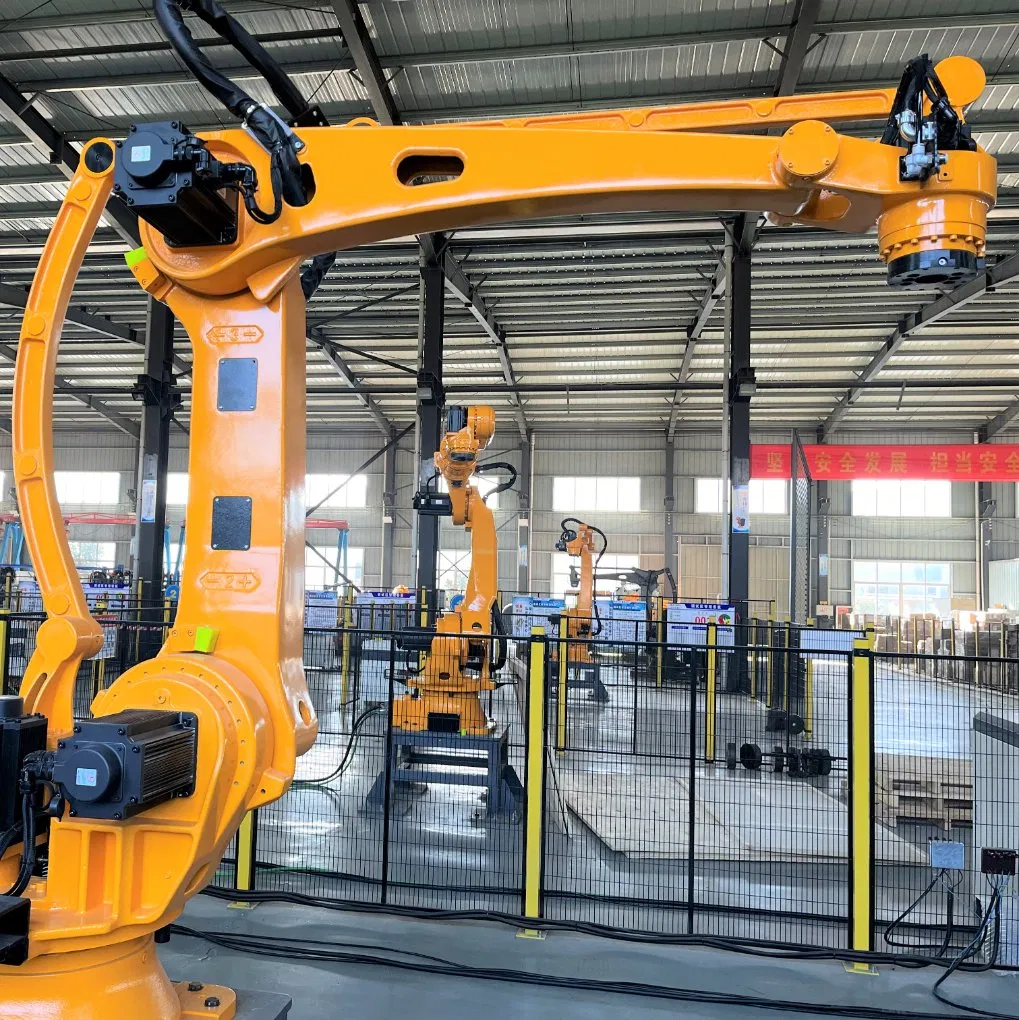

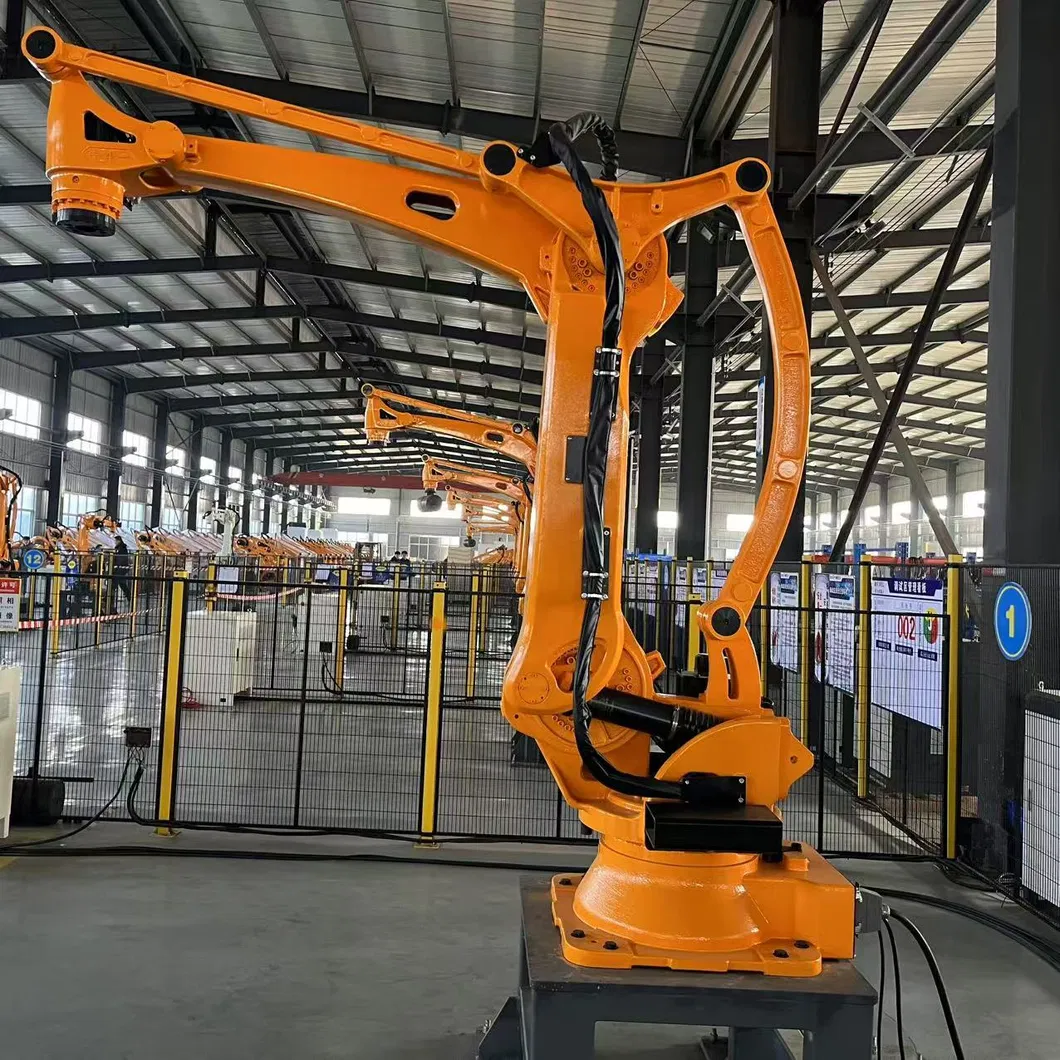

Palletizing Robot View 1

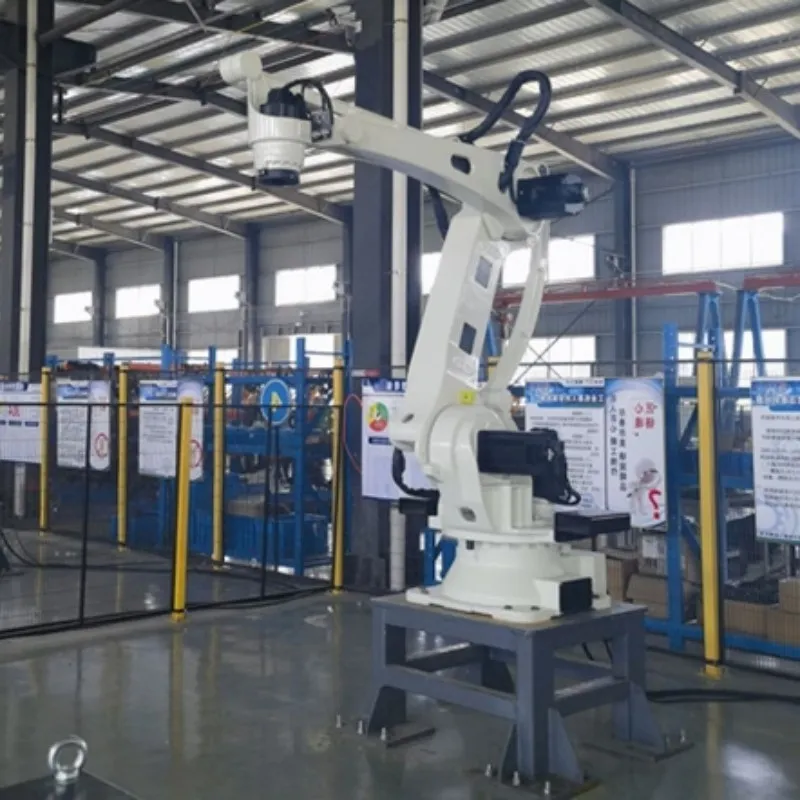

Palletizing Robot View 2

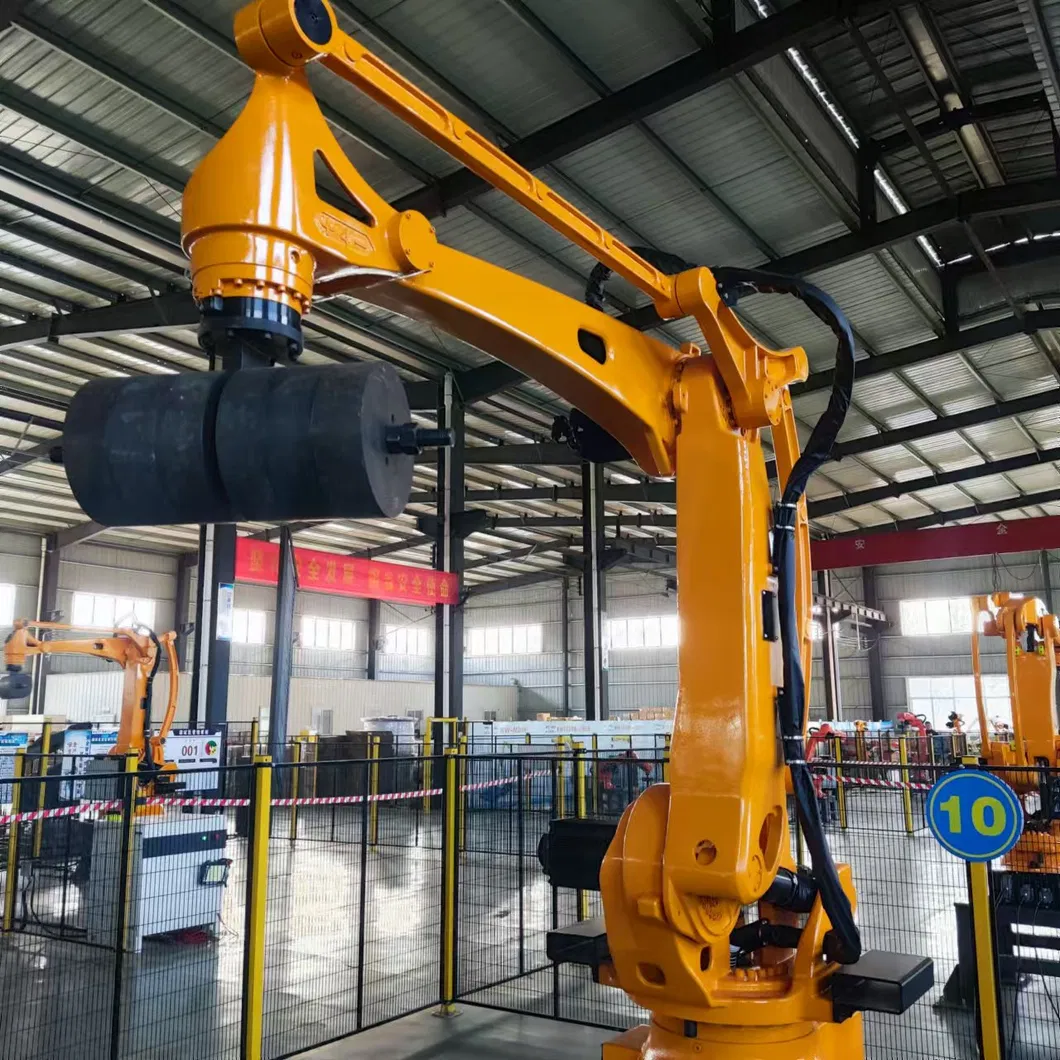

Palletizing Robot View 3
Technical Parameters
Model Max Handling Weight Type Power Capacity Body Weight Installation
KW1180M-3200 180KG 4 Degrees of Freedom 11KVA 1150KG Ground
Operating Environment: 0-45ºC, 20-80%RH | Protection Level: Equivalent to IP54
Certifications & Honors
Qualification and Honor

Qualification and Honor

Packaging & Shipping
Wooden Case Packaging

Robust wooden case protection

Shipping Logistics

Efficient and reliable delivery

Installation Guide

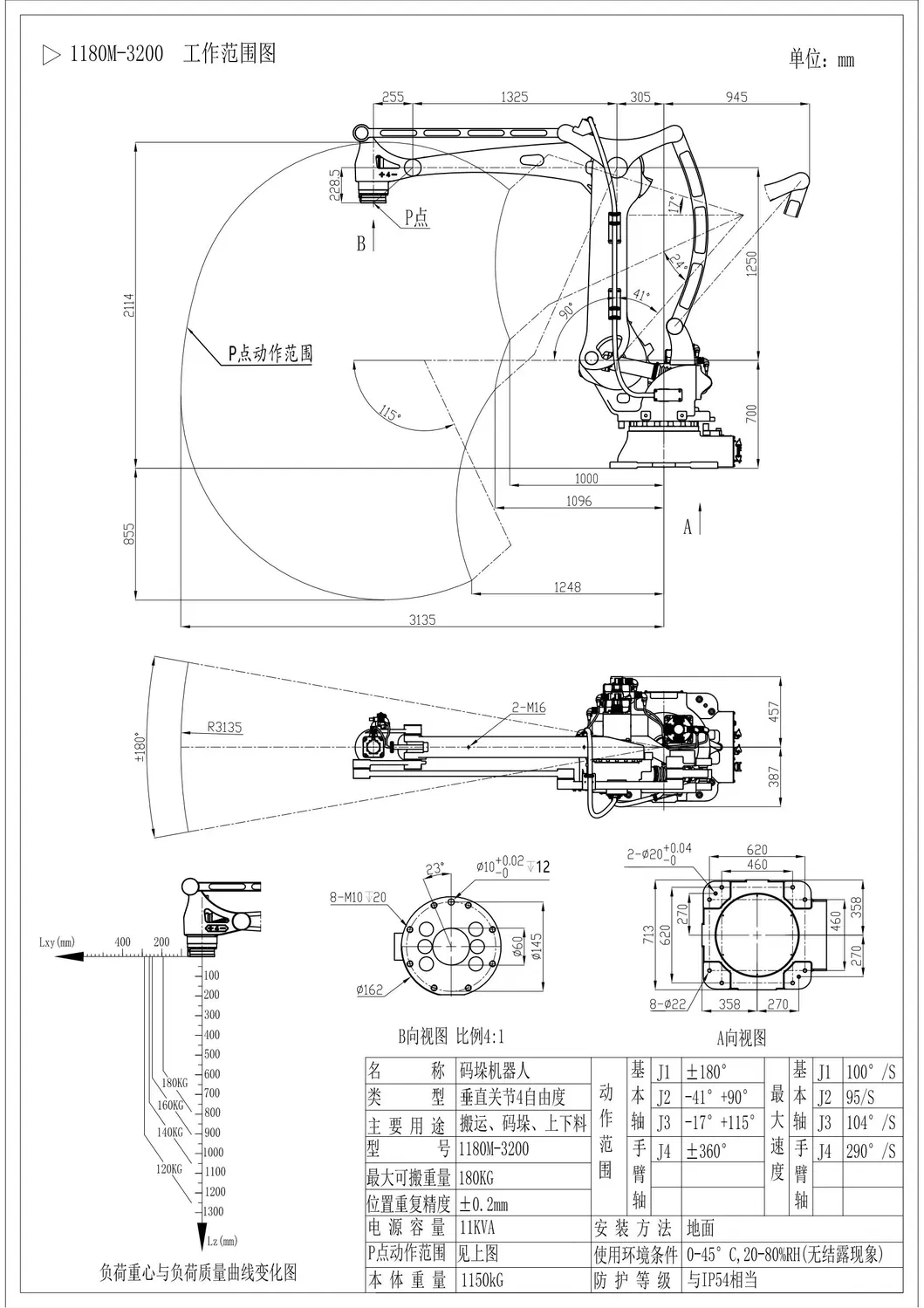

Installation Method

Installation Method: Ground Mounting

Professional Expertise

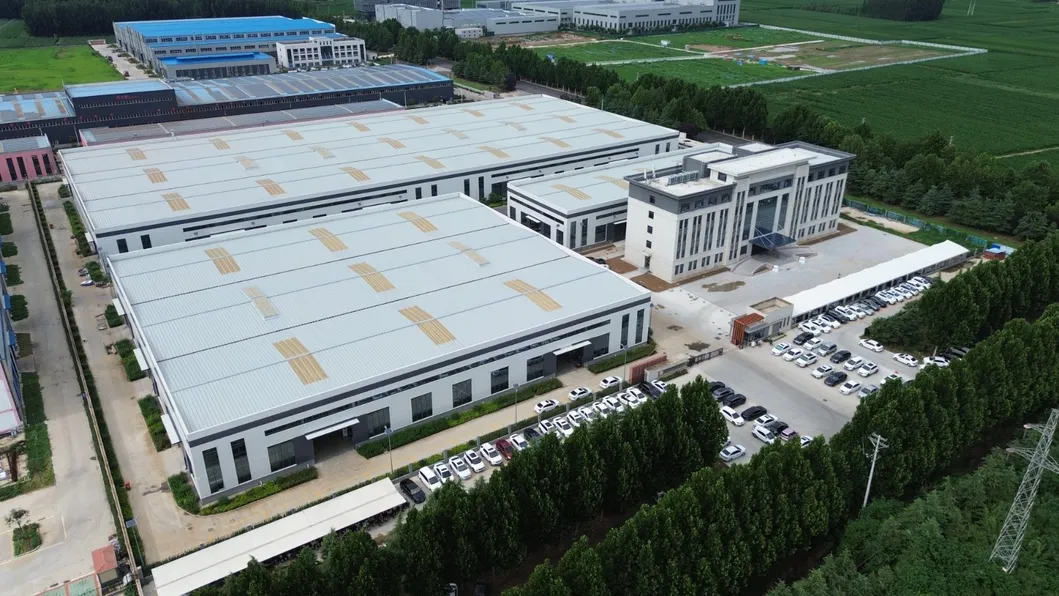

Company overview image

As a high-tech enterprise integrating product research, development, production, and sales, our focus remains on industrial robot palletizing machines, automatic loading, winding, and sealing equipment. Our solutions are widely used in electric power, chemical, food, metallurgy, and petrochemical sectors globally, with successful deployments in Southeast Asia, Korea, and Africa.

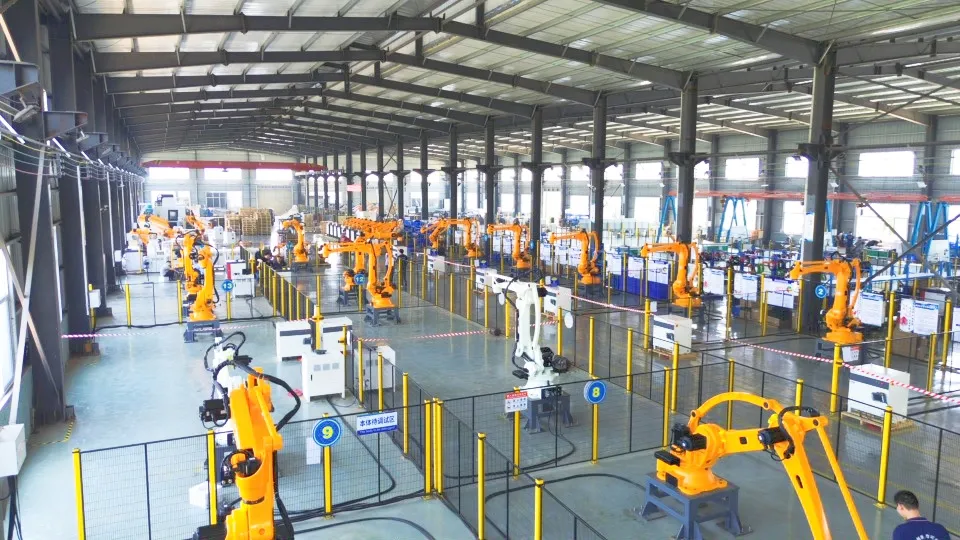

Team Advantage

Our dedicated engineering team brings together experts in mechanical, automatic control, and computer engineering. We emphasize "Sincere Cooperation, Customer First" and strive for continuous innovation to maintain industry leadership in product quality and technical advancement.

Frequently Asked Questions
What is the maximum payload of the KW1180M-3200 robot?
The robot is designed to handle a maximum payload of 180kg, making it suitable for heavy-duty industrial tasks.
What is the working range or arm span of this robot?
This model features a 3200mm arm span, allowing for extensive coverage and flexibility in large palletizing areas.
Which industries can benefit from this palletizing robot?
It is ideal for the food and beverage, chemical, logistics, and general manufacturing industries for handling bags, boxes, and barrels.
Does the robot support different types of grasping tools?
Yes, the adaptive grasping system can be equipped with various grippers, including vacuum cups and mechanical fixtures, depending on the product type.
What certifications does the product carry?
The robot is fully compliant with ISO and CE international standards, ensuring high safety and quality.
What is the protection level for this industrial robot?
The equipment features a protection level equivalent to IP54, providing reliable operation in standard industrial environments.
