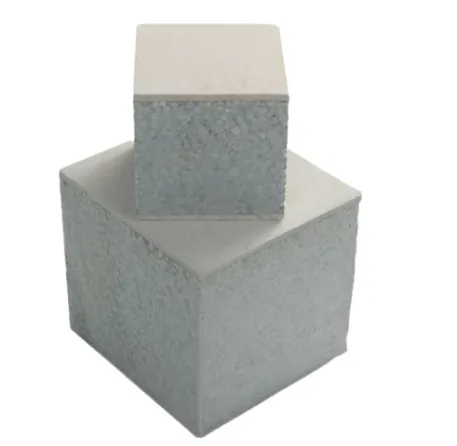

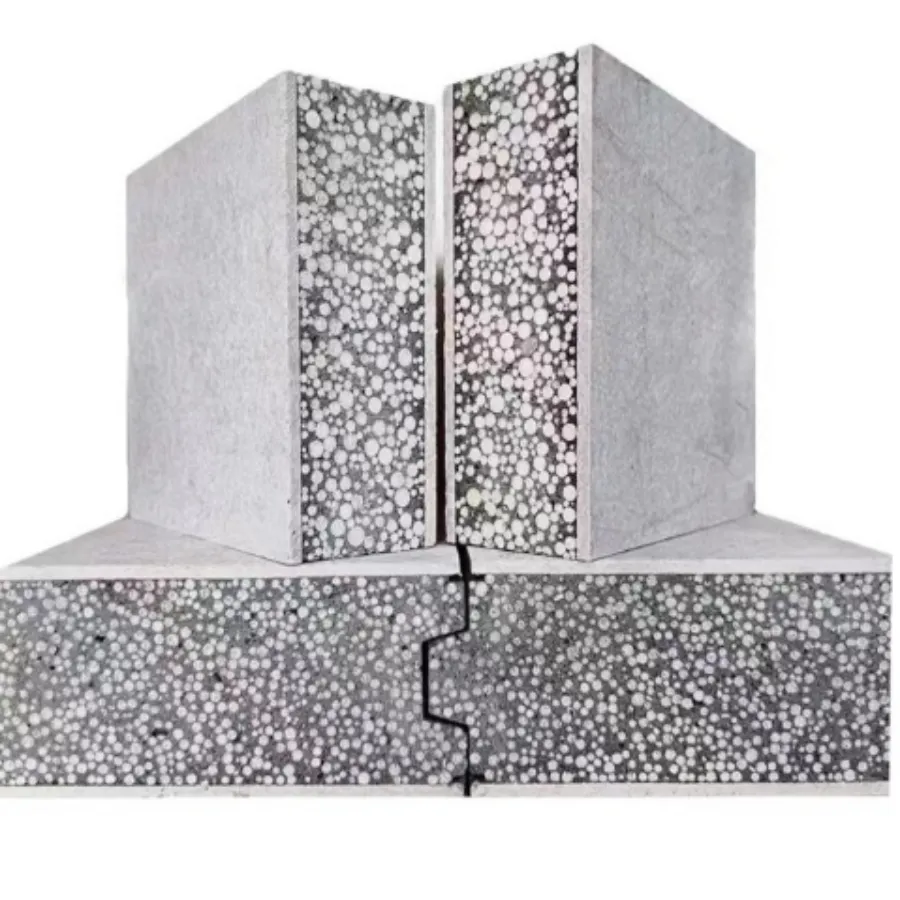

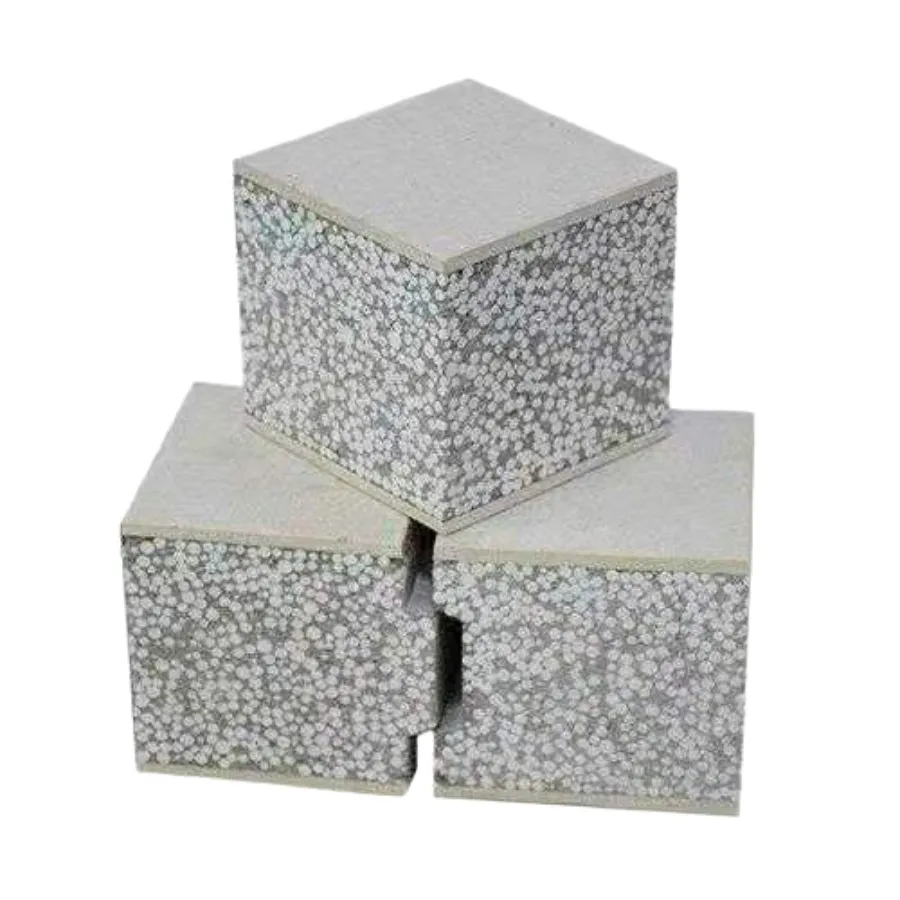

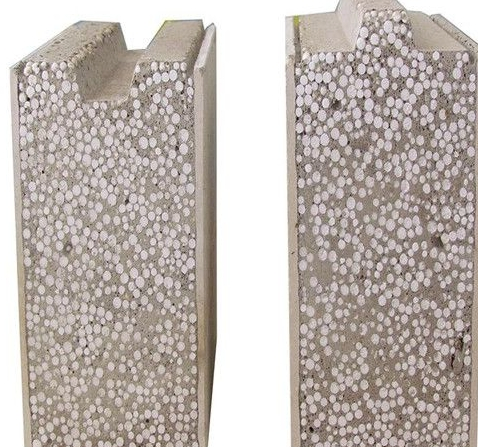

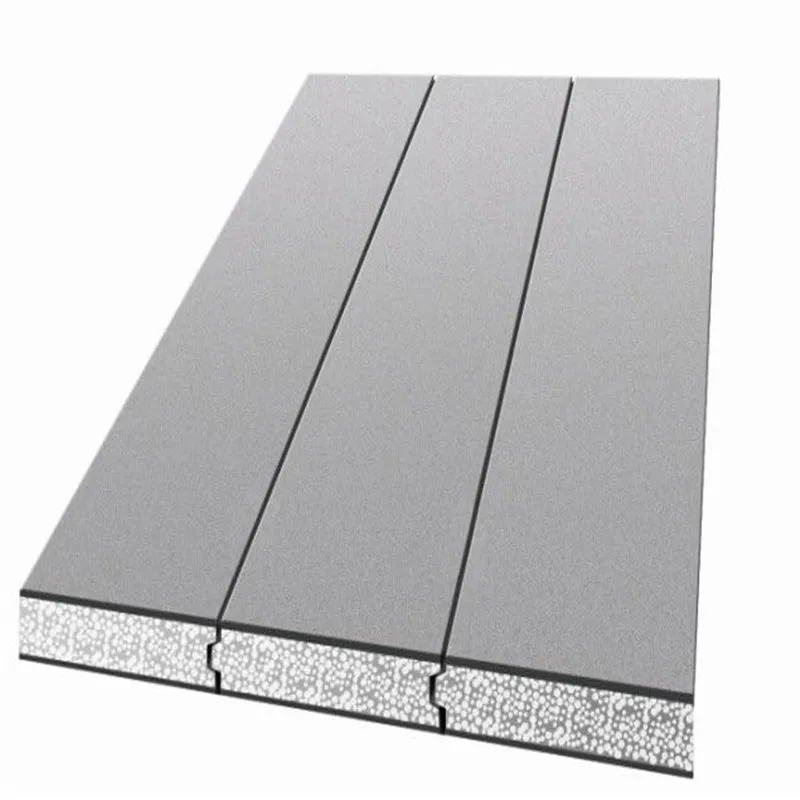

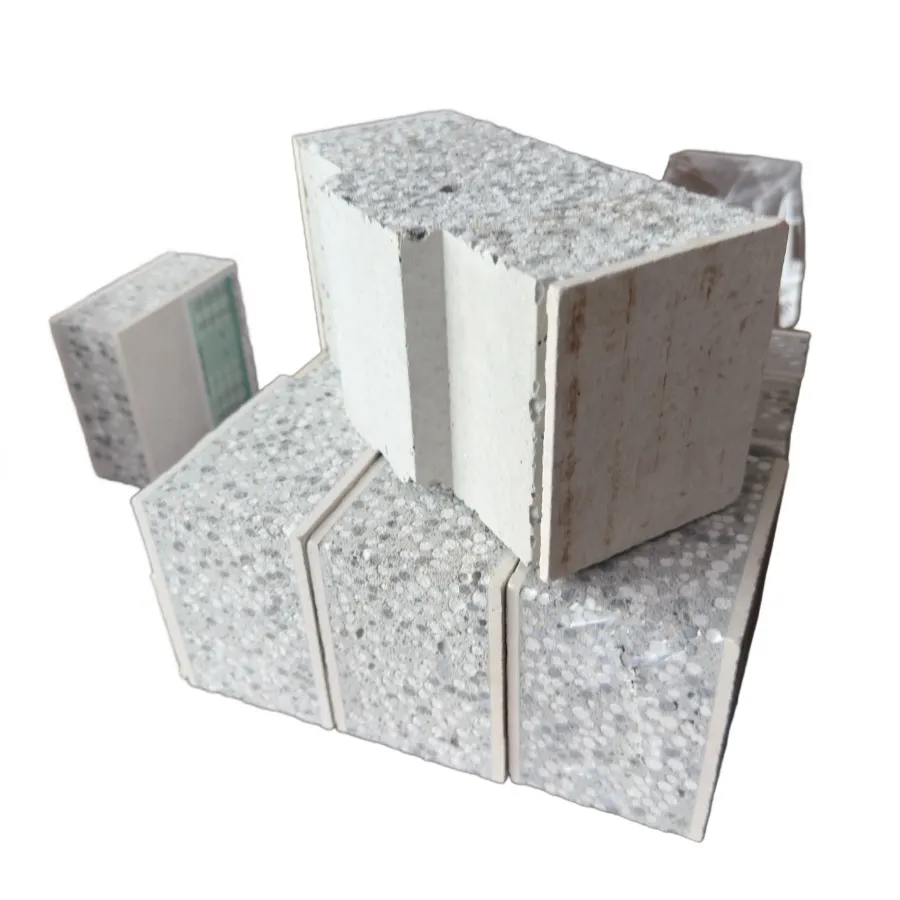

EPS Cement Sandwich Panel (also known as EPS Core Sandwich Panel or Lightweight Insulated Wall Panel) is a high-performance prefabricated building material composed of fiber-reinforced cement boards for structural strength and an Expanded Polystyrene (EPS) foam core for superior thermal insulation.
| Parameter | Value / Description | Testing Standard |
|---|---|---|
| Panel Thickness | 50mm - 200mm (customizable) | ASTM C1289 |
| Panel Size | 610mm × 2440mm (standard) | ISO 8335 |
| Thermal Conductivity | 0.033-0.038 W/(m·K) | ASTM C518 |
| Fire Rating | Class A (Non-combustible) | ASTM E84 |
| Sound Insulation | 40-45 dB (100mm panel) | ISO 10140 |
| Weight | 15-25 kg/m² | - |

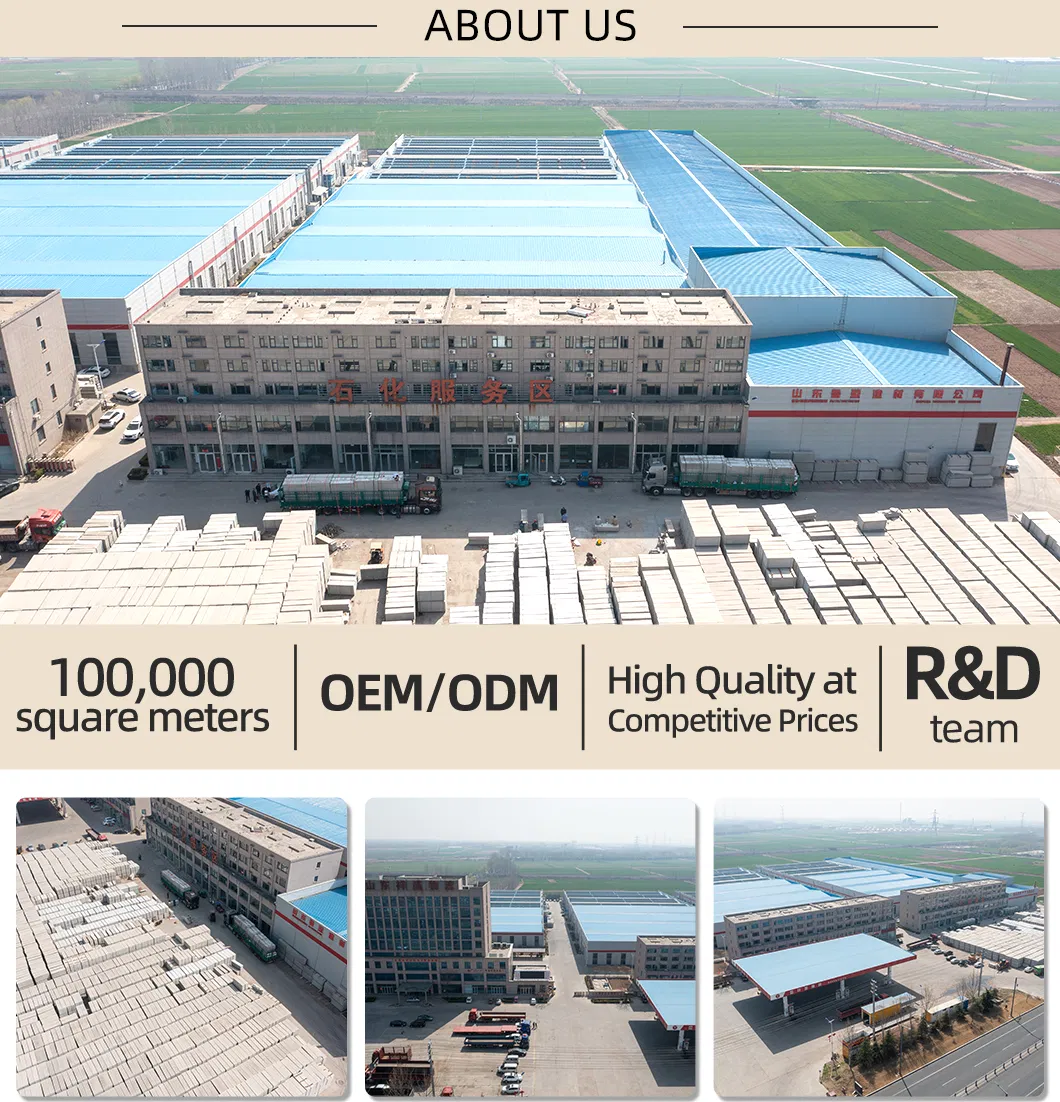

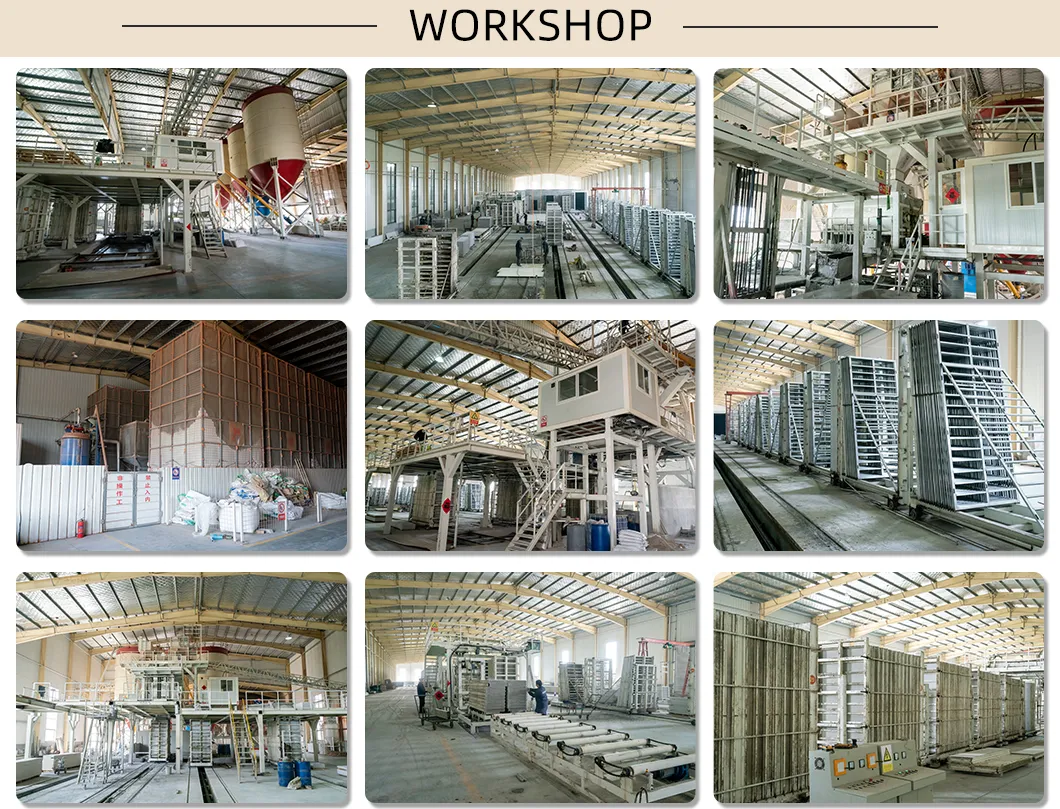

We are a high-tech enterprise specializing in green, energy-saving wall materials. With a modern 20,000 sqm facility and an annual capacity exceeding 1 million sqm, we provide comprehensive wall system solutions globally.
ISO 9001, CE, SGS, ASTM, EN standards. Green Building Certifications.

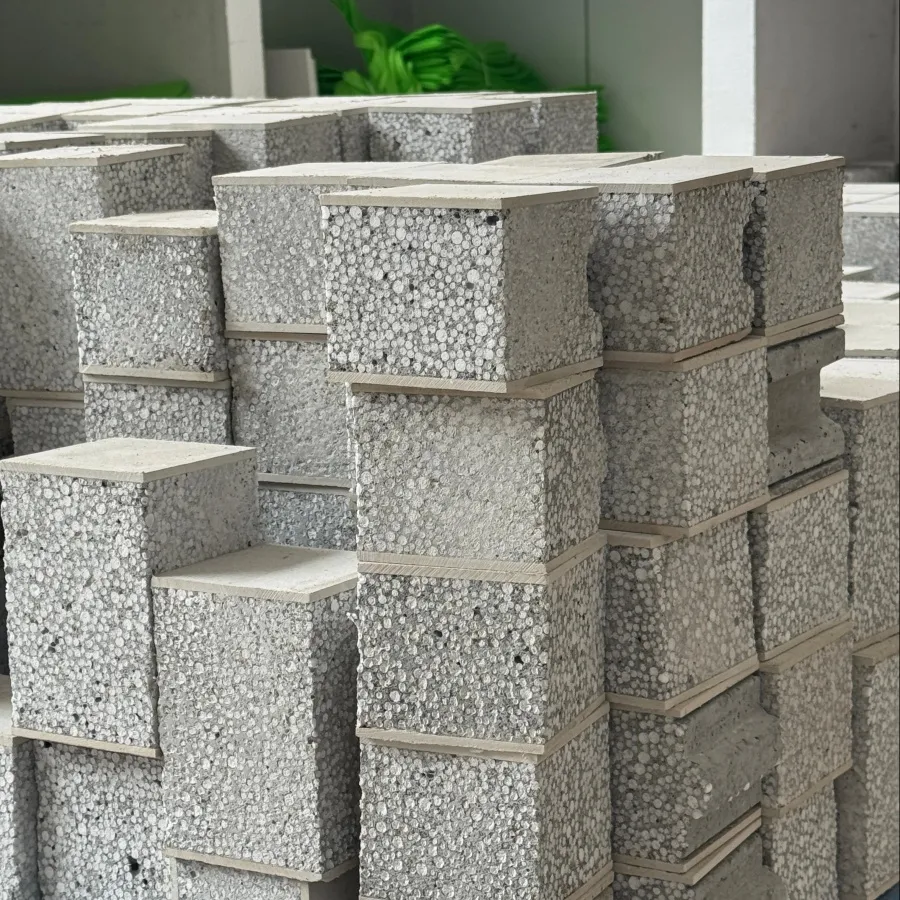

They are 1/10 the weight of traditional brick walls, offering Class A fire resistance, superior thermal insulation (0.033 W/m·K), and rapid modular installation which significantly reduces labor costs.
Yes. The flexible EPS core combined with the high-strength cement facings allows the panels to absorb vibrations effectively, making them ideal for earthquake-prone areas.
With proper installation and routine maintenance, EPS cement sandwich panels have a service life of over 50 years.
Yes. The cement surface provides excellent waterproofing, and the closed-cell structure of the EPS core ensures extremely low water absorption, preventing mold growth.
Absolutely. We offer custom thicknesses (50-200mm) and lengths (up to 3000mm). Surfaces can also be finished with various coatings or textures like stone and wood grain.
A standard 100mm panel provides sound insulation of 40-45 dB, which meets or exceeds general residential and commercial building requirements.
