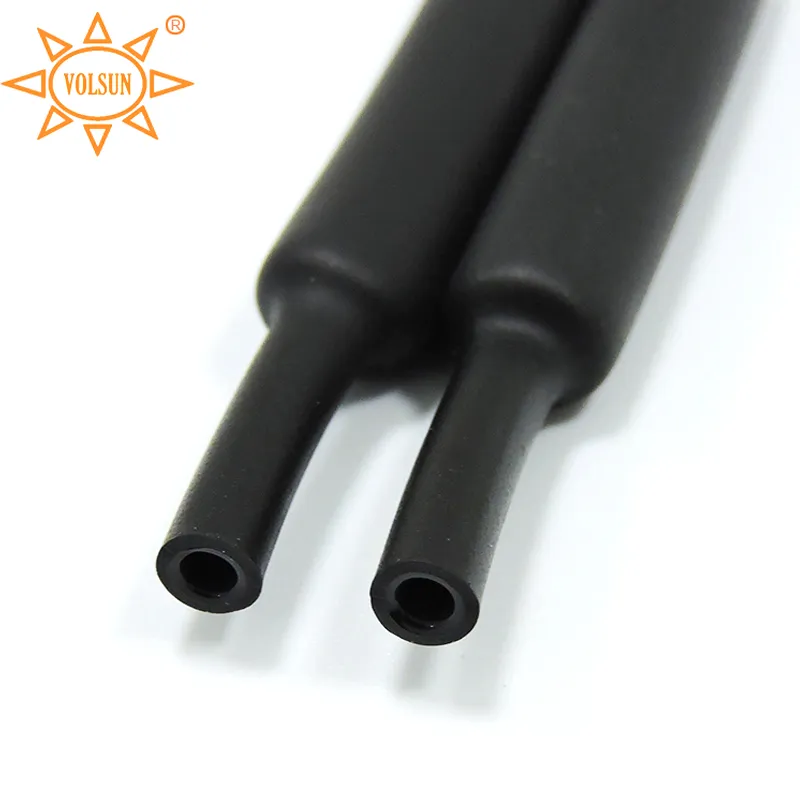

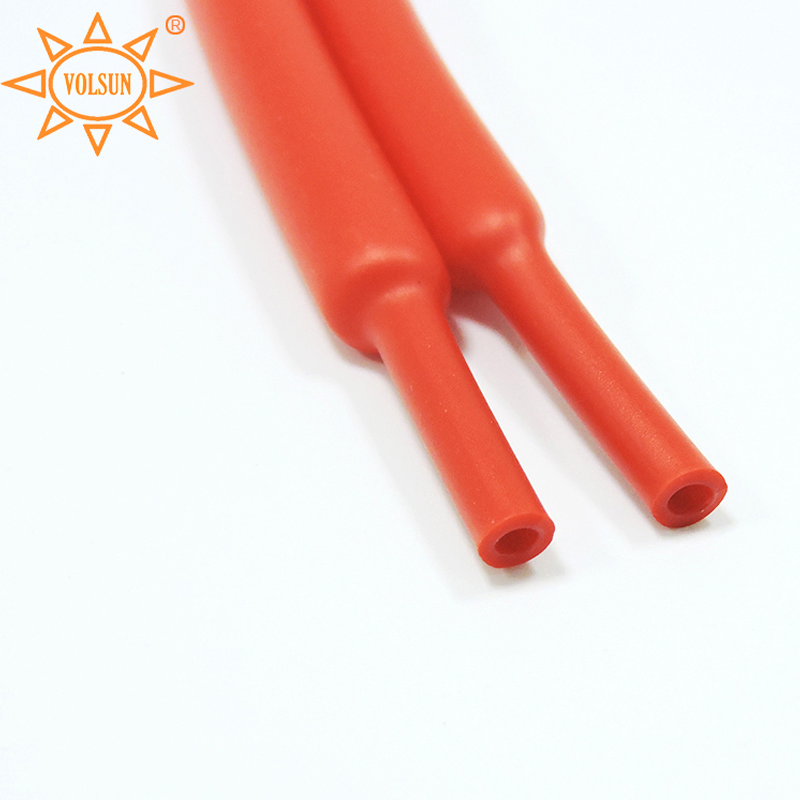

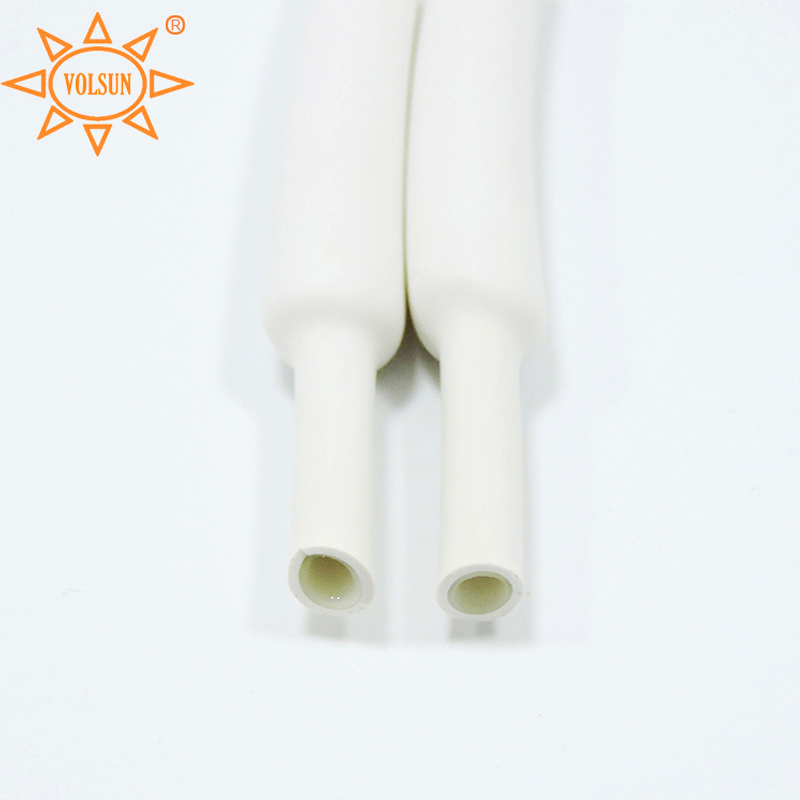

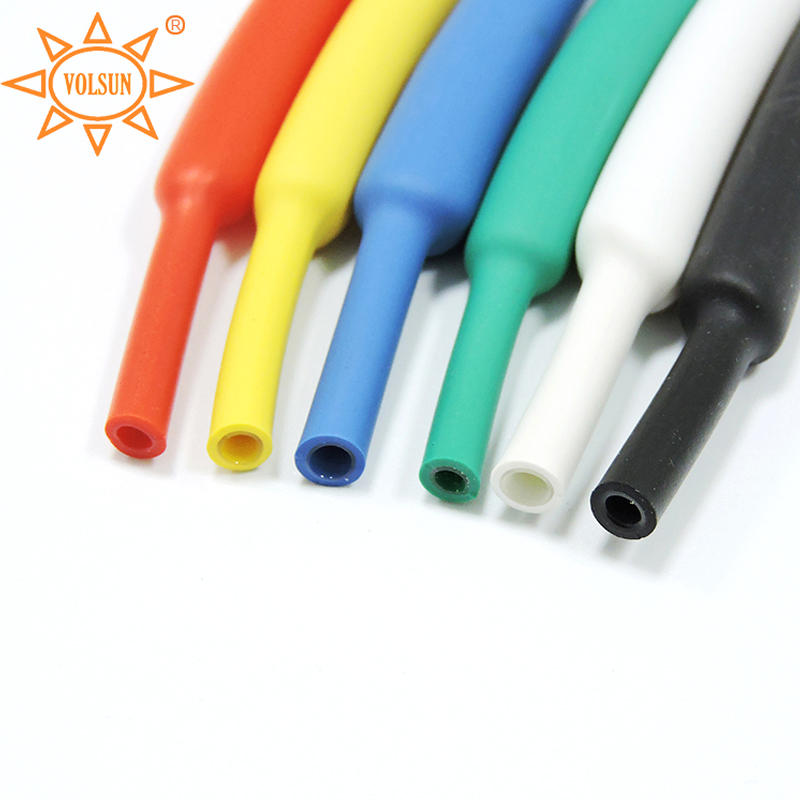

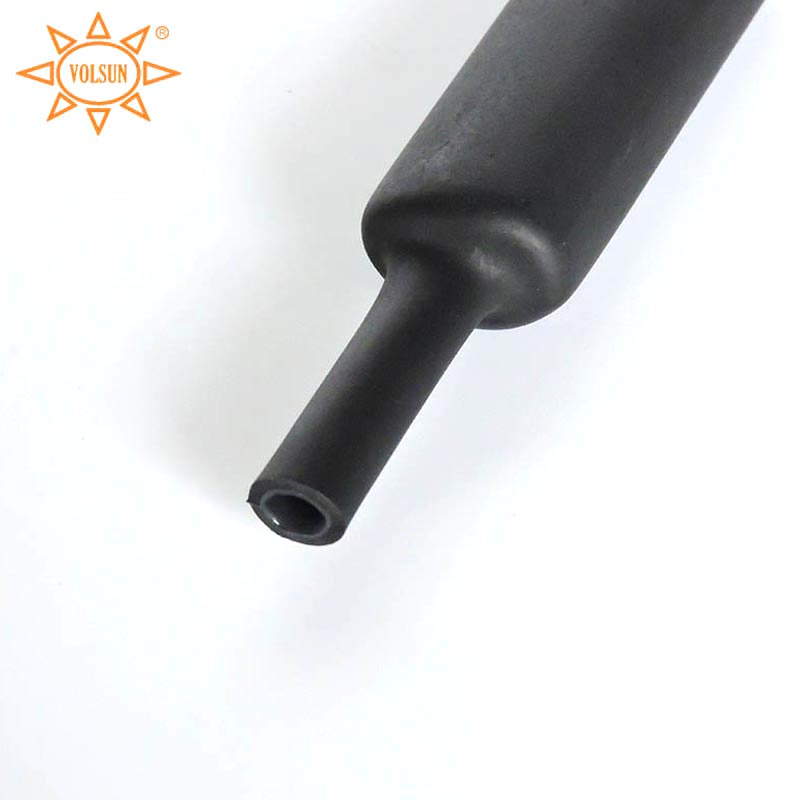

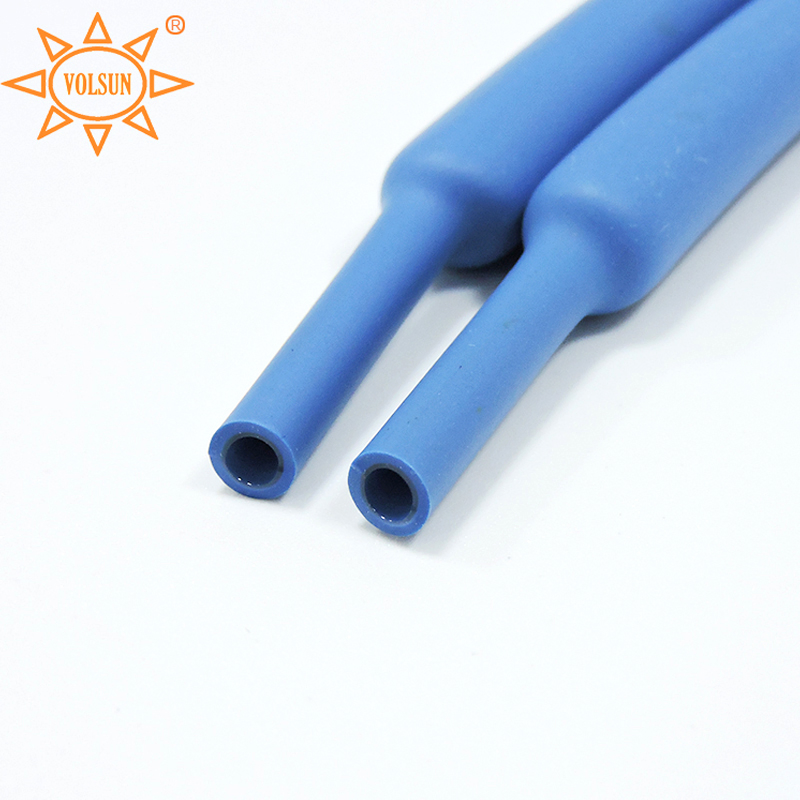

Automotive Insulation Heat Shrink Tube (SBRS-125H)
Made of radiation cross-linked polyolefin, this tube possesses excellent physicochemical and electrical properties. It is designed to reliably insulate cable and wire splices, protect soldered joints, and provide robust mechanical protection for wire harnesses across electronic, communications, automotive, shipping, and aircraft manufacturing industries.
| Size (mm) | Expanded ID (mm) | Recovered ID Max (mm) | Recovered Wall Min (mm) | Standard Package (m/spool) |
|---|---|---|---|---|
| φ1.0/0.65 | 1.5±0.2 | ≤0.65 | 0.36±0.10 | 400 |
| φ5.0/2.50 | 5.5±0.2 | ≤2.50 | 0.56±0.10 | 200 |
| φ10/5.00 | 10.5±0.3 | ≤5.00 | 0.56±0.10 | 100 |
| φ20/10.0 | 22.0±0.5 | ≤10.0 | 0.80±0.15 | 100 |
| φ50/25.0 | ≥50 | ≤25.0 | 1.10±0.15 | 25 |
| Size (mm) | Size (Inch) | Expanded ID (mm) | Recovered ID Max (mm) | Recovered Wall Min (mm) |
|---|---|---|---|---|
| φ3.0/1.0 | 1/8 | ≥3.00 | ≤1.0 | ≥0.55 |
| φ6.0/2.0 | 1/4 | ≥6.00 | ≤2.0 | ≥0.65 |
| φ12/4 | 1/2 | ≥12.00 | ≥4.00 | ≥0.80 |

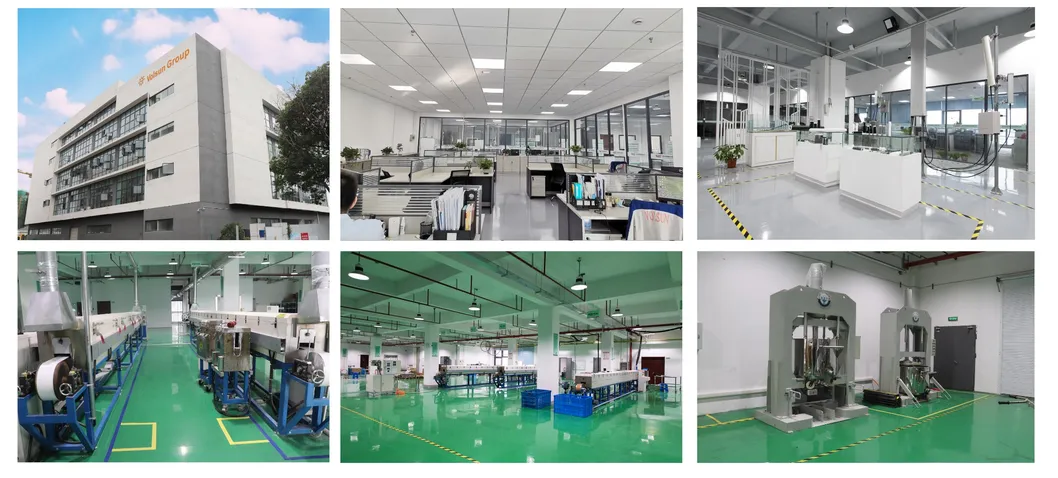

With over 17 years of focus on R&D, production, and sales of insulation and sealing solutions, we maintain a culture of quality. Our modern management systems are certified under IATF16949 and ISO9001. We hold independent intellectual property rights with 88 patents and 97 product certifications.
