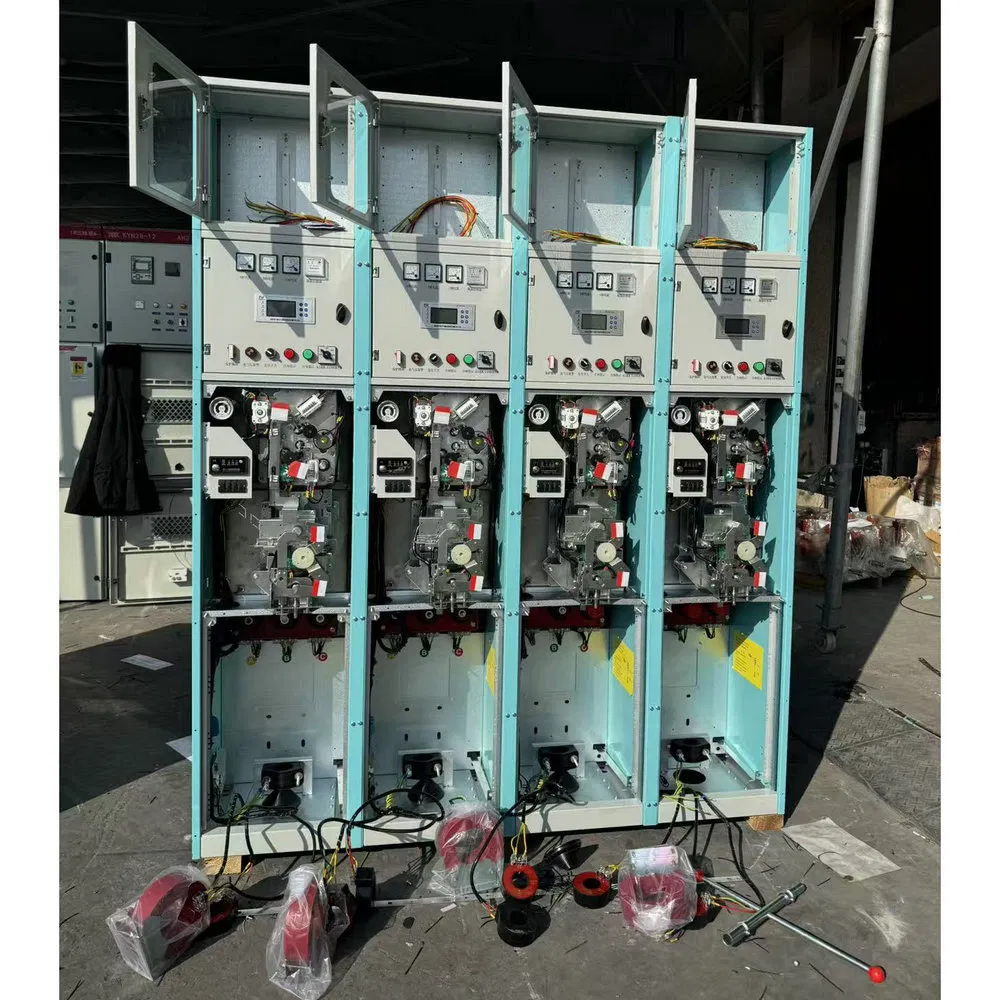

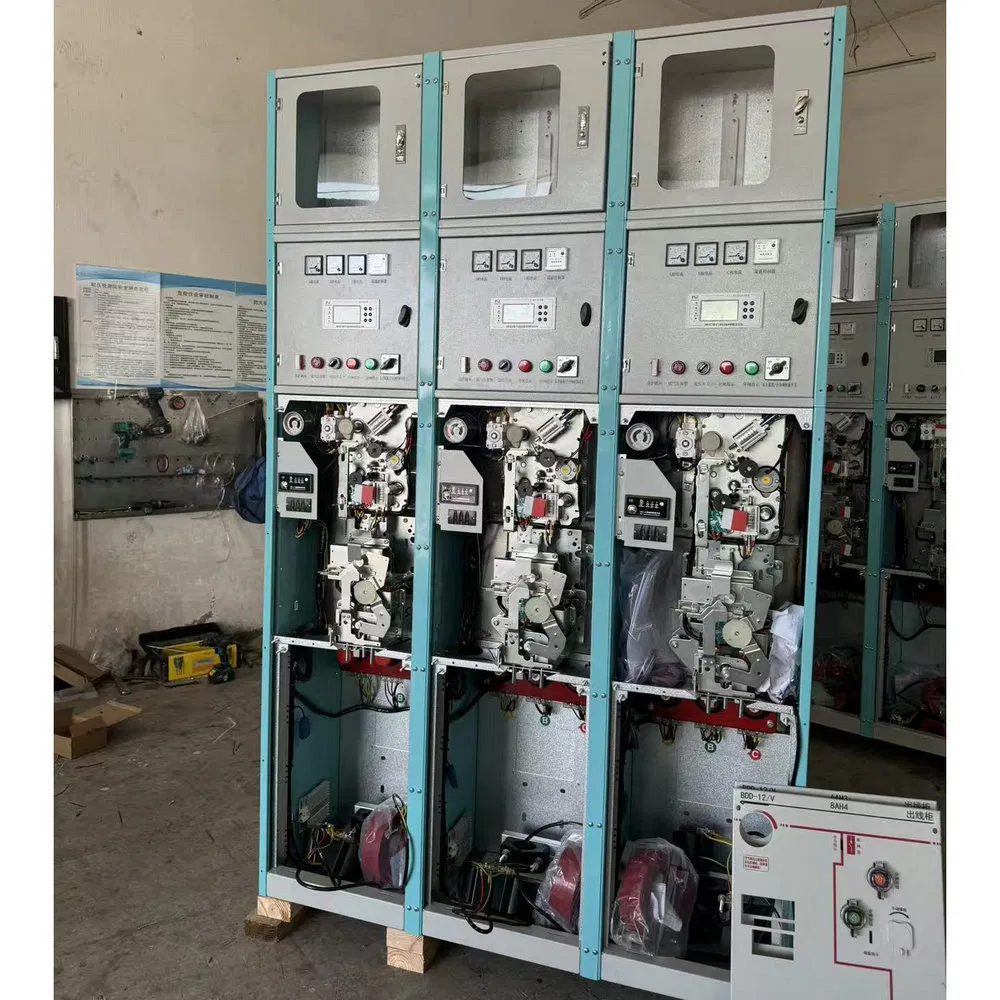

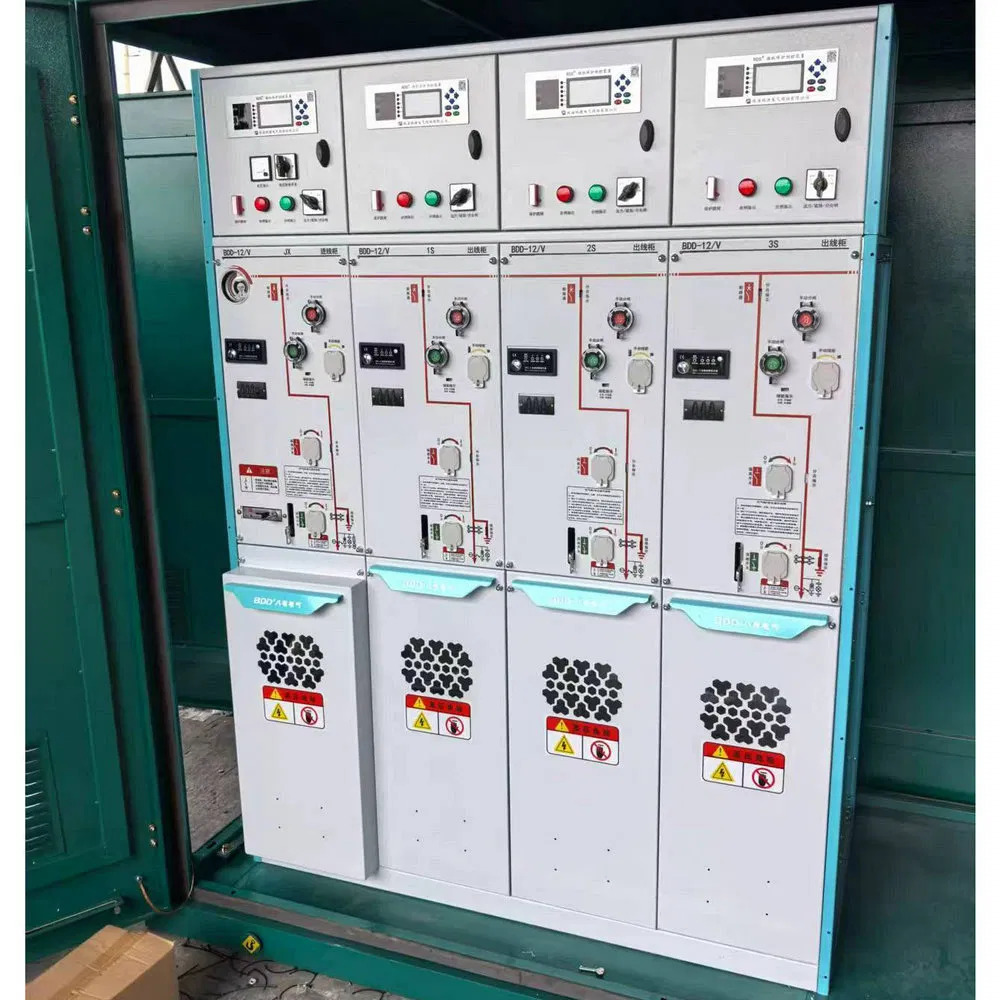

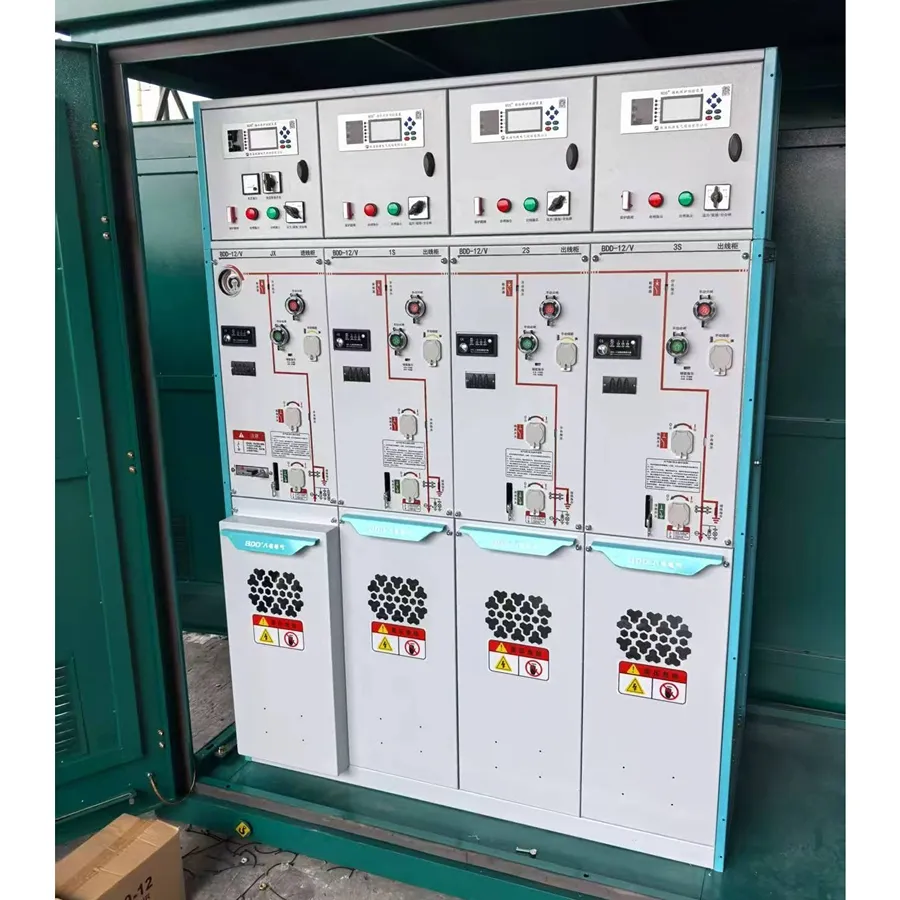

FULLY INSULATED ENCLOSED RING MAIN SWITCHGEAR BDD-12(V)
The BDD 12(V)/630-20 series ring main unit is an SF6 gas-insulated, metal-enclosed switchgear. This equipment can be modularly composed of load switch units, load switch-fuse combination units, vacuum circuit breaker units, and busbar incoming line units. It boasts excellent electrical and mechanical performance, is compact, easy to install, and offers flexible combination options.
Laser-cut thickened cold-rolled steel plate for anti-corrosion and durability. Features moisture, salt spray, and dust protection with a complete five-prevention interlocking system.
Maintenance-free with a 20-year design service life; wear-resistant and reliable under heavy operation cycles.
Modular design supports various incoming line modes and cabinet paralleling to meet diverse application needs.
Stable operation in harsh environments, including high altitude, extreme cold, high temperature, humidity, and coastal salt spray.
| Technical Specification | Unit | C Module | F Module | V Module |
|---|---|---|---|---|
| Load Switch | Fuse Unit | Circuit Breaker | ||
| Rated Voltage | kV | 12 | 12 | 12 |
| Rated Current | A | 630 | 200 | 630 |
| Power Frequency Withstand Voltage | kV | 42/48 | 42/48 | 42/48 |
| Rated Short-Time Withstand Current (3s) | kA | 20 | - | 20 |
| Mechanical Operations | Times | 5,000 | 5,000 | 5,000 |
Ideal for Urban Utility Networks, Industrial Facilities, Renewable Energy Projects (Wind/Solar), and Infrastructure/Transportation hubs like subways and airports.
A: We are a manufacturer integrating industry and trade with professional production facilities.
A: Yes, we support on-demand customization, including LOGO, color, and appearance size customization.
A: We support T/T, Western Union, PayPal, and cash payments.
A: We offer sea, air, and land transportation based on order volume and your specific requirements.
A: Please send your specific demand details and technical requirements; we will provide a customized solution and price.
A: The equipment is designed for a 20-year service life with maintenance-free operation during this period.
