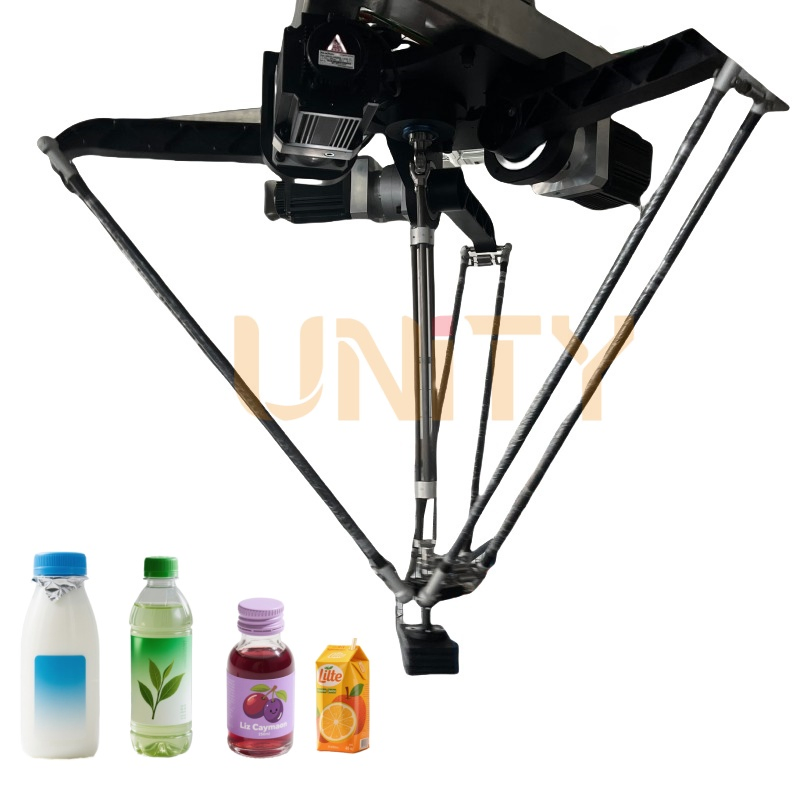

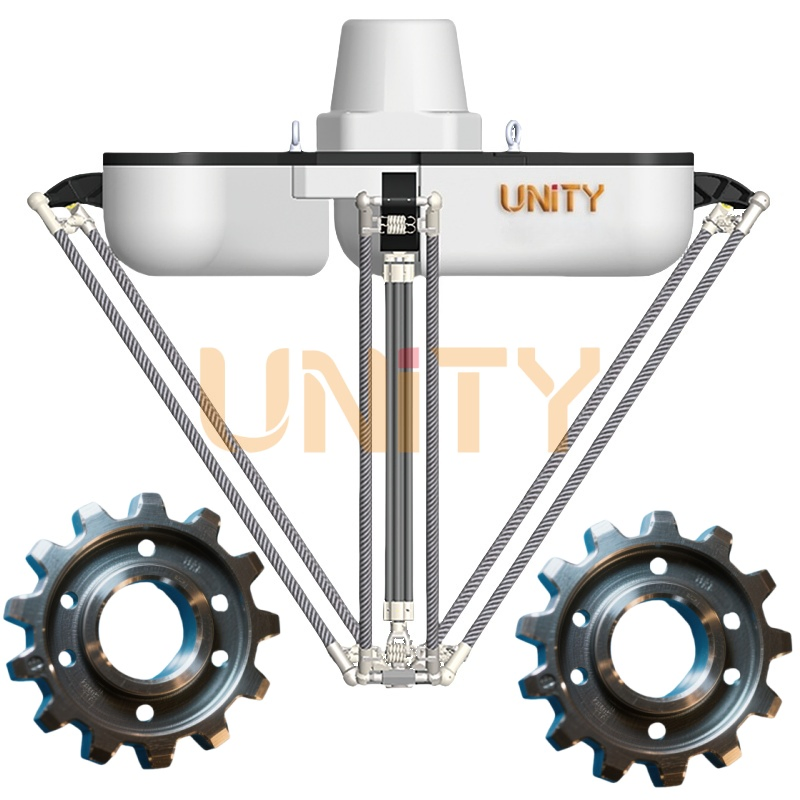

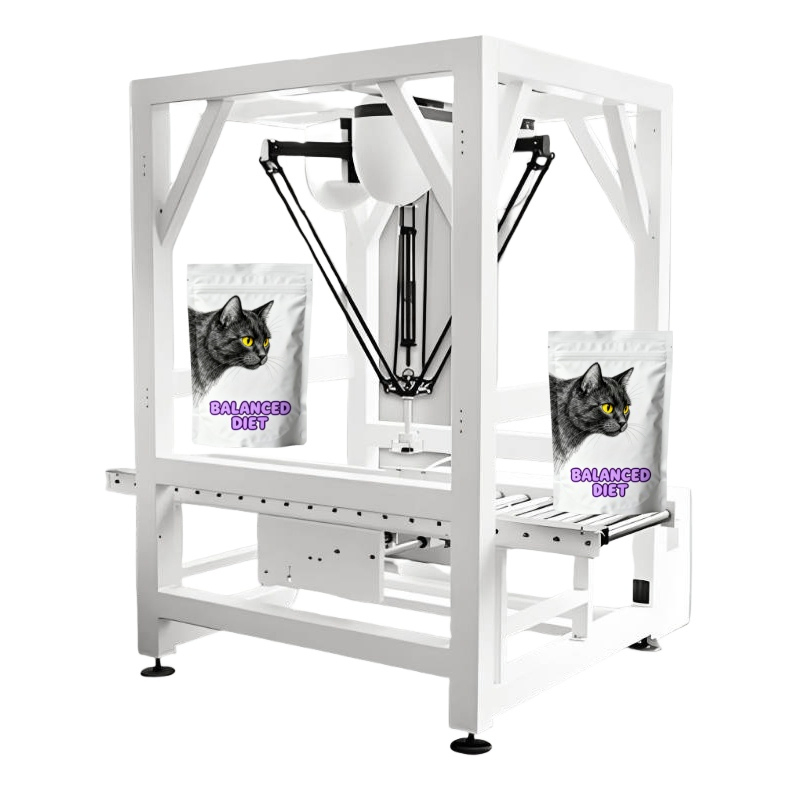

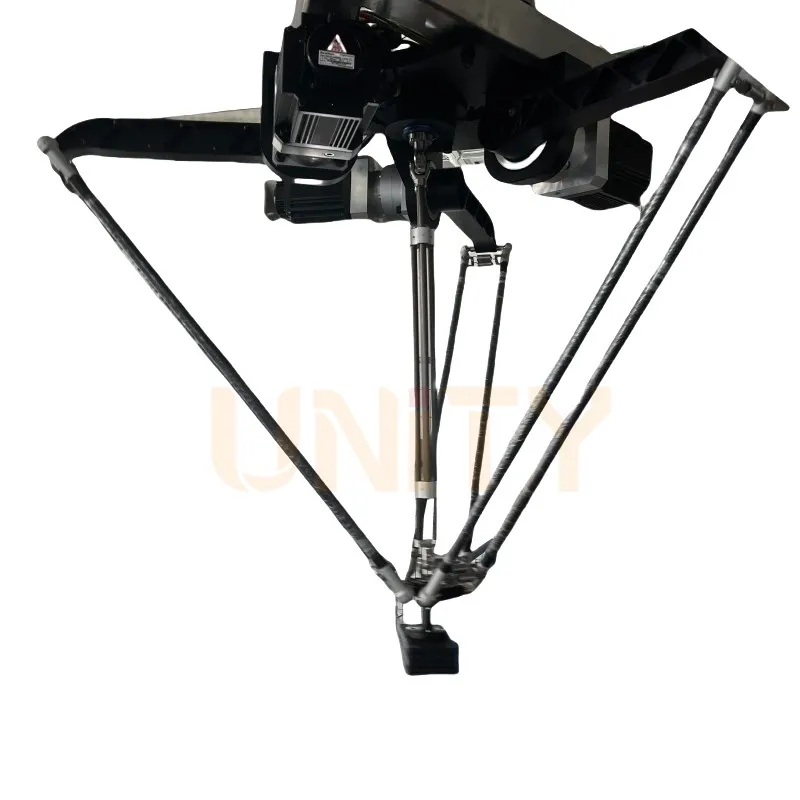

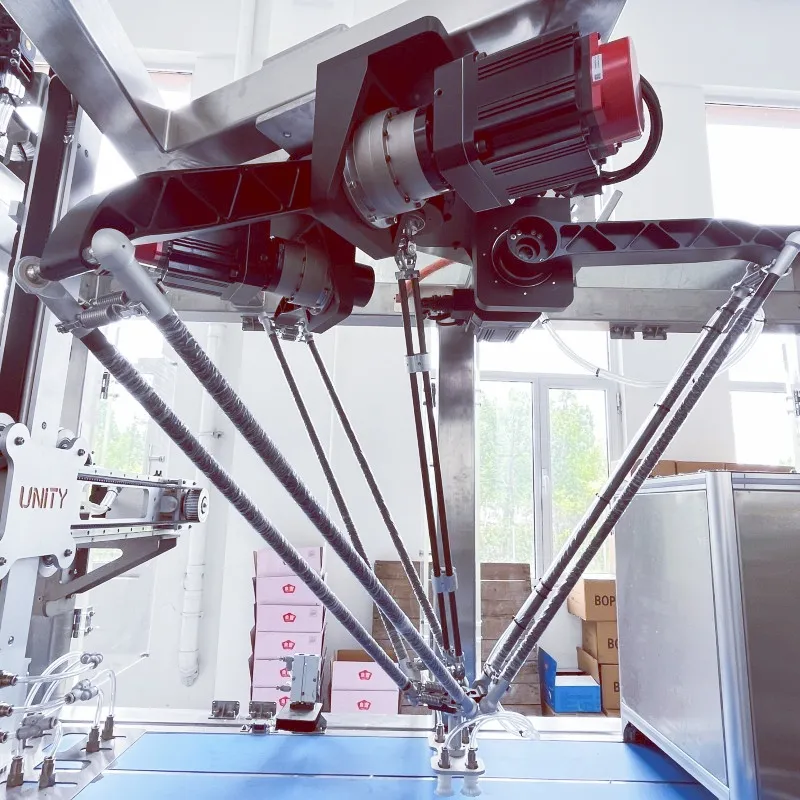

The 4 Axis Automatic Pick and Place Delta Robot (also known as a spider or parallel robot) is designed for high-speed sorting and packing. It is an essential component for modern automatic production lines to improve efficiency.
Ideal for integration by manufacturers into existing systems.

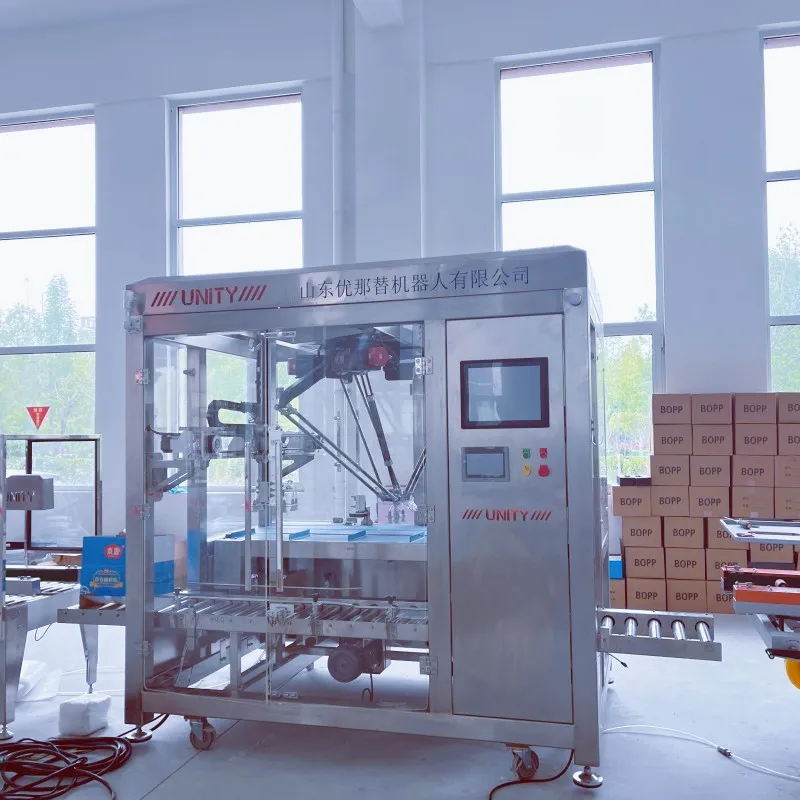

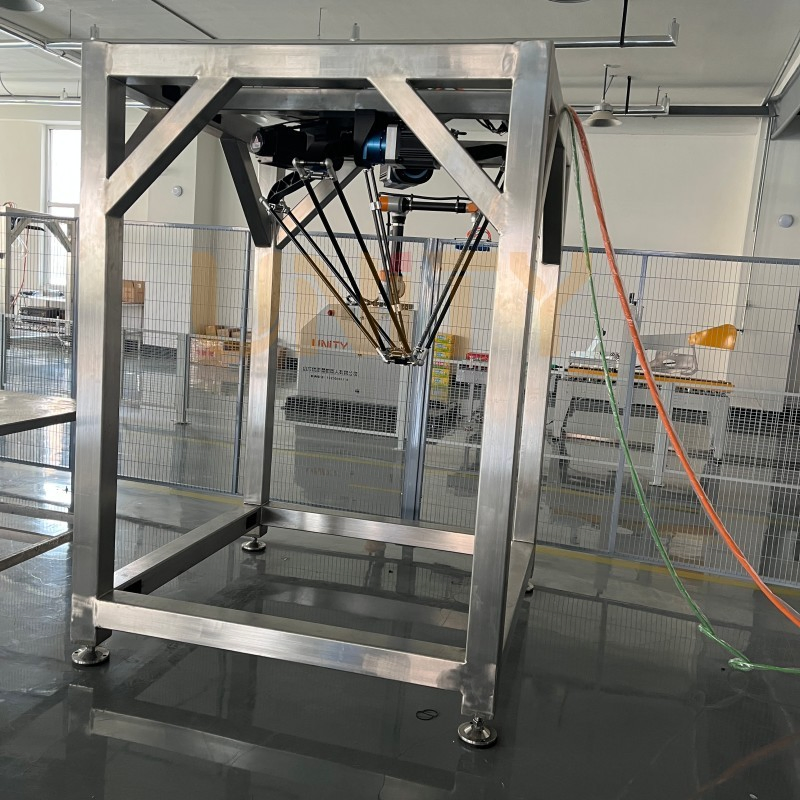

A complete integrated system including frame, control, and conveyors.

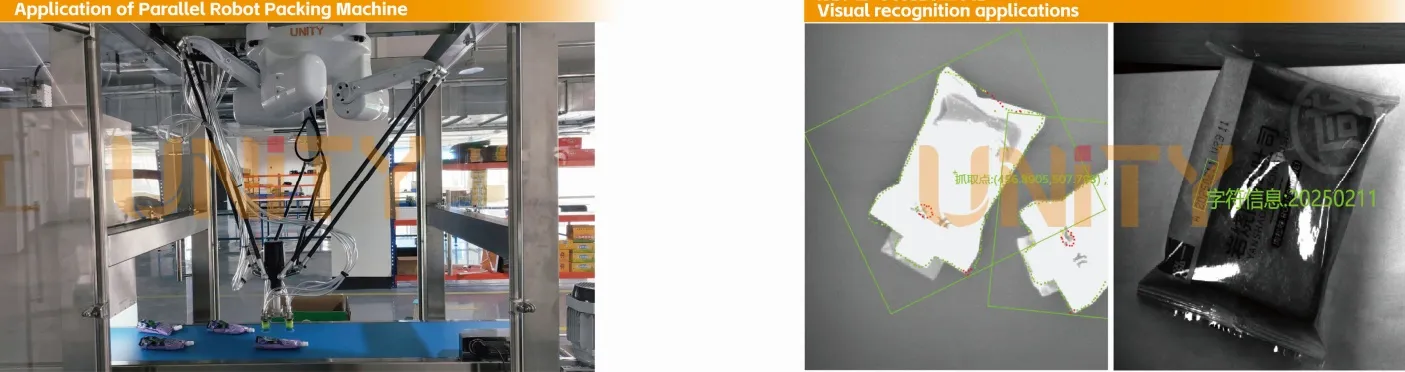

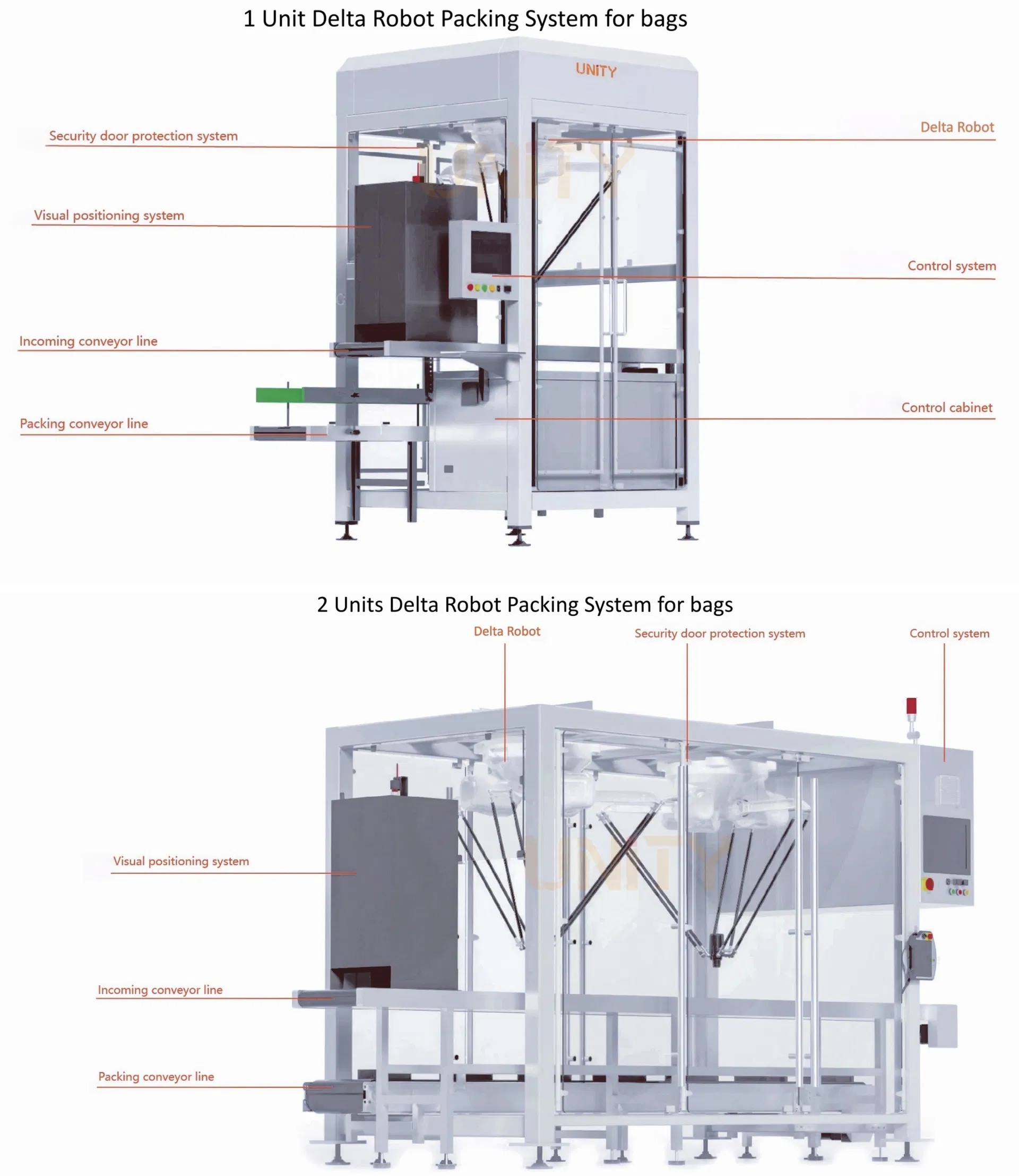

Spider Delta Robot with Visual Inspection System

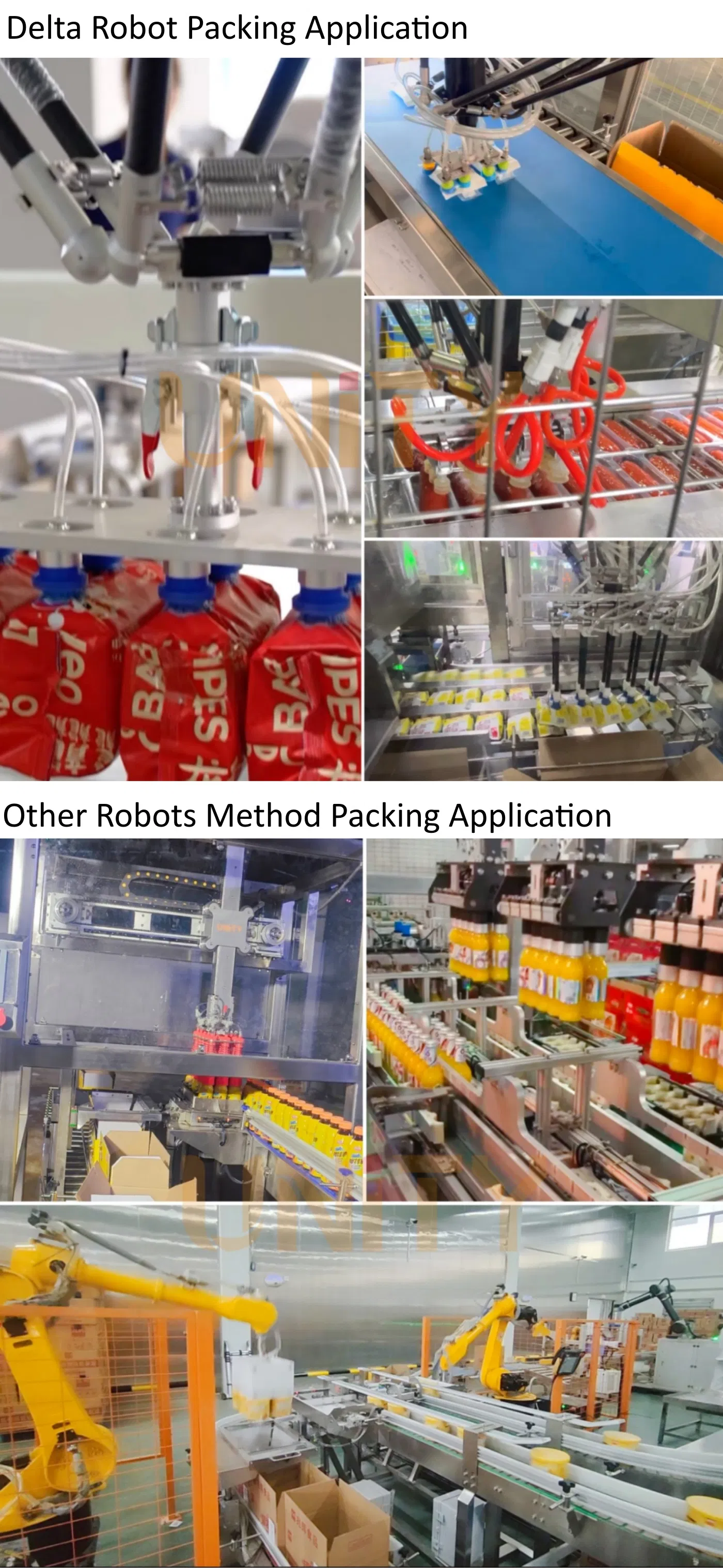

| Application Industry | Application Products |
|---|---|
| Food | Packaged snacks, beverages, frozen foods |
| Pharmaceutical | Medicine, Medical Devices |
| Daily Chemical Products | Chemicals, Cleaning agents |
| Electronics Industry | Electronic components, batteries |

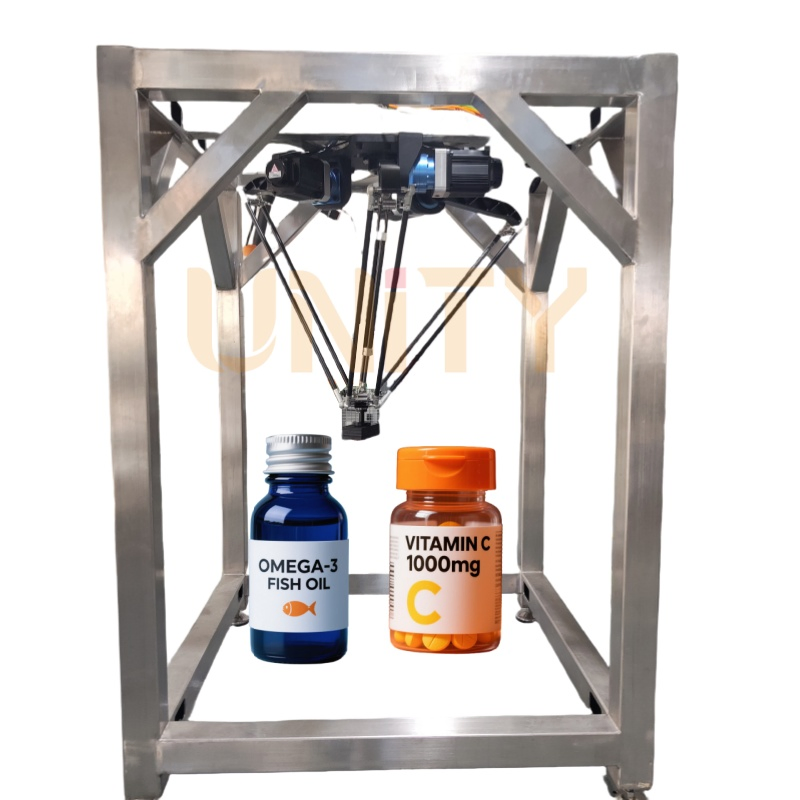

| Model Series | 0800 Series | 1200 Series | 1400 Series | |
|---|---|---|---|---|
| Axis | 3+1 | 3+1 | 3+1 | |
| Max Payload | 5kg / 10kg | 5kg / 10kg | 5kg / 10kg | |
| Rotation Range | ±360° | ±360° | ±360° | |
| Body Specs | Weight | 62kg | 78kg | 80kg |
| Moving Range | 800mm | 1200mm | 1400mm | |
| Position Accuracy | ±0.02mm | |||
| Max Frequency | Up to 260 PP/min | Up to 240 PP/min | Up to 200 PP/min | |
| Voltage | 220VAC, 50HZ | 380VAC, 50HZ | 380VAC, 50HZ | |
| Protection Grade | IP54 | |||
