Dog Inspection Robot (Quadruped) for Hazardous Industrial Inspection Explosion-Proof, Ai Vision, Oil & Gas

After-sales Service: One Year
Application: Oil and Gas, Chemical Plant
Weight: 23 Kg

Product Description

Basic Specifications

Model NO.:CL801
Operating Depth:350m
Payload Capacity:15kg
Maximum Speed:4.0 Knots (2 M/S)
Thruster Propeller:Aluminum Alloy
Dimensions:750 x 660 x 330 mm

Technical Expertise & Innovation

Our core technology is based on photoacoustic spectroscopy (PAS) for ultra-trace substance detection, enabling high sensitivity, fast response, and long-term stability in harsh industrial environments. With expertise in intelligent sensing, chemical analysis, and automated control, we deliver reliable solutions for oil & gas, environmental monitoring, and smart robotics.

Quadruped Inspection Robot

Driven by bionic perception systems, we empower robots with sensory intelligence across water, land, and air environments. By integrating sensing hardware and intelligent algorithms, we facilitate the transition from traditional monitoring to cognitive-level environmental perception.

Global R&D Collaboration

Through strategic partnerships with international smart perception and automation laboratories, we have invested significantly in robotics research. This collaborative initiative drives technological innovation in intelligent sensing, reinforcing our position at the forefront of industrial automation.

Research Facility

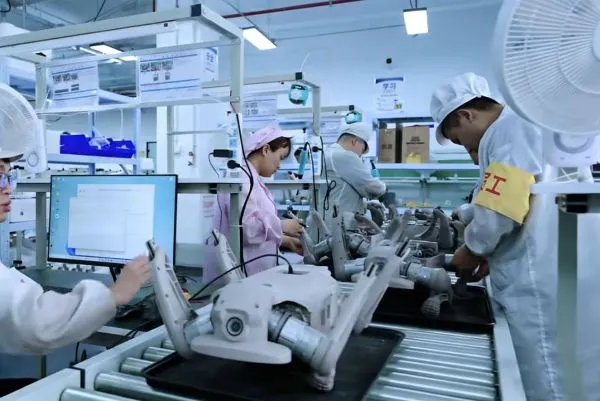

Robot Testing

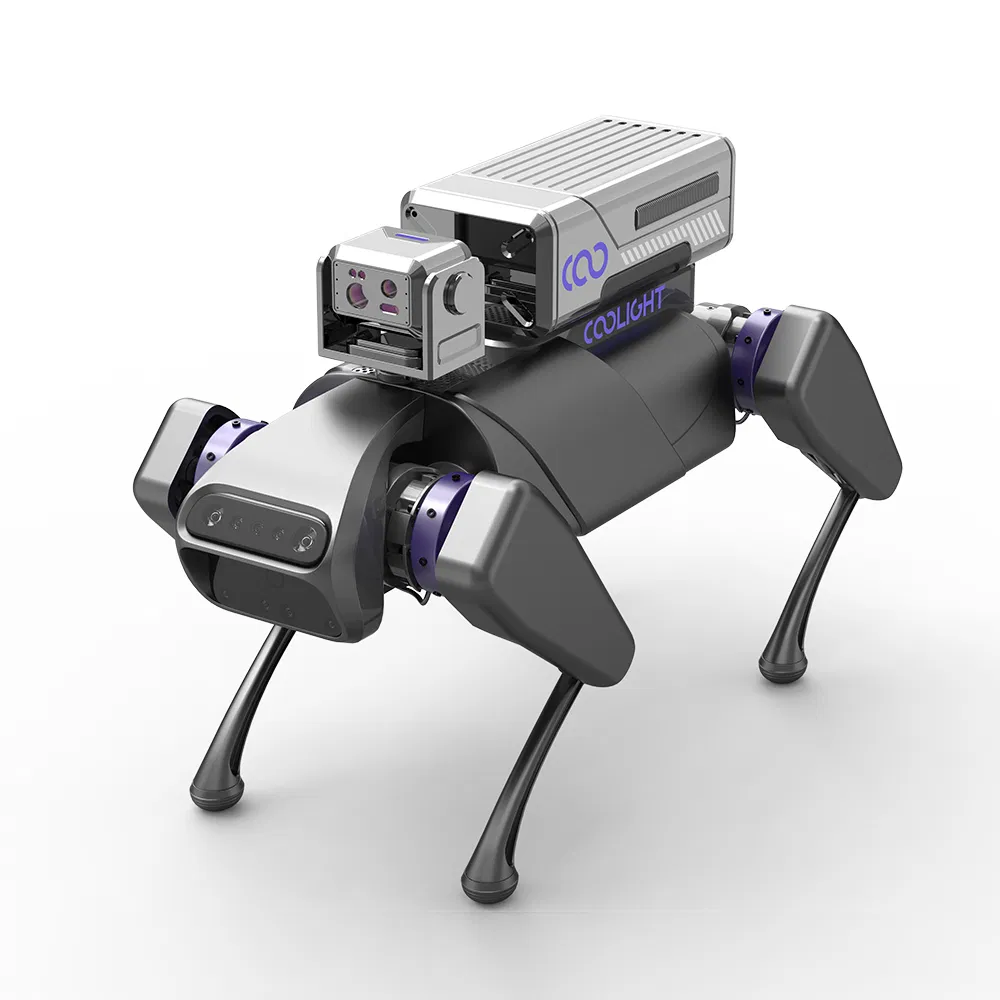

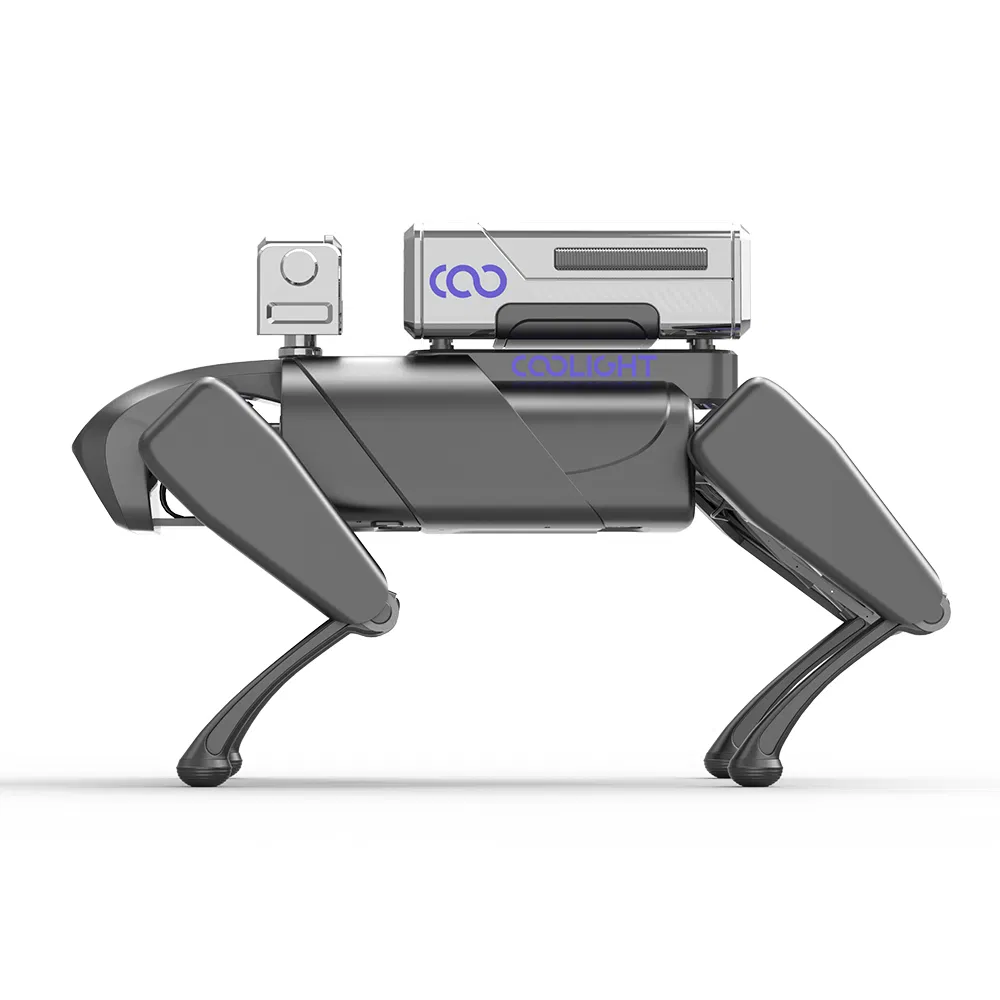

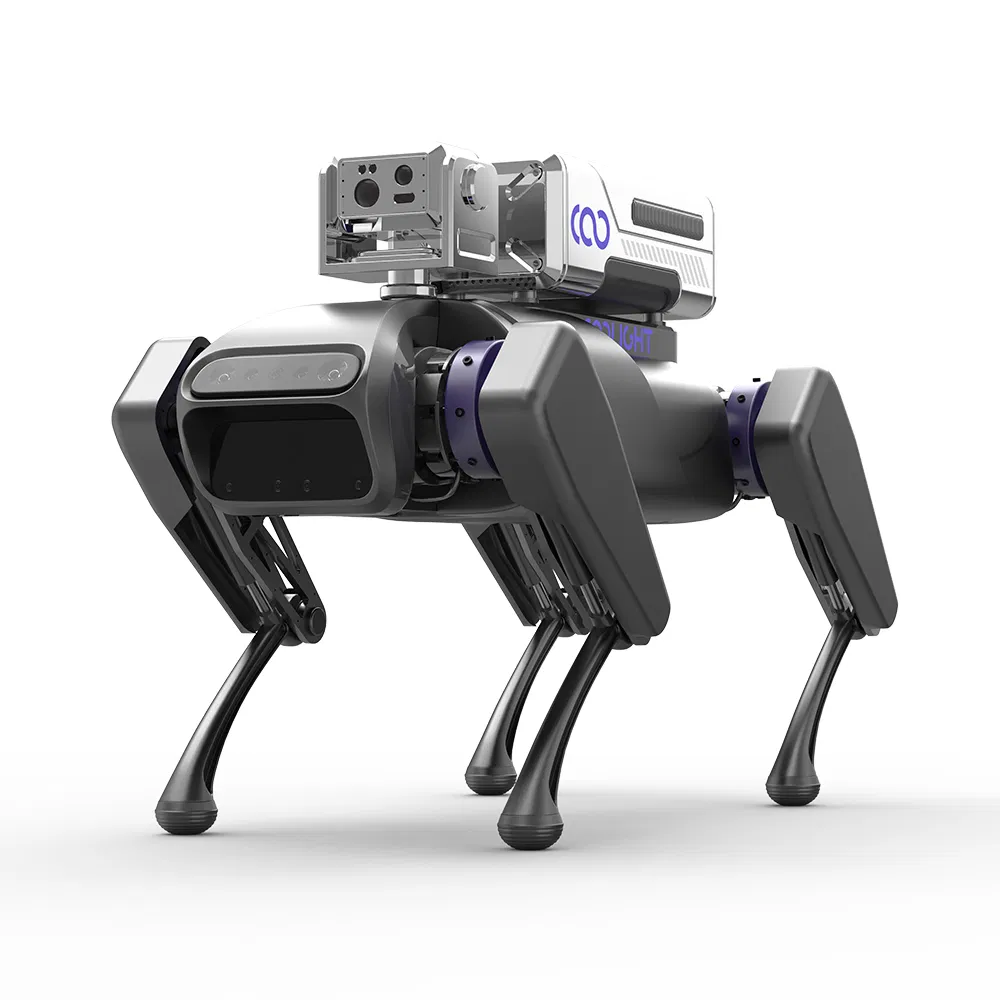

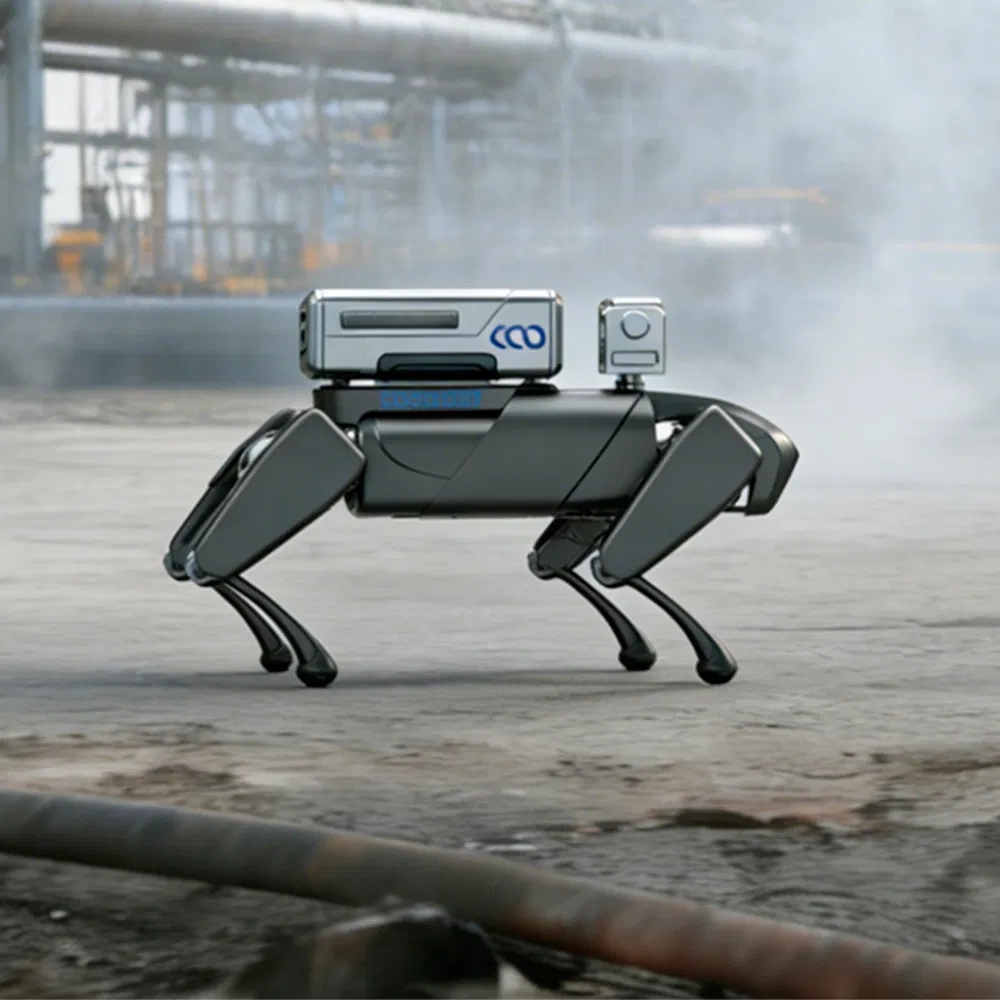

CL801 Quadruped Inspection Robot

The CL801 is an advanced unmanned inspection solution designed for high-risk and hazardous industrial environments. By integrating robot locomotion, AI, and multi-sensor perception, it replaces manual tasks in oil facilities, chemical plants, and power stations.

Featuring a composite explosion-proof design (Ex db ib IIB T6 Gb), the CL801 ensures safe deployment in flammable and toxic gas environments. Its quadruped structure provides superior terrain adaptability, navigating stairs, slopes, and confined spaces where wheeled robots fail.

Key Features

  • Electro-hydraulic hybrid drive system
  • Explosion-proof: Ex db ib IIB T6 Gb
  • AI-based perception and computer vision
  • IP67 Protection Rating
  • 24/7 autonomous patrol capability
  • Multi-sensor industrial monitoring

Technical Performance

Drive Mode: Electro-Hydraulic Hybrid | Max Speed: 3.5 m/s

Climbing Ability: 35° Slope / 35cm Step Height

Endurance: Up to 25 hours (No-load) | Max Load: 80 kg

Environment: −20°C to +60°C Operating Temperature

Monitoring Capabilities

  • Infrared temperature measurement
  • Flammable & toxic gas detection
  • Intelligent gauge reading
  • 3D concentration cloud mapping
  • Leak and spill identification
  • Personnel behavior recognition
  • Corrosion & dust monitoring

Application Scenarios

  • Offshore oil and gas platforms
  • LNG receiving terminals
  • Chemical industrial parks
  • Coal mines and underground roadways
  • Power plants & energy storage
  • Submarine pipeline inspection

Frequently Asked Questions (FAQ)

Q1: What environments is the CL801 robot suitable for? A: It is specifically designed for high-risk industrial sites including oil refineries, chemical plants, coal mines, and power stations, especially areas requiring explosion-proof equipment.
Q2: Can the robot handle difficult terrain like stairs? A: Yes, its quadruped design allows it to navigate stairs, slopes up to 35°, and uneven ground that traditional wheeled robots cannot access.
Q3: How long does the battery last? A: The robot offers up to 25 hours of endurance under no-load conditions and over 2.5 hours when operating with a full functional payload.
Q4: What is the explosion-proof rating of the CL801? A: It complies with the Ex db ib IIB T6 Gb standard, making it safe for use in environments with flammable gases.
Q5: Can the inspection modules be customized? A: Yes, the monitoring functions are modular. Users can configure gas sensors, infrared cameras, and other specialized tools based on specific project needs.
Q6: Does it support remote operation? A: The CL801 supports both autonomous patrol and remote operation, transmitting real-time data to a centralized management platform.
