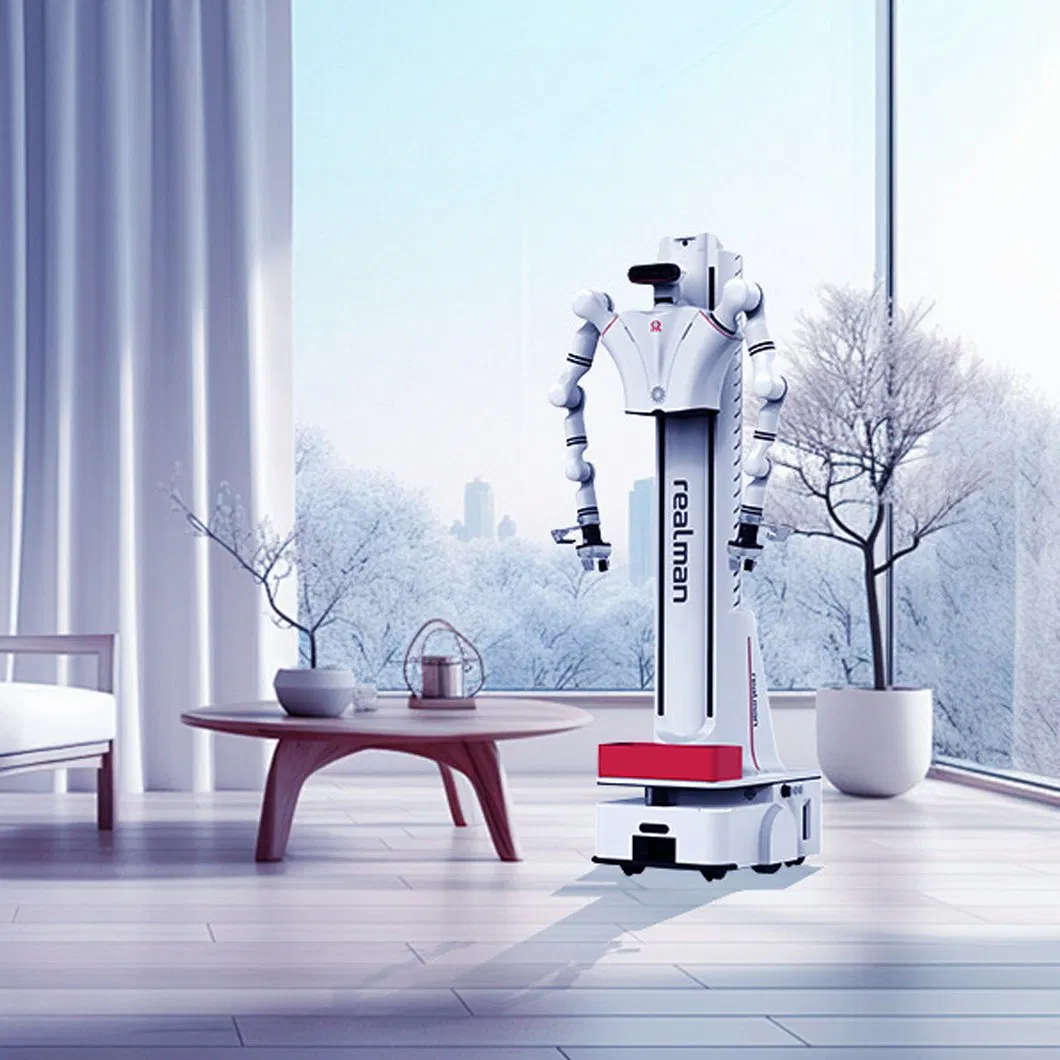

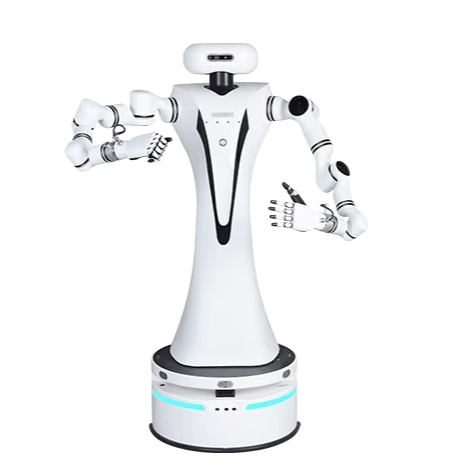

Dual Arm Compound Robot Providing Services for Education Industry

Customization: Available
Application: for Collection and Model Training
Control Mode: Continuous Path Control

Product Description

💠 Basic Info.
Model NO.
RMC-DA
Degrees of Freedom
Multi-axis
Drive Mode
Electric
Transport Package
Box
Trademark
Rra
Origin
China
HS Code
8543709990
📋 Product Description

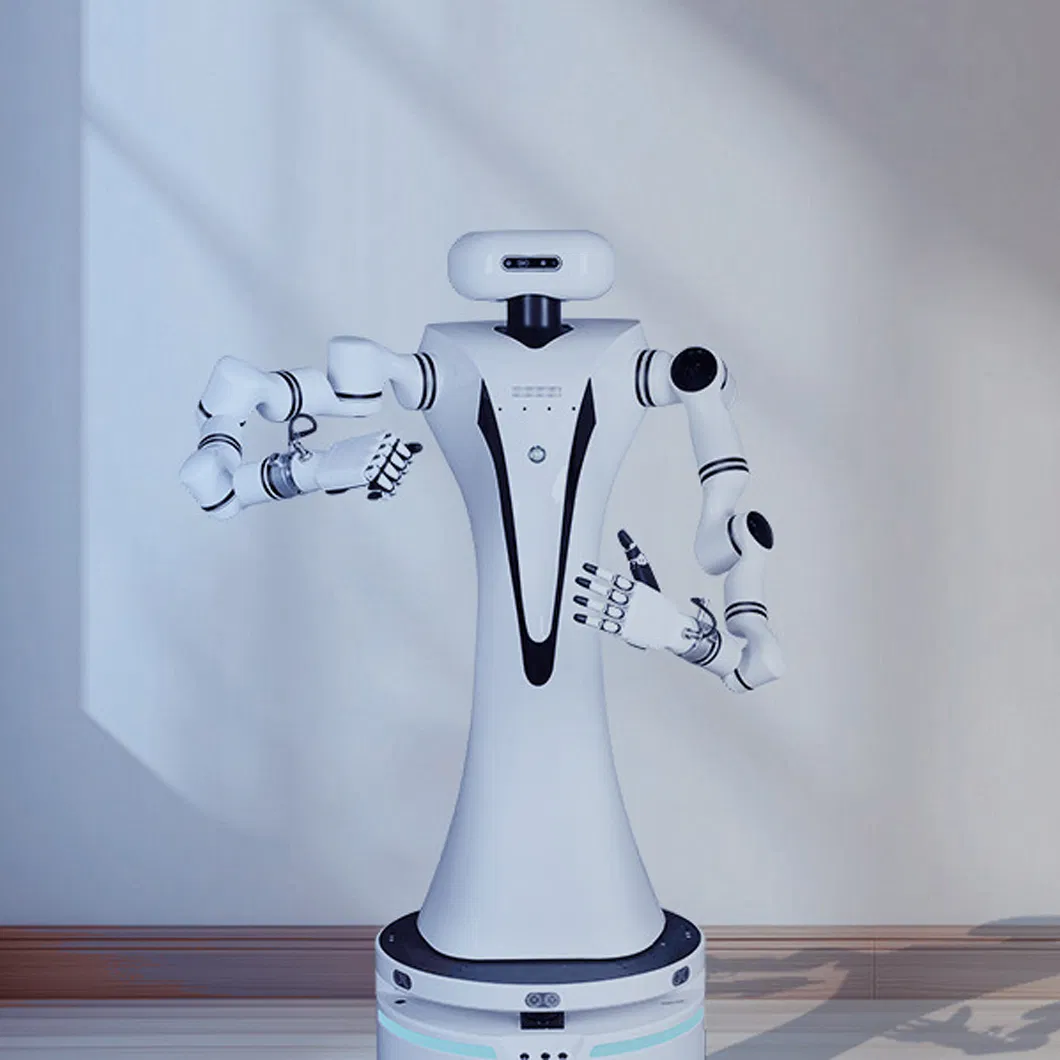

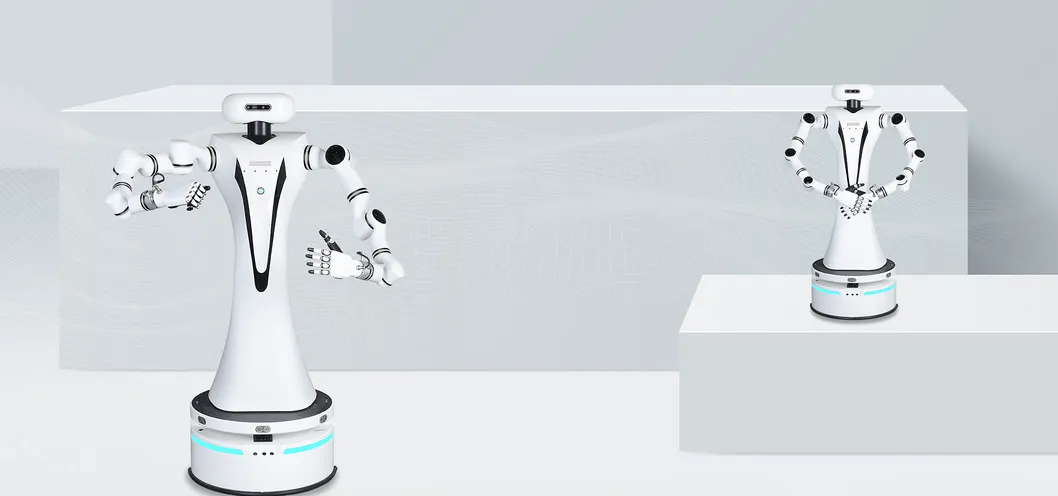

People's demand for robotic arms is growing in pace with the advancement of society and technology. The dual arm compound robot has emerged to meet the complexity, intelligence, and adaptability requirements of tasks. The dual arm compound robot is an intelligent general platform based on the ultra-lightweight humanoid robotic arm. The platform is equipped with two 7-axis robotic arms, which can work freely like human arms and can operate independently with one arm while cooperating with both arms. The bottom is equipped with a mobile robot, which has the ability of movement, navigation and obstacle avoidance. At the same time, the platform integrates a voice module and depth vision, providing the dual arm compound robot with voice interaction and visual perception.

⚙️ Product Parameters
ModelRMC-DA
Platform sizePlatform height 1350mm, maximum arm span 2070mm
WeightAbout 80 kg
Charging power supplySingle-phase three-wire 220V ± 10% 50Hz
Working voltageDC24V
Positioning accuracy<±5cm
Security protectionLaser scanning obstacle avoidance, visual obstacle avoidance, force sensors, emergency stop.
External interfaceNetwork interface, USB interface, HDMI
Working environmentTemperature -10°C to +40°C, humidity ≤85%, altitude <4000m
Voice moduleMIC: Linear array 4 microphones; System: Linux
Moving speed1m/s
Main Control Module GPU384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
Memory8GB 128-bit LPDDR4x (59.7GB/s)
OSUbuntu18.04
Interfaces1x Network, 4x USB3.0, 1x USB2.0
OtherGPIOs, I2C, I2S, SPI, UART
🚀 Product Advantage
Strong opennessA variety of secondary development options are provided for research and education.
High level of integrationIntegrated design simplifies maintenance and conserves working space.
Good interactivityIntuitive human-computer interface for quick learning and operation.
Fully configuredChassis, depth vision, voice module, and robotic arms in one platform.
Feature-richMultiple sensors support independent or coordinated unit operations.

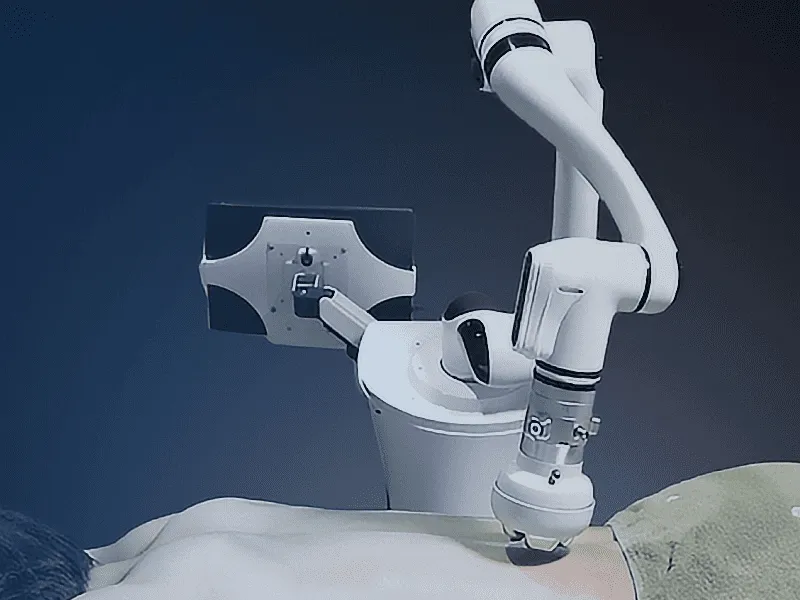

Physiotherapy

Physiotherapy Function

Fascial layer relaxation, pain relief, blood circulation, auxiliary function recovery, beauty and skin care, etc.

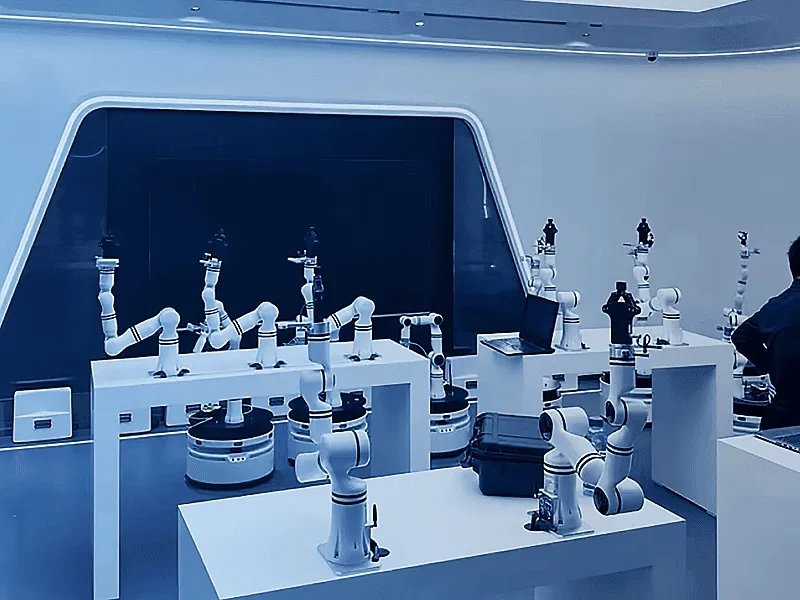

Interactivity

Good Interactivity

Equipped with human-computer interaction interface, it can manually input selections and display equipment status in real time.

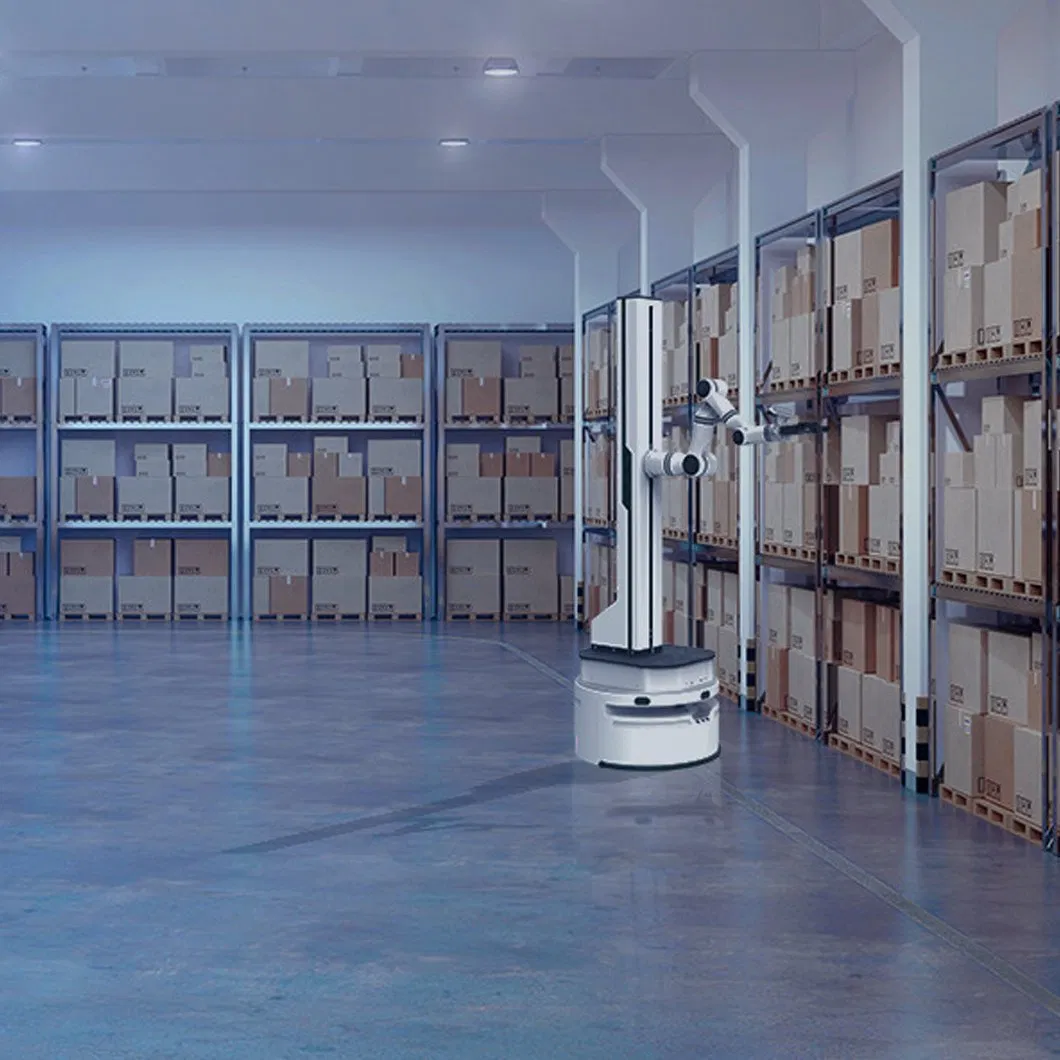

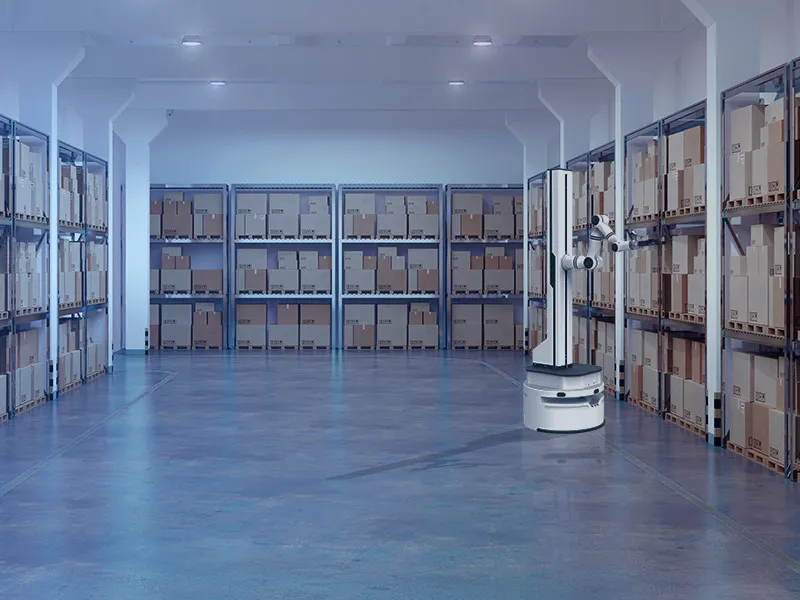

Warehousing

Intelligent Warehousing

Supports inventory tasks and automated logistics management within complex environments.

FAQ
Q1: What are the main applications for the dual arm compound robot?
It is primarily designed for education, research, intelligent warehousing, and specialized services like physiotherapy.
Q2: Can the two arms operate independently?
Yes, the platform can operate independently with one arm or coordinate both arms for complex tasks.
Q3: What kind of operating system does it use?
The system runs on Ubuntu 18.04, providing a stable environment for secondary development.
Q4: How does the robot avoid obstacles?
It integrates laser scanning, visual obstacle avoidance, and force sensors to ensure safe operation.
Q5: Is it suitable for secondary development?
Absolutely. It offers strong openness with various development options and multiple external interfaces like USB 3.0 and HDMI.
Q6: What is the maximum reach of the robotic arms?
The platform features a maximum arm span of 2070mm, allowing for a wide range of motion.
