Shell Material
Flame Retardant PC Plastic
Application
Commercial, Industrial, Hospital, Residential
Function
USB Socket, Ordinary Socket
Operating Voltage
220-250V
Output Voltage
5/9/12/15/20V
Mounting Type
Flush Mounted

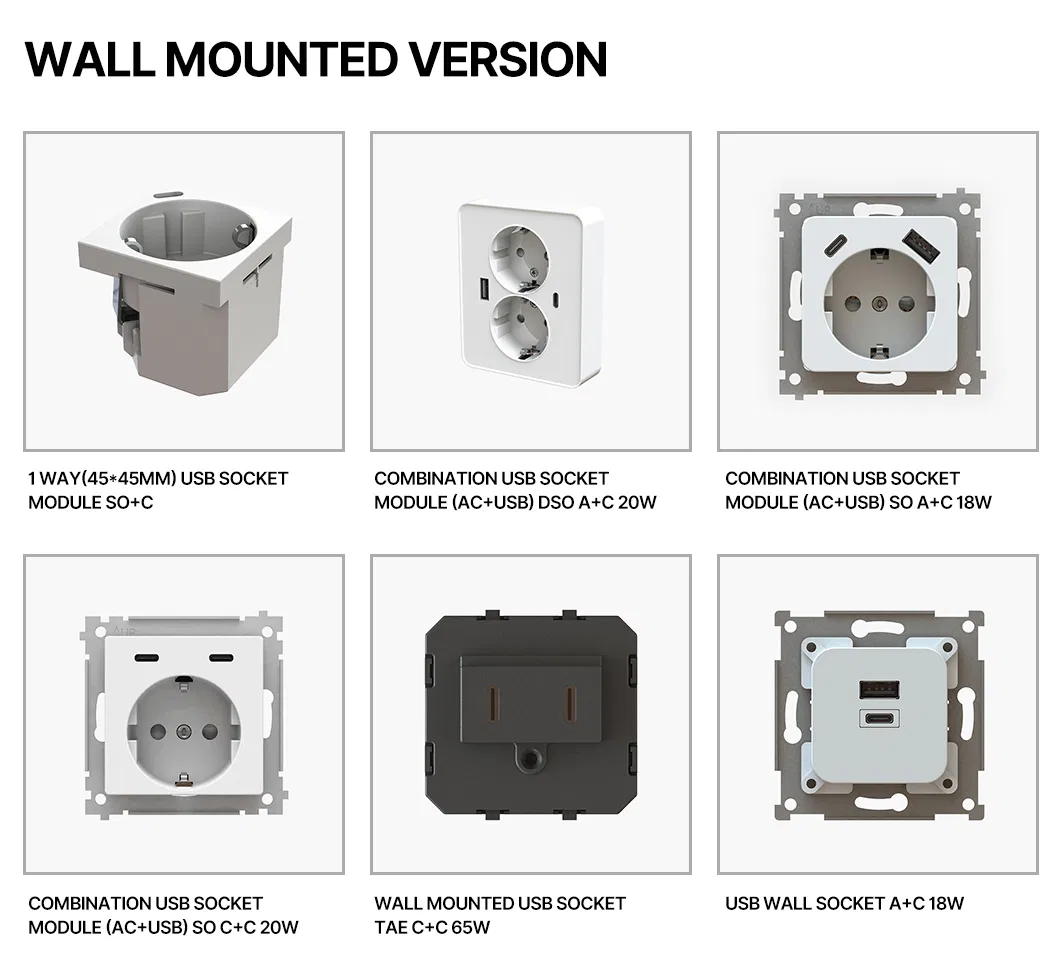

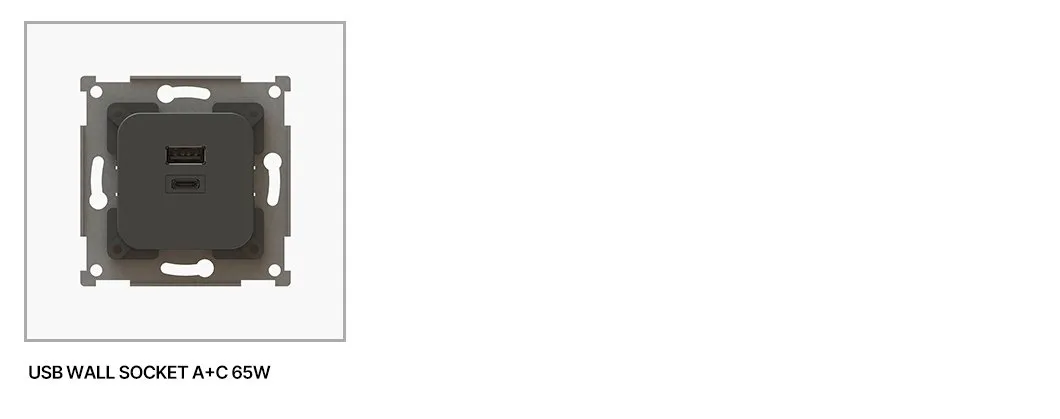

Product Series Showcase
Product Description
This high-performance A+C 65W USB Charging Module is engineered for seamless integration into modern commercial and residential electrical systems. Featuring a dual-port design (1 USB-A and 1 USB-C), it delivers a powerful 65W output with a wide voltage range of 5V to 20V to support various devices. Its compact, flush-mounted form factor (45mm width) requires an installation depth of only 29mm. Built with halogen-free materials and featuring IK04 impact resistance, this module ensures durability and safety while maintaining a low standby energy consumption of just 0.3W.
Technical Specification
| Model | Others |
| Number of USB-A ports | 1 |
| Number of USB-C ports | 1 |
| Operating voltage | 220-250V |
| Frequency | 50 Hz |
| Maximum output current | 3250 mA |
| Output voltage | 5/9/12/15/20V |
| Energy consumption | 0.3W |
| Mounting type | Flush mounted |
| Device dimensions | 45mm (W) x 43.5mm (H) x 39mm (D) |
| Impact resistance | IK04 |
| Halogen-free | Yes |
| USB Output Power | 65W |
| Terminal capacity | 1.5-2.5 mm² |

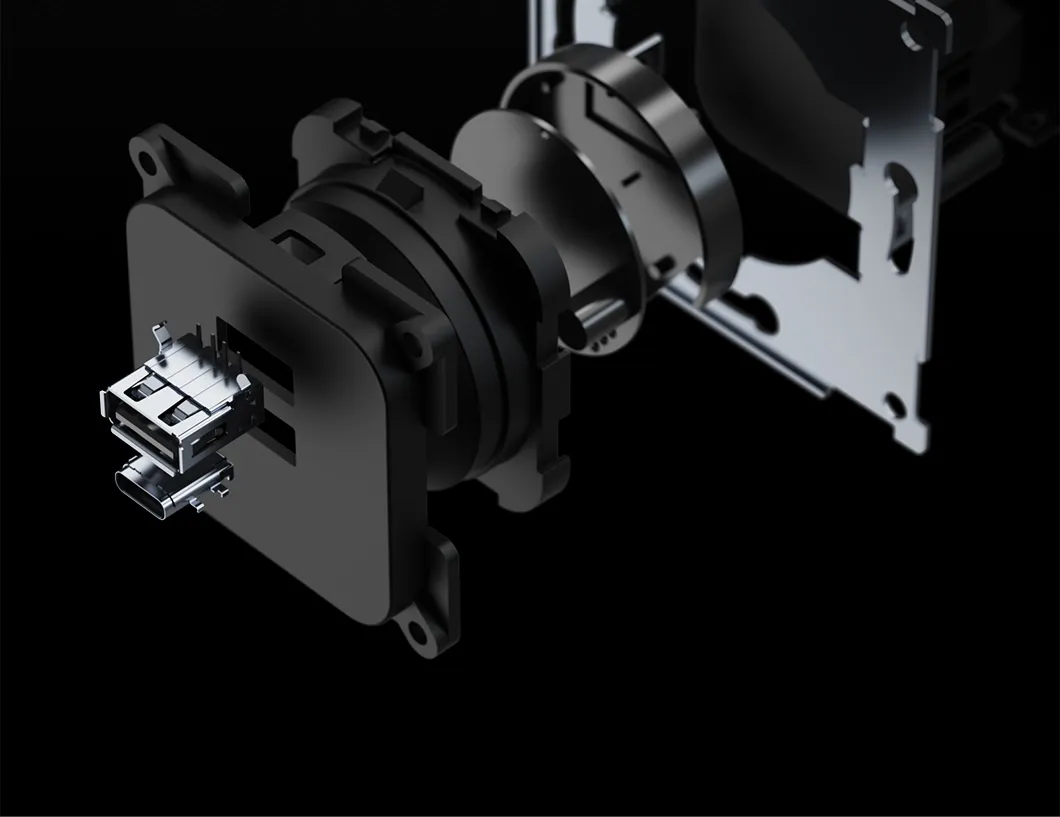

Product Details
Frequently Asked Questions
What is the maximum charging capacity of this module?
The module provides a total USB output power of 65W, with a maximum output current of 3250 mA and variable output voltages of 5/9/12/15/20V.
What are the installation requirements and dimensions?
The device measures 45mm x 43.5mm x 39mm and is designed for flush mounting. It requires a minimum box depth of 40mm and an installation depth of 29mm.
Is a neutral wire mandatory for wiring?

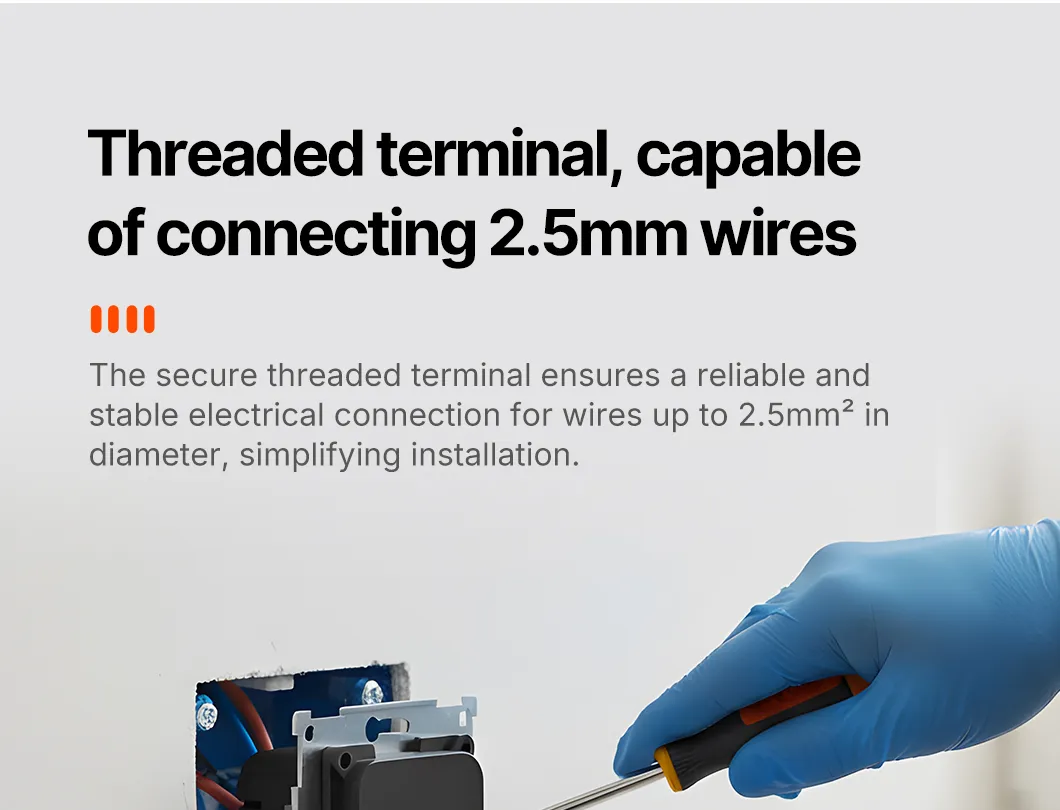

Yes, a mandatory neutral connection is required for this module. It uses a screw terminal connection method with clearly indicated markings.
What types of cables are compatible with the terminals?
The module supports both flexible and rigid connection cables with a core cross-section and terminal capacity of 1.5-2.5 mm².
What is the environmental and safety rating of the device?
The module is halogen-free, has an IK04 impact resistance rating, and is rated IPX0 for protection. It operates efficiently in temperatures ranging from 0°C to 35°C.
What is the energy consumption during standby?
The module is designed for high efficiency with a very low standby energy consumption of only 0.3W.
