680W 690W 700W Highest Efficiency Cheap Photovoltaic Perc Monocyrstalline Solar PV Module Solar Panel

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
YS700M-66
Number of Cells
132 Pieces
Application
Industrial
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 210X83mm Cell
Size
2400*1303*35mm
Connector
Mc4 Compatible
Weight
36kg
Specification
700W
Origin
China
Capacity
12000 Pieces /Week

Product Overview

680W 690W 700W Highest Efficiency Photovoltaic Perc Monocrystalline Solar PV Module

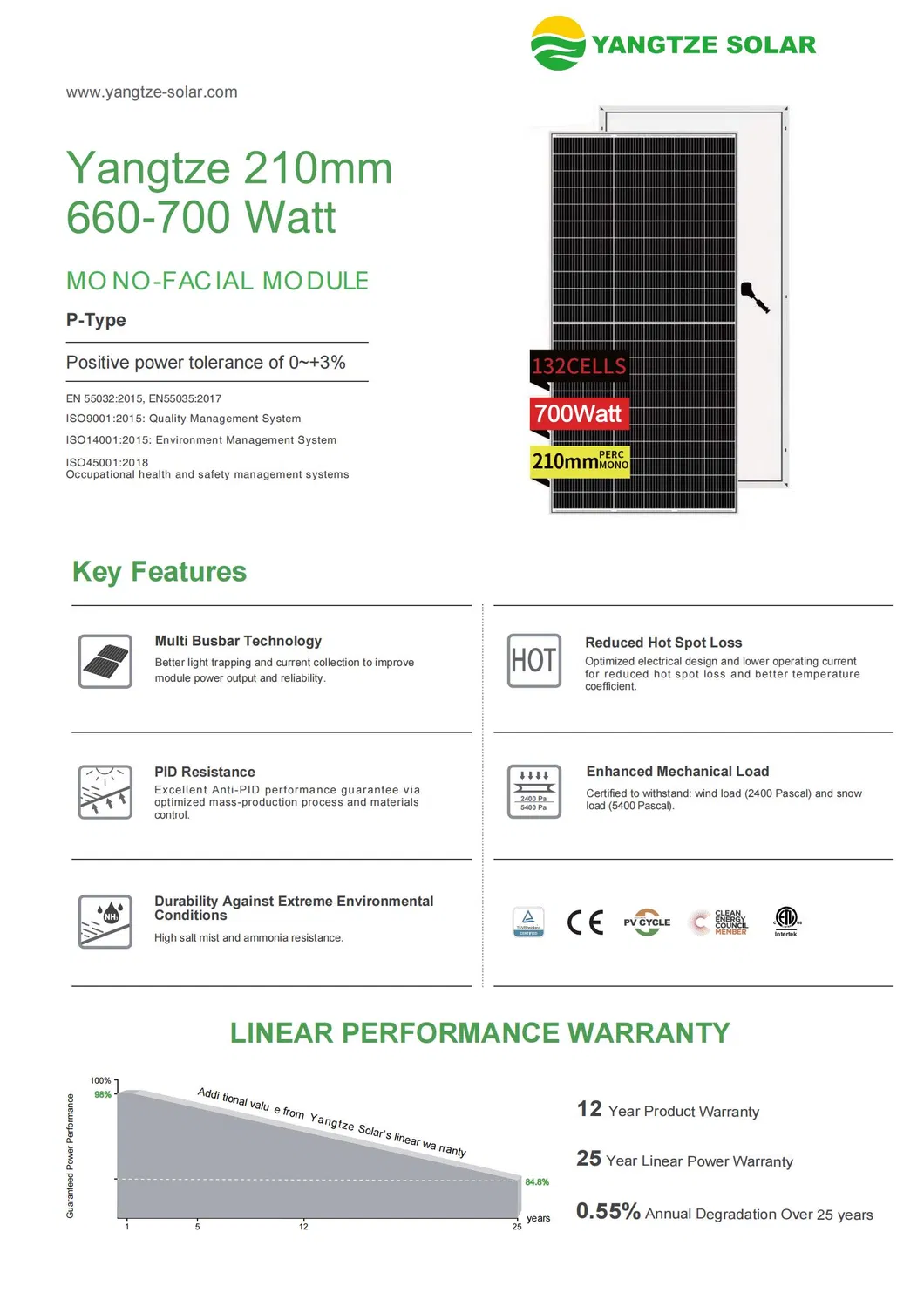

Solar Panel Front

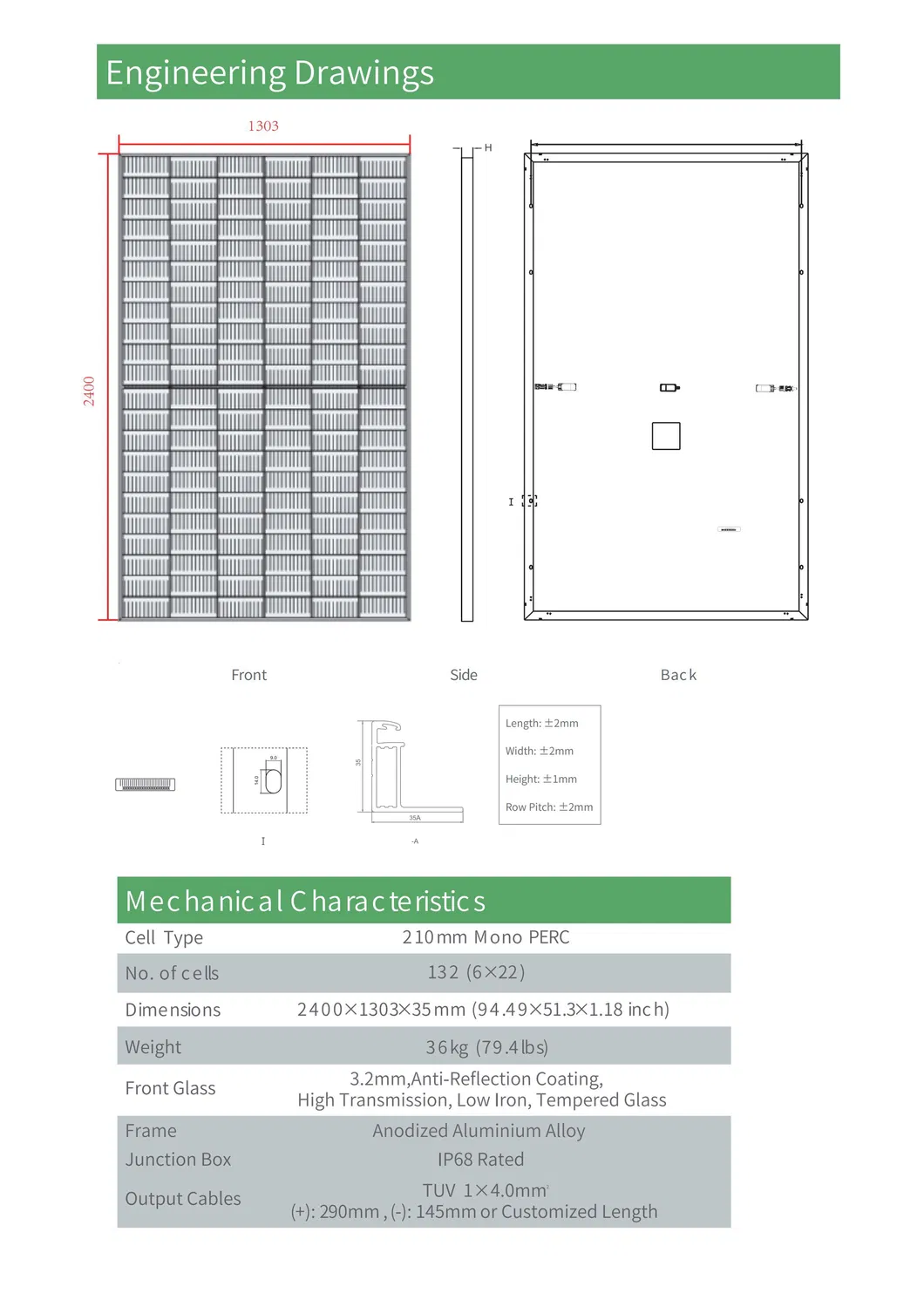

Solar Panel Back

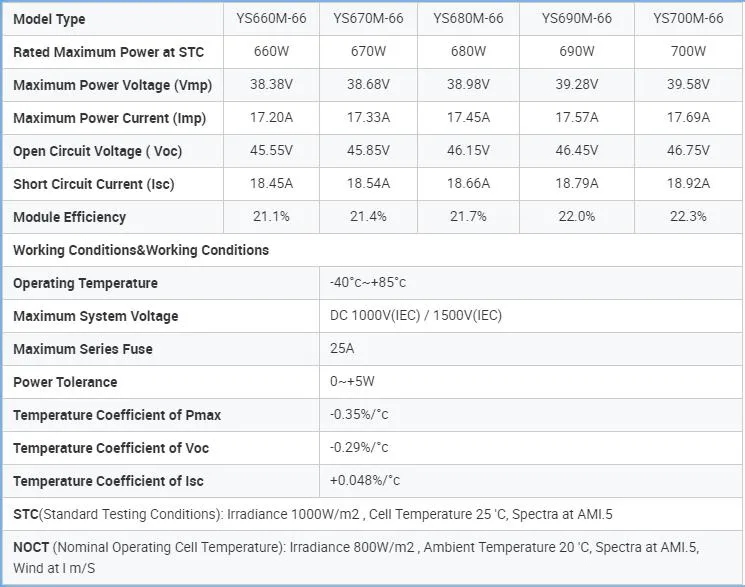

Technical Specifications

Manufacturing Technique

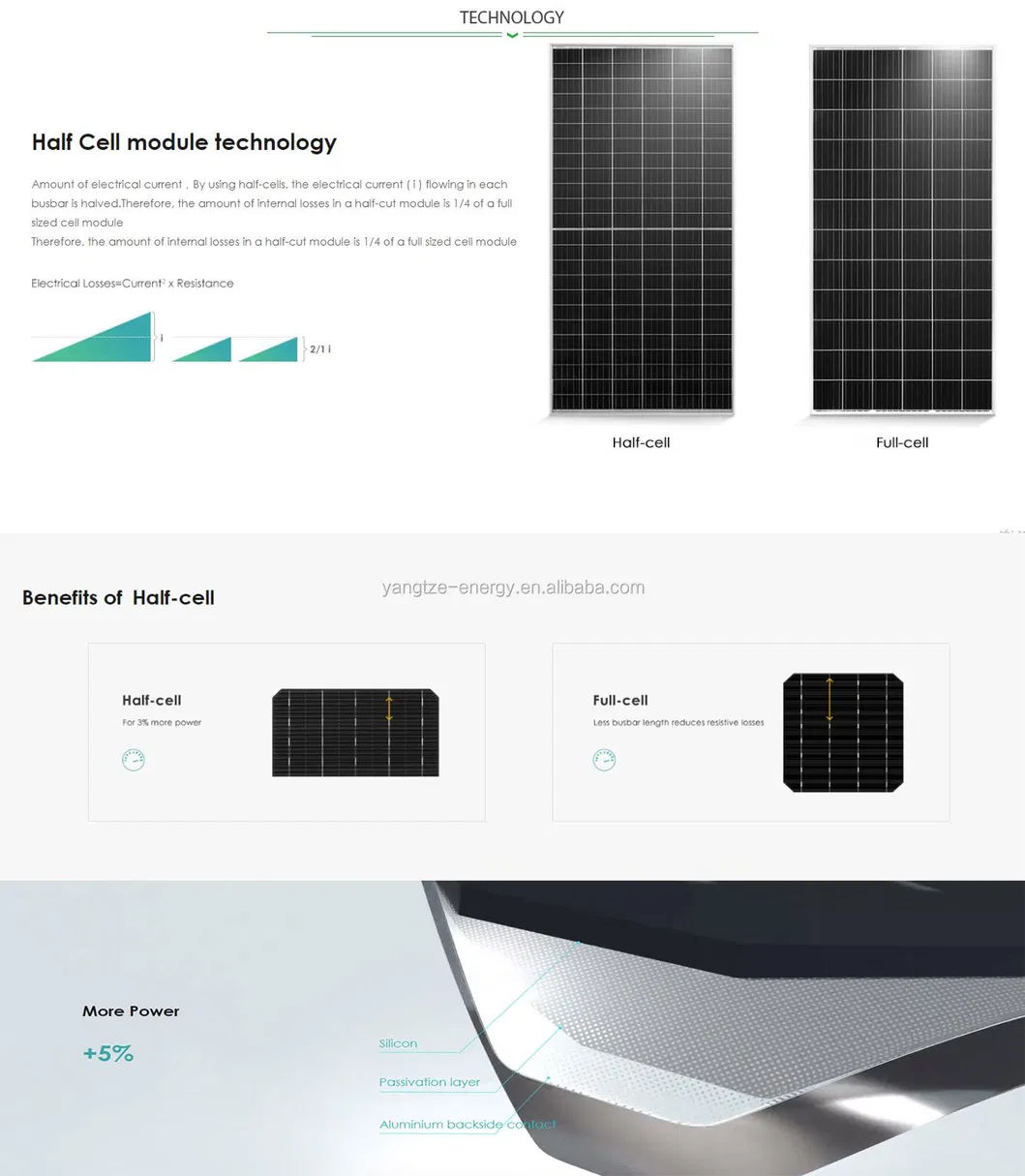

Manufacturing Process

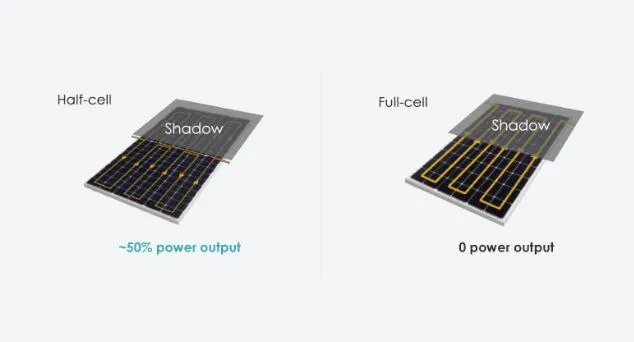

Cell Process

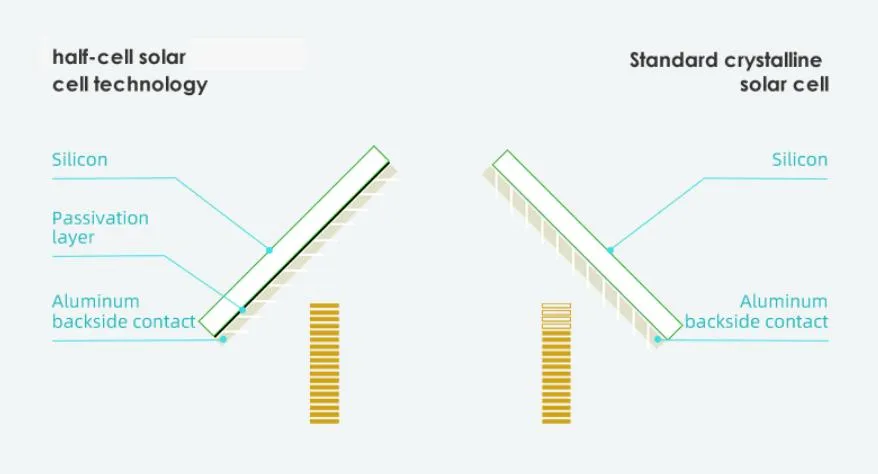

Assembly

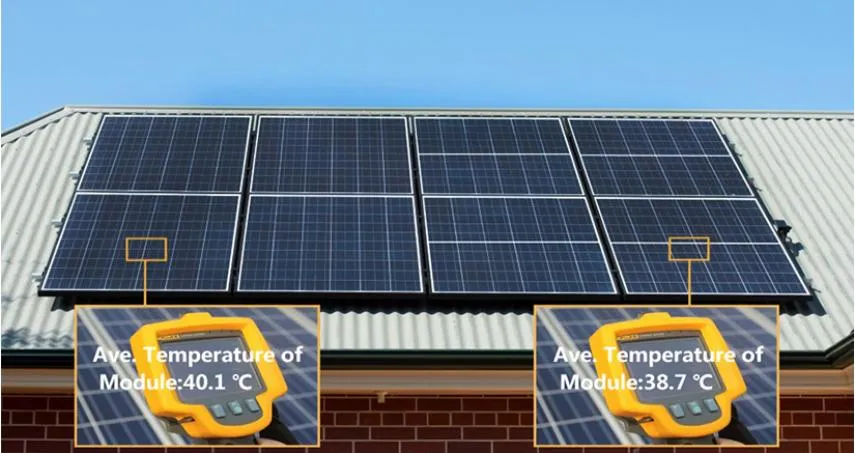

Testing

Factory Excellence

  • Founded in 1994, 300MW solar panel production capacity
  • Power range from 3W to 700W for both polycrystalline and monocrystalline panels
  • 10 years workmanship warranty; 25 years linear power output warranty
  • 100% EL test before package and shipping
  • Dual specialized factories for solar panels and batteries
  • Products exported to more than 150 countries
  • Certified by TUV (Germany) and CE
  • Turn-key solar system solutions offered to save time and cost

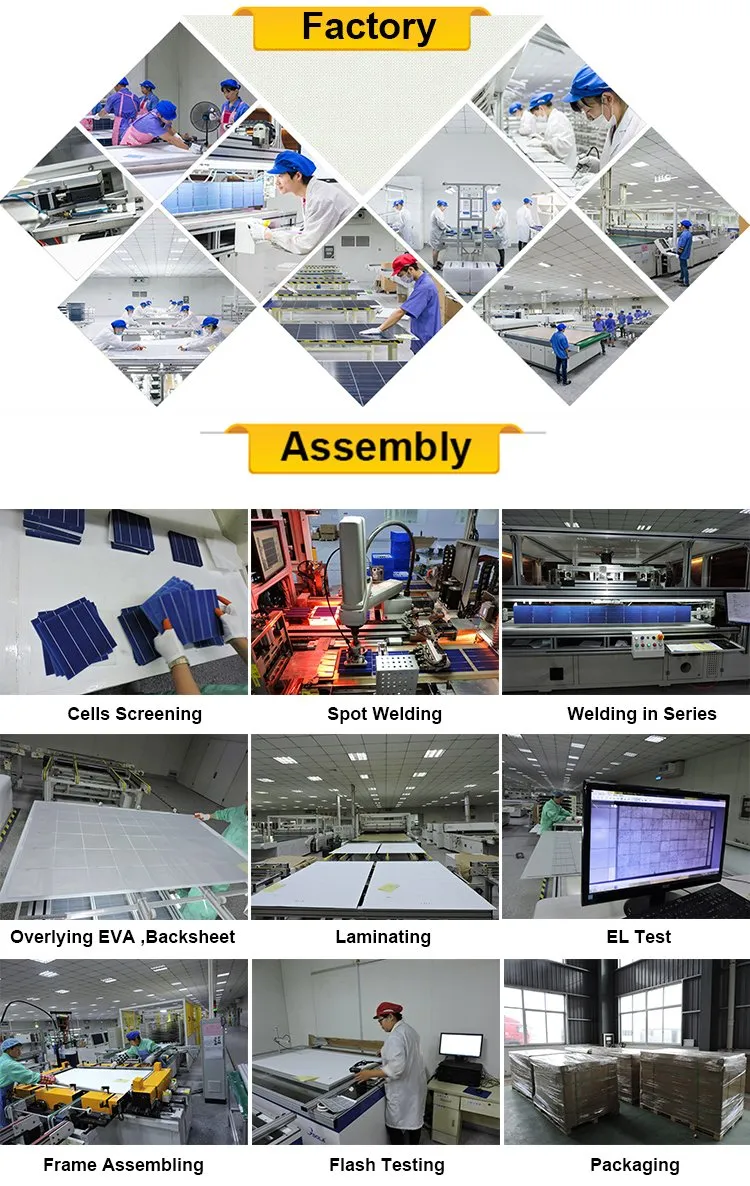

Factory Facility

Packaging & Real Projects

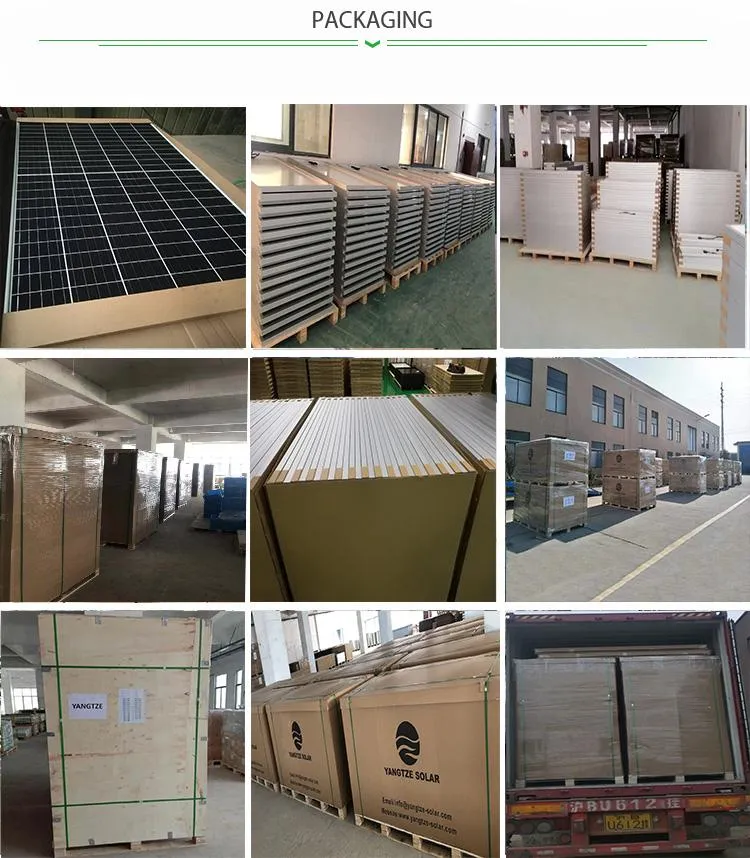

Packaging
Certification

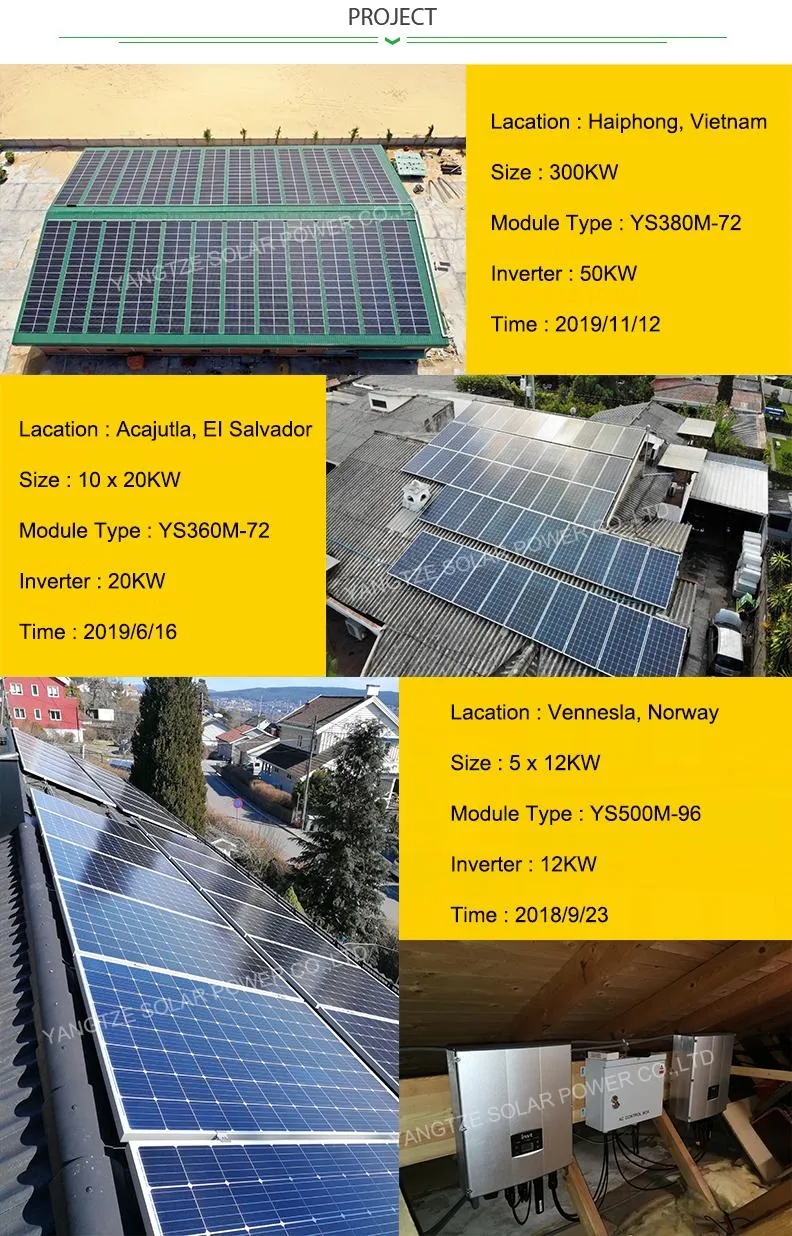

Solar Projects

Frequently Asked Questions

Q: What is the power range of these high-efficiency modules? A: These monocrystalline modules are available in 680W, 690W, and 700W specifications, designed for maximum industrial efficiency.
Q: What kind of warranty do you offer on these panels? A: We provide a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty (guaranteeing 80% output after 25 years).
Q: Are the panels tested for quality before shipment? A: Yes, every single panel undergoes a 100% EL (Electroluminescence) test to detect micro-cracks or defects before packaging and shipping.
Q: What are the main certifications for these products? A: Our solar panels are fully certified by TUV (Germany), CE, ISO, and follow IEC61215 and IEC61730 standards.
Q: Can these panels withstand harsh outdoor conditions? A: Absolutely. They feature 3.2mm high-transmission tempered glass, an anodized aluminum alloy frame, and an IP68 waterproof junction box for maximum durability.
Q: Do you support customized or OEM orders? A: Yes, OEM orders are acceptable. We can customize frame colors (silvery/black) and backsheet colors (white/black/transparent) to meet your specific needs.
