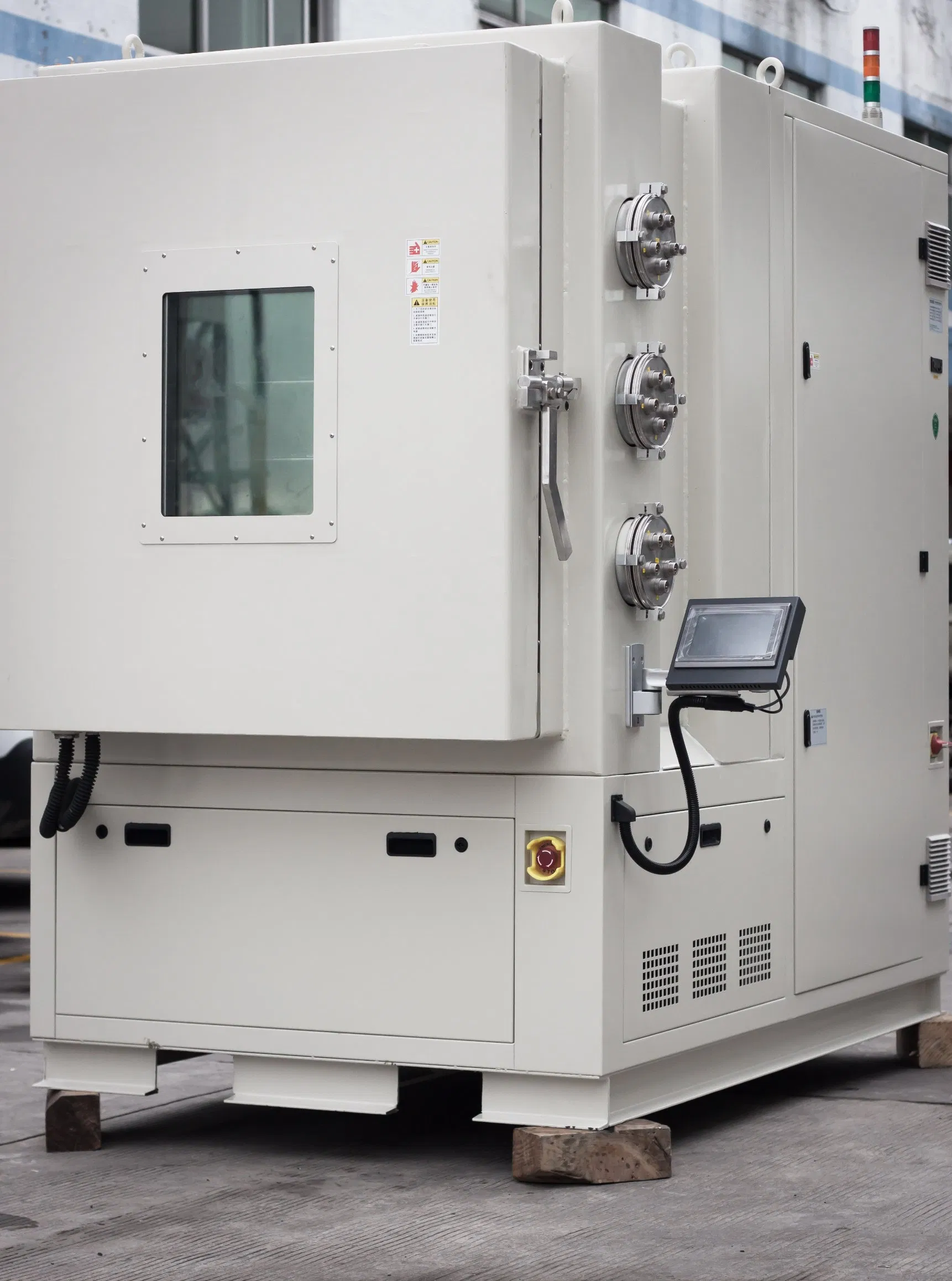

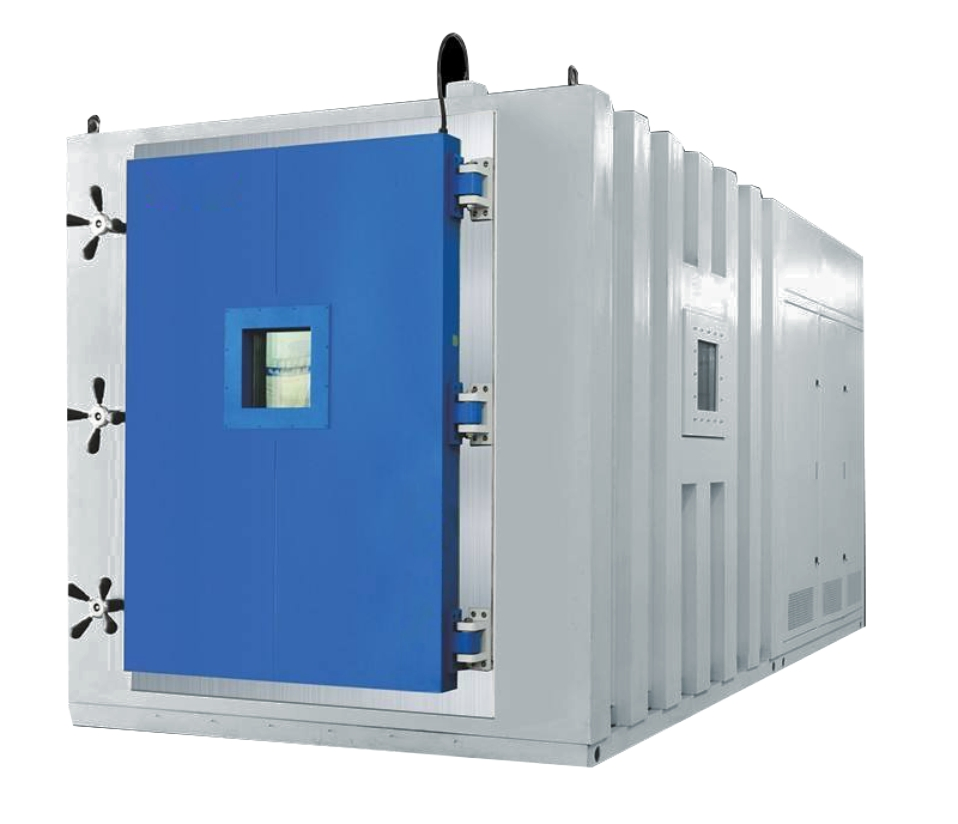

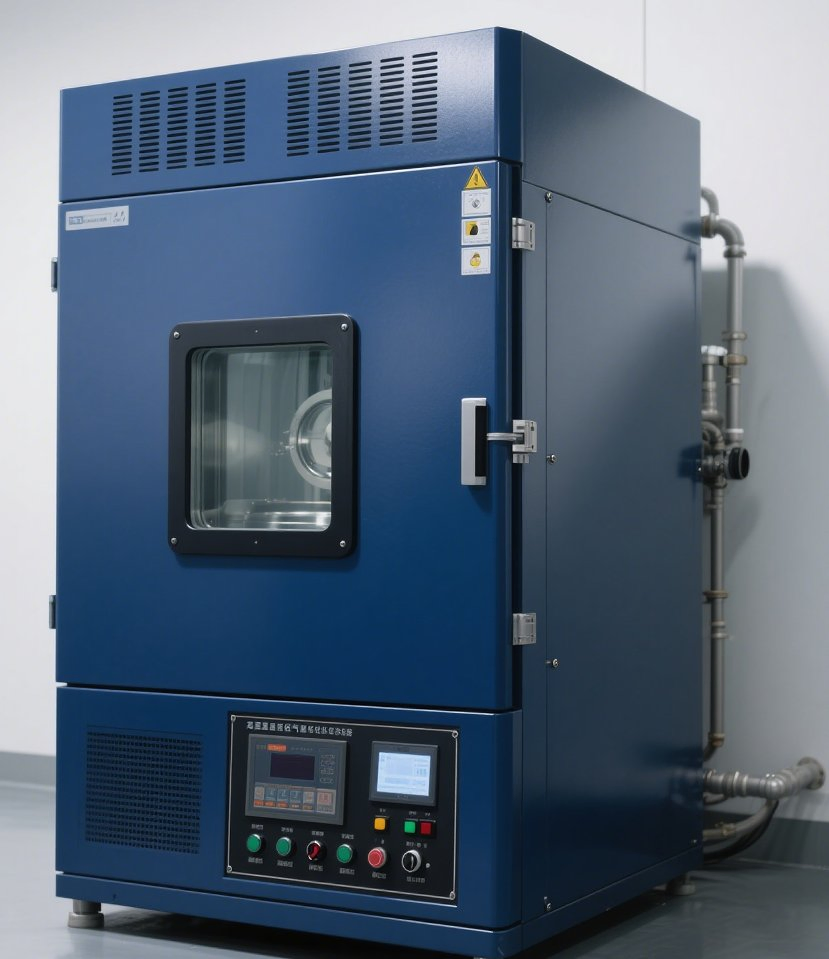

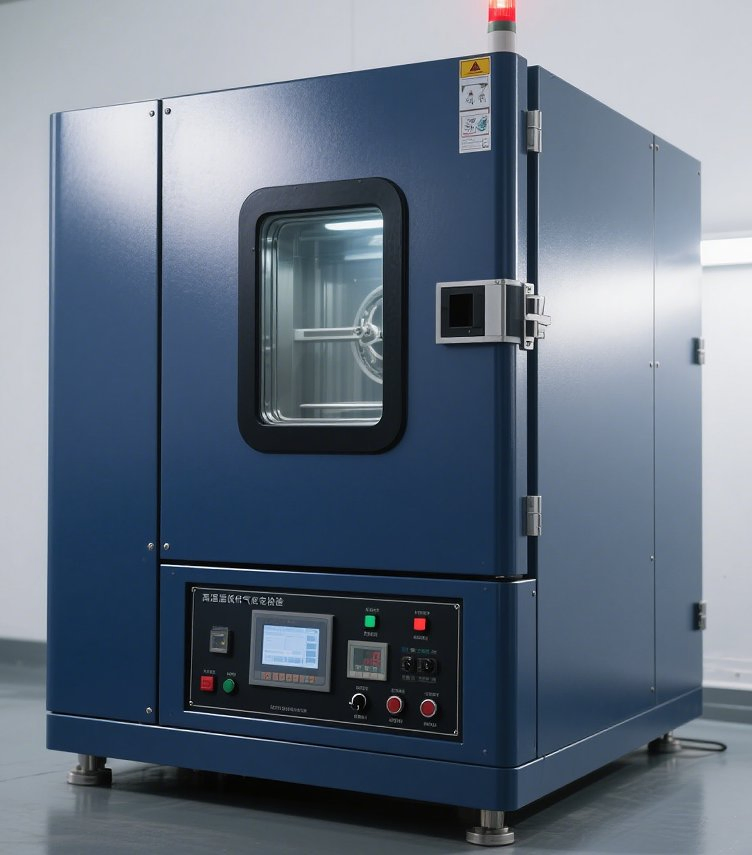

High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
1 / 5
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment

High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment

Customization: Available
After-sales Service: Support Operation Guidance
Power Supply: 380V
Send Inquiry

Product Description

Overview & Basic Info
Model NO.:MVT
Certification:CE
Warranty:1 Year
Uses:Temperature Pressure Testing Machine
Inner Box Volumn:100-1000L
Transport Package:Wooden Box
Trademark:MENTEK
HS Code:9030339000
Product Description
High Low Temperature Low-Pressure Test Chamber Environmental Testing Equipment

1. A 12mm manganese steel alloy plate with a support framework is used as the external pressure-bearing material, and the pressure-bearing capacity can reach 10T per square meter.

2. A replaceable stainless steel flange interface with fast sealing technology is equipped with aviation terminals to achieve a vacuum leak-free test of the test specimen under load.

3. Advanced low-pressure constant temperature technology is adopted to ensure that the temperature remains constant with minimal fluctuations under any temperature conditions in a low-pressure state.

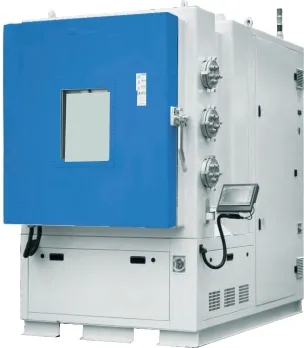

Testing Equipment 1

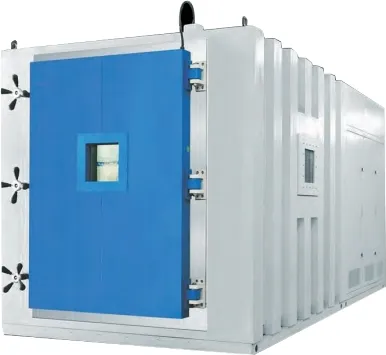

Testing Equipment 2
Main Parameters
Specification Item MVT-100 MVT-500 MVT-1000
Temp/Pressure Range Temp: -20ºC/-40ºC/-70ºC~+160ºC; Air pressure: ~0.5kPa
Temp Control Fluctuation: <±0.5ºC; Deviation: <±2.0ºC; Uniformity: ±2.0ºC
Pressure Deviation ≤±2kPa (≥40kPa); ≤±5% (2~40kPa)
Material Inner: SUS304 Stainless Steel; Outer: 12mm Manganese Steel Alloy Plate
Inner Size (W*H*D cm) 50*50*40 80*80*80 100*100*100

Note: Support customization

Company Display & Certifications
Company Profile

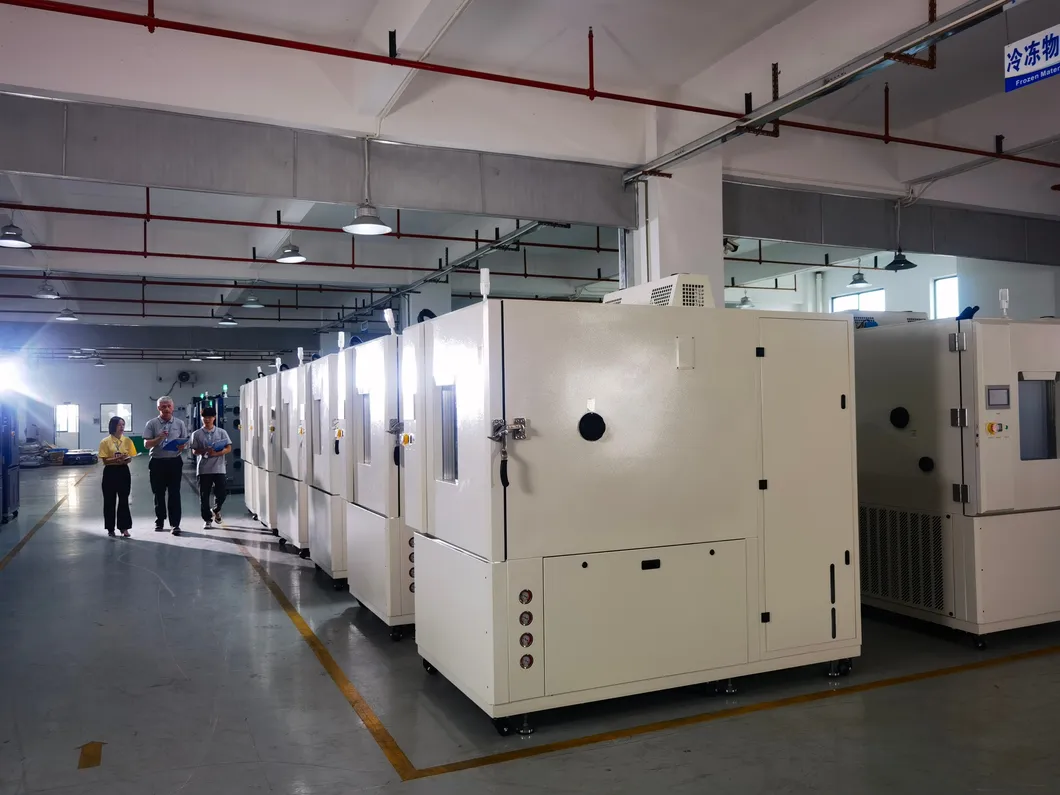

Workshop
Certifications
Ship to Client's Factory

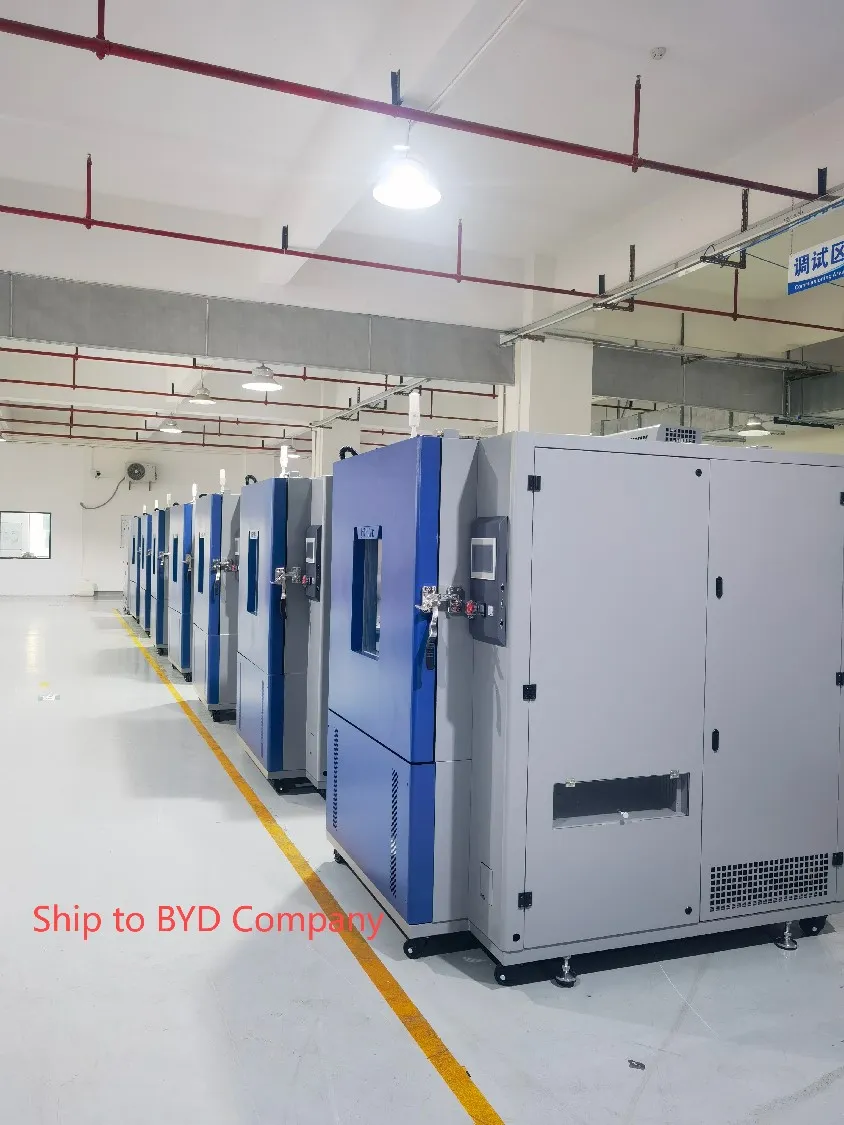

Delivery 1

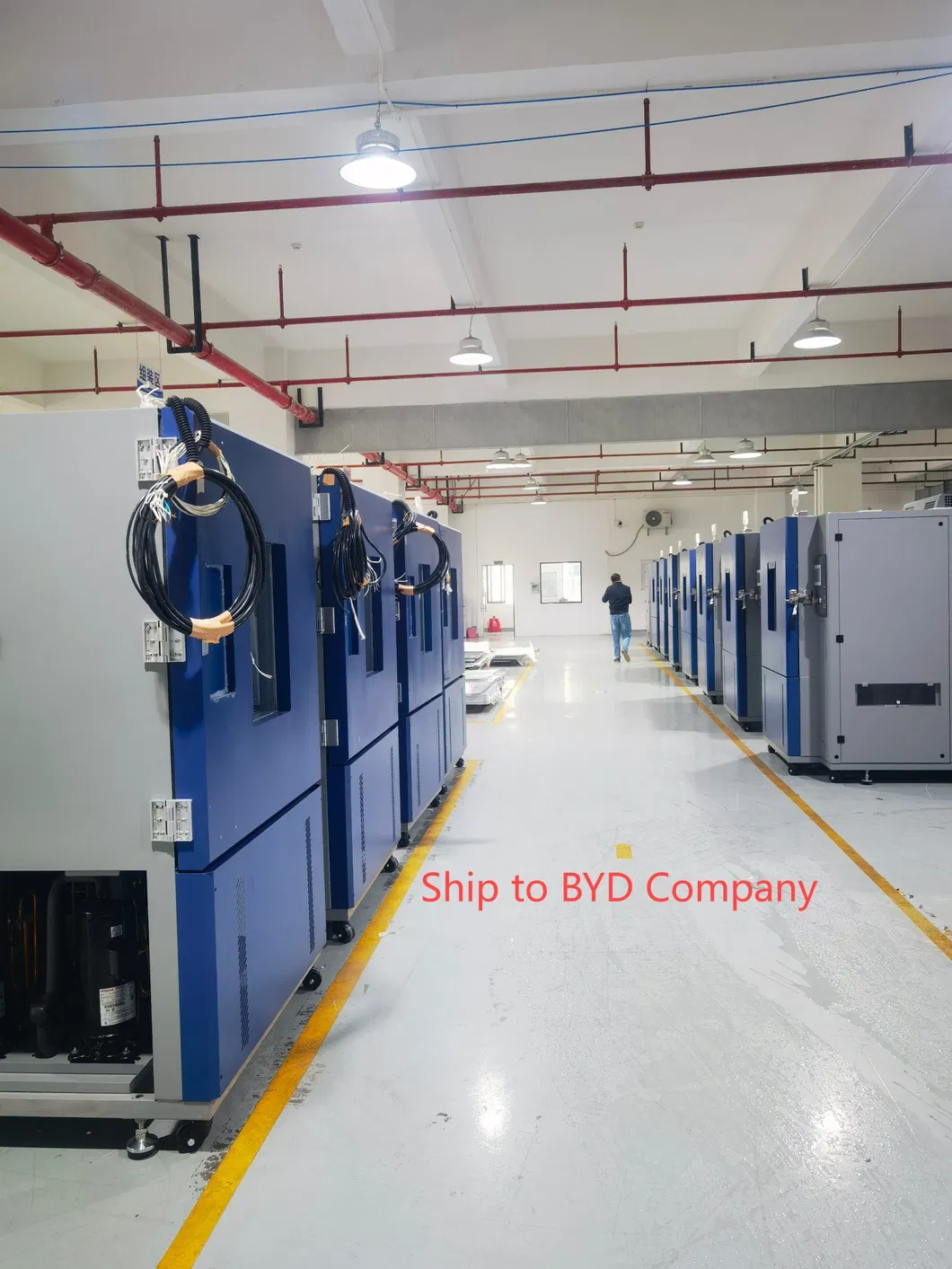

Delivery 2
Our Partners & Shipping
Partners
Packaging
Frequently Asked Questions
What is the maximum pressure capacity of the chamber?
The external pressure-bearing material can withstand up to 10 tons per square meter using 12mm manganese steel alloy plates.
Does the system support vacuum leak-free testing?
Yes, it features a stainless steel flange interface with fast sealing technology and aviation terminals for vacuum leak-free performance.
What kind of compressors are used in the cooling system?
We use high-quality imported compressors, specifically French Taikang or German Bizelle units.
Can the chamber dimensions be customized?
Yes, we support full customization to meet specific testing requirements beyond the standard 100L to 1000L volumes.
Which testing standards does this equipment meet?
It complies with various international standards including GB/T2423, GB/T5170, GJB150A series, and more.
