Product Overview

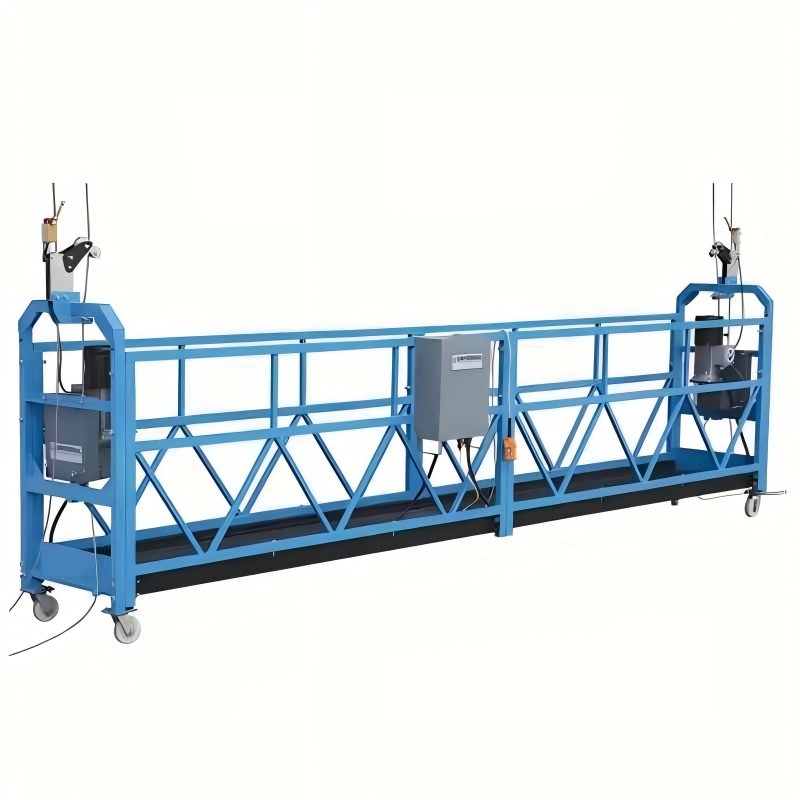

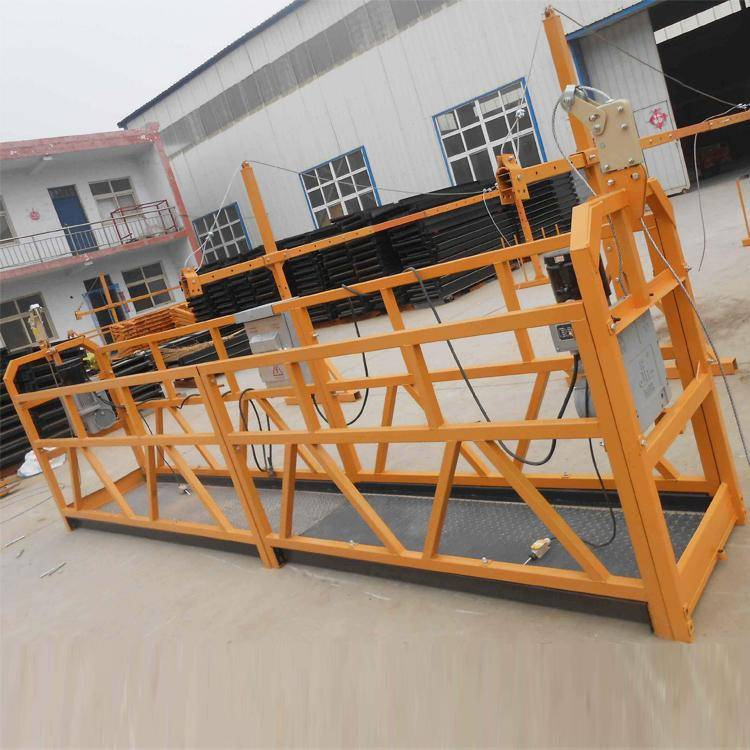

This suspended platform is primarily used for exterior wall decoration and renovation of buildings, among other high-altitude operations. Its robust steel structure and anti-slip platform design ensure stability and safety for workers at height. The platform is equipped with an advanced automatic lifting system that is easy to operate and can easily handle different heights of work requirements. Additionally, it features protective nets and safety harness hooks, further ensuring the safety of the workers. Using this product for high-altitude work is not only safer but also more labor-saving, making it popular among construction companies.
Model NO.ZLP500/ ZLP630/ ZLP800/ ZLP1000
CertificationTUV, CNAS, GOST, GB, ISO, CE, CCC
Rated load500kg - 1000kg
Lifting Speed9-11m/Min
Lifting HeightUp to 200m
MaterialAluminum Alloy / Q235 Steel
Voltage220~440V, 3-Phase or 1-Phase

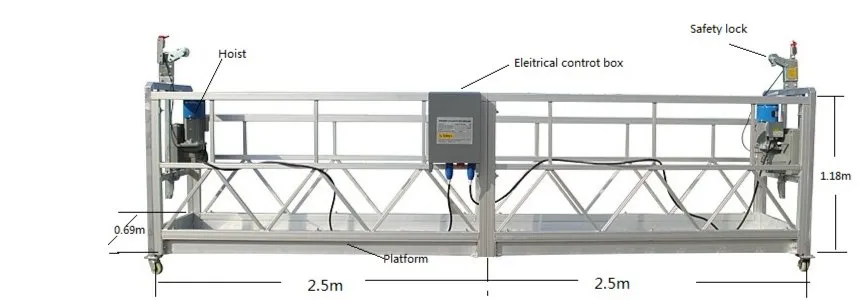

ZLP Series Suspended Platform

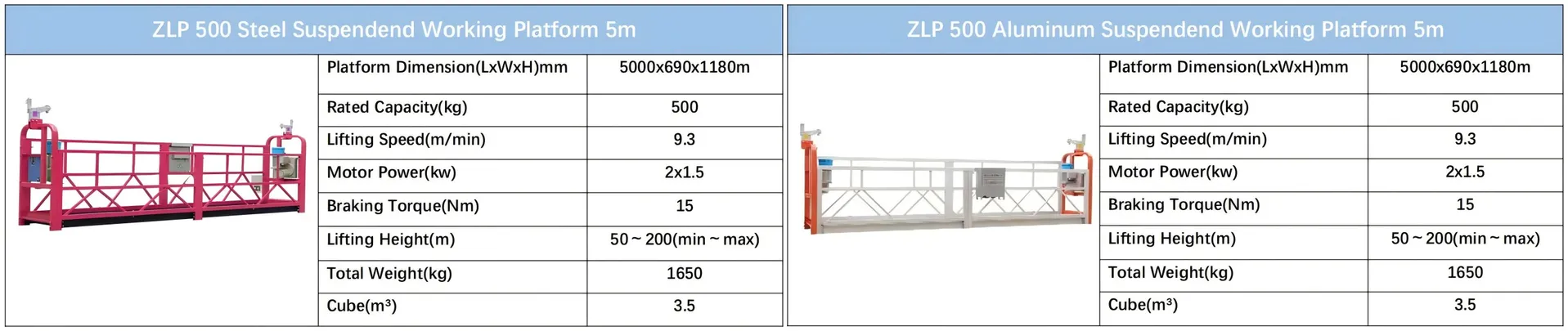

Technical Specifications
| Type |
ZLP500 |
ZLP630 |
ZLP800 |
ZLP1000 |
| Rated Load | 500KG | 630KG | 800KG | 1000KG |
| Platform Size | 5x0.69x1.18m | 6x0.69x1.18m | 7.5x0.69x1.18m | 7.5x0.69x1.18m |
| Lifting Speed | 9.3m/min ± 5% |
| Motor Power | 1.5kw x 2 | 1.5kw x 2 | 1.8kw x 2 | 2.2kw x 2 |
| Wire Rope | 8.3mm / 8.6mm / 9.1mm |
| Safety Lock Type | LSG20 | LSG20 | LSG30 | LSG30 |
Core Components

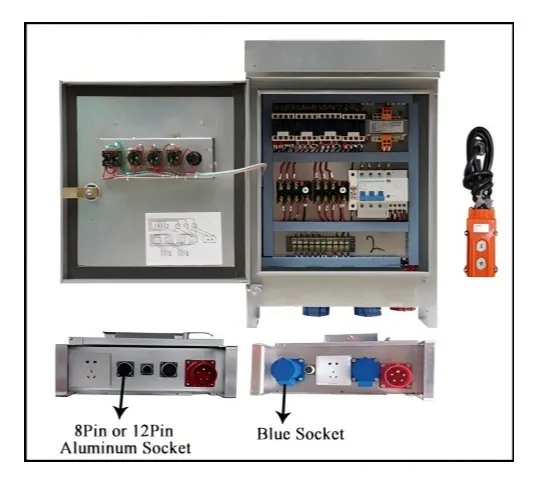

Electric Control Cabinet

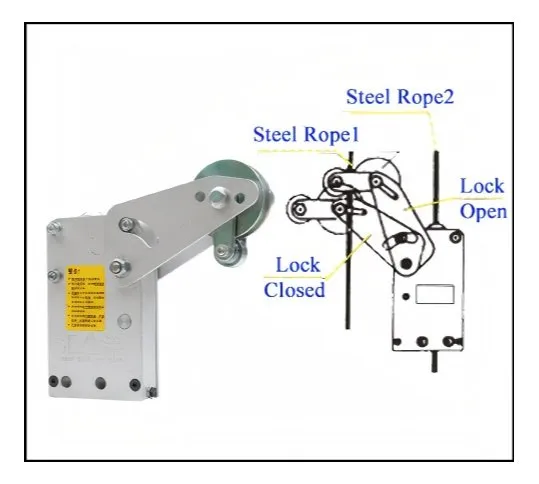

Safety Lock LSG30

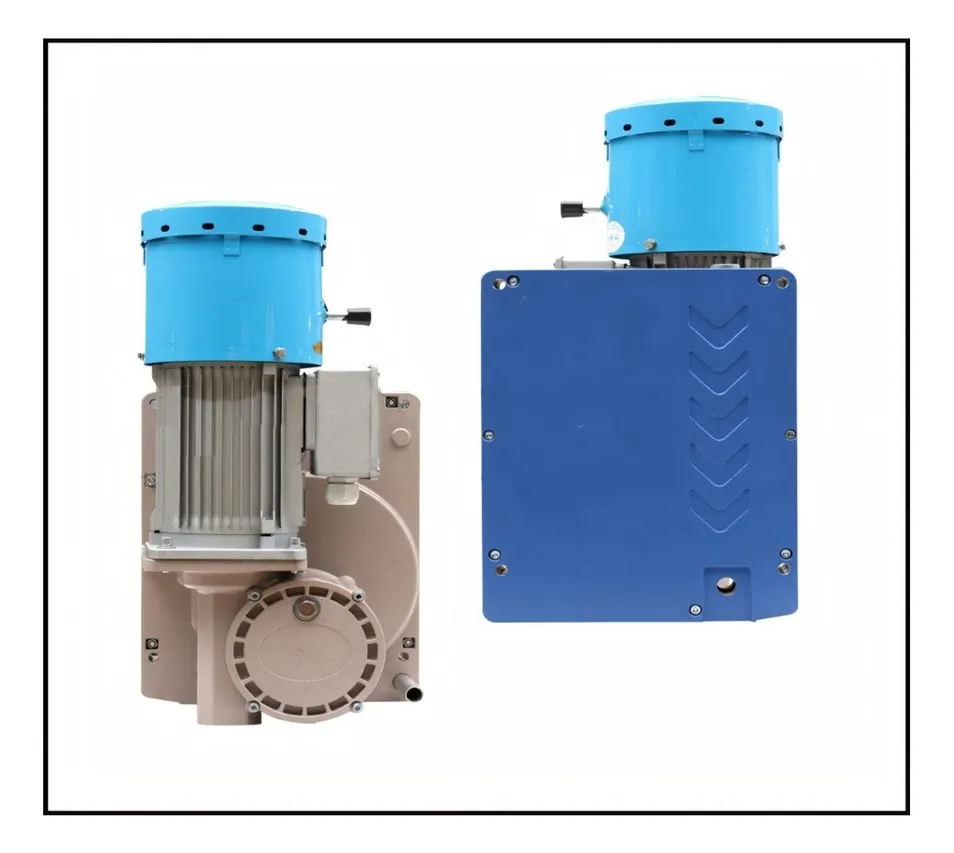

LTD Hoist System

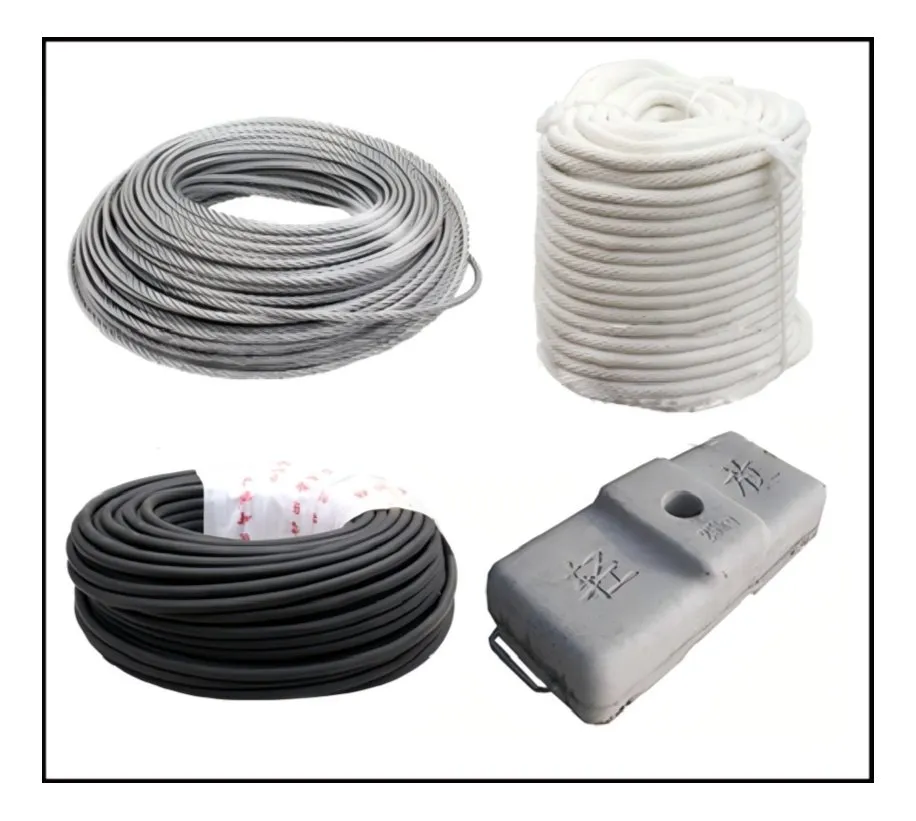

High-Strength Steel Rope

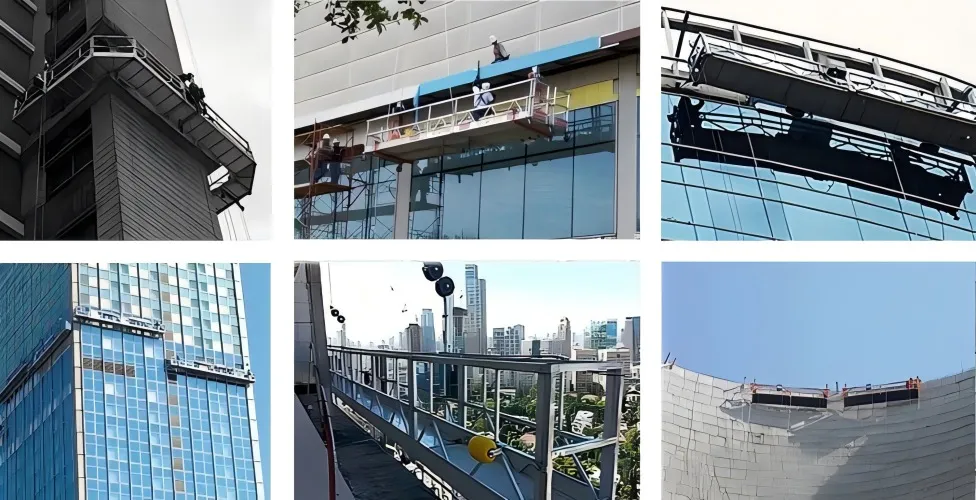

Global Success Cases
Our suspended platforms have been successfully exported to over 20 countries. We provide customized site access solutions to ensure safe, efficient, and reliable high-rise operations for building maintenance and façade cleaning.
Frequently Asked Questions
How can I get a price quote for the suspended platform?
Price will be offered immediately after you provide requirements regarding model, platform length, loading capacity, material (painted or galvanized), and voltage.
What are the benefits of the Hot-Dip Galvanized finish?
Hot-dip galvanized steel platforms offer excellent anti-corrosion properties and are more cost-effective compared to aluminum alloy options.
What quality certificates do these products hold?
Our products are fully certified with CCC, CE, EAC, and ISO9001 standards.
What is the warranty and after-sales support?
We provide a One-Year Quality Warranty and life-time technical support. Any parts damaged due to quality issues within 12 months will be replaced immediately.
Can you provide OEM branding on the platforms?
Yes, we can manufacture the suspended platforms using your specific branding.
What is the typical delivery timeframe?
Shipment is usually arranged via sea, train, or air within 15-20 days following the deposit.
