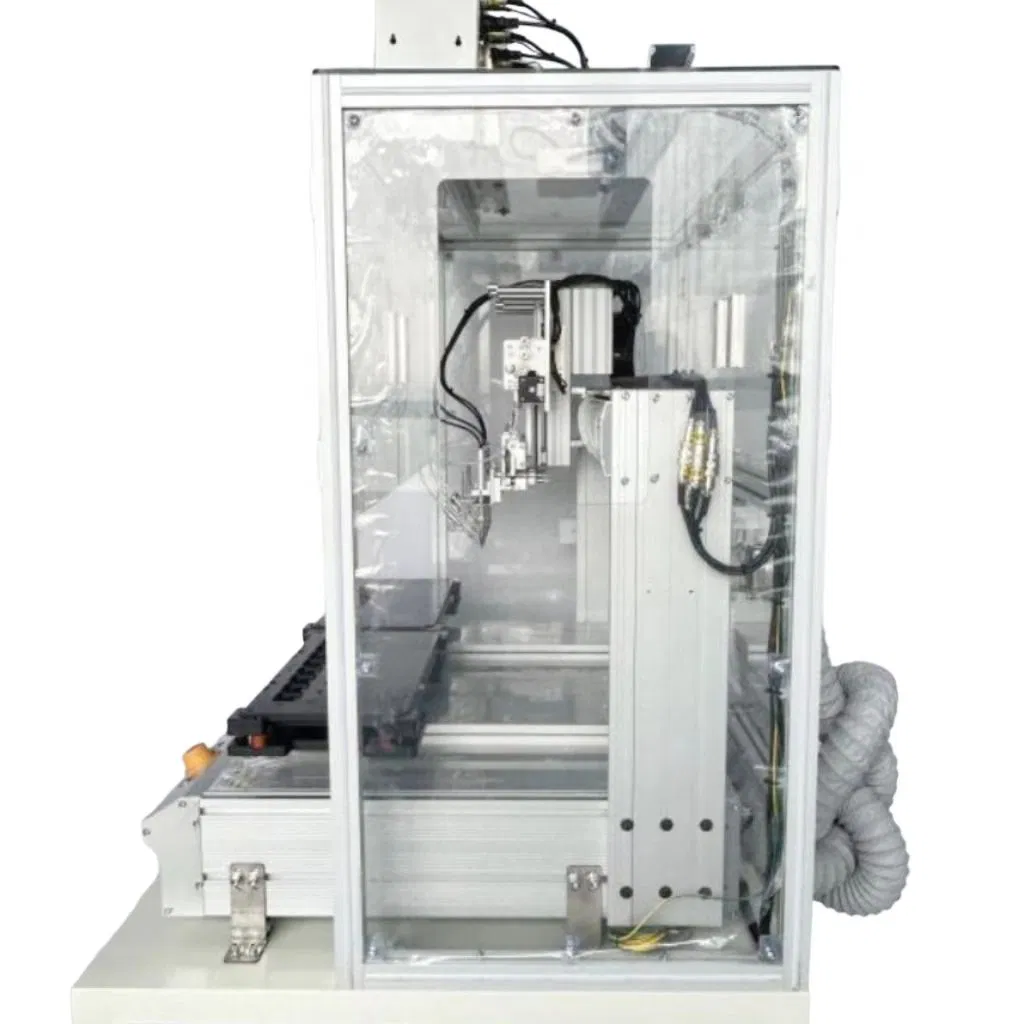

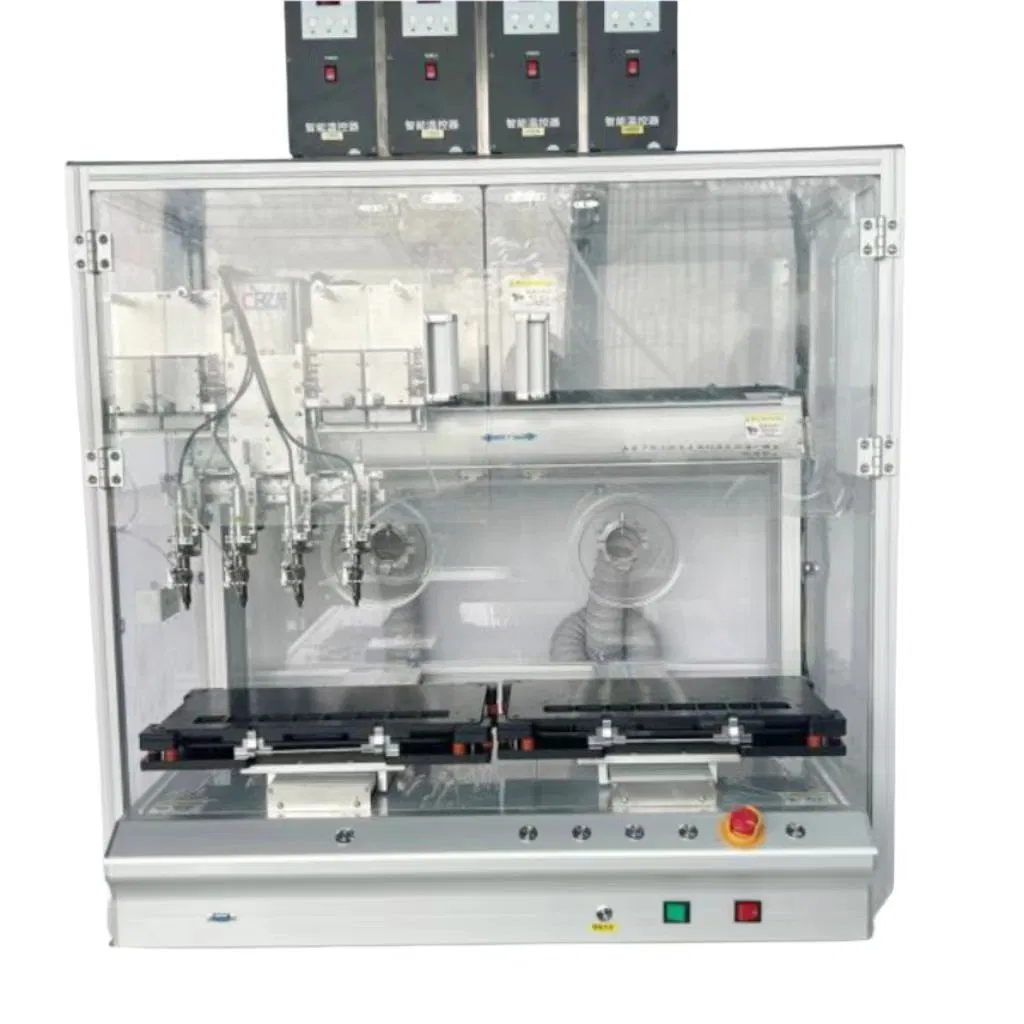

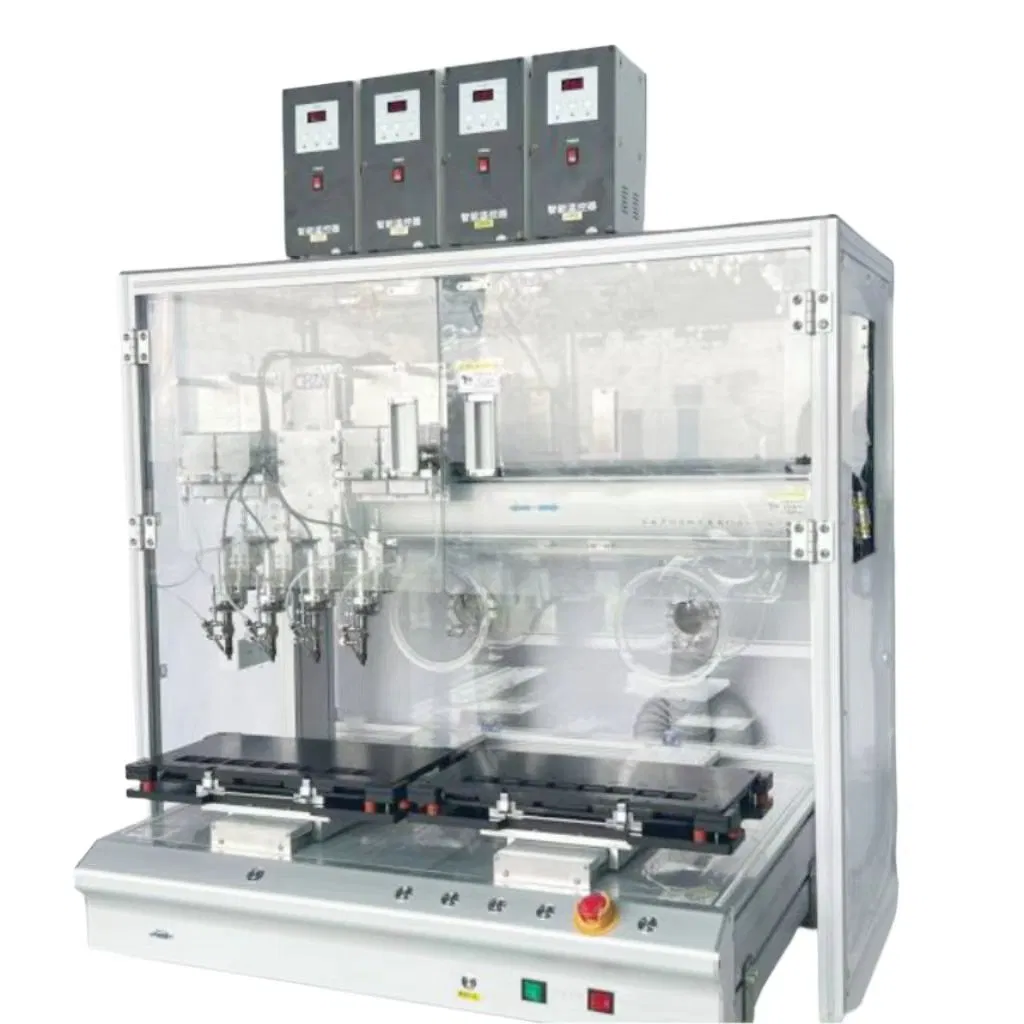

High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
1 / 5
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control
High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control

High-Speed 5-Axis CNC Automatic Soldering Robot for Precision PCBA with Benchtop Design and Programmable Path Control

Axis: 5 Axis
Style: Desktop
Control: Automatic
Send Inquiry

Product Description

📋Basic Information
Model NO.
CB-HX7441
Application
Electrical & Electronics Industry, Lighting Industry, Auto Industry
Certification
CE, ISO
Type
Customizable
Product Name
Small Desktop Automatic Soldering Machine
Voltage
AC 110/220V 50/60Hz
Conductor
Touch Screen + Visual Programm System
Reposition Accuracy
+/-0.1 mm
Operating Range
700*400*400*100mm(X*Y*Y*Z)
Machine Weight
85 Kg
Welding Guns
4
Tip Temperature
450 Degree Celsius
📦Packaging & Delivery
Package Size
85.00cm * 65.00cm * 85.00cm
Gross Weight
85.000kg
Transport Package
Wooden Box
⚙️Product Parameters
ModelCB-HX7441
Power150W
Repeated Accuracy< (+/-5%)
Operating Range (X*Y*Z)700*400*400*100mm
Station Size200*200mm (one station)
Control SystemPC
Soldering MethodSolder wire feeding
Solder Wire Dia0.5-1.2mm
Tin Feeding Accuracy0.2mm
Industrial ComputerI5-6, 8G Memory, 128SSD+1T, Win7 System
MotorServo Motor
Temperature Range100°C~480°C
🚀Robotic Soldering System

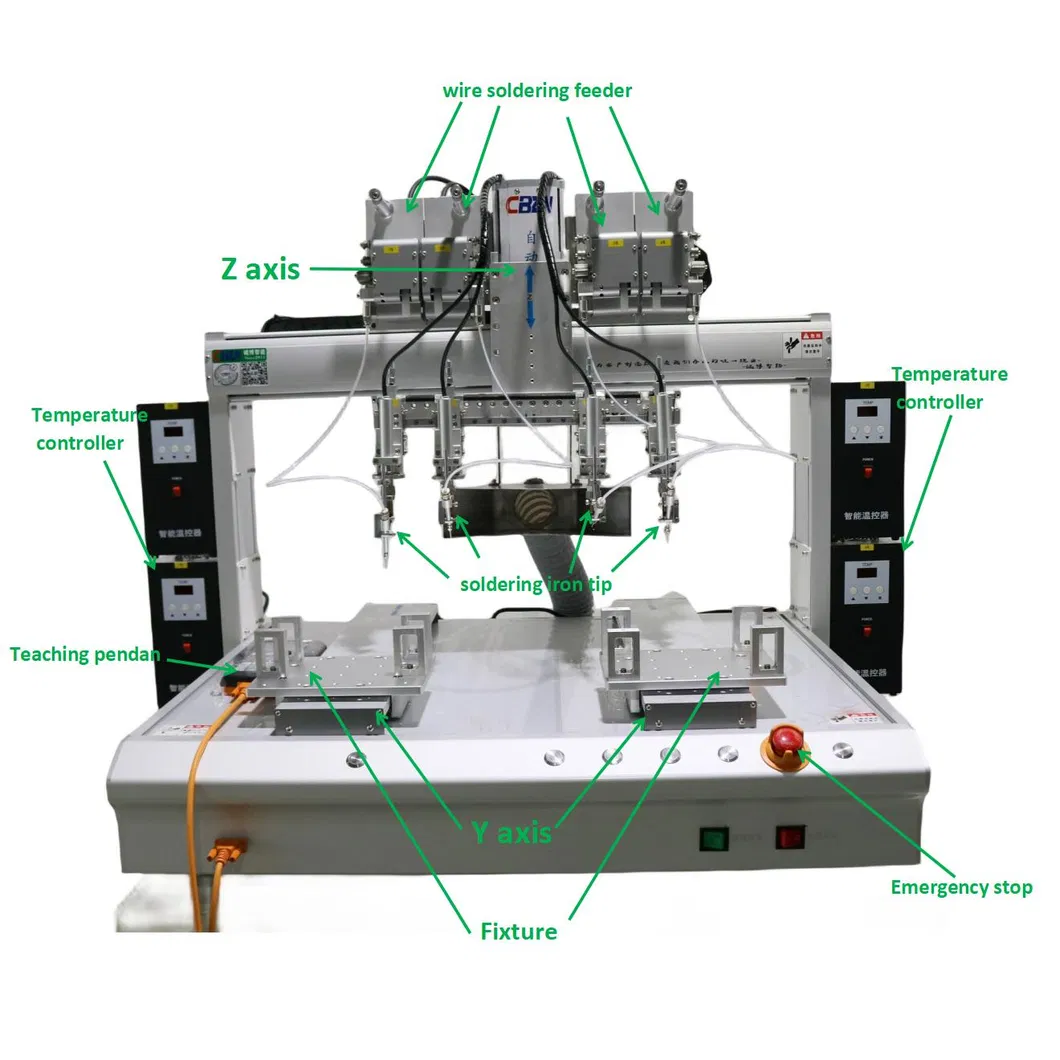

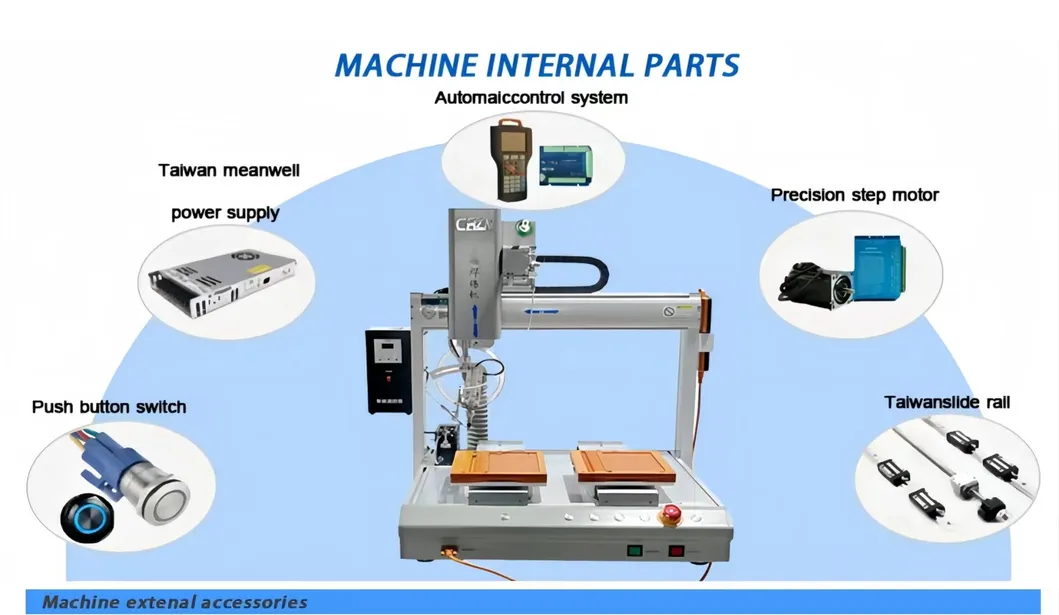

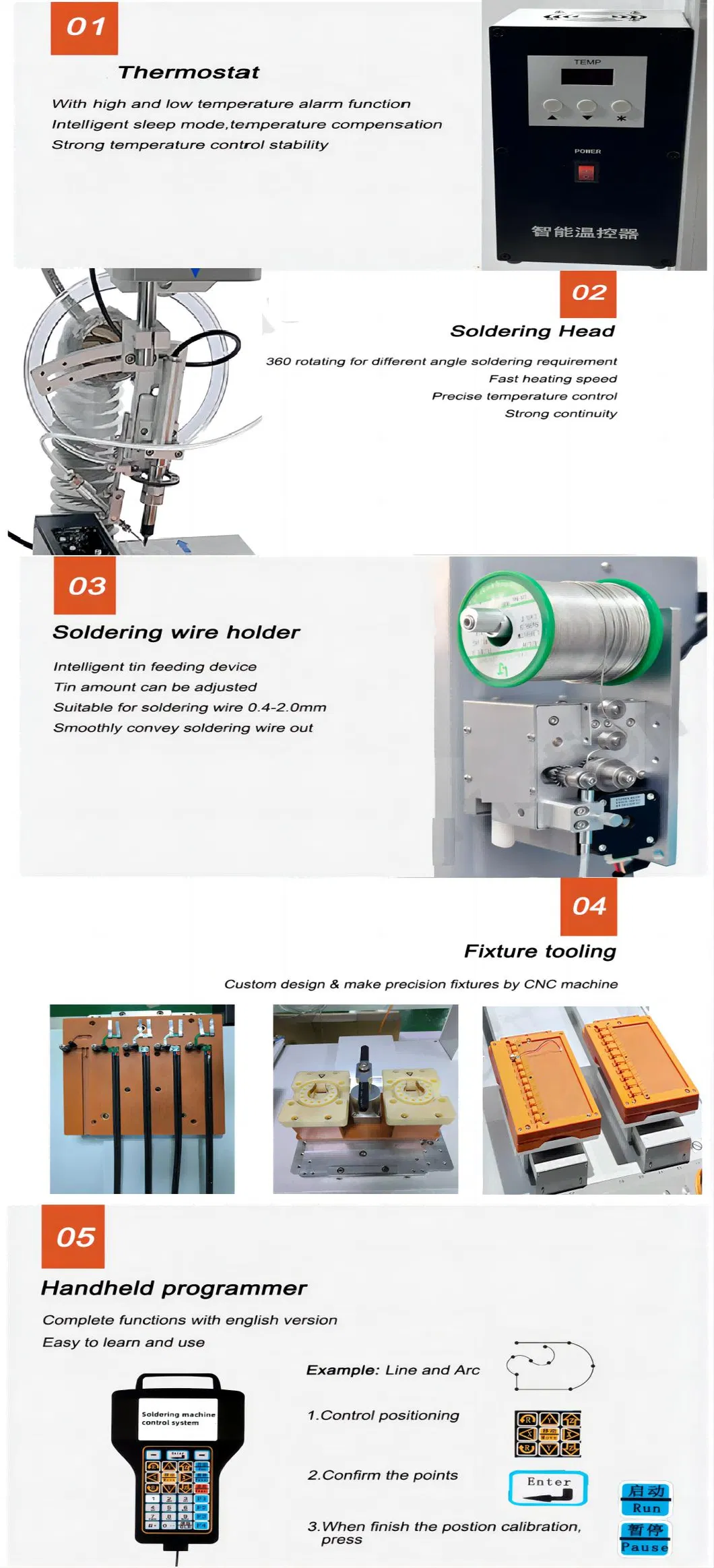

The automatic soldering machine utilizes the movement function of the manipulator to complete high-precision soldering operations. The core consists of an automatic tin feeding mechanism, temperature control, heating element, and soldering iron tip.

  • 360° freely rotating R-axis
  • XYZ motion equipped with teaching pendant
  • Easy programming for beginners
  • Wide application in PCBA, Led lights, and circuit boards
  • Special surface treatment with aesthetic design
  • Windows-based user software

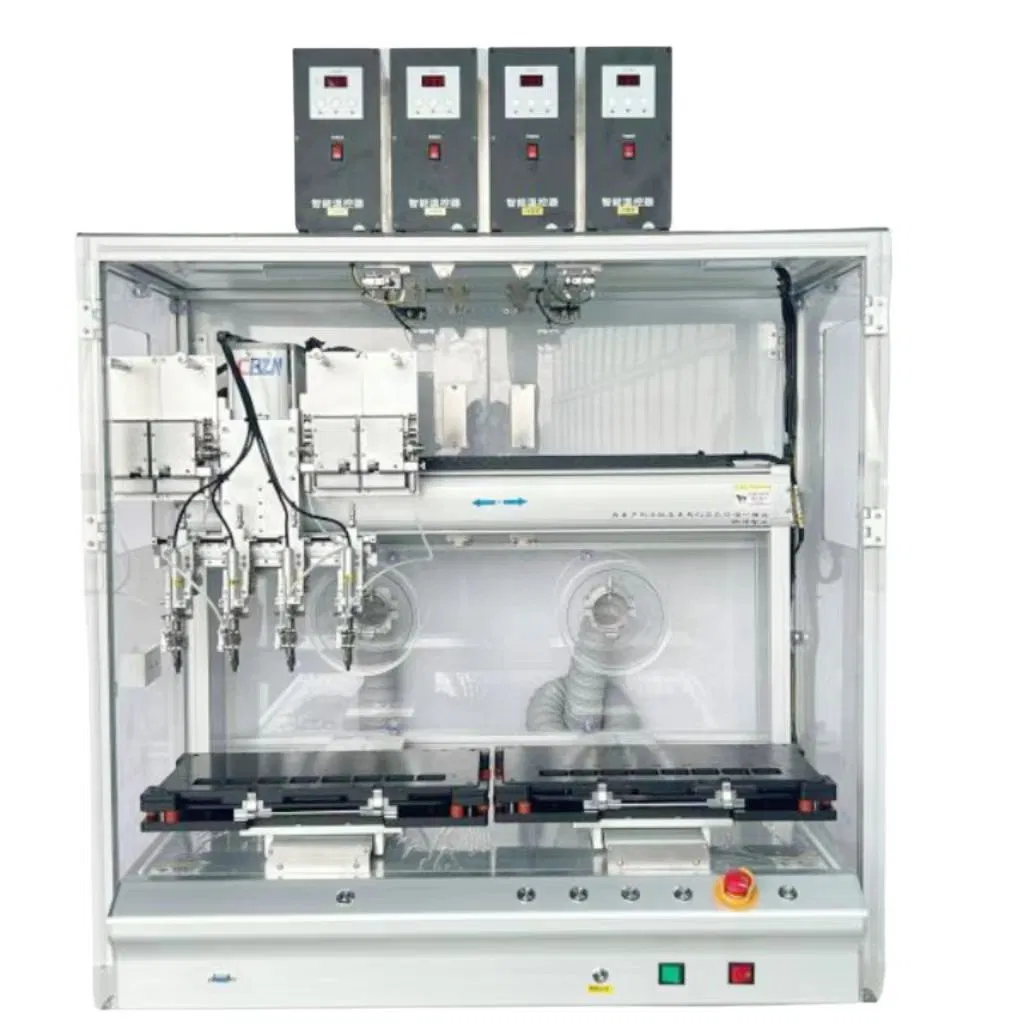

Automatic Soldering Robot

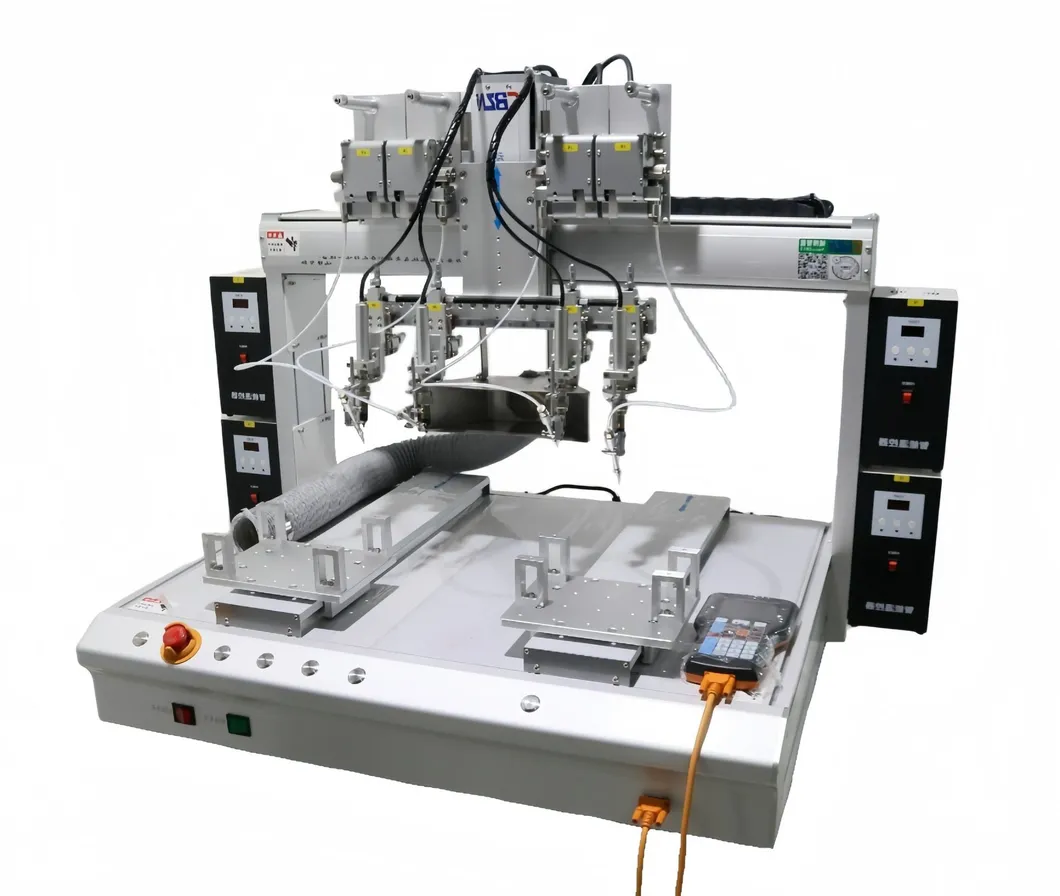

Precision Solder Control

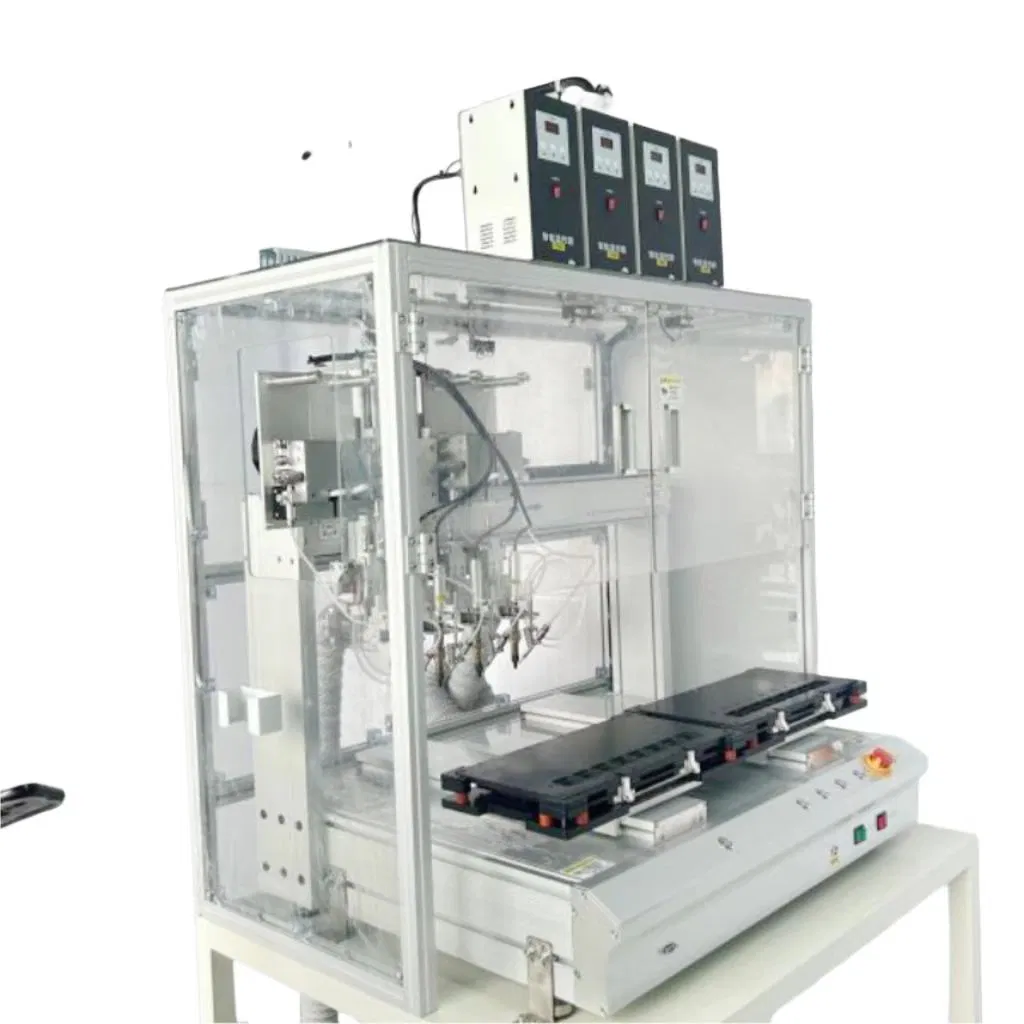

CNC Path Control
Dispensing Machine
Production Line Welding
Industrial Robot System
🔍Product Details

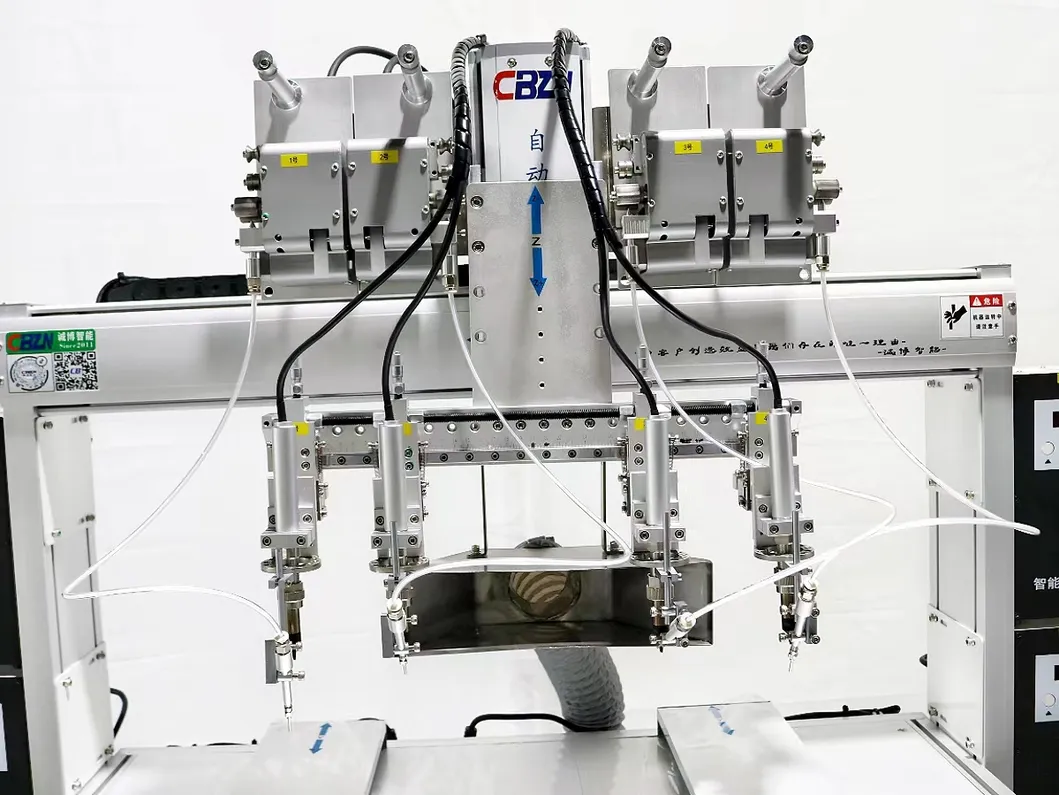

Detail 1

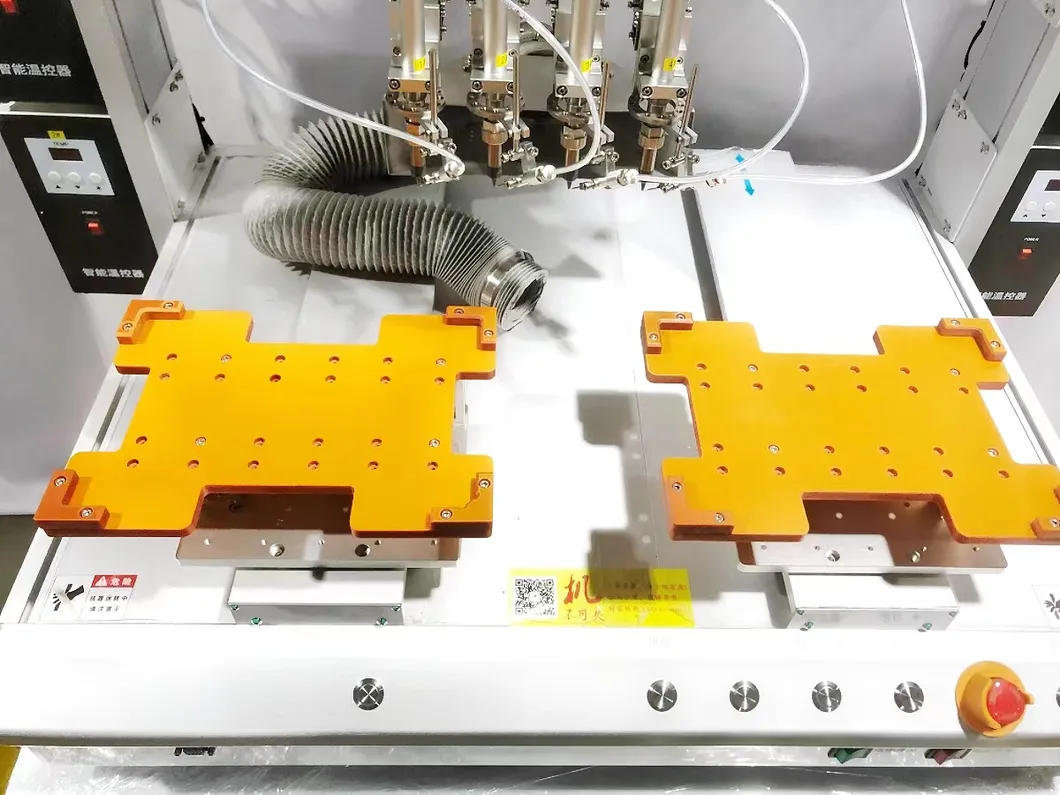

Detail 2

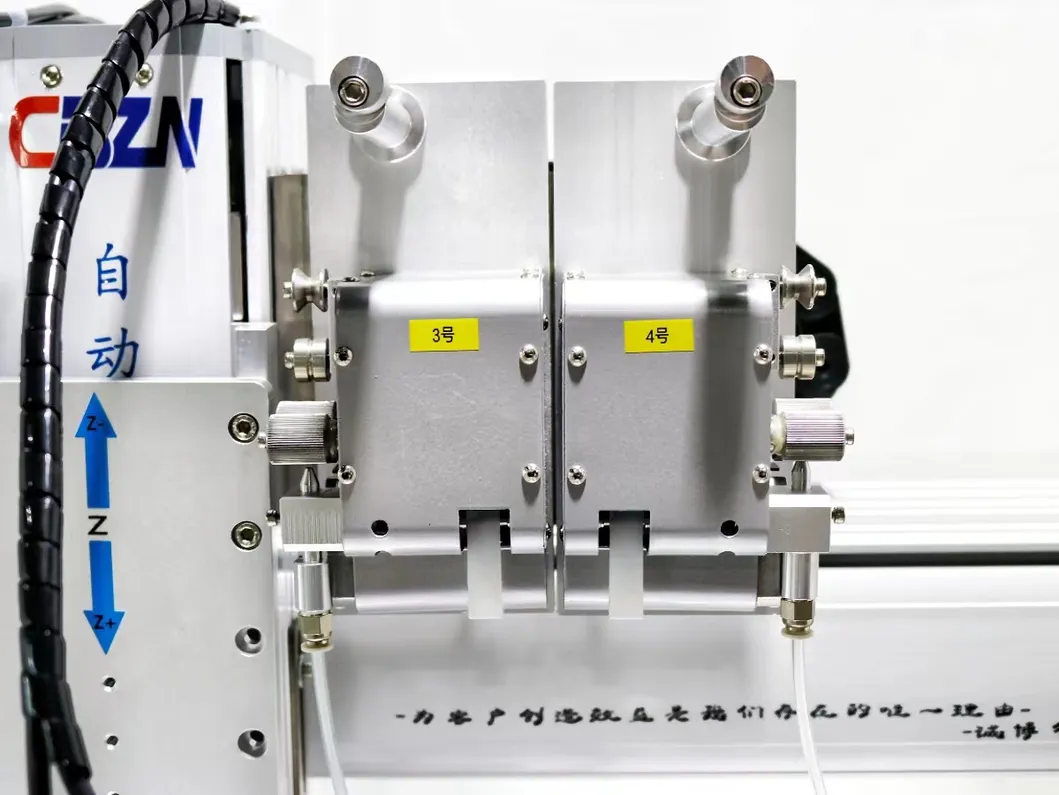

Detail 3

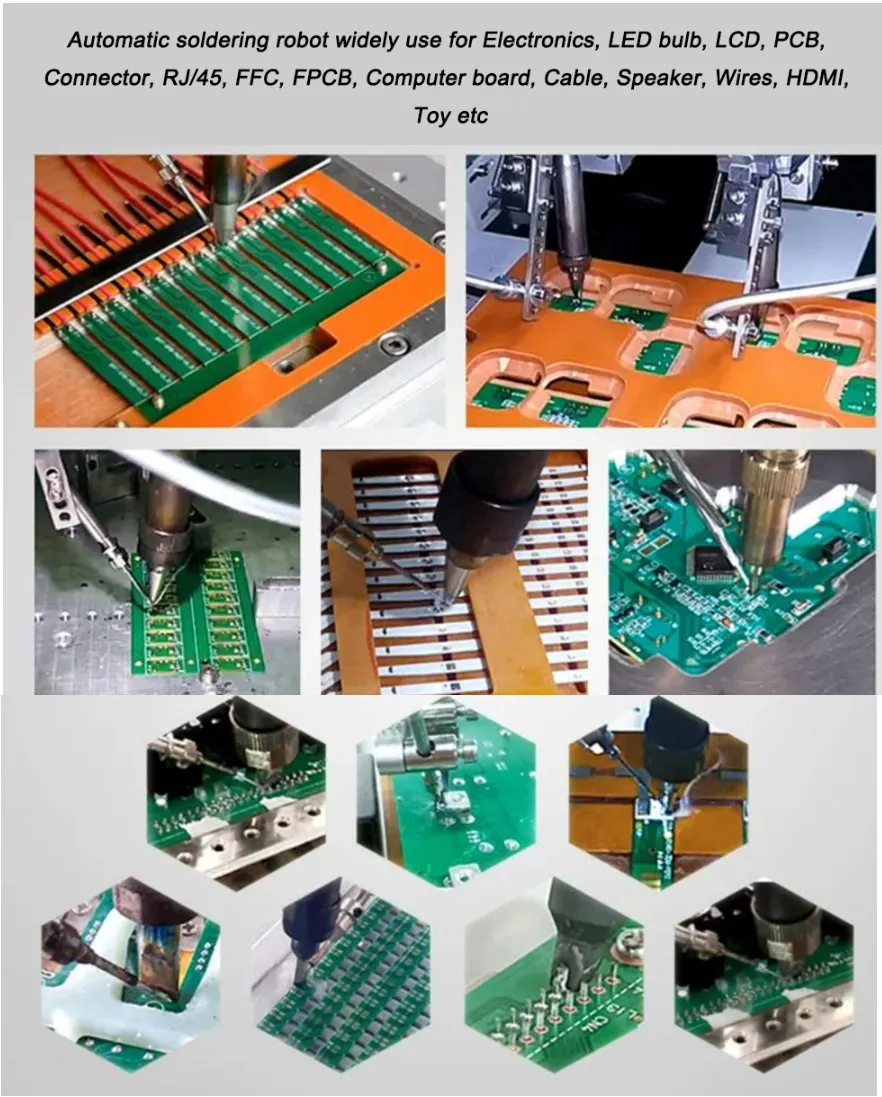

Assembly View
💡Other Products

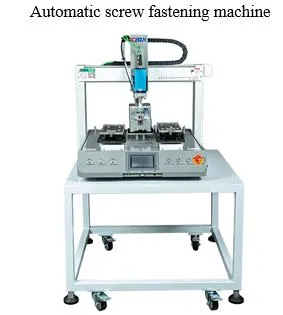

Screw Fastening Machine

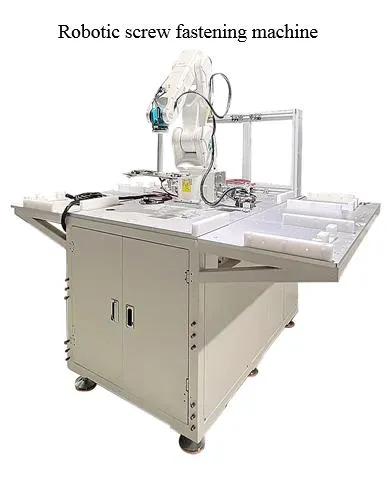

Four-axis Robot

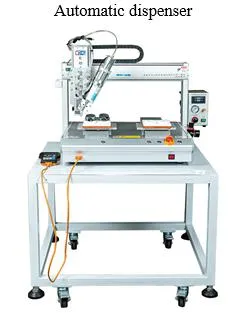

Dispenser Machine
🌟Our Advantages

As a global enterprise, we insist on quality, focus on service, and continuous core technology innovation. We provide professional solutions, high-quality durable products, and timely after-sales support.

Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6
🏢Company Overview

We are a high-technology leader in the intelligent machinery industry. Established in 2005, we specialize in the development, production, and sales of automated equipment for the electronics and eyewear industries. Our solutions address key manufacturing challenges:

  • Reduction of high training and management costs from manual labor.
  • Elimination of quality fluctuations and high failure rates.
  • Mitigation of rising raw material costs and narrowing profit margins.
  • Smoothing production gaps between peak and off-seasons.
  • Controlling waste of auxiliary materials in production.
  • Enhancing factory technology to build global customer trust.

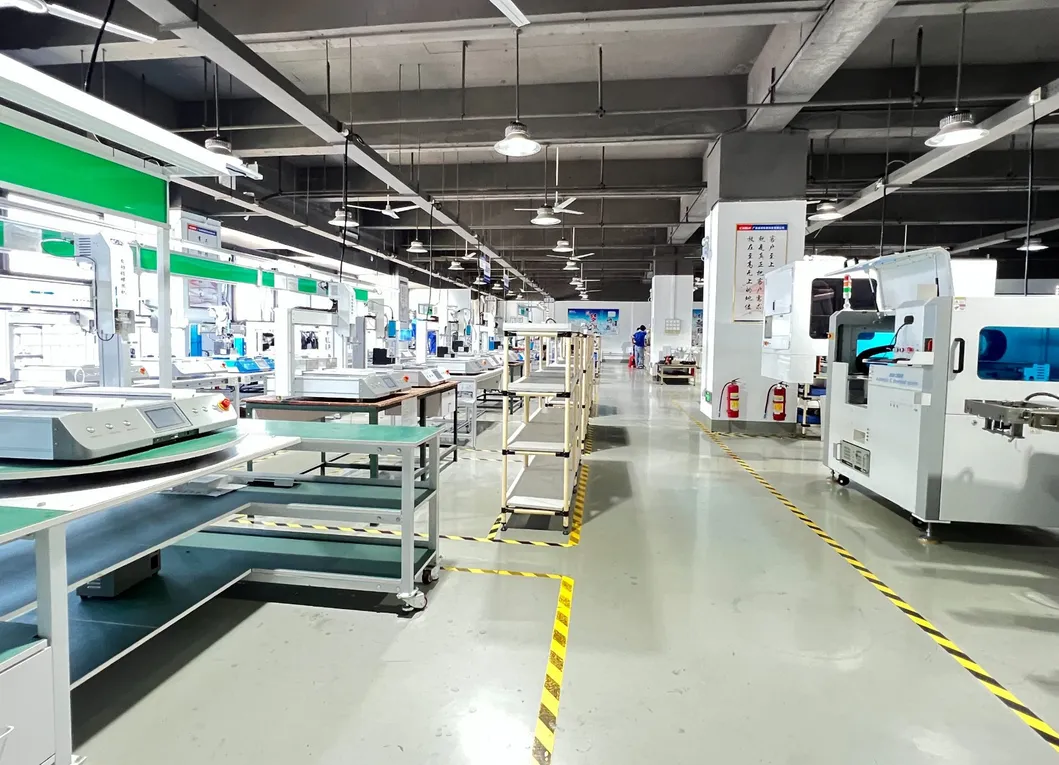

Factory View
Robotic Lab

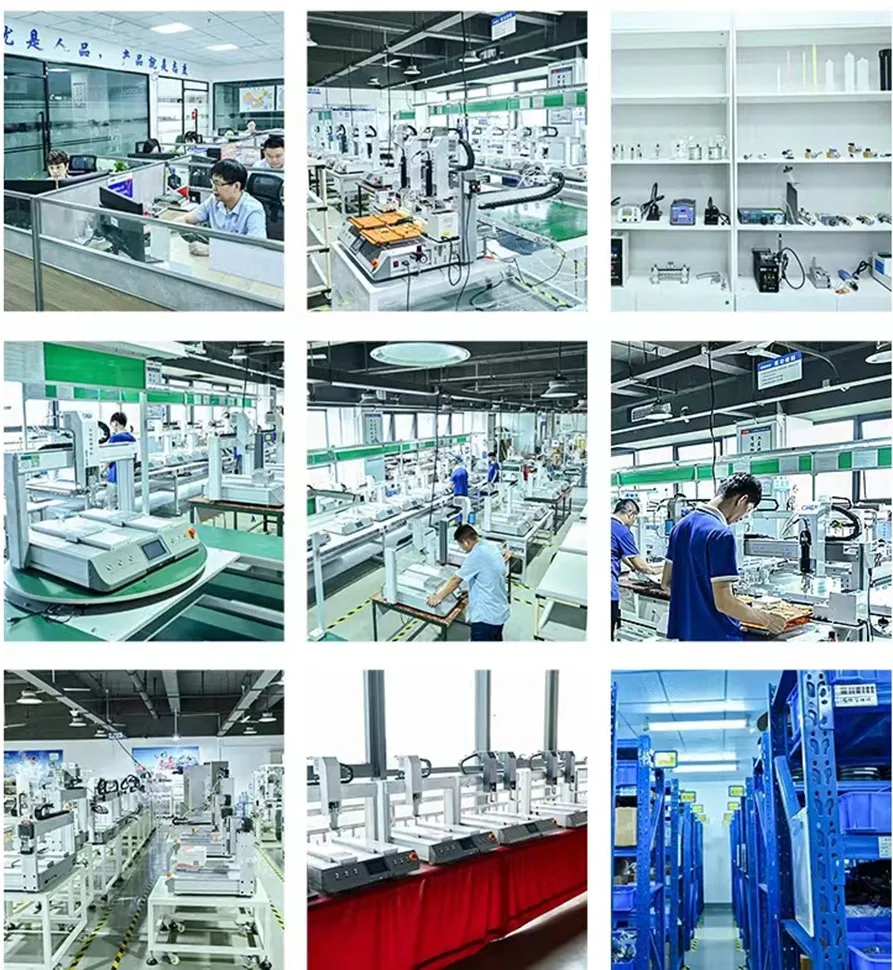

Production Capability
❓Frequently Asked Questions
Why choose our equipment?
We provide overall solutions for processing equipment. Our standard machinery is fully stocked for quick shipping, and we offer customization for specific size, appearance, and branding requirements.
Is the machine easy to operate for beginners?
Yes. We guide installation and train operators free of charge. Engineers pre-set the programming according to your samples. We also provide full English manuals and operating videos.
How is product quality guaranteed?
We implement strict incoming materials inspection and perform 100% testing on every machine before shipment.
What is the warranty and technical support policy?
We provide a 2-year warranty and lifetime technical support. Technical feedback is provided within 10 hours of receiving a notice.
What specific products do you offer?
Our range includes screw fastening/locking machines, soldering/welding machines, glue dispensers, IC programming machines, and PCB board lead pin cutting machines.
