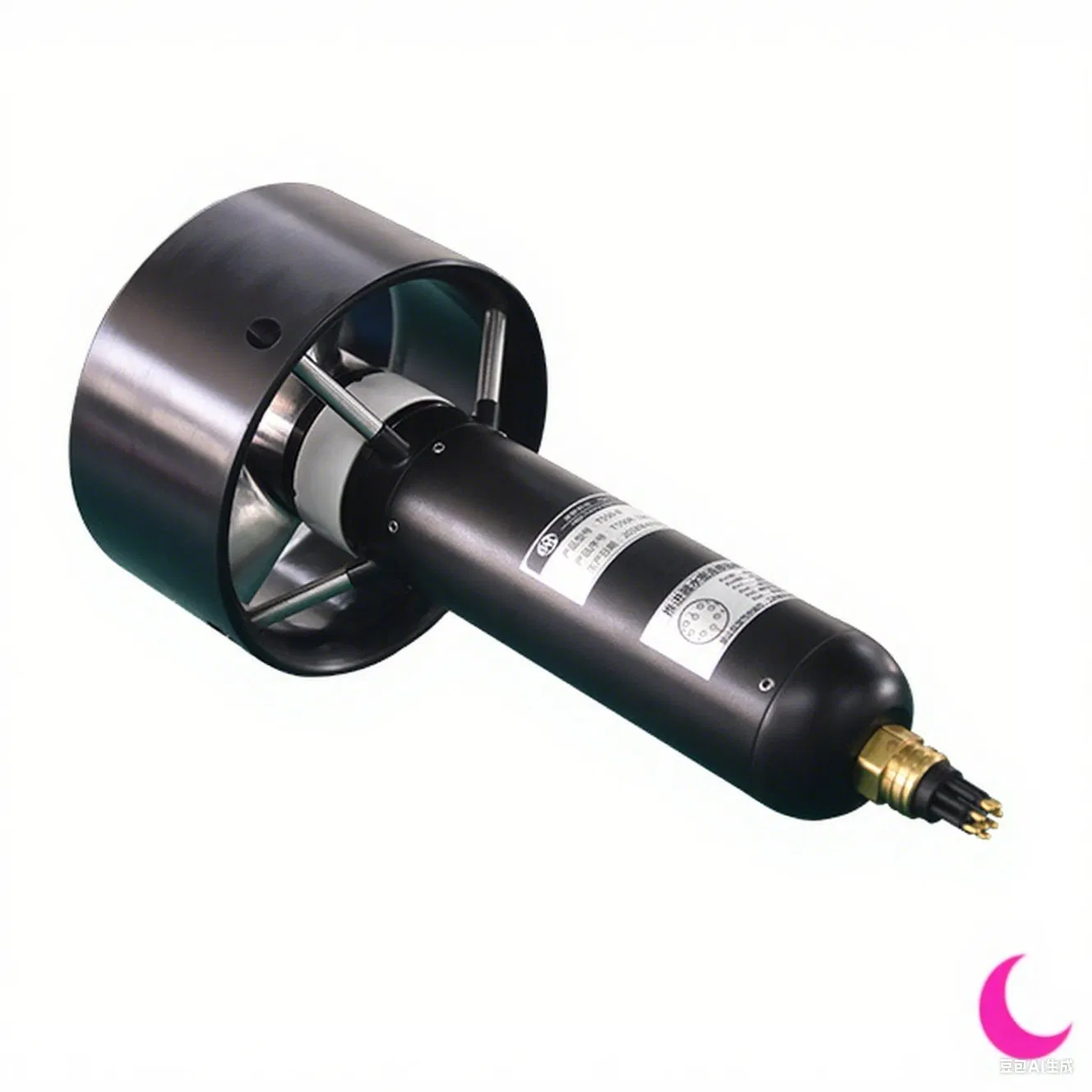

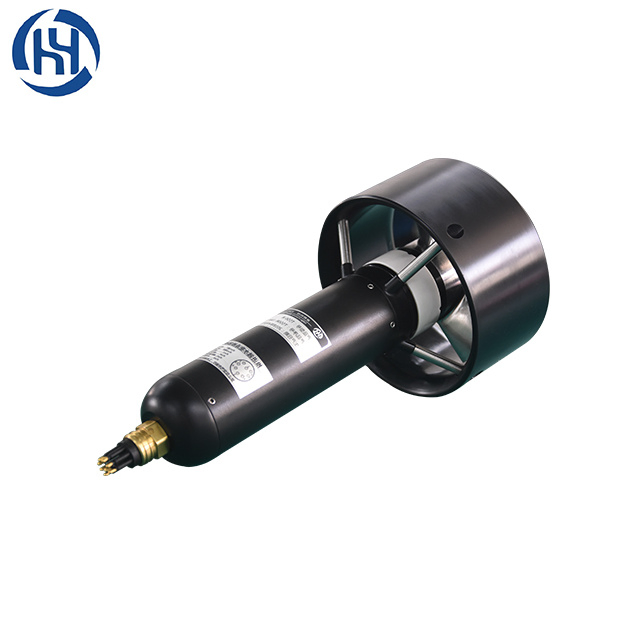

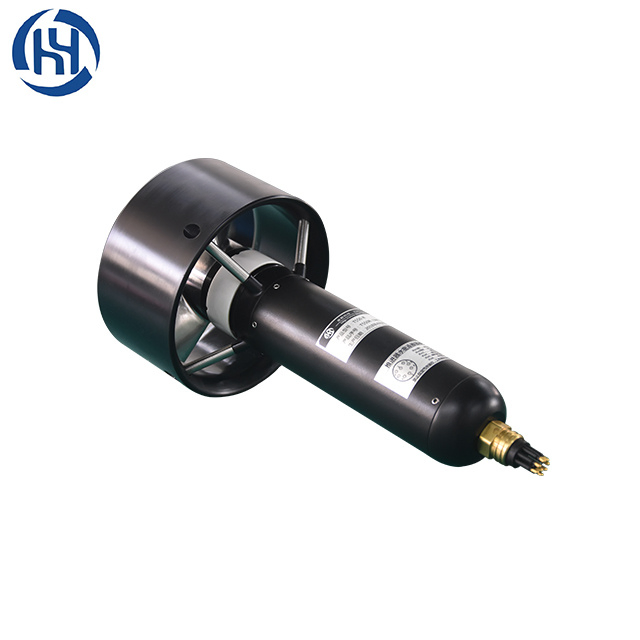

High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
1 / 5
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range
High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range

High Torque Underwater Thruster for Rovs 1kw, 18kg Thrust, Wide Voltage Range

Customization: Available
Control Mode: Driver
Drive Mode: Electric
Send Inquiry

Product Description

Overview & Basic Info
Model NO.T530
Rated Power500W
Rated Thrust18kg Forward, 18kg Reverse
NozzleYes
HousingAl/Ti
SealLeakless, Magnetically Coupled
DriverBuilt-in
CertificationISO, CE
ApplicationRov/Auv
Specification2.3kg in air, 1.5kg in water
HS Code8479899990
Production Capacity350PCS/Year
Product Description
Rated Voltage48/60/75/100/120/130/150/200/230/260/300VDC
RPM2500r/m
Propeller MaterialSS (Stainless Steel)
Depth0-850/0-1500/0-3000/0-6000/full ocean
Control ModeAnalog voltage control(0~+5V forward, 0~-5V reverse)/CAN
RPM FeedbackPulse/Analog voltage/CAN
Detailed Photos

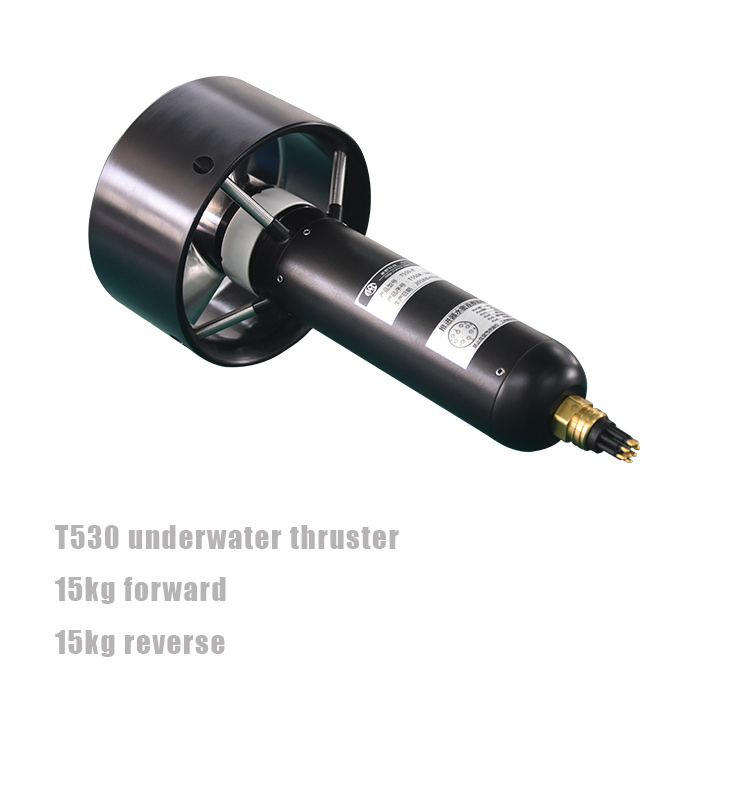

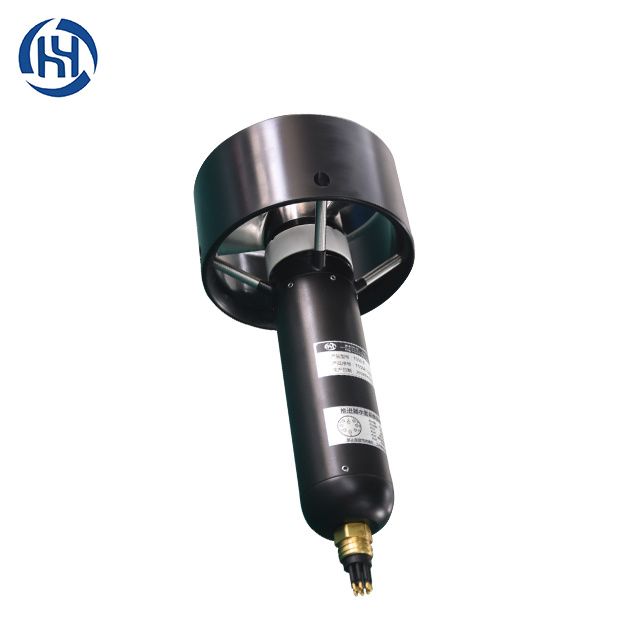

High Torque Underwater Thruster
Underwater Thruster Side View

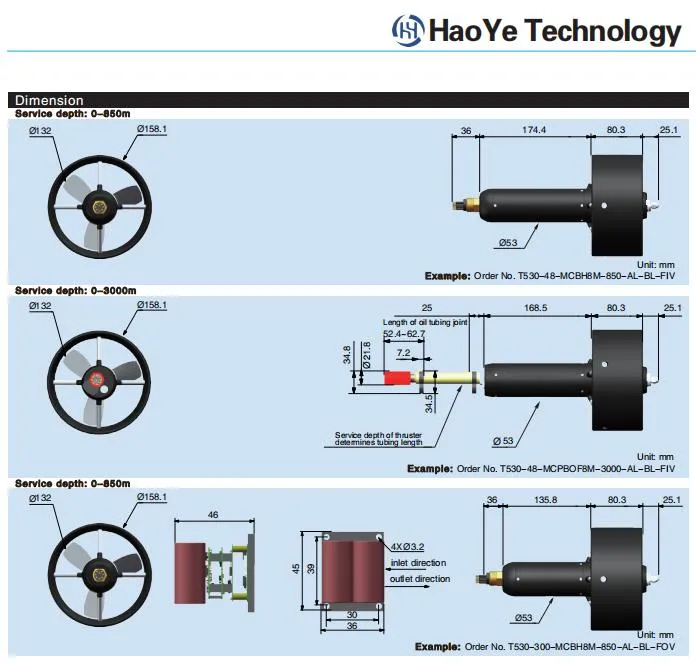

Underwater Thruster Rear View
Underwater Thruster Internal View

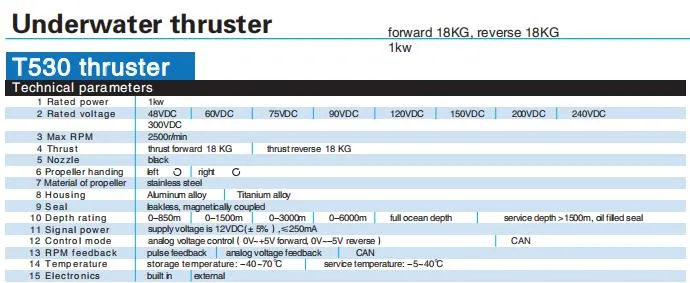

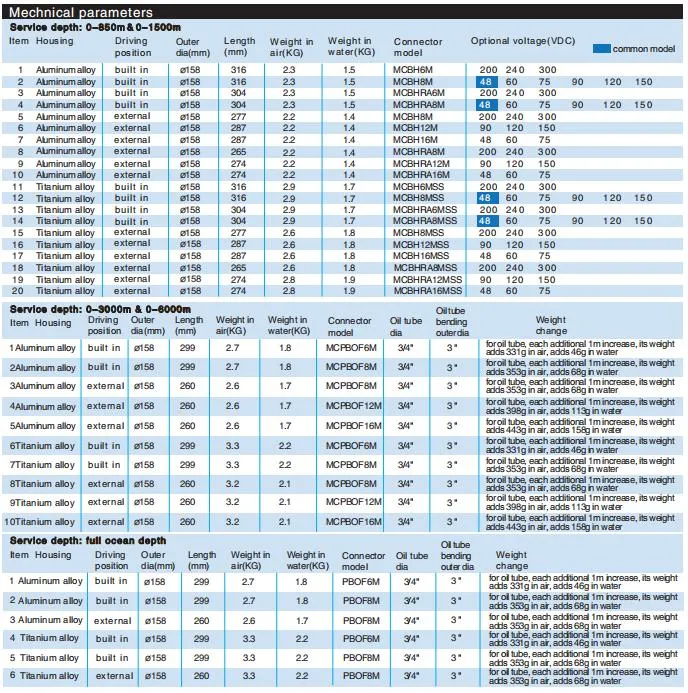

Thruster Technical Specs Display
Our Advantages

Enhanced Driver Protection

Built-in drivers feature power isolation, overcurrent, and overheat protection. Ramp linear processing on signals allows fast, frequent direction switching and handles voltage fluctuations of ±15% for extended life.

Premium Wear Resistance

Utilizes alloy bearings with water-lubricating effects, providing superior wear resistance and durability compared to standard components.

Magnetic Drive Technology

Magnetically coupled drive ensures non-contact, leak-free torque transmission. The structure includes a ratchet effect during overload to prevent damage from propeller obstructions.

Rigorous Testing

Simulated marine environment tests including sand and shells. Models undergo 1,000 hours of full-power testing and 3,000 hours of fatigue and comprehensive testing.

Precision Manufacturing

Stainless steel (SS) propellers are crafted using a professional five-axis machining center with integrated molding for maximum performance.

Frequently Asked Questions
What is the maximum thrust capacity of the T530 thruster?
The T530 thruster provides a rated thrust of 18kg in both forward and reverse directions, powered by a 500W motor.
Is the thruster suitable for deep-sea operations?
Yes, we offer multiple depth ratings ranging from 0-850m up to full ocean depth (11,000m+) capabilities depending on the specific configuration chosen.
What makes the magnetic coupling drive advantageous?
The magnetically coupled drive eliminates the risk of leaks as there is no physical shaft connection. It also includes a ratchet effect that prevents motor damage if the propeller gets jammed.
Does the thruster require external motor drivers?
No, the T530 features a built-in driver with integrated protections for overcurrent and overheating, simplifying your ROV/AUV electronics setup.
How is the thruster controlled?
It supports multiple control modes including Analog voltage control (±5V) and CAN bus communication for precise operation and feedback.
What is the material of the propeller?
The propeller is made of high-grade Stainless Steel (SS) and is manufactured using a precision five-axis integrated molding process.
