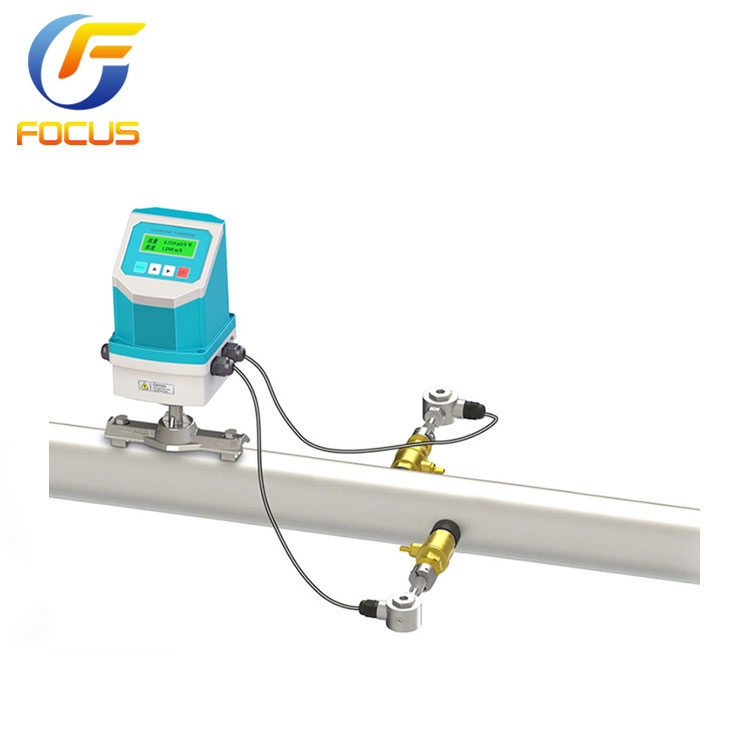

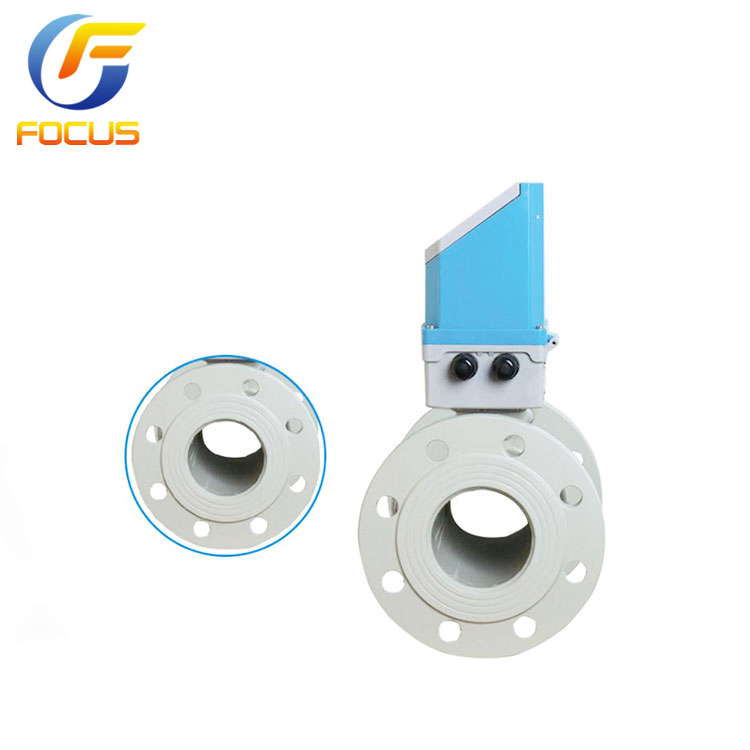

Huf730 Inline Ultrasonic Flow Meter Pipe Type for Global B2B Procurement China

Customization:	Available
Accuracy:	±0.2-0.5%
Main Application:	Water, Diesel Fuel

📊 Basic Information

Model NO.:HUF730

Size:DN15 ~ DN6000

Sensor:Clamp-on/External

Application:Industrial Production

Type:Ultrasonic Flow Meter

Measuring Media:Liquid

Measuring Principle:Electrical Principles

Measurement Object:Closed Pipeline

Certification:CE, RoHS, ISO

Data Interface:Insulate RS485 Serial Interface

Pipe Diameter:DN15-6000mm

Dimension:132*150*85mm(Host)

Trademark:Focus

Origin:China

📝 Product Description

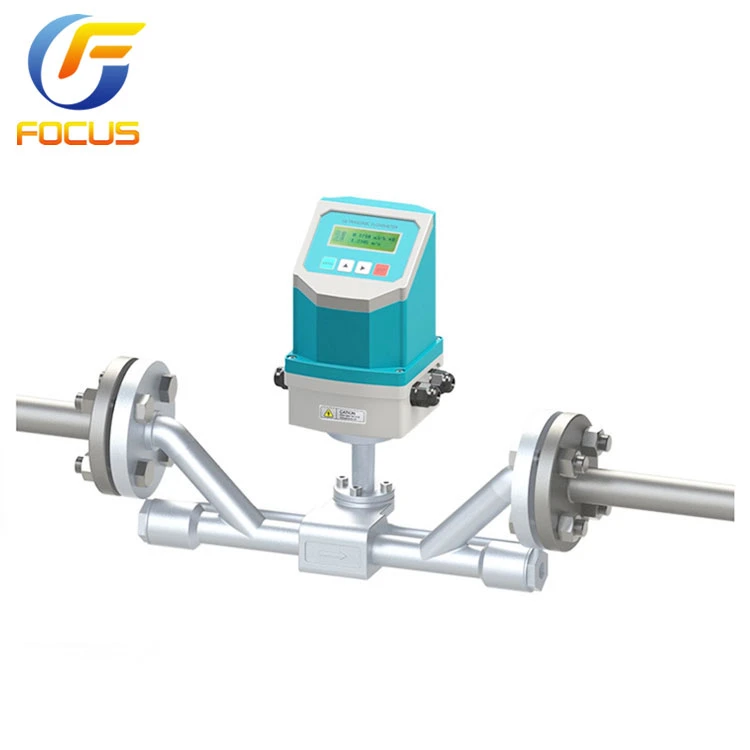

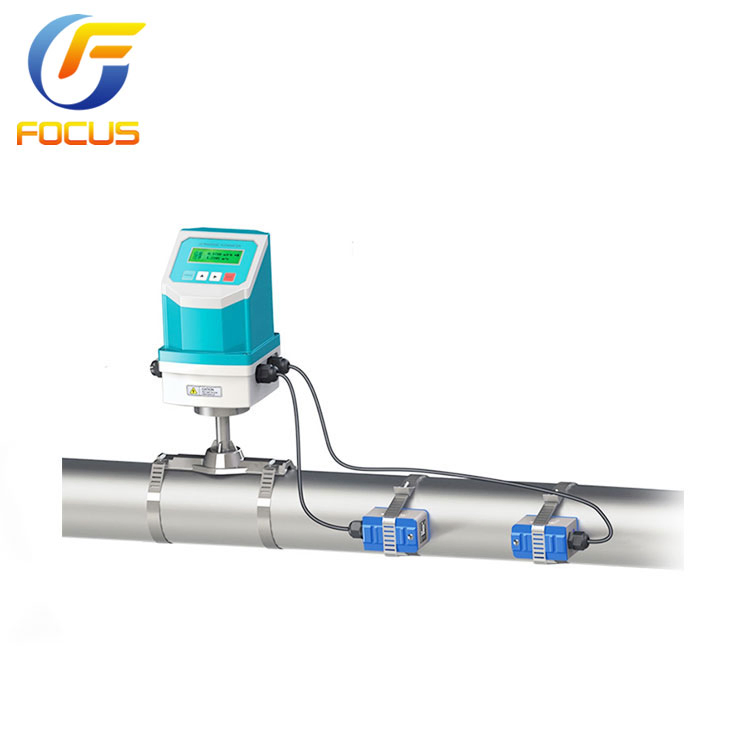

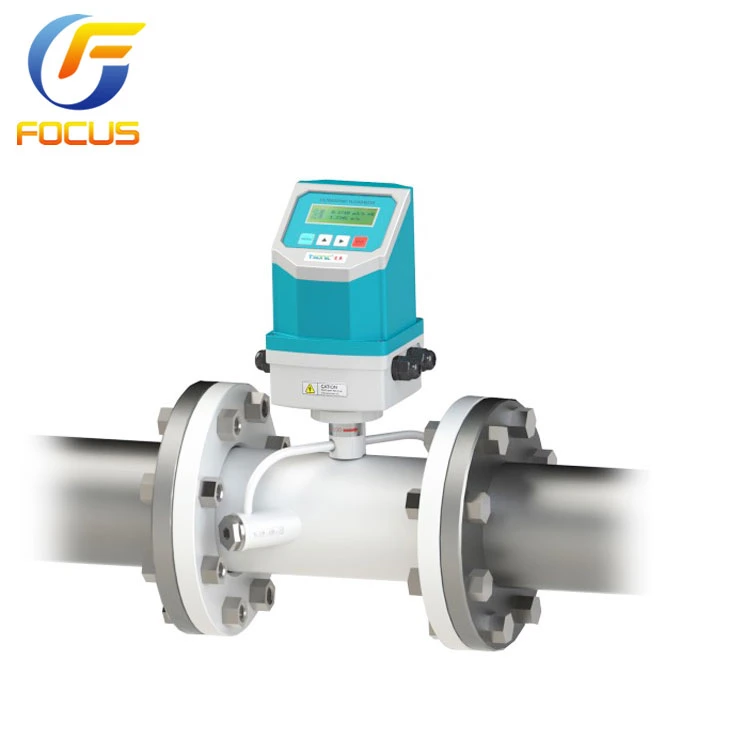

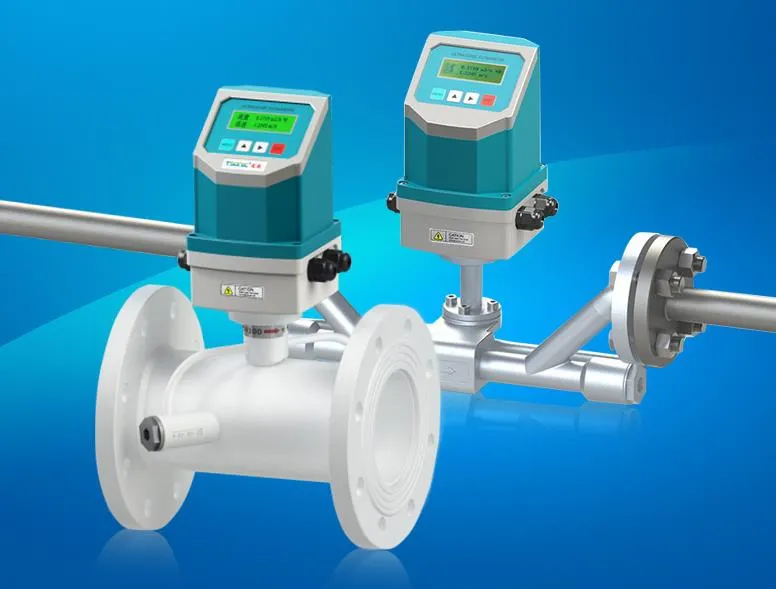

HUF730 Ultrasonic Flowmeter

The Ultrasonic Flow Meter is a high-performance product designed strictly according to the JJG1030-2007 standard to ensure superior reliability and protection. Utilizing the ultrasound transmit time principle, it offers a versatile measurement range from DN15 to DN6000, making it suitable for a wide variety of industrial applications.

⚙️ Specifications

Category	Parameter	Description
Converter	Principle	Transit-time, 4 byte floating-point operation (IEEE754)
	Accuracy	Inline: ±0.5%; Clamp-on/Insertion: ±1.0%
	Output	4-20mA analog, OCT pulse signal, Relay output
	Input	3-way 4-20mA analog (accuracy 0.1%), PT100 for heat measurement
Pipeline	Material	Steel, Stainless, Copper, PVC, Cast Iron, etc.
Pipeline	Diameter	DN15mm - DN6000mm
Medium	Liquid Type	Water, Seawater, Sewage, Chemicals, Oil, Alcohol, etc.
	Temperature	-30ºC to 160ºC
	Velocity	0m/s - 7m/s
Environment	Protection	Converter/Transducer depth underwater ≤ 2m (sealed)

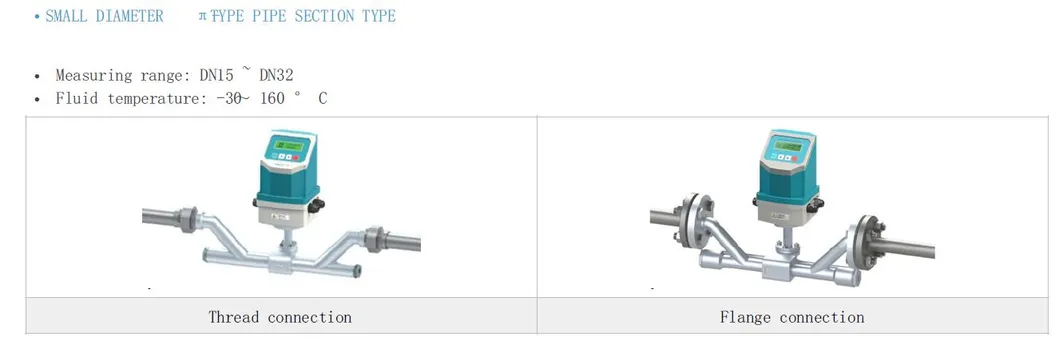

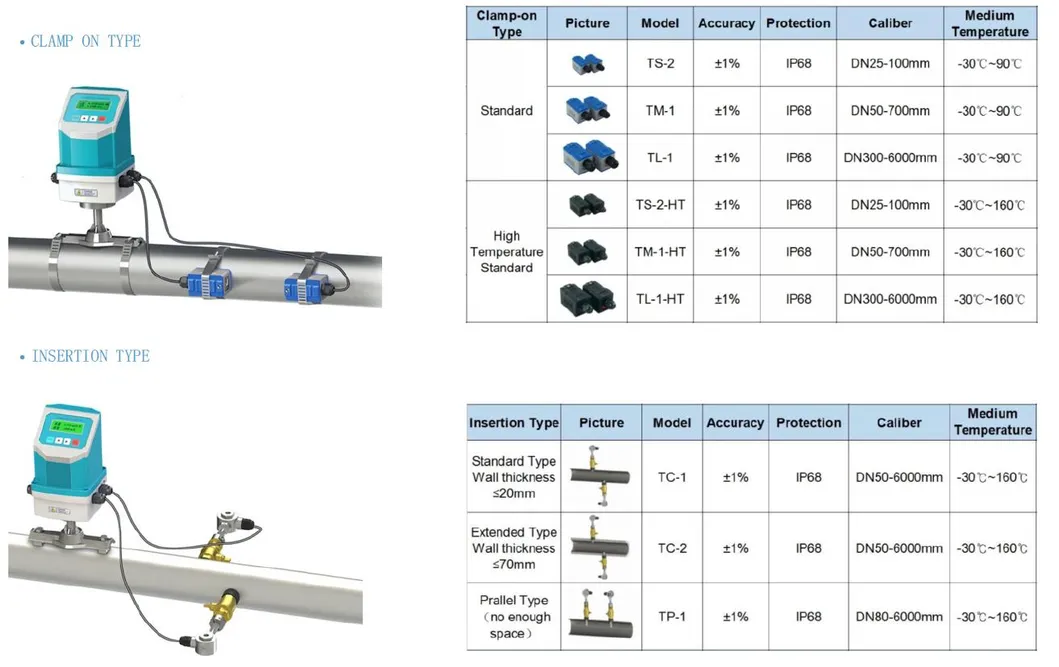

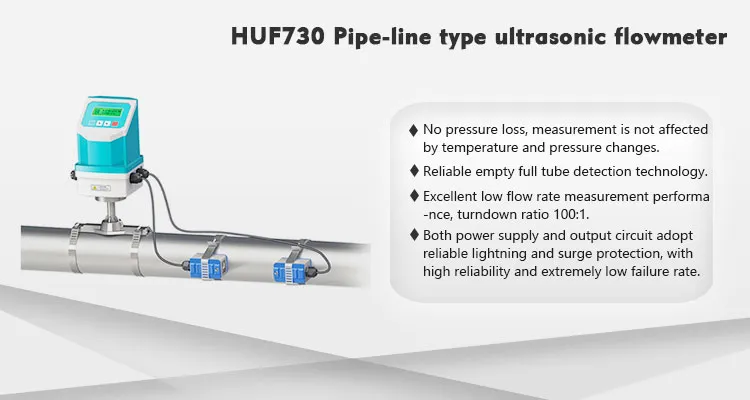

✨ Product Features

📦 Packaging & Shipping

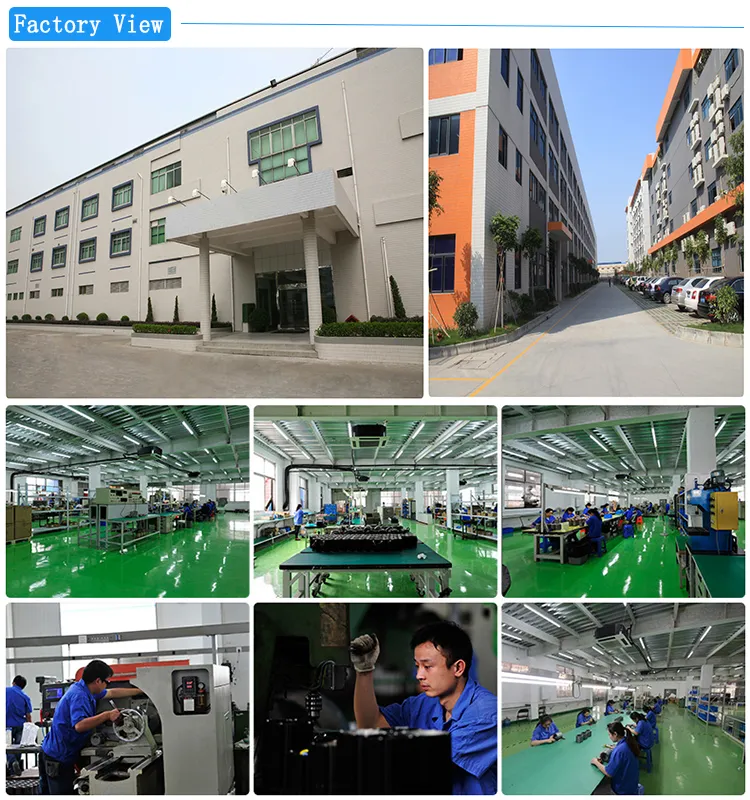

🏢 Profile

🔹
Experience: Over 15 years of expertise in precision industrial equipment manufacturing with a dedicated team of technicians.
🔹
Solutions: We provide comprehensive products and customized solutions including AC/DC gear motors and high-precision planetary gearboxes.
🔹
Quality: Managed by 5S standards; certified by ISO9001, CCC, CE, UL, and RoHS. All products undergo strict multi-process inspections.
🔹
Applications: Widely used in CNC lathes, textile machinery, packaging, pharmaceutical equipment, medical devices, and industrial robots.

❓ FAQ

Q: How long will I receive a reply?

A: We will contact you within 1 hour as soon as we can.

Q: Do you provide samples for testing?

A: Yes, we have materials in stock to help you get samples as quickly as possible.

Q: How do you ensure product quality?

A: We have a complete quality control system. All products undergo full pre-inspection by QC departments before shipping. We hold ISO and CE certifications.

Q: What are your payment terms?

A: We accept T/T, PayPal, Western Union, and Credit Assurance.

Q: What is the warranty for your products?

A: We provide a 1-year warranty and lifetime maintenance support.

Q: Can I visit the production facility?

A: We sincerely invite you to visit our factory to see our processes firsthand.
