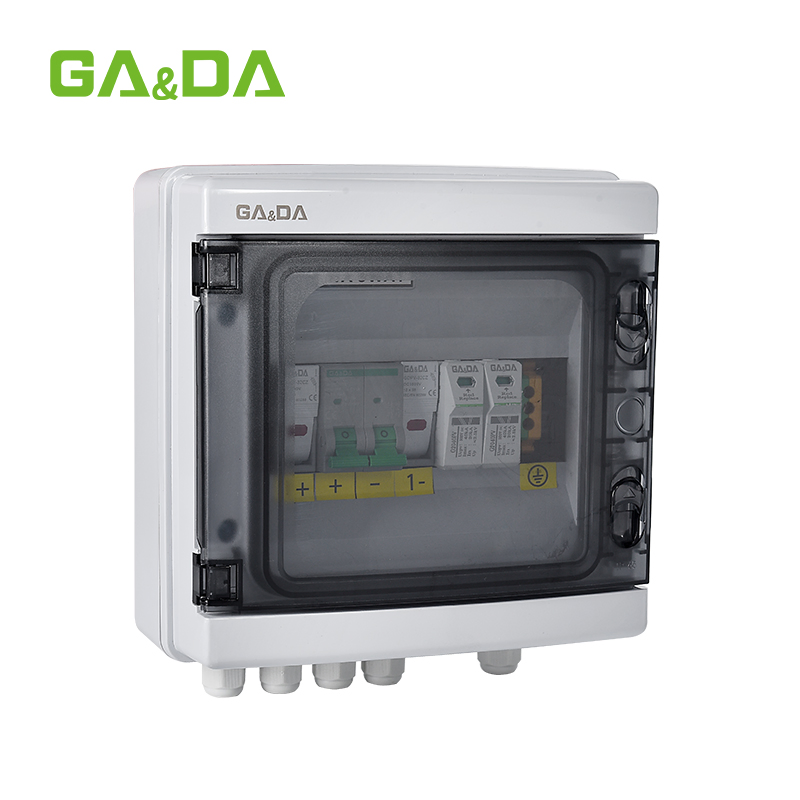

The combiner box is a wiring device in the photovoltaic power generation system that ensures the orderly connection and confluence function of photovoltaic modules. This device can ensure that the photovoltaic system is easy to cut off the circuit during maintenance and inspection, and reduce the range of power outage in case of photovoltaic system failure. After converging in the photovoltaic combiner box, through the controller, DC distribution cabinet, Solar inverter, and AC distribution cabinet, a complete photovoltaic power generation system can be formed.
1. High reliability: With DC FUSE/With DC SPD/With DC circuit breaker or DC load isolation switch.
2. IP65 design, waterproof, anti-dust and anti-ultraviolet. Strict tests for high and low temperature.
3. Simple installation, simplified system wiring, and convenient maintenance.
4. Box body made of cold-rolled steel and other high-quality metal materials.
5. Compatible with single crystal, polycrystalline, and thin-film solar modules.
| Type | GDS-PV1/1 | GDS-PV2/1 | GDS-PV3/1 | GDS-PV4/1(4/2) | GDS-PV6/1(6/2) |
| Electric Parameter | |||||
| Max DC Voltage | 1000V DC | ||||
| Max Input Current | 15A per string | ||||
| Input Strings | 1 | 2 | 3 | 4 | 6 |
| Max Output Current | 32A | 32A | 32A | 63A | 125A |
| Lightning Protection | |||||
| Max PV Voltage | 1000V DC | ||||
| Discharge Current | 40kA (8/20 µs) | ||||
| Protection Grade | IP65 | ||||

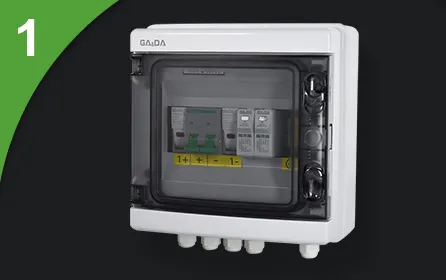

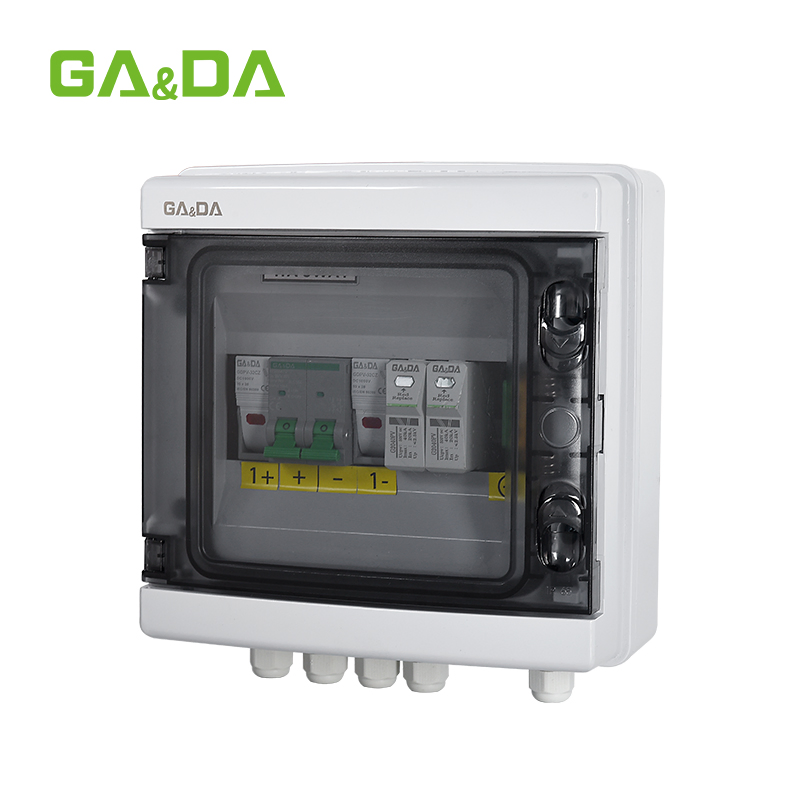

Exterior door concealed buckle design, combining aesthetic appeal with operational safety.

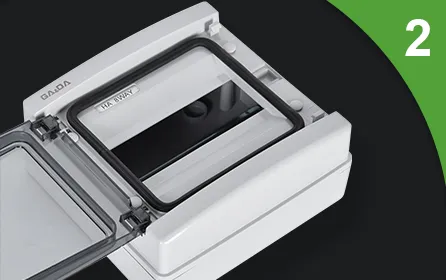

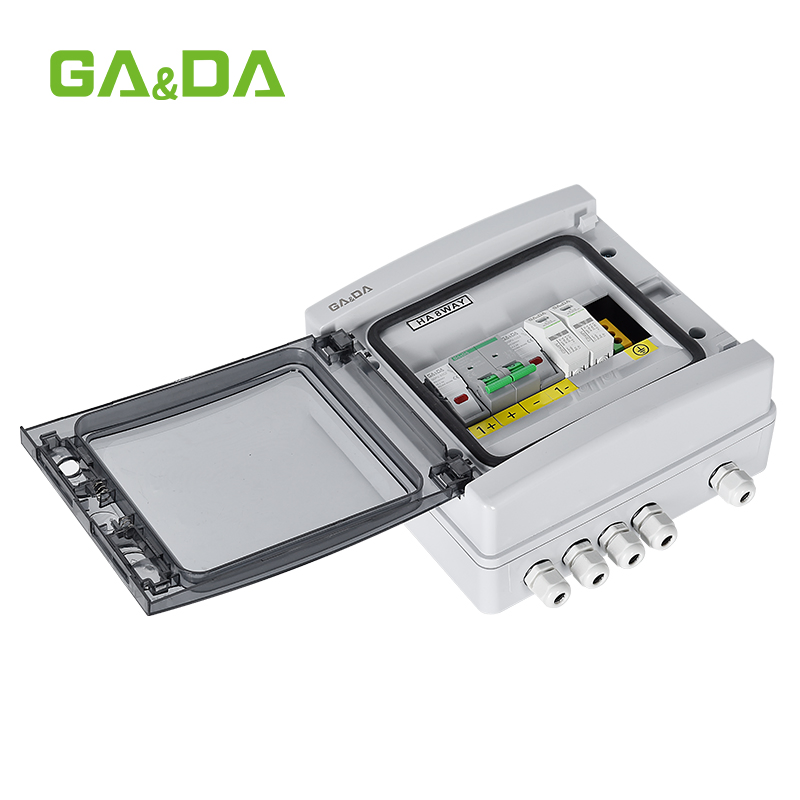

The exterior door uses waterproof adhesive strips in contact with the bottom box. Screw holes are sealed with silicone plugs for superior IP65 protection.

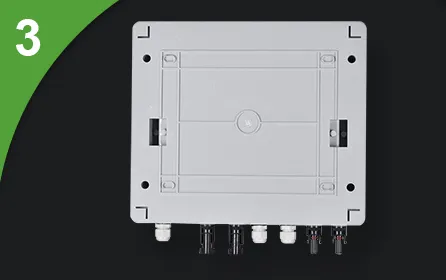

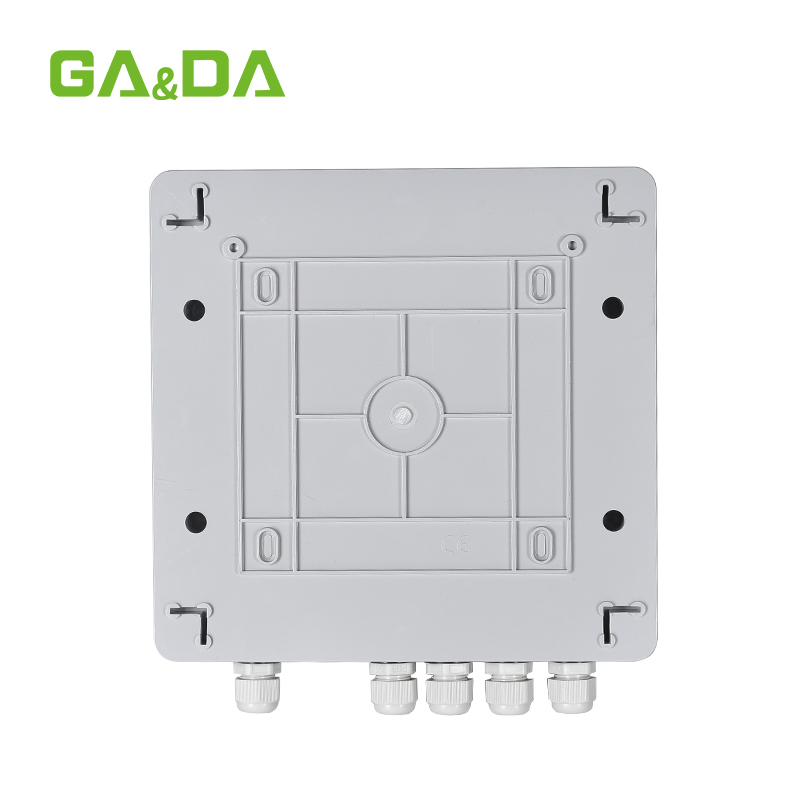

The housing features multiple reserved mounting holes, making wall-mounting convenient for various environments.

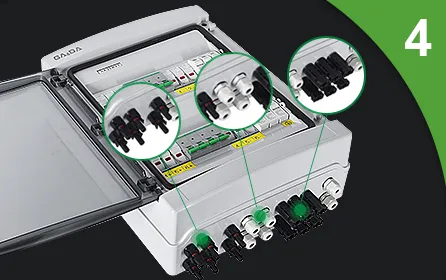

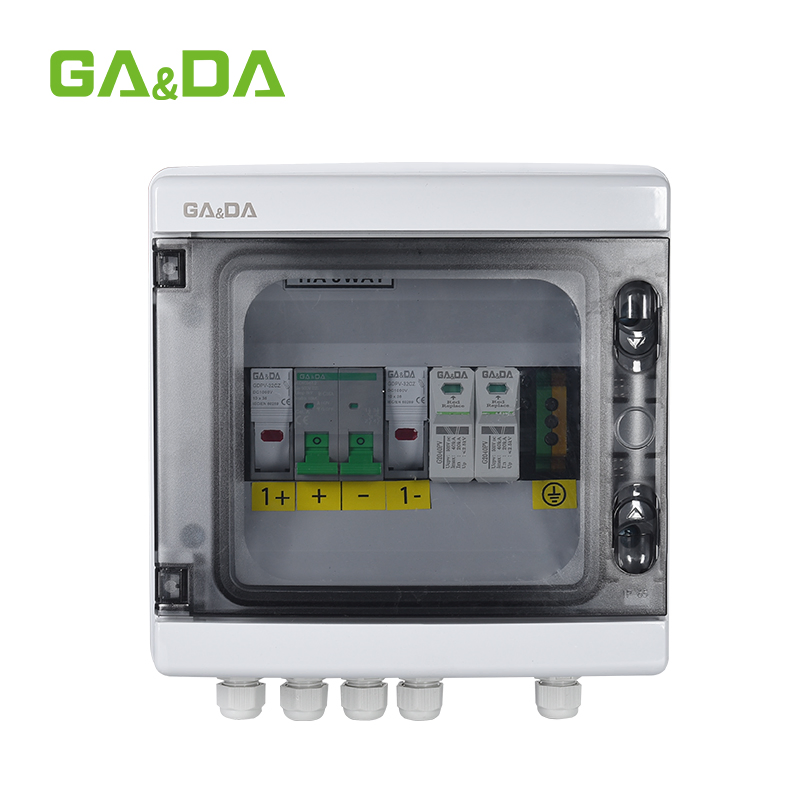

Optional IP67 waterproof connections for cable input/output, supporting both standard cable glands and MC4 solar connectors.

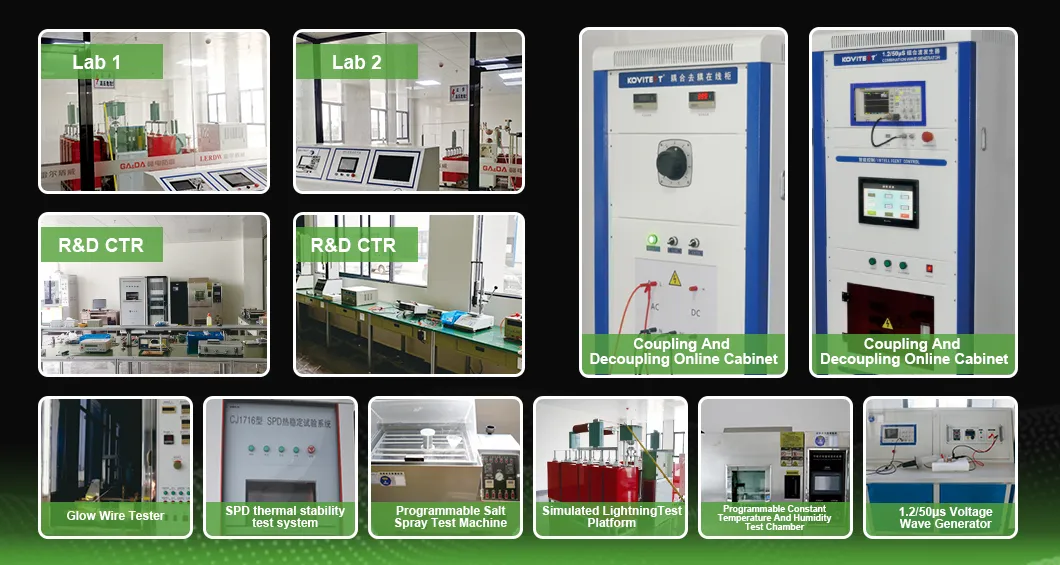

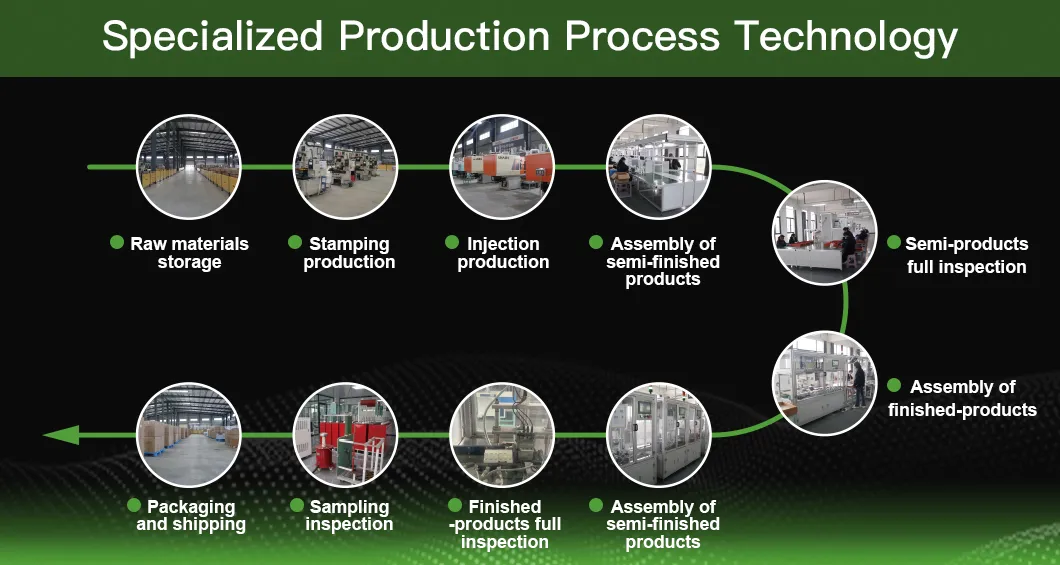

Our facility includes advanced testing rooms for lightning impact (8/20, 10/350us), SPD safety, environmental stress (salt spray, vibration), and material analysis to ensure product stability and innovation.
We utilize automated production lines for gluing, soldering, film pressing, and laser marking. Every link of manufacturing is strictly monitored to achieve controllable and traceable quality.
With over 10 years of experience, we have developed into a professional lightning protection technology company. Our facility spans over 30,000 square meters and employs a skilled technical team dedicated to new energy electrical products.
