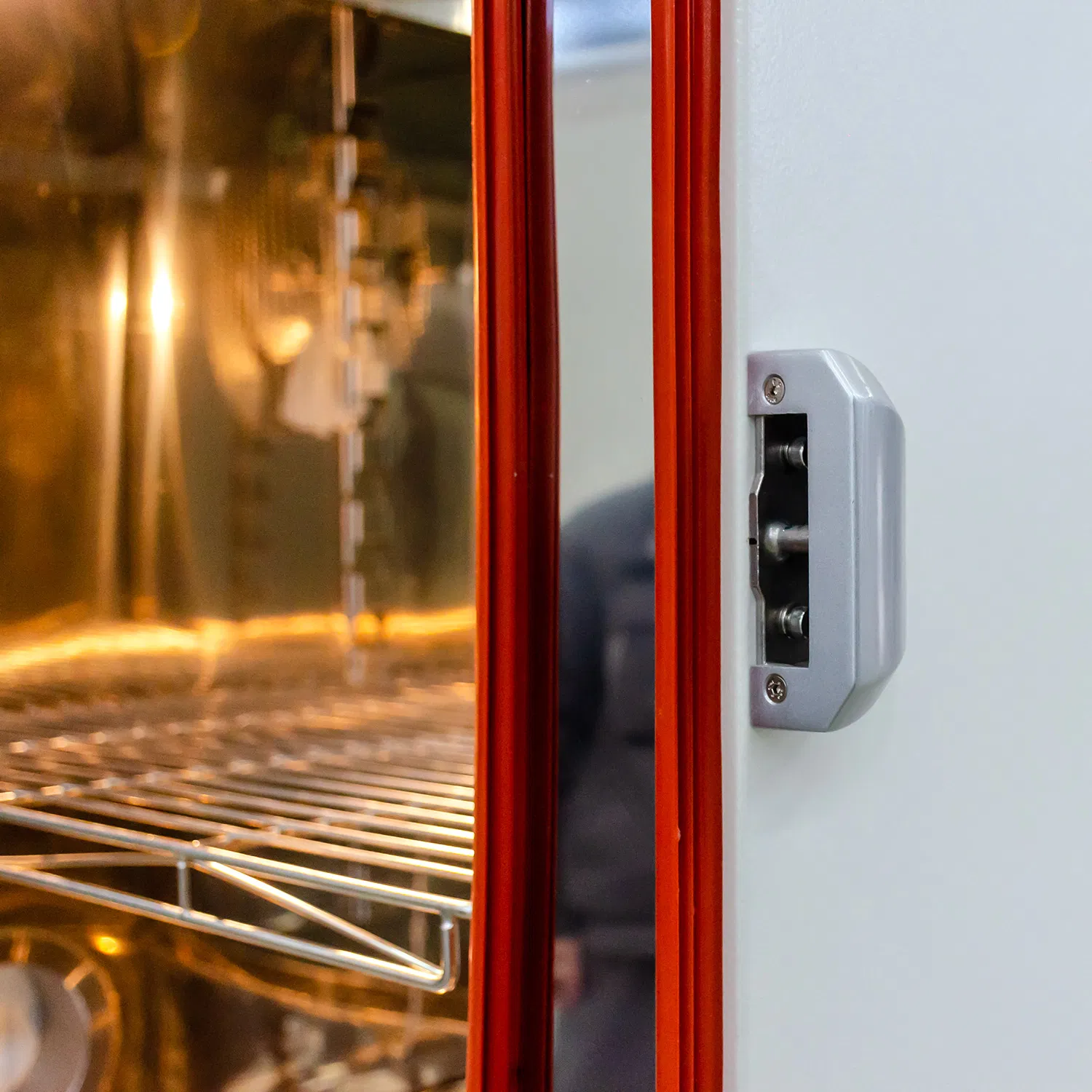

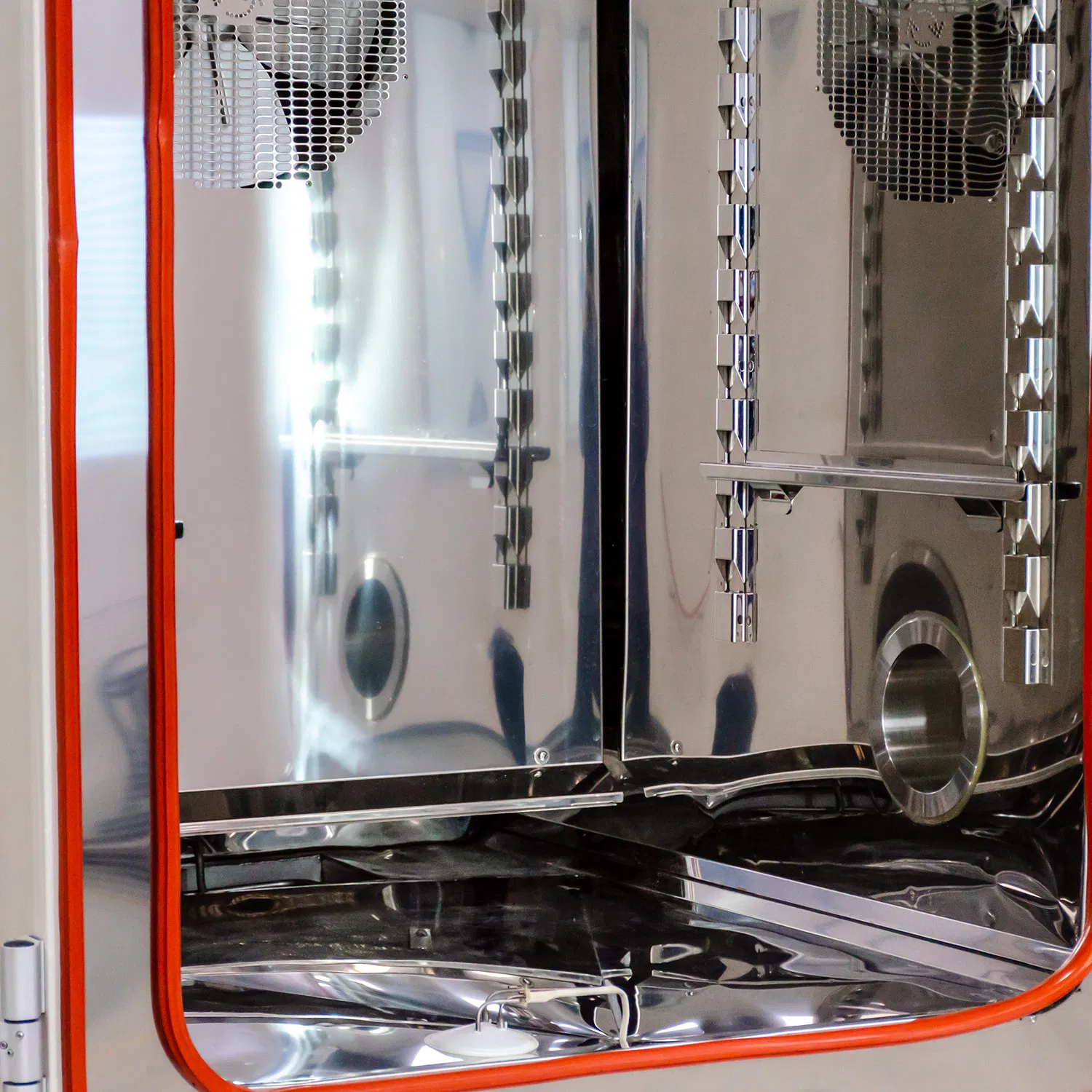

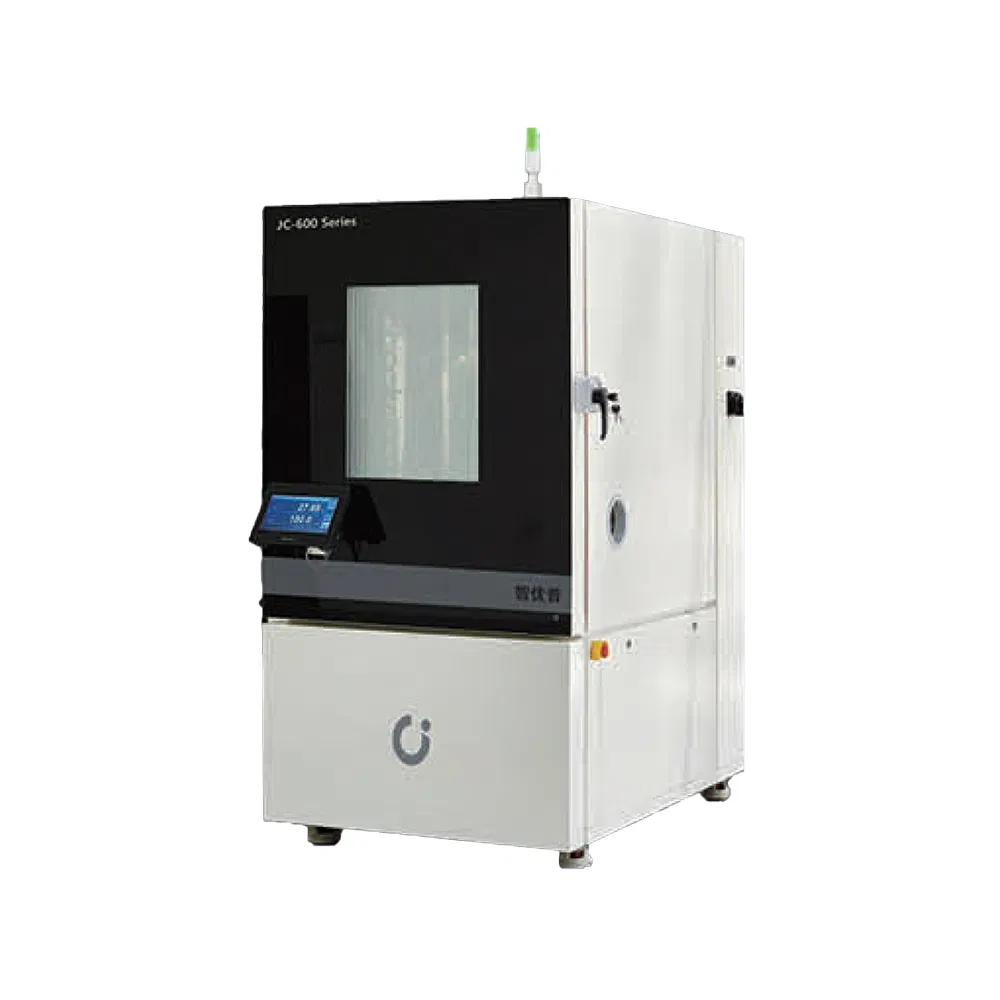

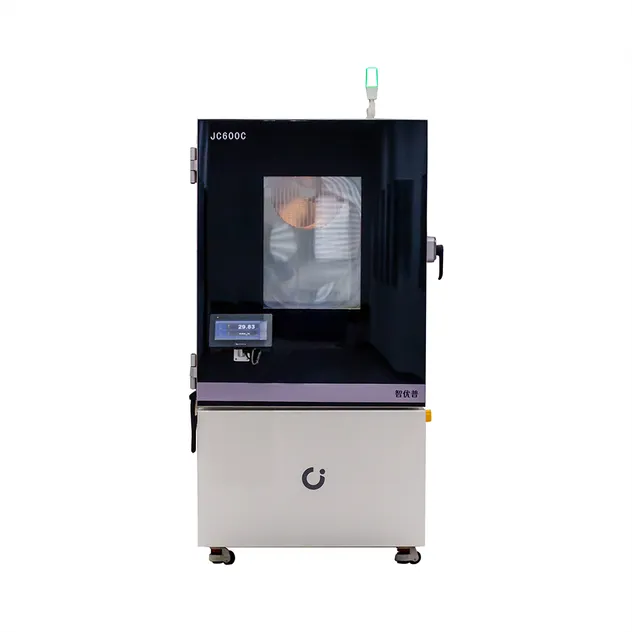

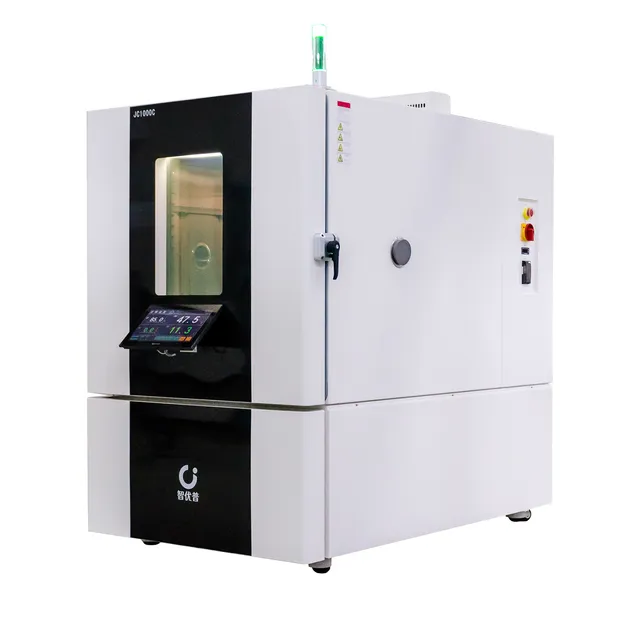

JC-330 High and Low Temperature (Humidity) Test Chamber
Model Interpretation:
· JC-High and Low Temperature Series
· 330 - Chamber volume (unit: L)
· C - minimum temperature -70°C / no C - minimum temperature -40°C
| Model | JC330(C) | JC610(C) | JC1000(C) | JC1500(C) | JC2000(C) | |
|---|---|---|---|---|---|---|
| Inside Volume(L) | 335 | 605 | 1000 | 1530 | 2000 | |
| Internal Dim(mm) | D | 760 | 795 | 960 | 1470 | 1670 |
| W | 585 | 800 | 1100 | 1100 | 1100 | |
| H | 750 | 950 | 950 | 950 | 1100 | |
| Temp Range ºC | End with C: -70ºC; without C: -40ºC to +180ºC | |||||
| Humidity range | 10%~+98% R.H. | |||||
| Temp rise rate ºC/min | 4.0 | 6.0 | 4.0 | 4.0 | 3.0 | |
Pre-sales Service: Samples provided for evaluation. Professional sales support with tailored solutions.
After-sales Service: One year warranty with free spare parts and video installation guidance. Free repair for manufacturing defects.
Customization Service: Support for functionality, structure, style, and color customization.

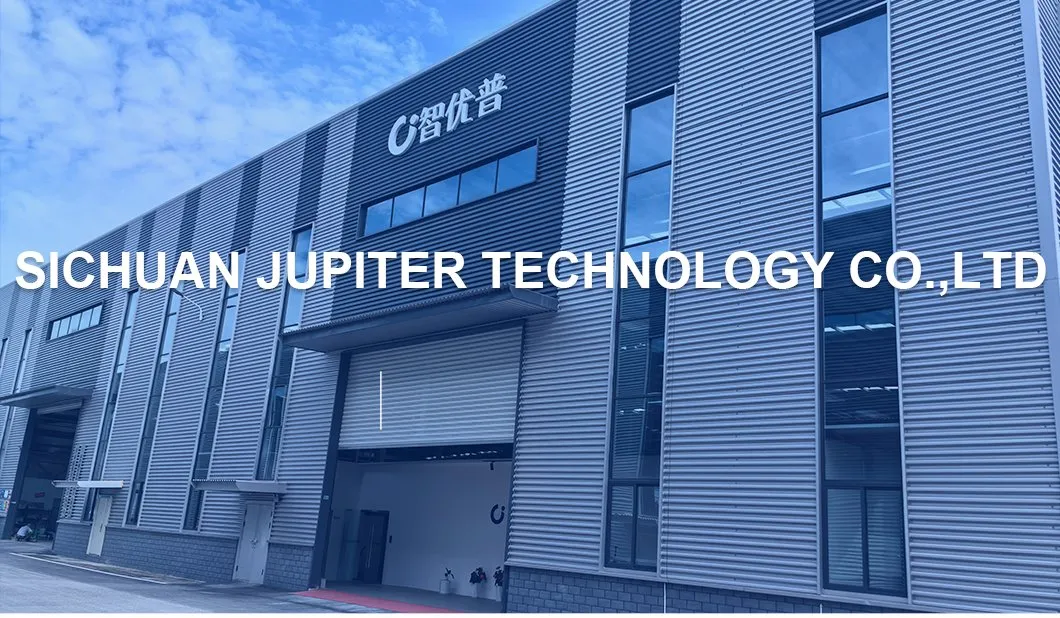

A high-tech enterprise focusing on R&D and manufacturing of high-end environmental testing equipment for new energy, aerospace, automotive electronics, and semiconductors.
