Jchx Universal Solar Panel Mounting Structure Kit for Global B2B Buyers

📊

Basic Information

Model NO.

Solar Panel Mounting Structure Kit

Certification

GB, ISO, TUV, CE, RoHS

Application

Commercial

Material

Steel

Type

Ground Bracket

Wind Load

60m/S

Snow Load

1.4kN/M²

Rust Protection

Hot Dipped Galvanized

Production Capacity

100000 Tons / Year

🛠️

Product Description

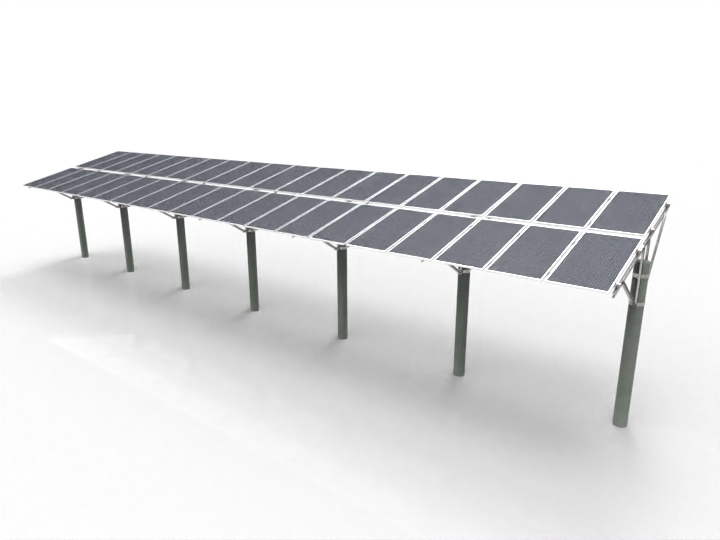

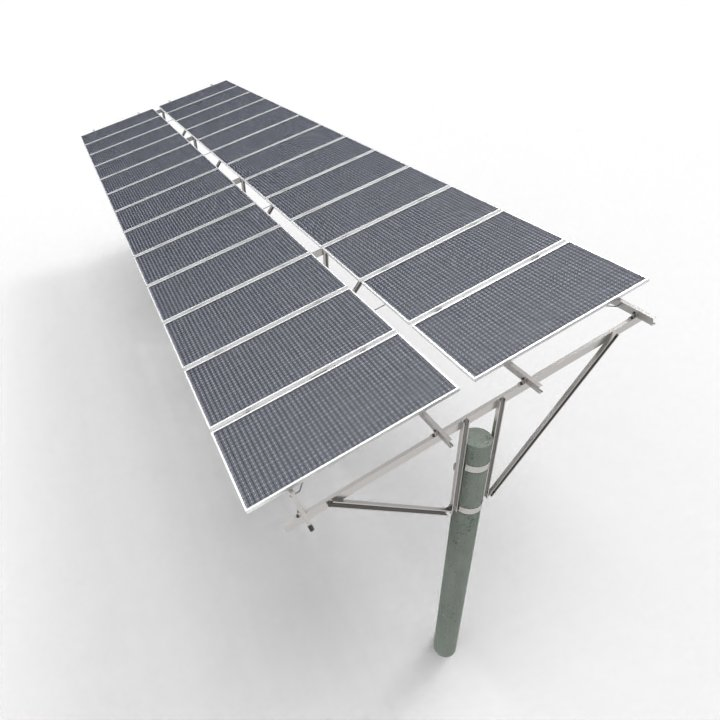

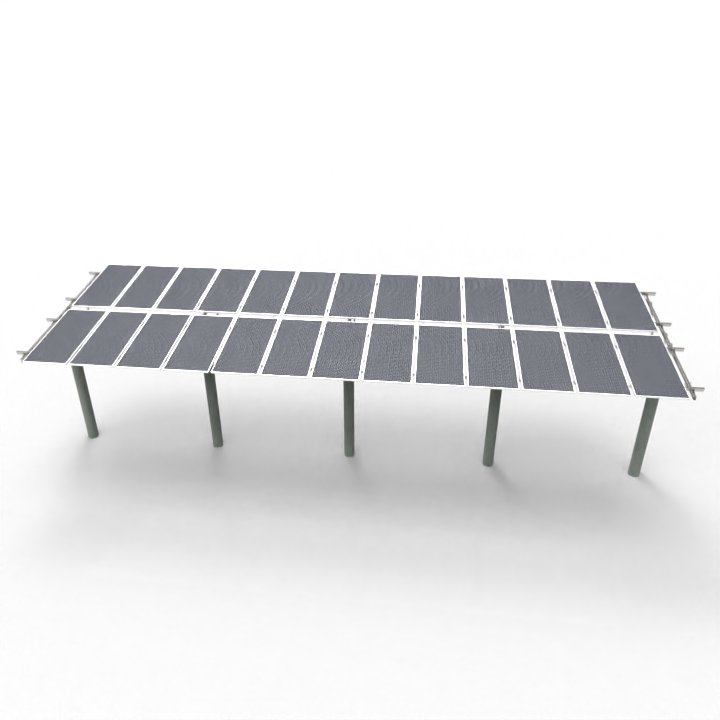

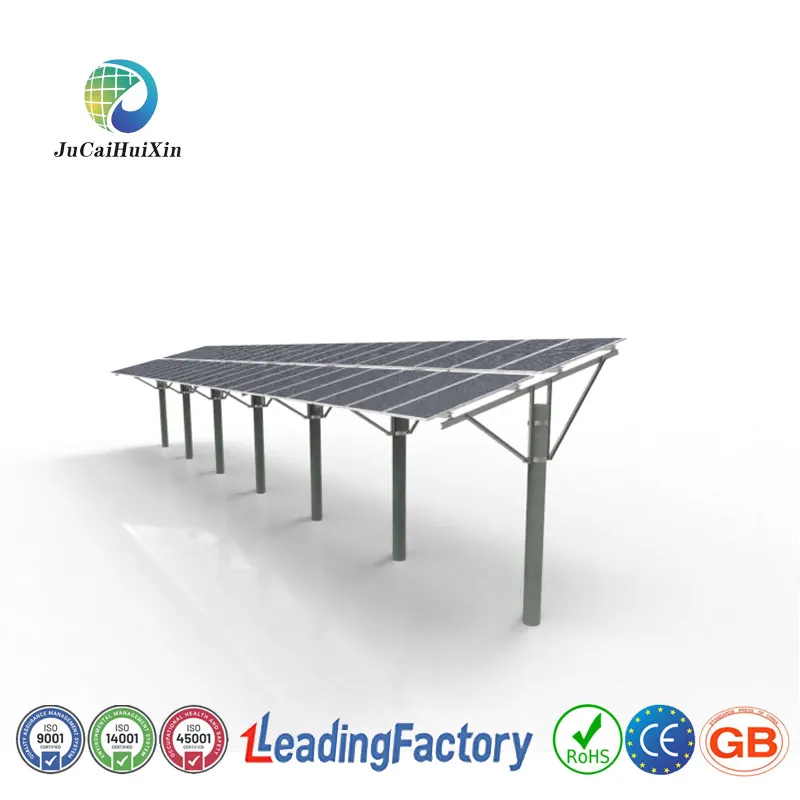

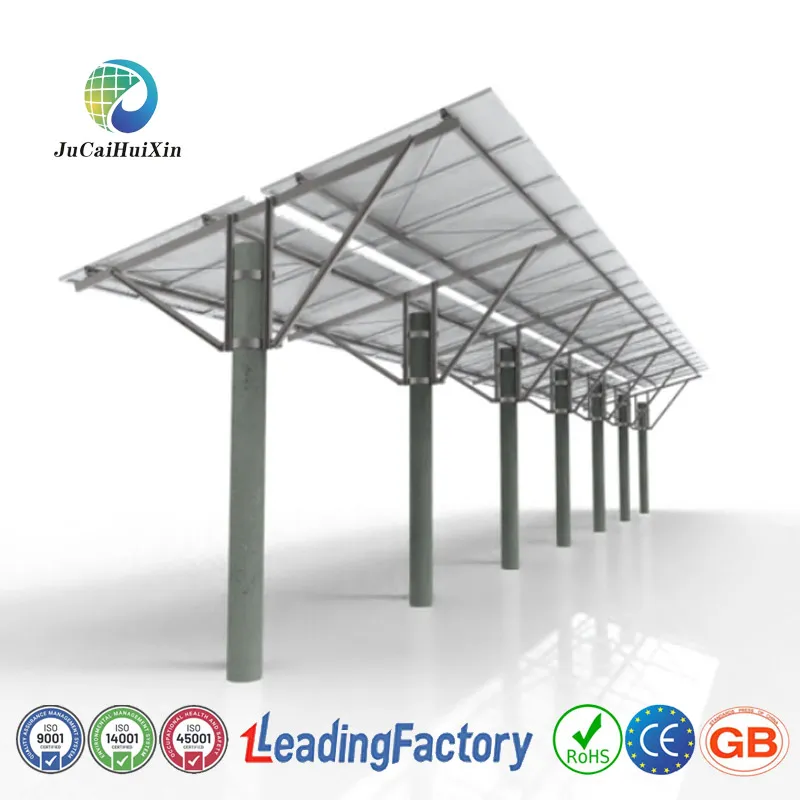

Universal Solar Panel Mounting Structure Kit for Commercial Use

The Universal Solar Panel Mounting Structure Kit is a durable, corrosion-resistant mounting solution designed for hassle-free installation of ground-based solar arrays. Featuring a single-row design and heavy-duty hot-dipped galvanized steel construction, this system is ideal for residential, agricultural, and small commercial projects. Its modular components and tool-free assembly ensure quick setup, while the robust coating guarantees long-term performance in harsh weather conditions.

Parameter	Specification
Material	High-strength carbon steel
NO. of Panel	Custom
Number of rows	Custom
Wind Load	60m/s
Snow Load	1.4KN/m²
Coating	Hot-dipped galvanized
Tilt Angles	15 to 45º
Installation	Fastener installation
Corrosion Resistance	30 Year (salt spray and UV resistant)
Certifications	ISO 9001, CE, Rohs, ISO14001, ISO45001

⭐

Product Advantages

Quick Installation: Pre-assembled components and tool-free clamps reduce setup time by 50%.
Ultimate Durability: Hot-dip galvanized coating protects against rust, UV rays, and extreme weather.
Space-Saving Design: Compact 1-row layout maximizes energy output on smaller plots of land.
Versatile Compatibility: Works with all standard framed solar panels (up to 450W).
Low Maintenance: Galvanized steel requires no repainting; occasional cleaning suffices.

🏗️

Installation & Maintenance

Steps: Site Preparation, Secure Foundations (Ground screws or concrete), Assemble Racking, Mount Panels, Final Adjustments.

🌍

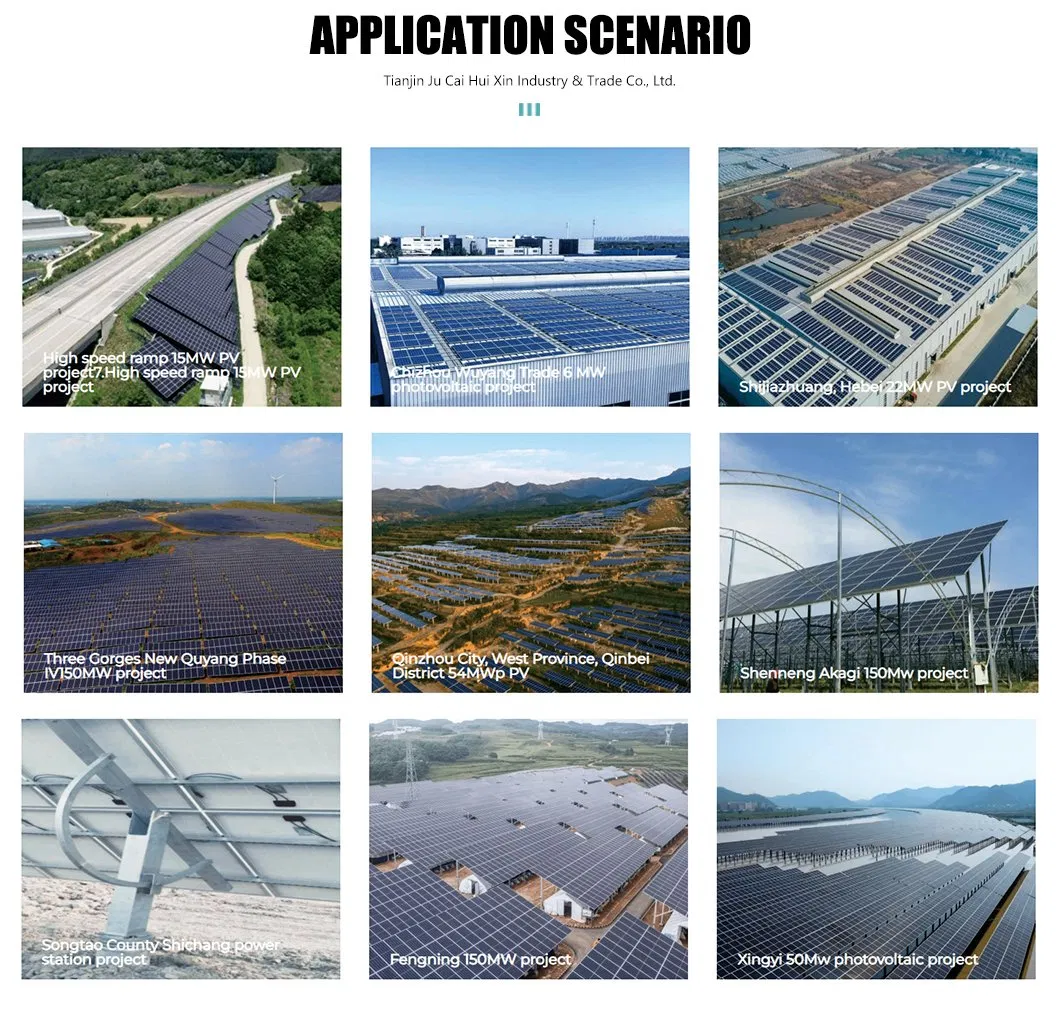

Applications

Residential Backyard Solar

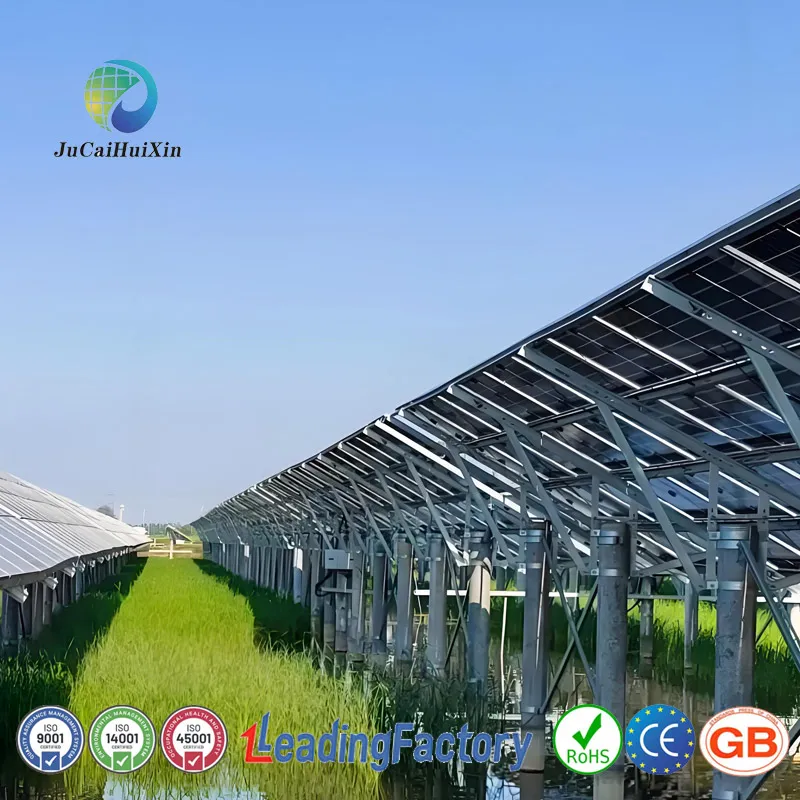

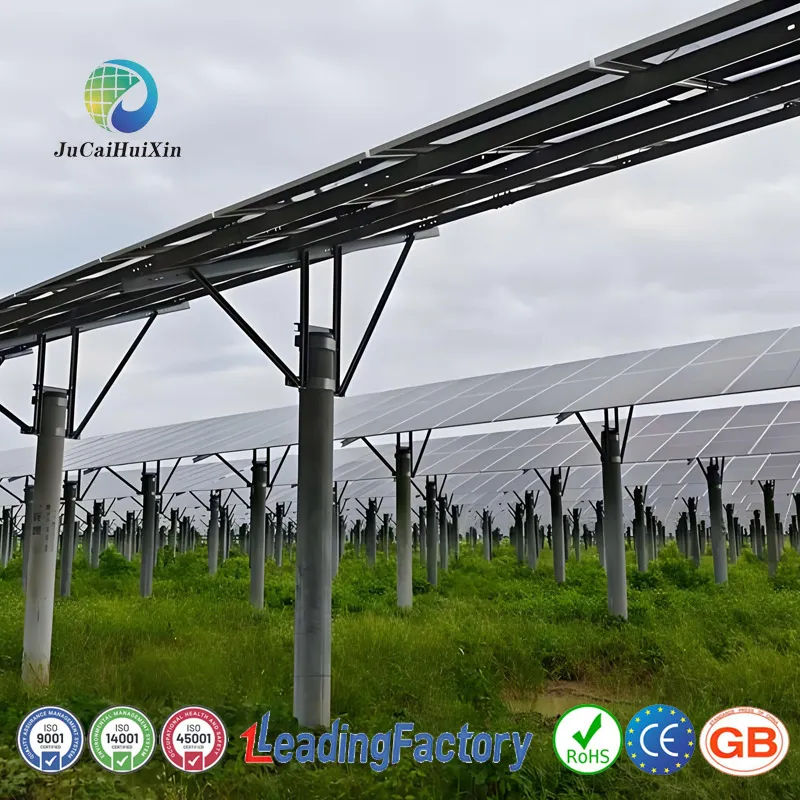

Farm & Agricultural Projects
Off-Grid Cabins
Small Commercial Arrays
Temporary Installations

📦

Packaging & Shipping

❓

Frequently Asked Questions

Q1: What is a solar ground mounting system? A: It is a support structure used to mount photovoltaic panels on the ground, typically made of corrosion-resistant galvanized steel or aluminum alloy, anchored via concrete or screw piles.

Q2: What kind of foundation is required? A: Options include concrete foundations (stable/reliable), screw piles (fast installation/minimal disturbance), or ballasted foundations (no excavation required).

Q3: What are the land area requirements? A: Required land depends primarily on the total system capacity and the specific layout of the photovoltaic panels.

Q4: How often does the system require maintenance? A: Systems are low maintenance. We recommend annual inspections of structural connections and regular panel cleaning to maintain efficiency.

Q5: What is the typical lifespan of the mounting system? A: High-quality systems using hot-dip galvanized steel are designed to last for over 25 years.

Q6: What is the typical cost comparison? A: While initial installation costs might be higher than rooftop systems due to foundation work, they offer easier maintenance and optimized positioning.
