Liannggog House Lift Elevator Concrete Casting Shaft Beam Platform for for High-Rise Construction/Equipment Shaft/Stairwell

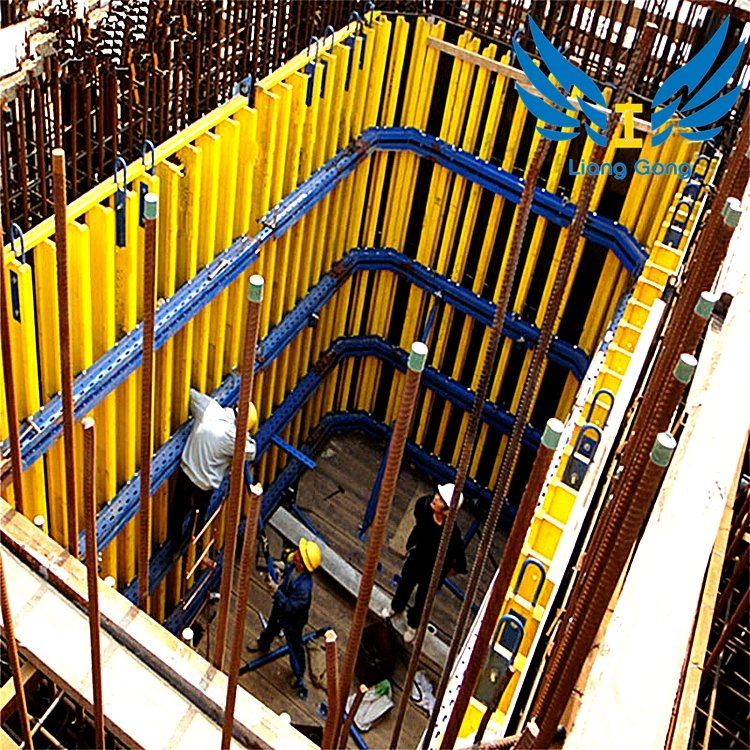

Shaft platform is mainly used for concrete casting of shaft of high-rise buildings, such as elevator, equipment shaft and stairwell. The lateral pressure of concrete is mainly borne by the wall-through tie rod, and the shaft beam platform has the advantages of being simple, quick and economic in operation.

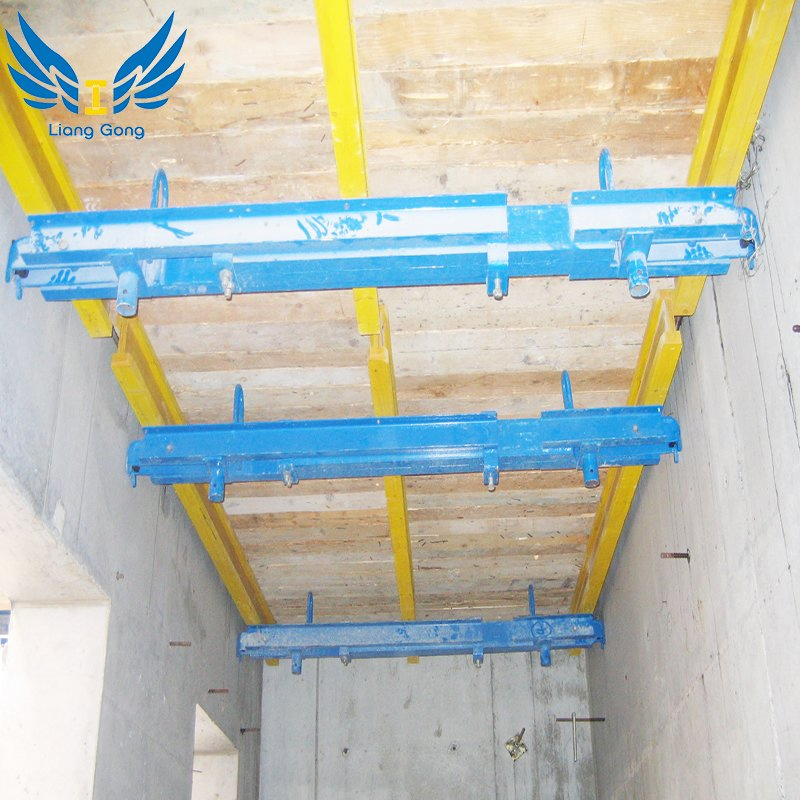

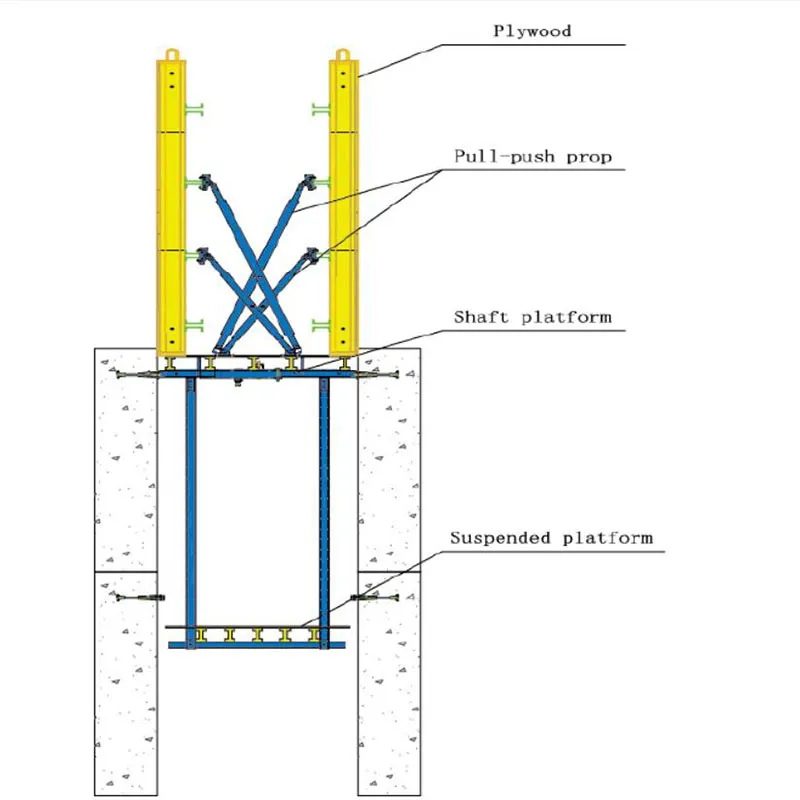

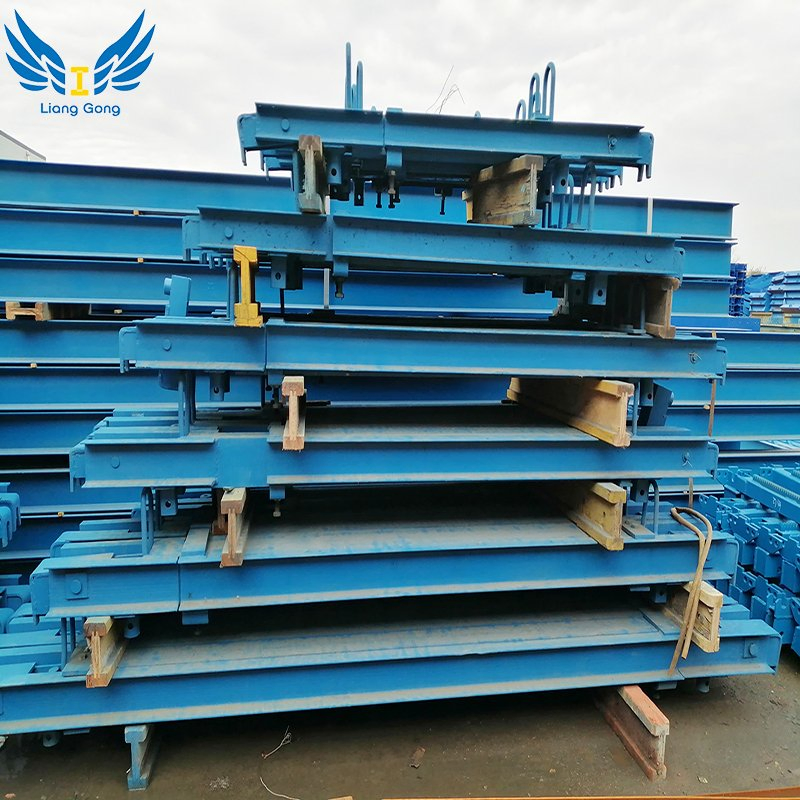

Shaft beam platform consists of platform board, timber beam, beam clamp, shaft beam and anchor.

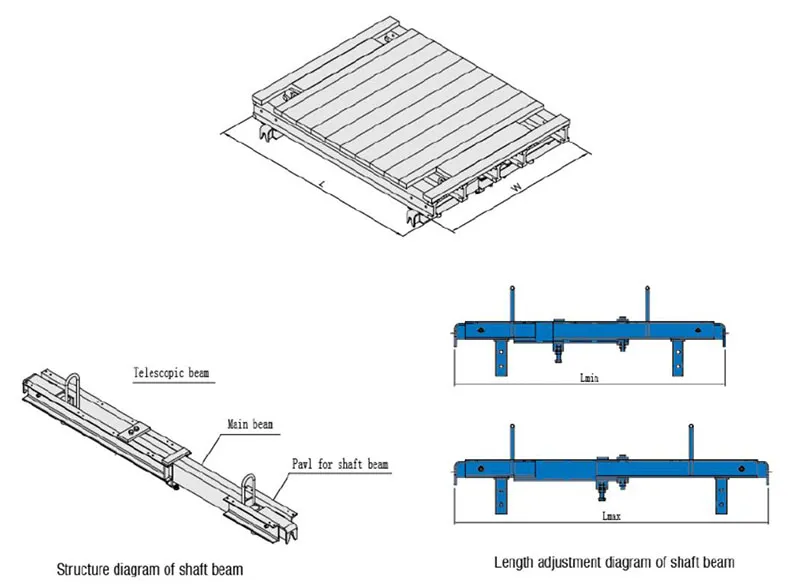

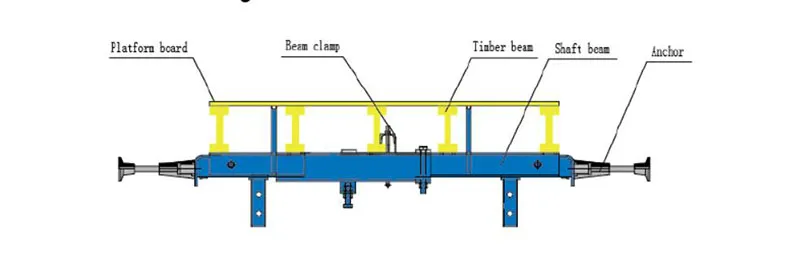

Structure Drawing:

In the drawing, L is the length of timber beam and W is adjustable. Shaft beams are in a few specifications, ranging from 1.45m to 5.8m, adapted to widths of different shafts.

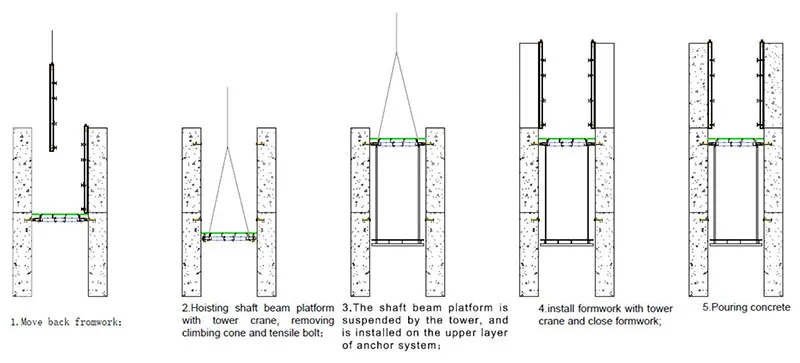

The platform and formwork must be hoisted separately. First, lift the formwork, and then the platform. When the platform is in place, the claw of the shaft beam must be fixed tightly on the tensile bolt.

Used with Climbing Formwork:

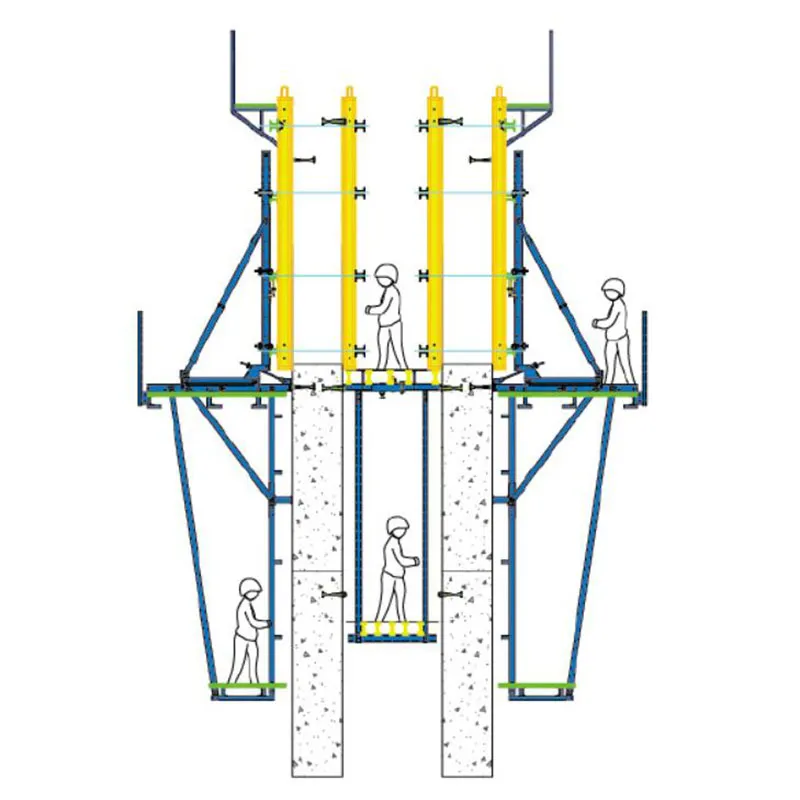

The shaft beam platform should be used with other formwork systems. Below is the diagram of collaboration with cantilever formwork CB-240.

Packaging Details:

• Timber beams, steel props, and tie rods are bundled.
• Small parts are secured in bags and placed on pallets.
• Wooden cases available upon request.
• Irregular goods loaded in bulk within containers (22-25 tons per container).

Delivery: Production normally takes 20-30 days after down payment for full containers.
