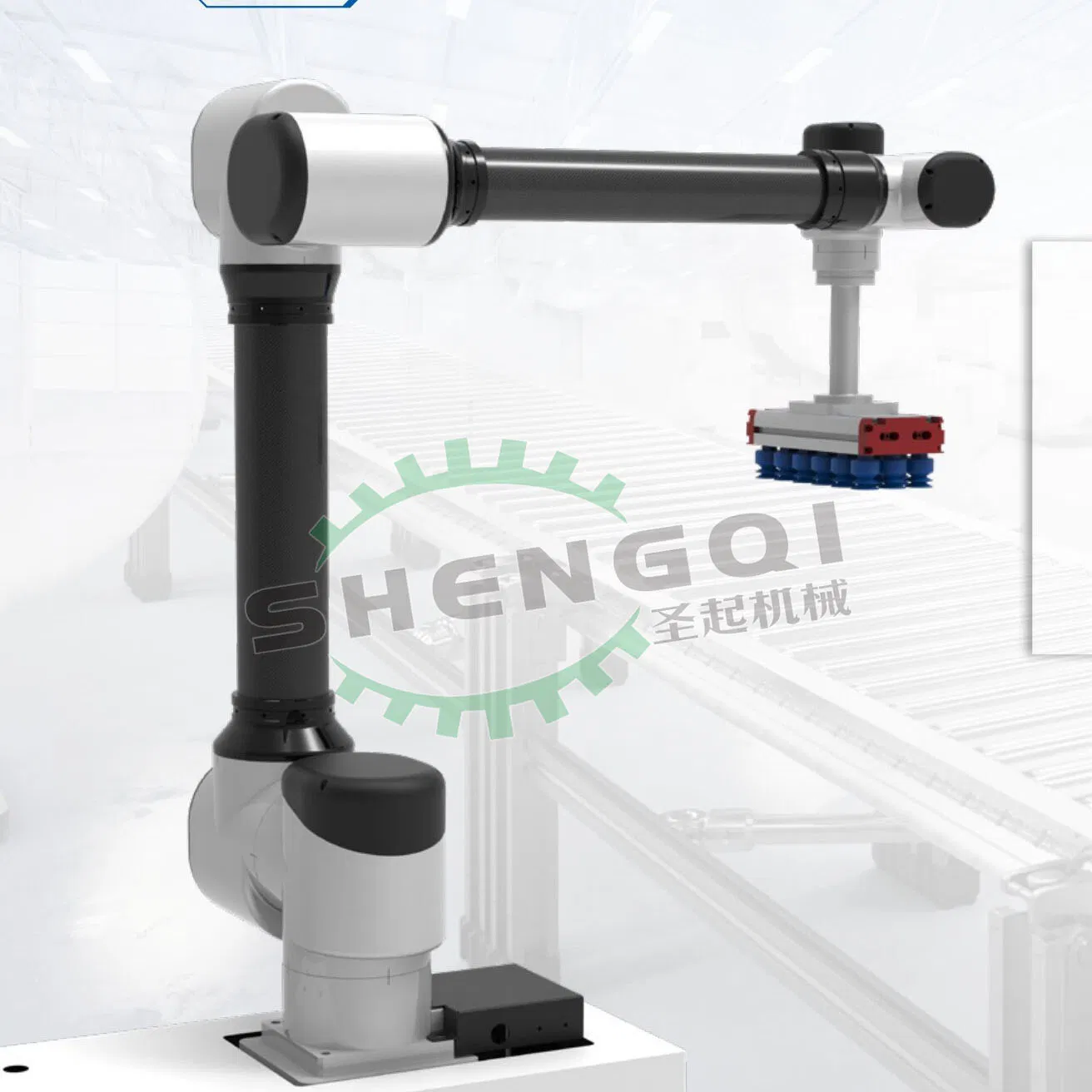

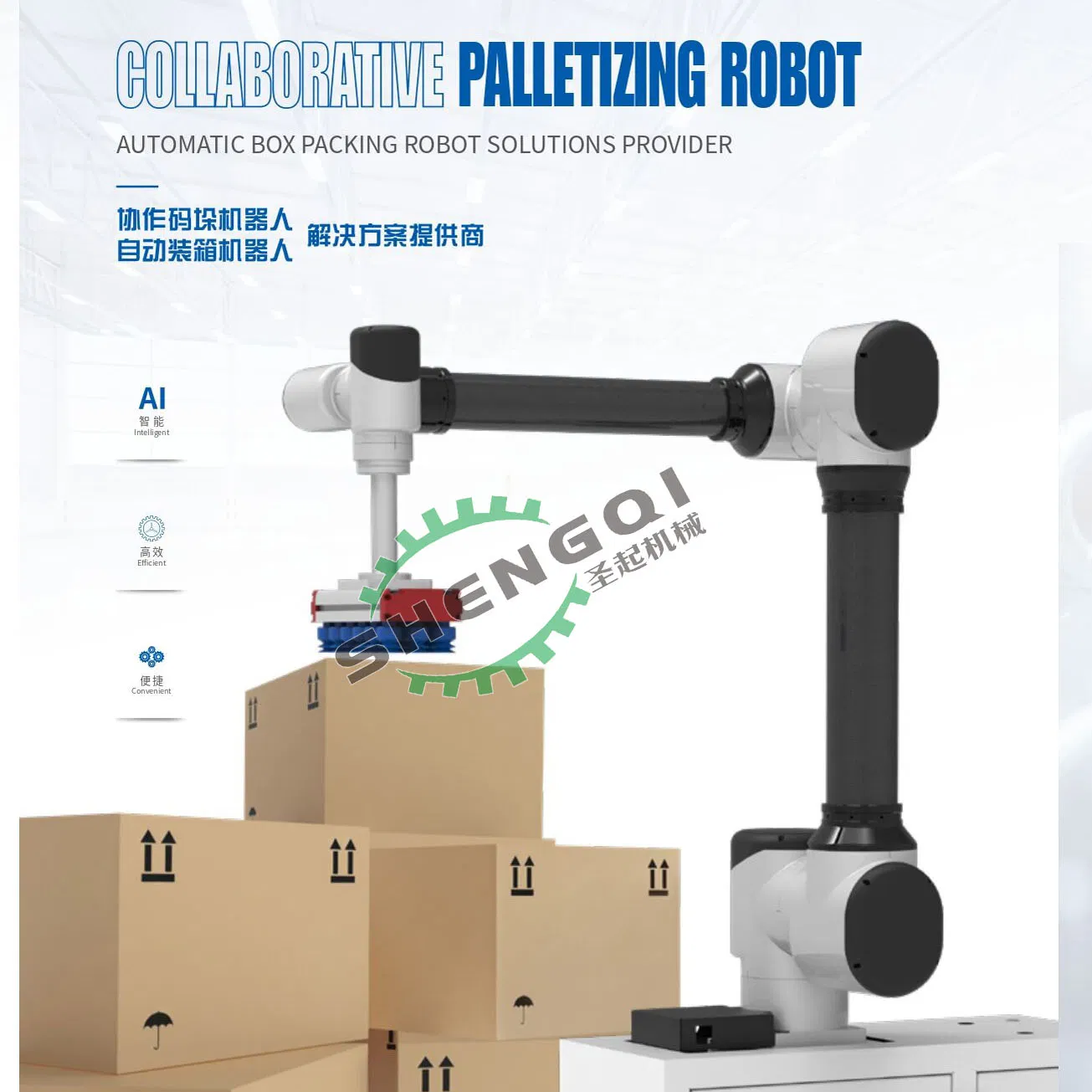

Low Price Programmable Industrial 6 Axis Collaborative Robot
Carton Box & Bag Palletizing Solution | Payload 30 Kg
Overview & Basic Info
Certification
ISO, CE, RoHS
Safety Features
✓ Collision Detection System
✓ Emergency Stop Button
✓ Safety Light Curtain
✓ Safety Mat Protection
Product Description

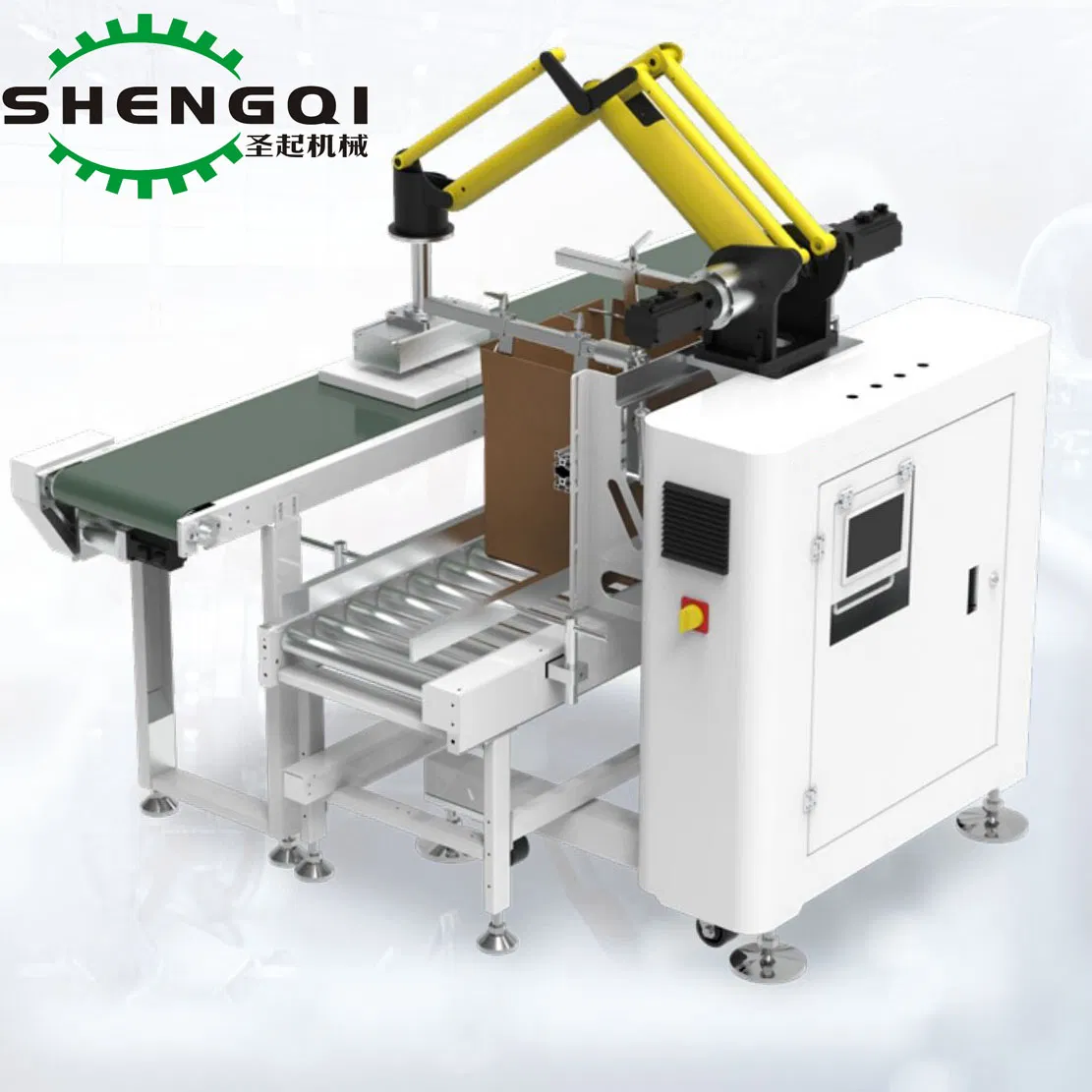

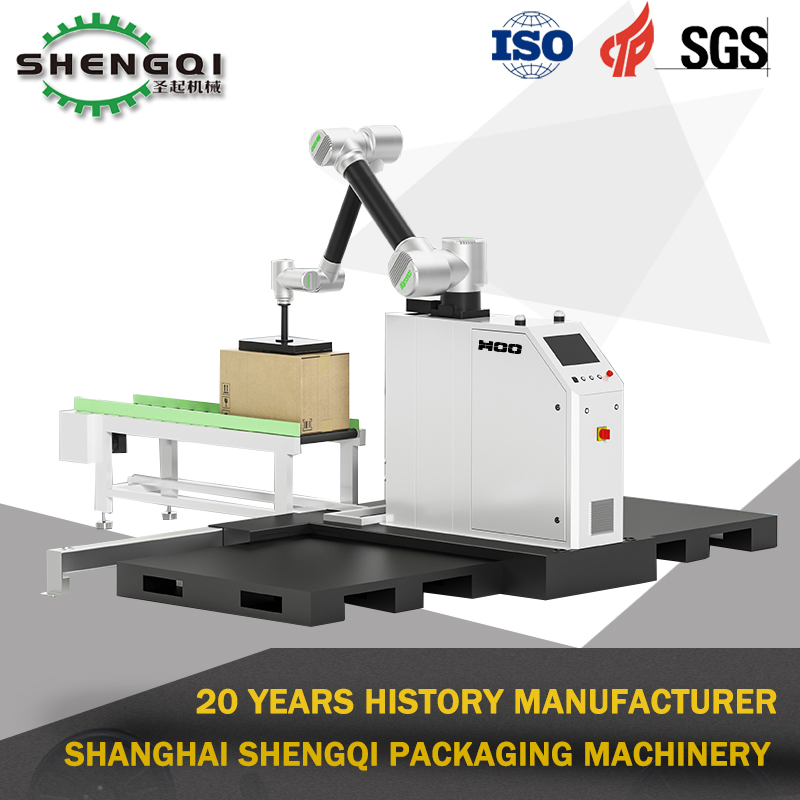

SQP-20 Palletizing Robot - Human-Machine Collaboration
Simple Operation: Supports variety of palletizing formulas, easy to learn and understand.
Cost Effective: Low energy consumption and low operating costs.
Flexible Layout: Small footprint and can be moved at will within the facility.
Safe Design: Convenient operation, designed to work without traditional guardrails.
Technical Parameters
- Equipment Model: SQP-20
- Palletizing Speed: 8-10 times/minute (product dependent)
- Tray Size: L1200mm * W1200mm * H150mm
- Robot Payload: Maximum 30kg with suction
- Palletizing Height: Maximum 2000mm (lifting column 600mm)
- Power Supply: 380V±10%, 50Hz±5%
- Total Power: 3KW
- Air Source Required: 0.5 ~ 0.7Mpa
- Weight: Approx. 600kg
- Noise Level: < 80 dB
Detailed Specifications
| Application |
Handling, Stacking, Loading and Unloading |
| Axes |
4 |
| Payload |
12Kg / 30Kg Option |
| Installation |
Ground |
| Working Range |
1500mm |
| Repeatability |
±0.08mm |
| Security Level |
IP54 |
| Axis No. |
Motion Range |
Max Speed |
| 1 |
-170° / +170° |
130°/S |
| 2 |
-125° / +10° |
130°/S |
| 3 |
-95° / +10° |
150°/S |
| 4 |
-360° / +360° |
150°/S |
Product Dimensions & Layout
Frequently Asked Questions
What is the maximum payload capacity?
The SQP-20 palletizing robot can handle a maximum load of 30kg when using the suction attachment.
How fast can the robot perform palletizing?
The design speed is between 8 to 10 cycles per minute, though actual speed depends on the specific product and dimensions.
What are the main safety features included?
The system is equipped with a Collision Detection System, Emergency Stop Button, Safety Light Curtains, and a Safety Mat for comprehensive operator protection.
Does the robot require a large workspace?
No, it has a small footprint (approx. 3410mm x 1700mm) and is highly flexible, making it suitable for workshops with limited space.
What kind of power supply is required?
The machine requires a 380V±10% power supply at 50Hz, with the control system operating on DC 24V.
Is the robot easy to program for different tasks?
Yes, it supports various palletizing formulas and features a "fool-proof" operation mode that is easy for operators to learn and understand quickly.
