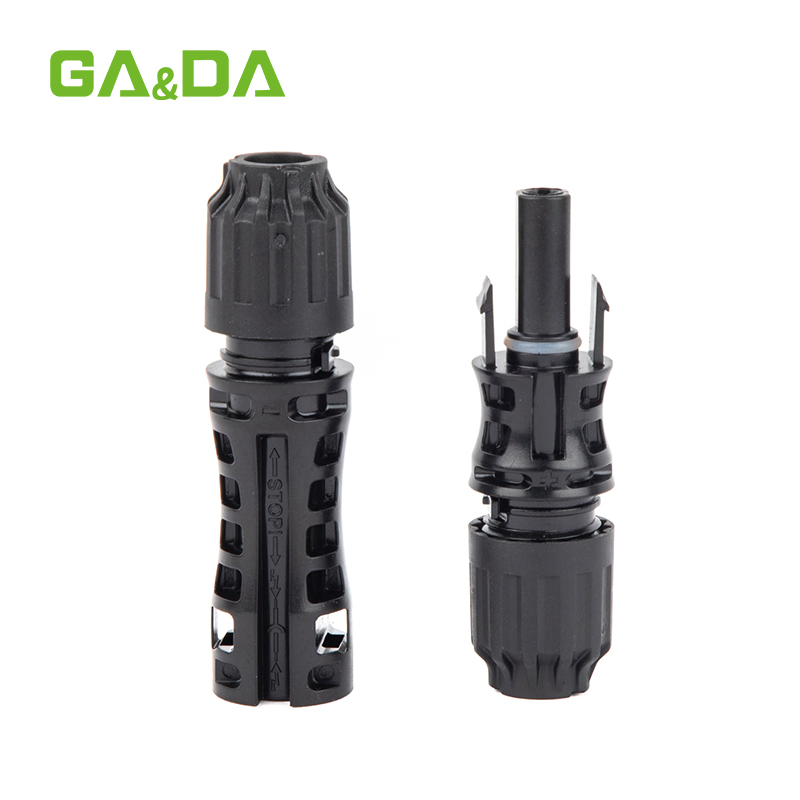

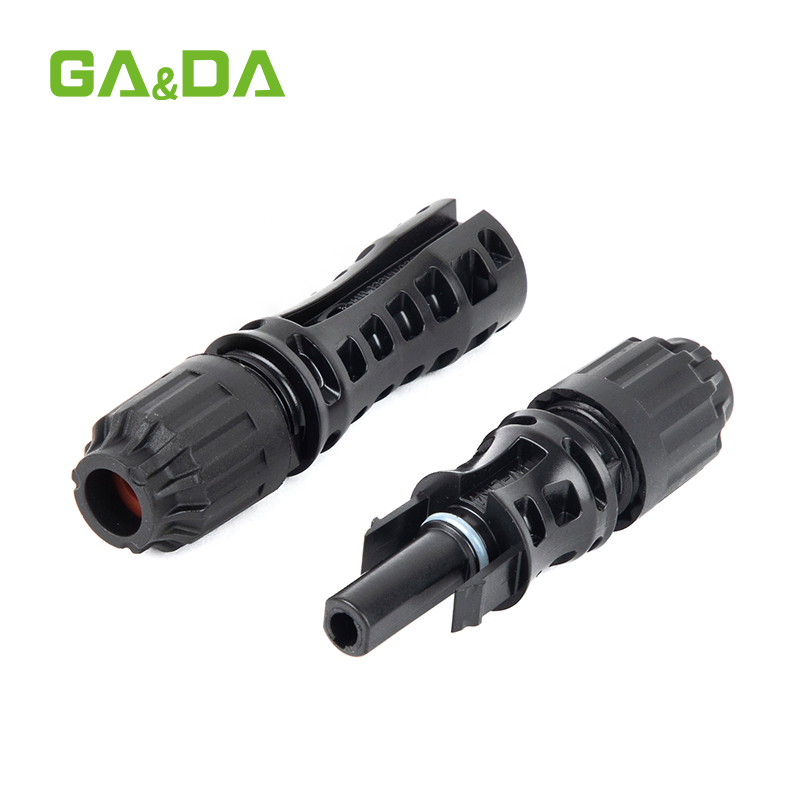

The existence of MC4 photovoltaic connectors has become very simple for crucial parts such as the connection in photovoltaic power plants, core combiner boxes, and inverters. Photovoltaic systems operate in extreme temperature changes of extreme heat and cold for a long time. The MC4 connector must be able to maintain stable operating performance in such harsh environments. Not only should it be resistant to high temperatures and moisture, but it should also achieve safety protection on the touch and high current carrying capacity when current passes through.

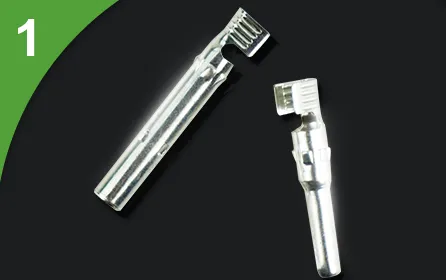

MC is the abbreviation for Multi Contact, while 4 is the size standard for the diameter of the metal core. Completely achieved true plug and play with its debut in 2002. The entire MC4 series is currently very mature and can meet the needs of users at different levels.
| Technical Data | |
| Type | GDPV004/GDPV005/TX/YX |
| Test standards | IEC 62852 |
| Rated voltage Ue | 1000/1500V DC |

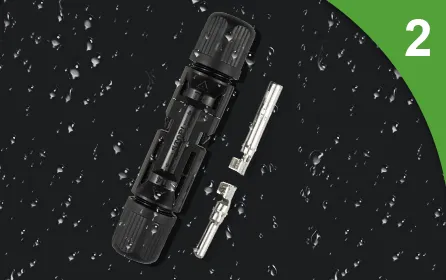

| Protection Degree | IP67 |
| Contact Resistance | ≤0.5mΩ |
| Rated current | 30A |
| Ambient Temperature | -40ºC~+85ºC |
| Flame Class | UL94 V-0 |

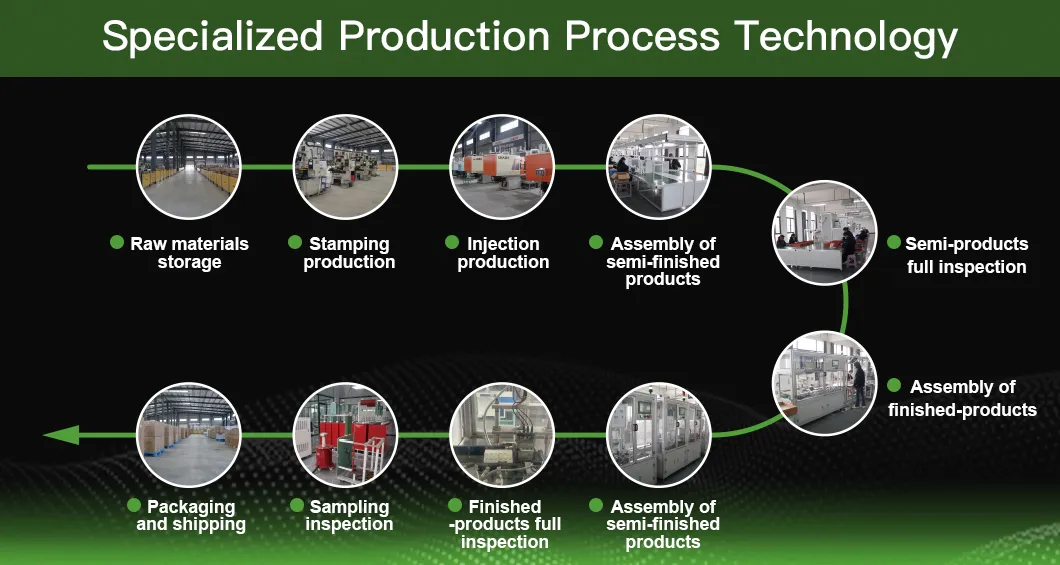

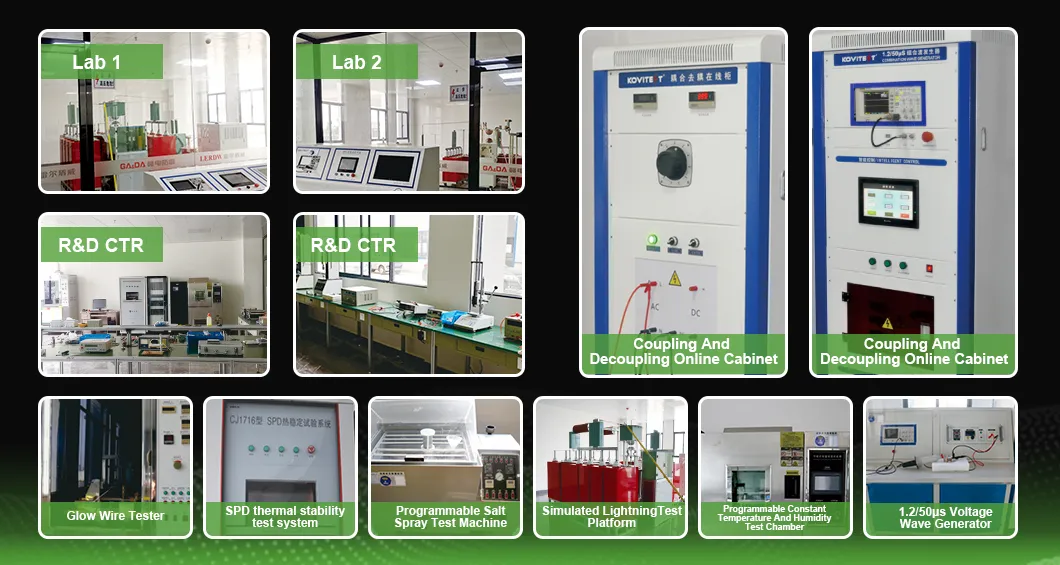

Our company attaches great importance to technological research and development, building an automated electrical equipment and digital production line base. We feature specialized labs for Lightning Impact testing (8/20, 10/350us), SPD safety, environmental (salt spray, vibration), and physical/chemical analysis.
