Special Robot for Plastic Spoon and Fork 280t Powder Injection Molding Machine

1 / 5

Special Robot for Plastic Spoon and Fork 280t Powder Injection Molding Machine

Customization:	Available
Vertical Travel:	600mm
Power:	220V 50-60Hz

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

TL1000WS-S3

Max Load

10kg

Pick Cycle Time

10 Sec

Function

Take out, Insert

Dimension

2300*1650*1600mm

Weight

225kg

Fit to Imm

100-250t Imm

Product Name

3 Axis Robot

Control Mode

Continuous Path Control

Drive Mode

Pneumatic

Condition

New

Warranty

1 Year

Special Robot for Plastic Spoon and Fork 280t Powder Injection Molding Machine

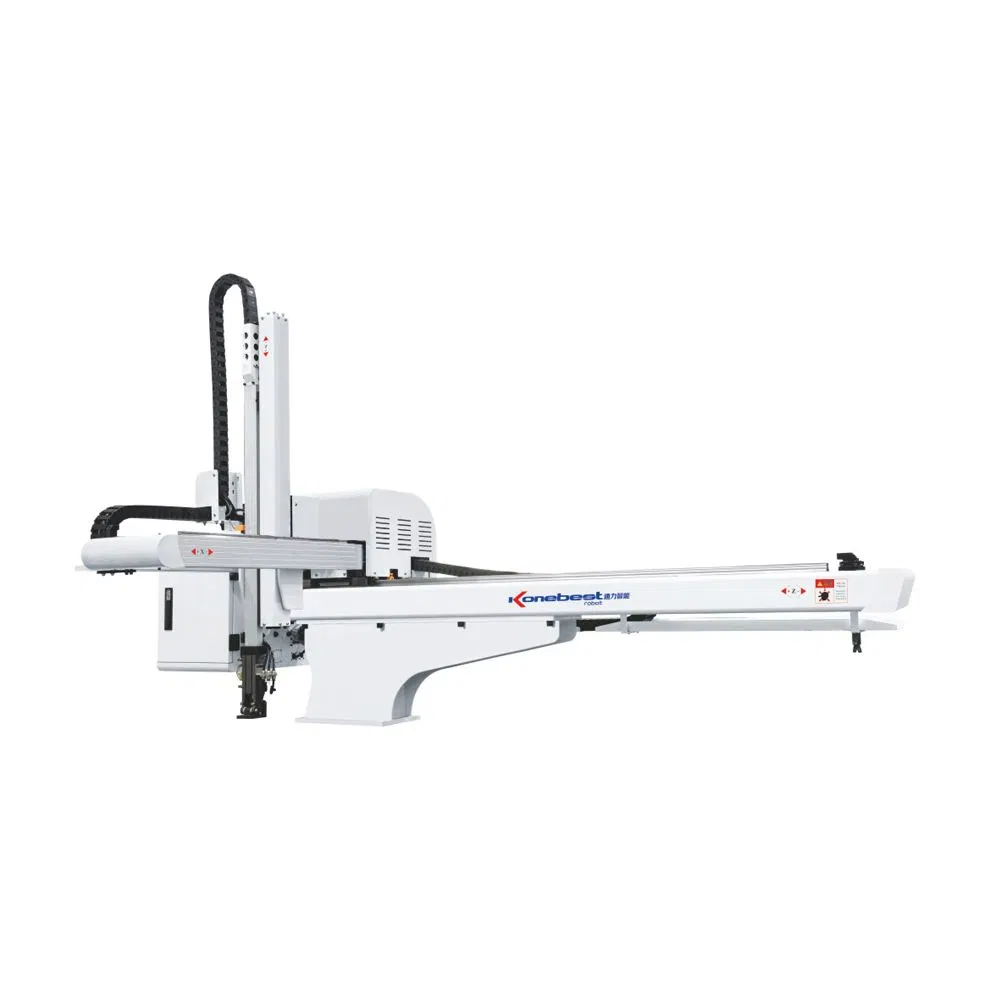

⚙️ Features of Servo Motor Industrial Robotic Arm

All three axis driven by powerful AC servo motor, high stability and fast speed.
Compact vertical telescopic arm for low overall height and double speed.

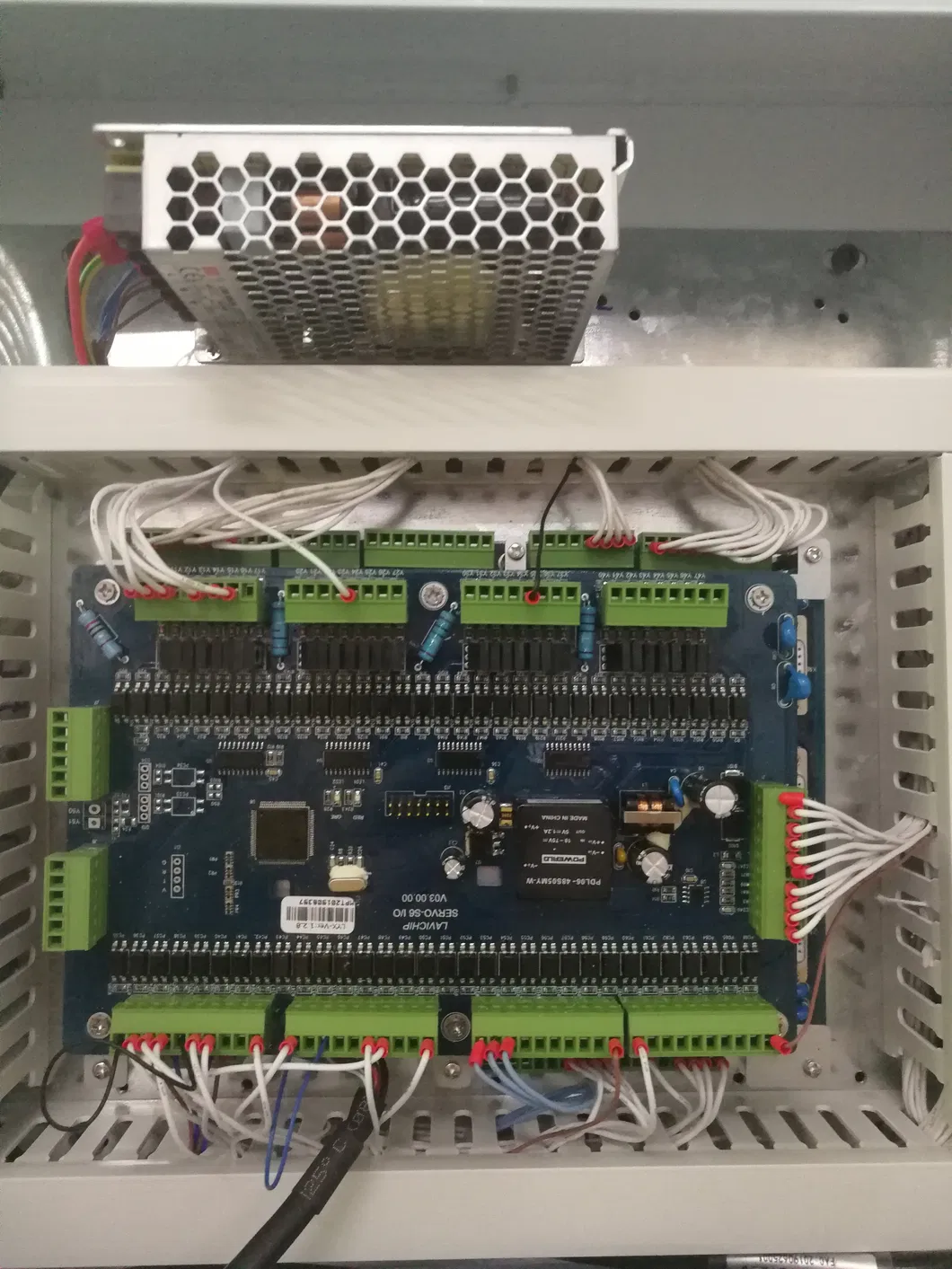

Integrated control cabinet mounted behind the horizontal axis to save space.
Allows electrical connection of external I/O modules for peripheral equipment.
Flexible orientation placing with available Y, X, and standard Z-axis.
Additional arm available for removal of sprues from 3-plate molds.

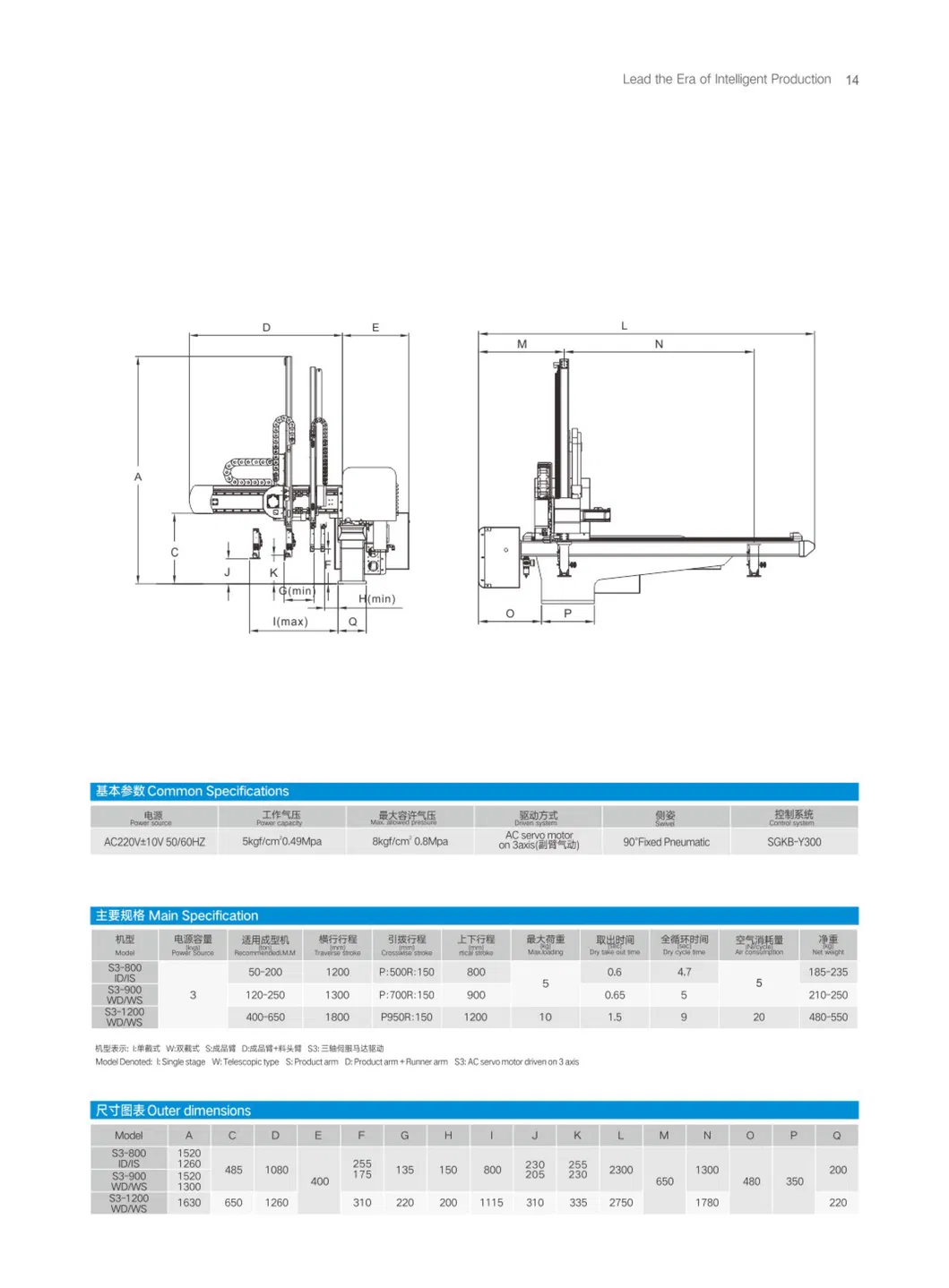

📊 Technical Specifications

🧩 Key Components List

Key Components	Brand	Origin

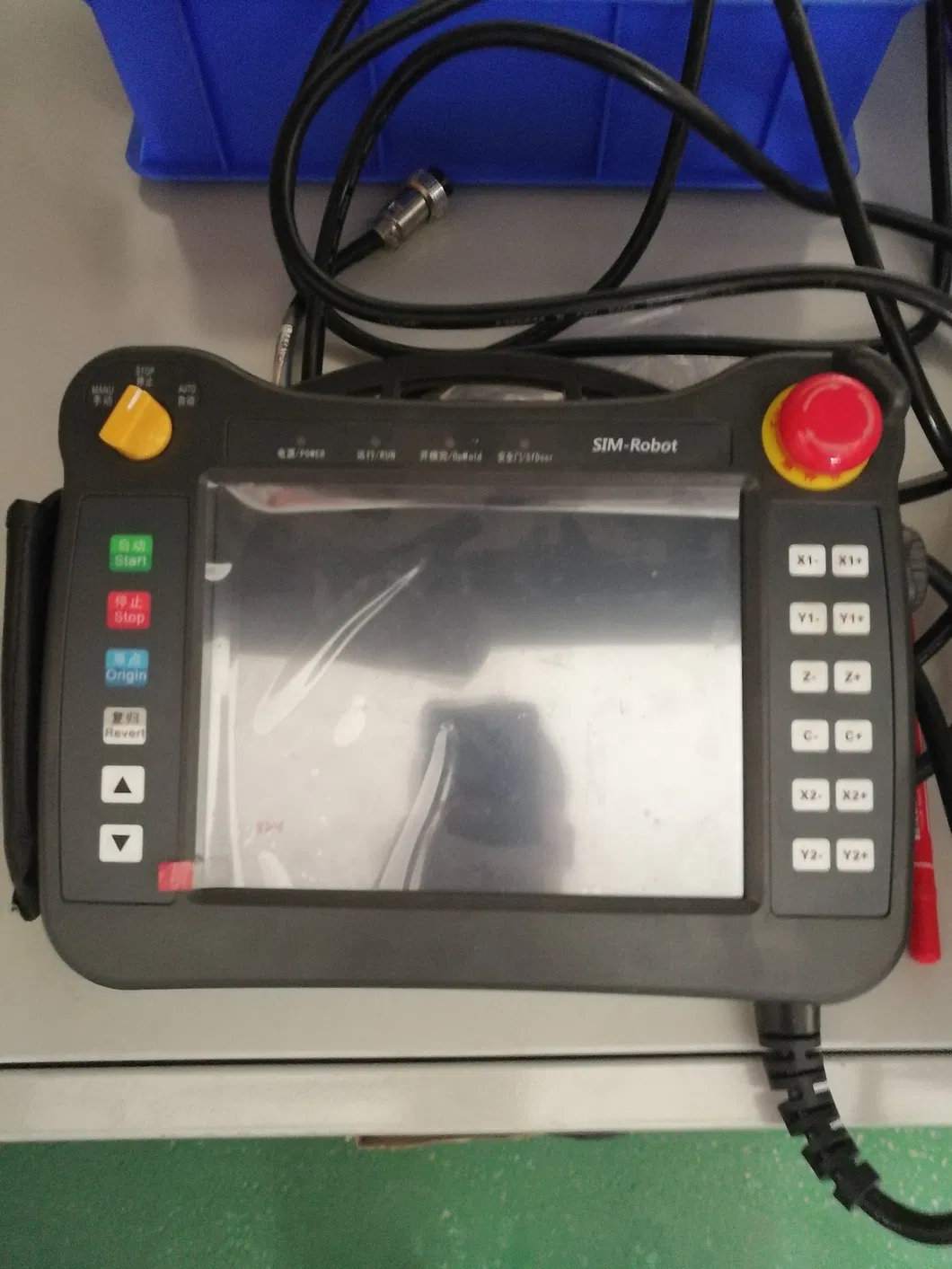

Control system	Langyuxin and Huacheng	China
Servo motor/driver	Panasonic	Japan
Vacuum generator	MCHMALZ	France
Vacuum pump	Baker	Germany
Electrostatic generator	SIMGO	USA
Slide	THK and PMI	Japan/Taiwan
Wire	Igus	Germany
Speed regulation valve	Parker	USA
Solenoid Valve	SMC/Mindman	Japan/Taiwan

🚀 Application & Advantages

Suitable Products: Plastic cups, disposable bowls, forks, knives, PVC pipes, car bumpers, mobile phone cases, helmets, and PET bottle embryos.

Why Choose Us: 10 years of industry experience, 100% testing before shipment, and professional automation customization service.

Frequently Asked Questions

Q1: What is the minimum order quantity (MOQ)? The minimum order quantity is one set.

Q2: What payment terms are accepted? We accept both Letter of Credit (LC) and Telegraphic Transfer (TT).

Q3: Do you provide installation and technical support? Our technicians can visit your facility for machine installation and debugging. Travel and accommodation costs are covered by the customer.

Q4: Are you a manufacturer or a trader? We are both a manufacturer and an authorized importer/exporter of industrial robotic products.

Q5: What is the warranty period for the robotic arms? All products come with a standard 12-month (1 year) warranty.

Q6: Are the components used in the robot new? Yes, all components are brand new, with core parts imported from world-leading brands in Japan, Germany, and France.
