Basic Specifications
Control Mode
Continuous Path Control
Product Overview

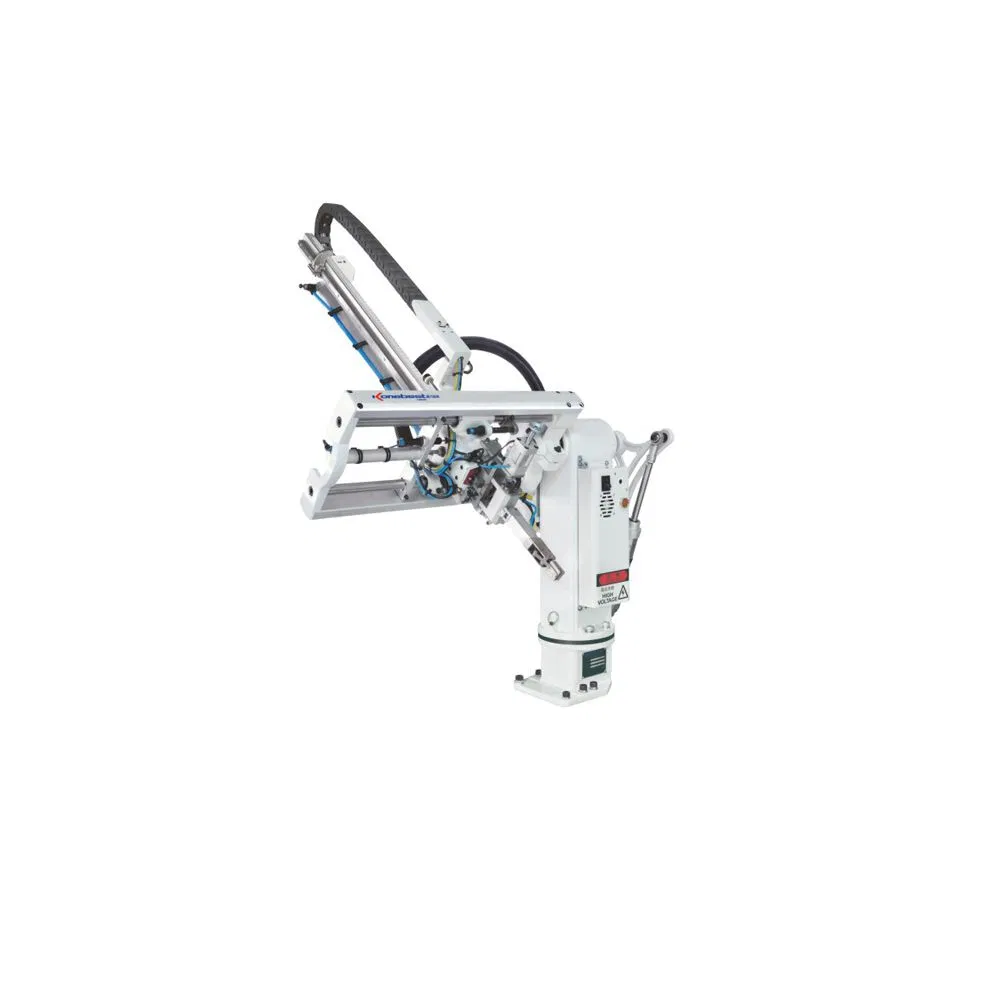

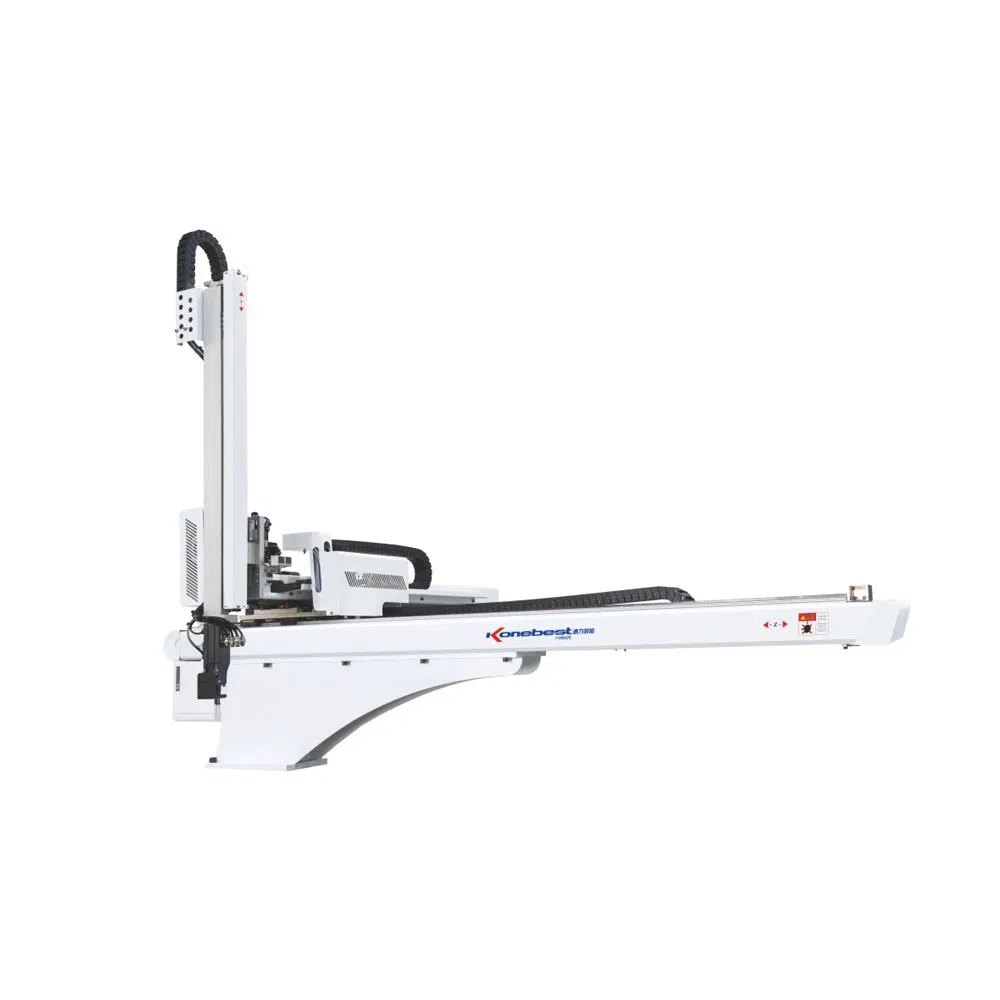

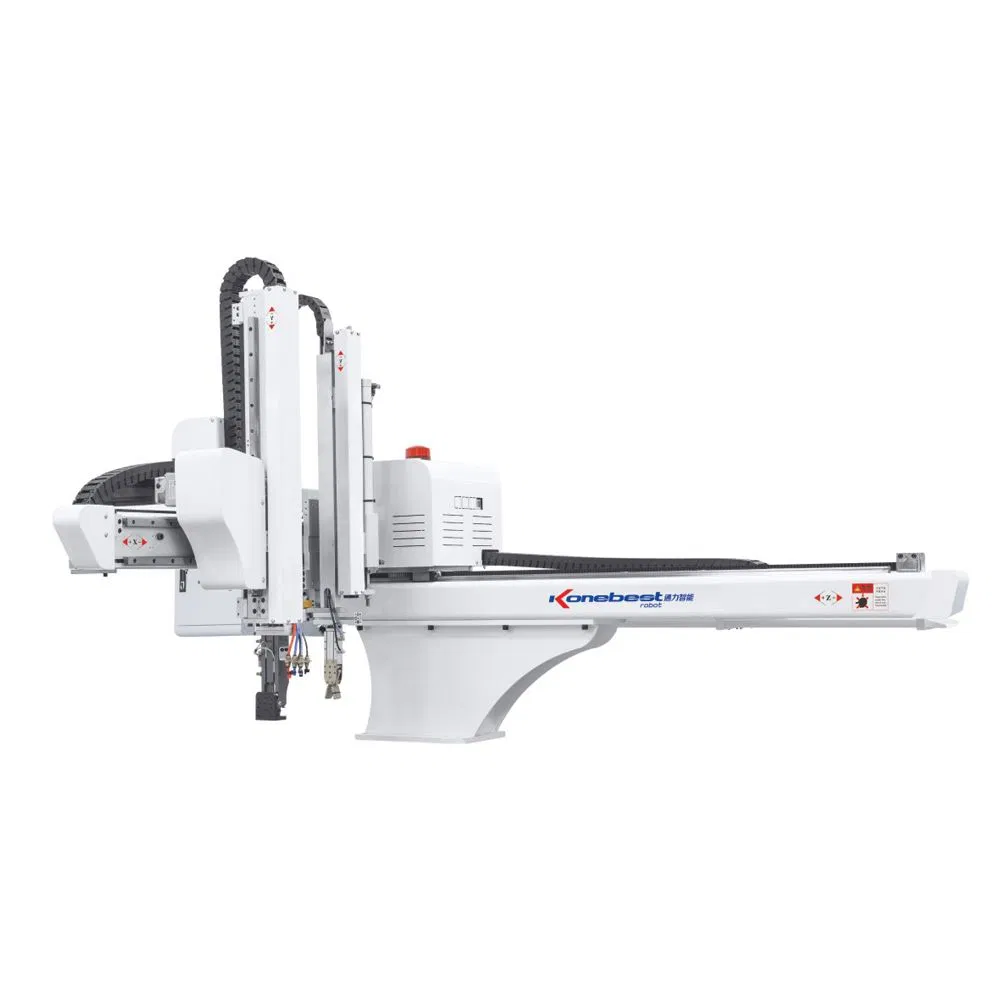

Programmable mini lightweight swing arm robot arm for injection mold machine
Key Features
- ◈ All three axis driven by powerful AC servo motor, high stability, fast, compact, heavy duty.
- ◈ Very compact vertical telescopic arm for low overall height and double speed for short in/out time.
- ◈ Integrated control cabinet mounted behind the horizontal axis to save valuable workspace.

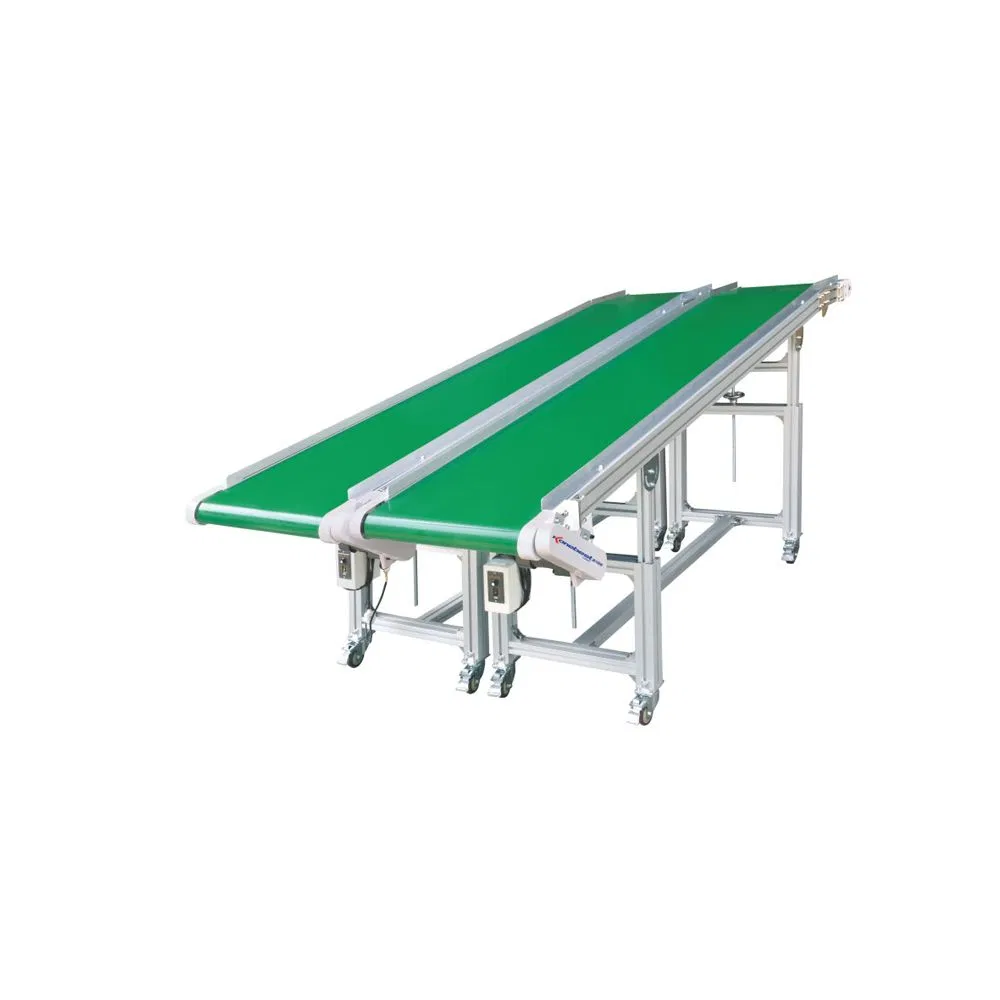

- ◈ Electrical connection of external I/O modules for additional peripheral equipment like conveyor belts.
- ◈ Additional Y & X axis available for flexibility in placing parts in different orientations.
- ◈ Specialized arms available for sprue removal from 3-plate molds and part removal from stake molds.

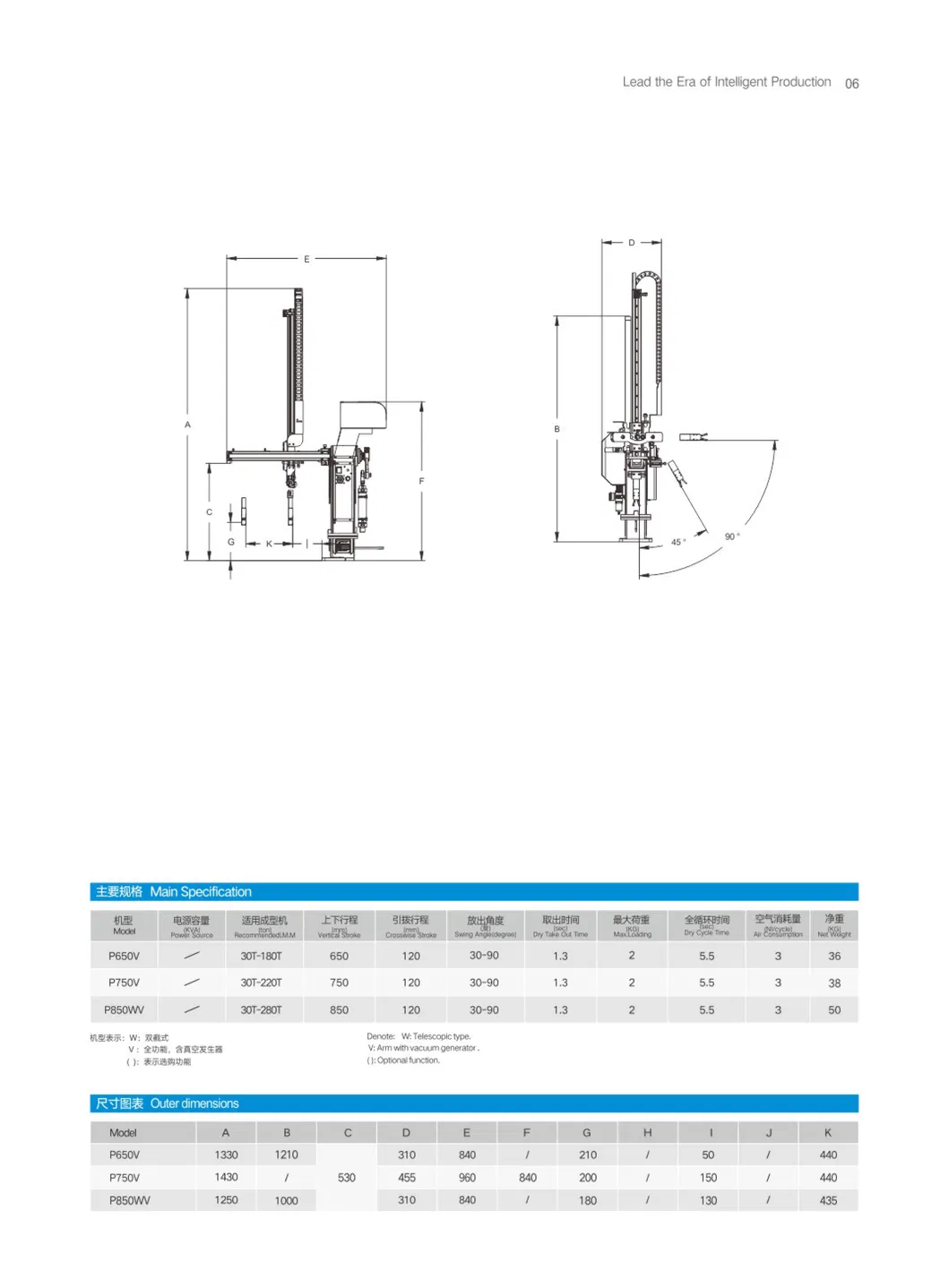

Technical Specifications
Key Components
| Key Components |
Brand |
Origin |
| Control system | Langyuxin and Huacheng | China |
| Servo motor | Panasonic | Japan |
| Servo driver | Panasonic | Japan |
| Vacuum generator | MCHMALZ | France |
| Vacuum pump | Baker | Germany |
| Electrostatic generator | SIMGO | USA |
| Slide | THK and PMI | Japan / Taiwan |
| Wire | Igus | Germany |
| Speed regulation valve | Parker | USA |
| Air cylinder | HINAKA | Taiwan |
| Reducer | ZhongDa | China |
| Solenoid Valve | SMC/Mindman | Japan/Taiwan |
Applications
Suitable for plastic parts production including:
Plastic cups, disposable bowls, cutlery (forks and knives), PVC pipes, car bumpers, sprues, mobile phone cases, sockets, telephones, helmets, air conditioning shells, toothbrushes, and PET bottle embryos.
Why Choose Our Robotic Solutions
- ✓ 10 years of industry experience in Servo Motor Industrial Robotic Arms.
- ✓ 100% new components from top-tier global brands (Panasonic, THK, Igus, etc.).
- ✓ Rigorous 100% testing protocols before shipment.
- ✓ Comprehensive 12-month warranty on all products.
- ✓ Professional customized automation systems to save time and cost.
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The minimum order quantity for our robotic arms is one set.
What are the accepted payment terms?
We accept both Letter of Credit (LC) and Telegraphic Transfer (TT).
Do you provide installation and debugging services?
Yes, our technicians or engineers can visit your facility for installation and debugging. Customers are expected to cover travel, accommodation, and visa assistance costs.
Is the robotic arm compatible with both 2-plate and 3-plate molds?
Yes, we provide additional arm configurations specifically designed for removing sprues from 3-plate molds and parts from stake molds.
What is the warranty period for the robotic arm?
All our products come with a standard 12-month (1 year) warranty covering core components.
Can the robot be customized for specific injection molding machines?
Yes, we provide professional automation systems tailored to your specific requirements based on your machine brand, weight, and product type.
