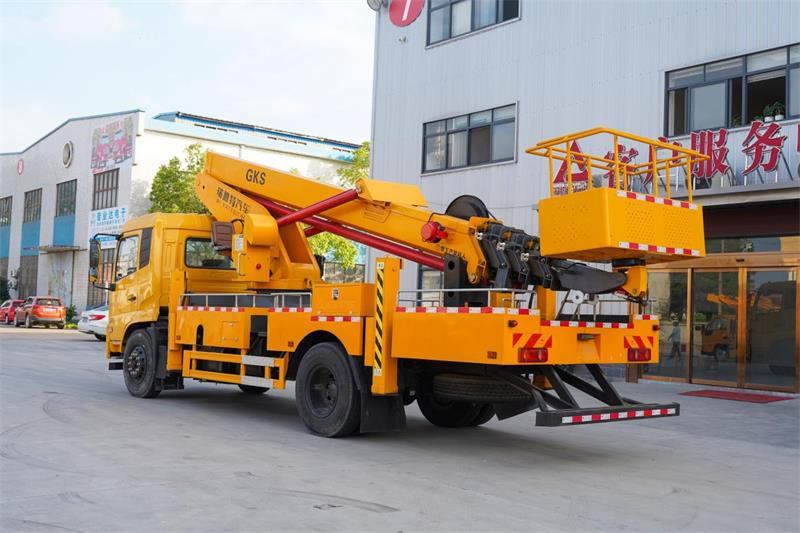

Reliable Aerial Work Platform for Secure Elevated Operations

1 / 5

Reliable Aerial Work Platform for Secure Elevated Operations

Customization:	Available
After-sales Service:	Manufacturer
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.RRR5180JGKD

TypeSelf-propelled

CertificationISO9000, CCC, TS16949

Emission StandardEuro 3

Horsepower150-250hp

Payload20T

FuelDiesel

TransmissionManual

Drive Wheel4x2

Working Altitude36-45metre

Work Bar Size1800*750*1100

Control ModeManual/Remote Control

🛠️ Product Description

Introducing the high-altitude operation truck, designed to meet all your overhead working needs with precision and safety.

Chassis Configuration

Dongfeng Tianjin luxury interior
LED daytime running lights
Kangji 210 horsepower engine
4700mm wheelbase
10.00R20 steel tire
Air conditioning & Multifunctional steering wheel
Remote key & Airbag seats

Upper Configuration

Seven octagonal arms with synchronous telescopic capabilities

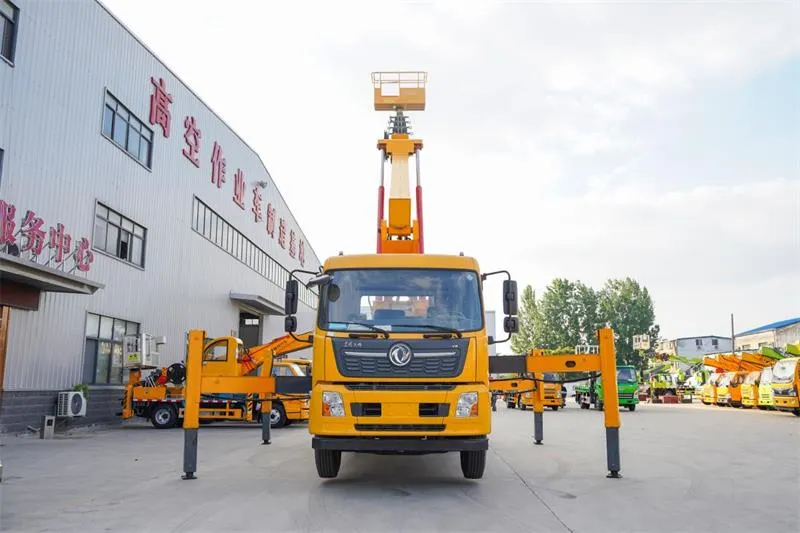

Front and rear V legs (5930mm/6260mm span)
2-meter folding basket (200kg rated load)

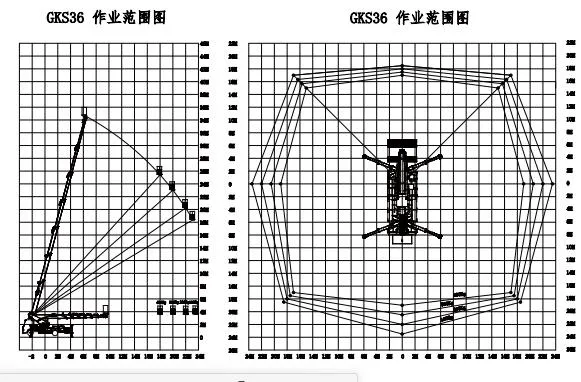

Maximum operating height of 36m-45m
Lateral tilt of 24m (load capacity of 200KG)
Rear tilt of 28m (load capacity of 200KG)

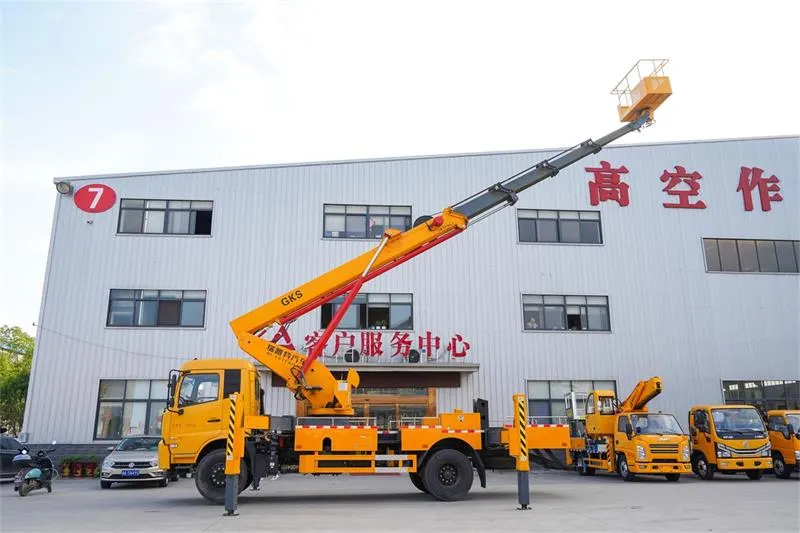

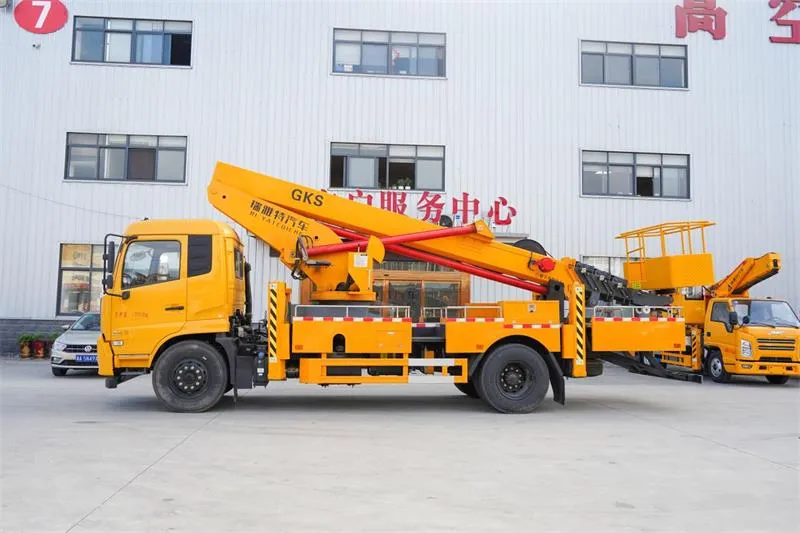

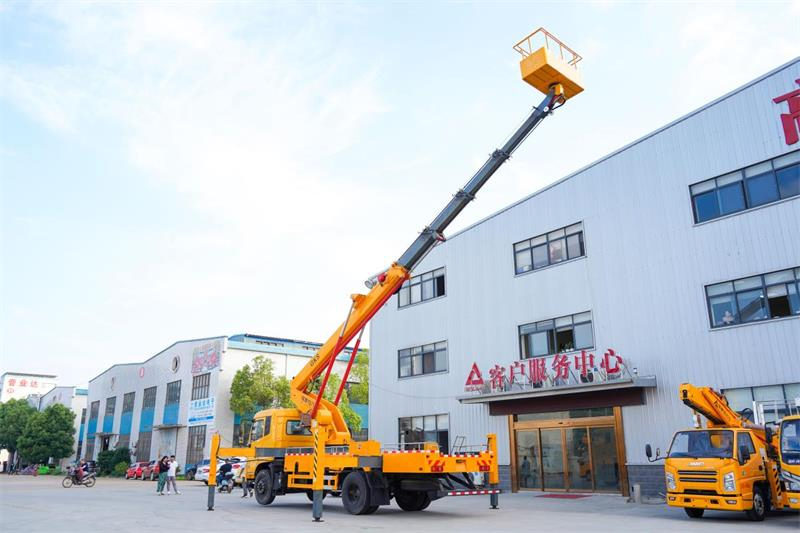

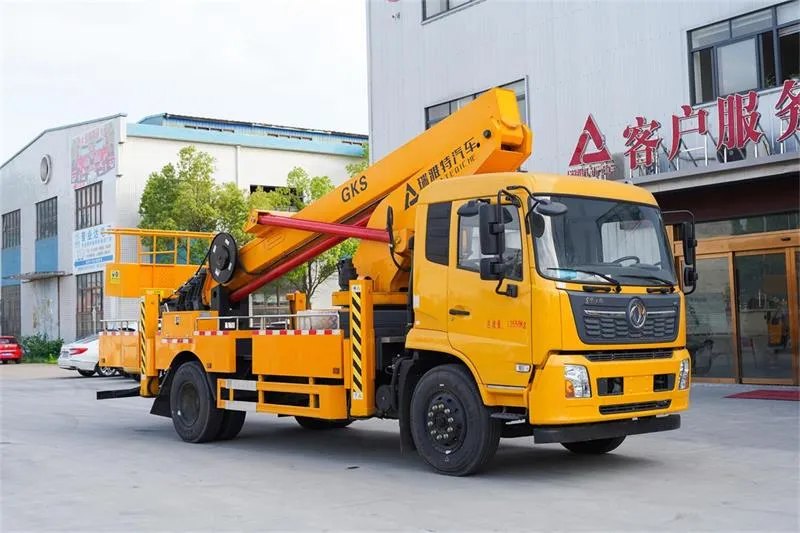

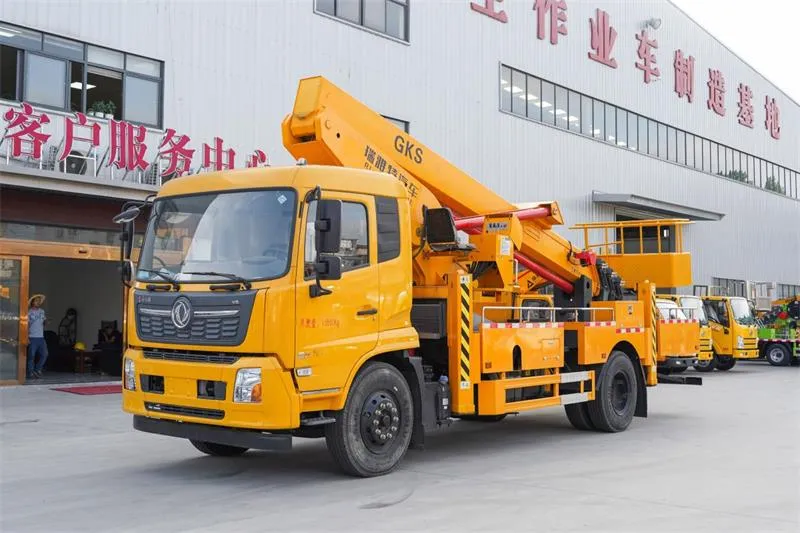

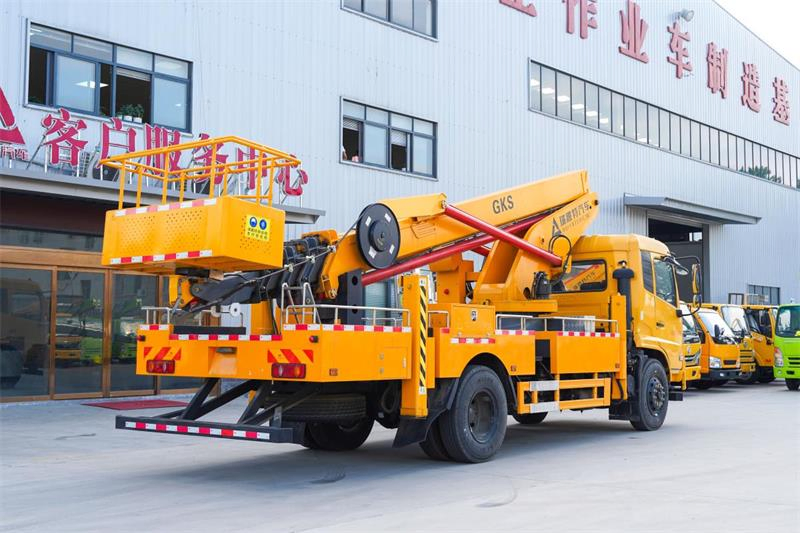

📸 Detailed Photos

📊 Product Parameters

Vehicle Name	Tianjin 47m Yellow Label Aerial Work Vehicle
External Dimensions	9650×2500×3950mm
Total Mass	18000kg
Max Homework Height	45m
Outrigger	Front V and rear V three legged support
Hanging Basket	2-meter folding hanging basket
Cantilever Crane	Seven section octagonal working arm, 360° rotation
Platform Rated Load	200kg

Frequently Asked Questions

Q1: What is the maximum operating height of this vehicle?

The vehicle can reach a maximum homework height of 45 meters, suitable for high-altitude maintenance and construction.

Q2: What is the load capacity of the working basket?

The 2-meter folding hanging basket has a rated load capacity of 200kg.

Q3: How many sections does the telescopic arm have?

It features a seven-section octagonal working arm with synchronous telescopic capabilities and 360° rotation.

Q4: Does the vehicle support remote control?

Yes, the operation can be performed via both manual control and remote control systems for added flexibility.

Q5: What are the emission standards for the engine?

The vehicle is equipped with an engine that meets Euro 3 emission standards.

Q6: What type of outriggers are used for stability?

The truck uses front and rear V-style hydraulic legs to ensure maximum stability during elevated operations.
