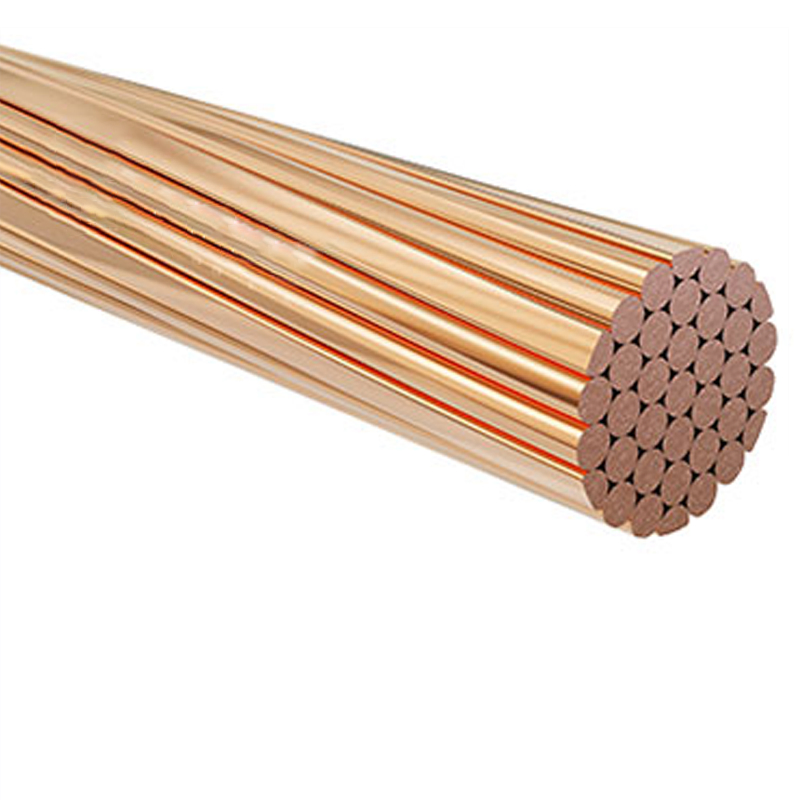

RoHS Compliant Environmental Copper Conductor Bare Copper Conductor

1 / 5

RoHS Compliant Environmental Copper Conductor Bare Copper Conductor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■ Overview & Basic Info

Model NO.

TJ-25

Application

Overhead, Earthing

Conductor Material

Copper

Material Shape

Round Wire

Certification

ISO9001, CE, CCC, RoHS, VDE, UL

Color

Copper

Resistance

Weather

HS Code

7413000000

■ Product Description

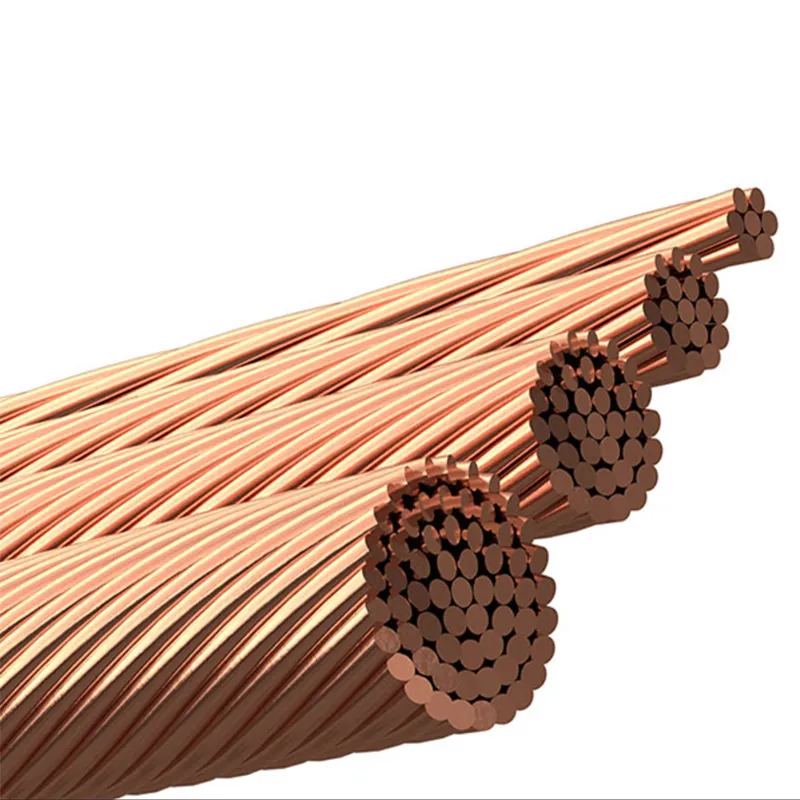

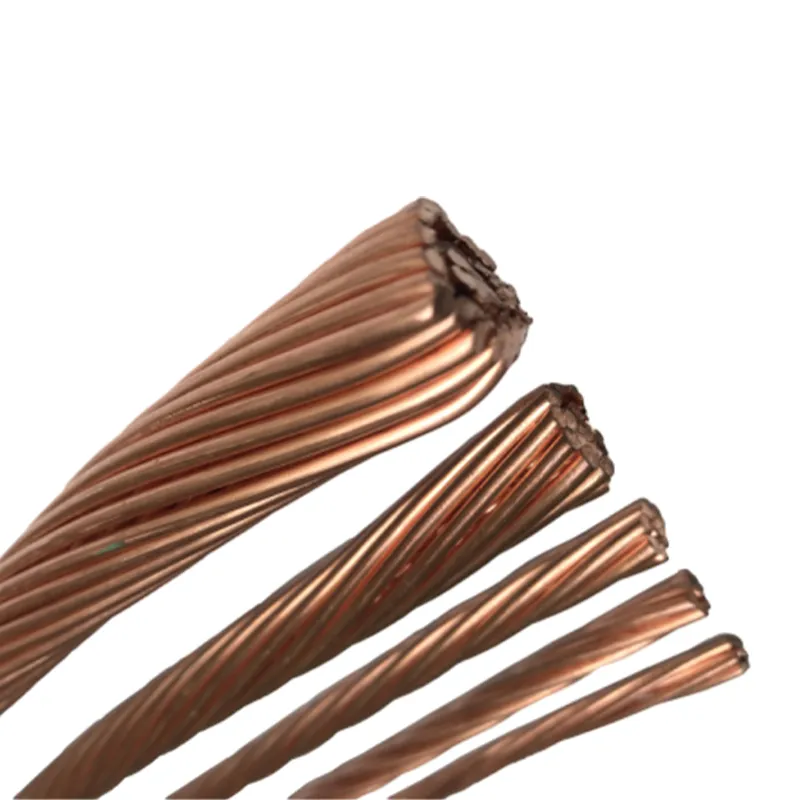

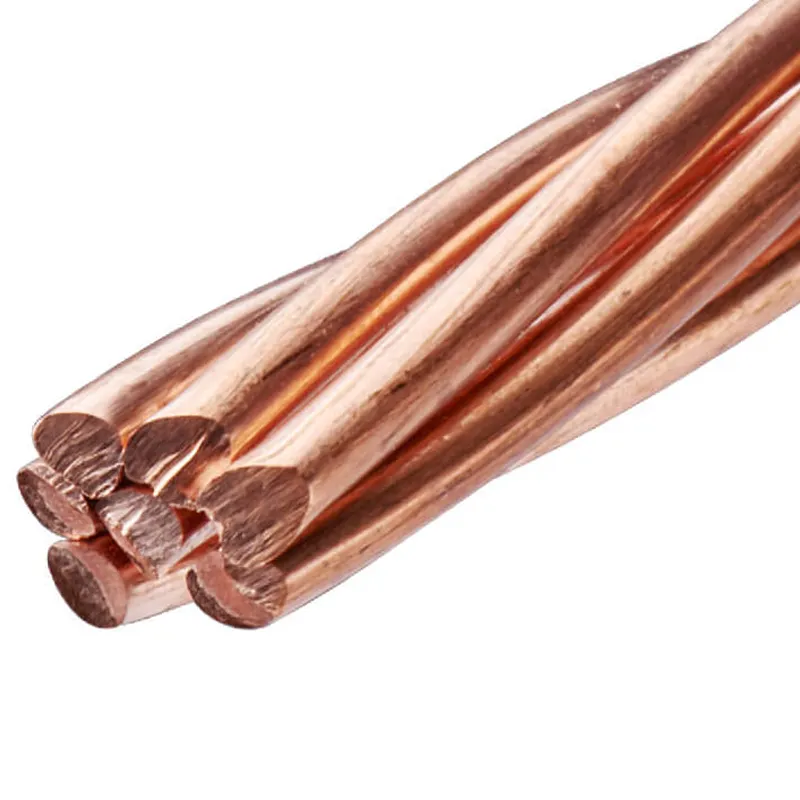

High-Quality Copper Stranded Wire - Flexible & Durable Conductivity Solution

Material: 99.9% Pure Electrolytic Copper (Cu-ETP)

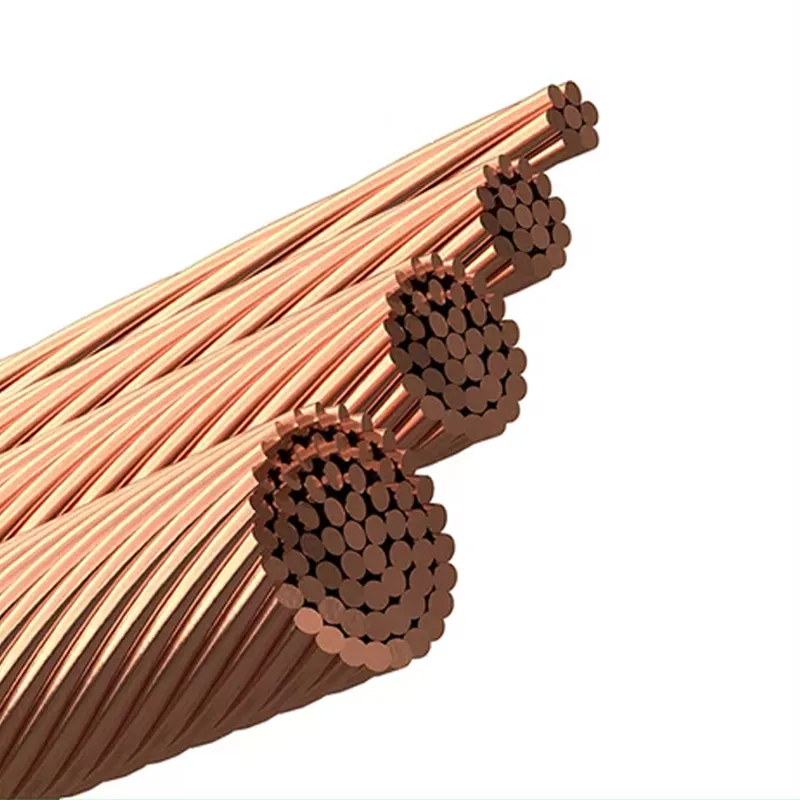

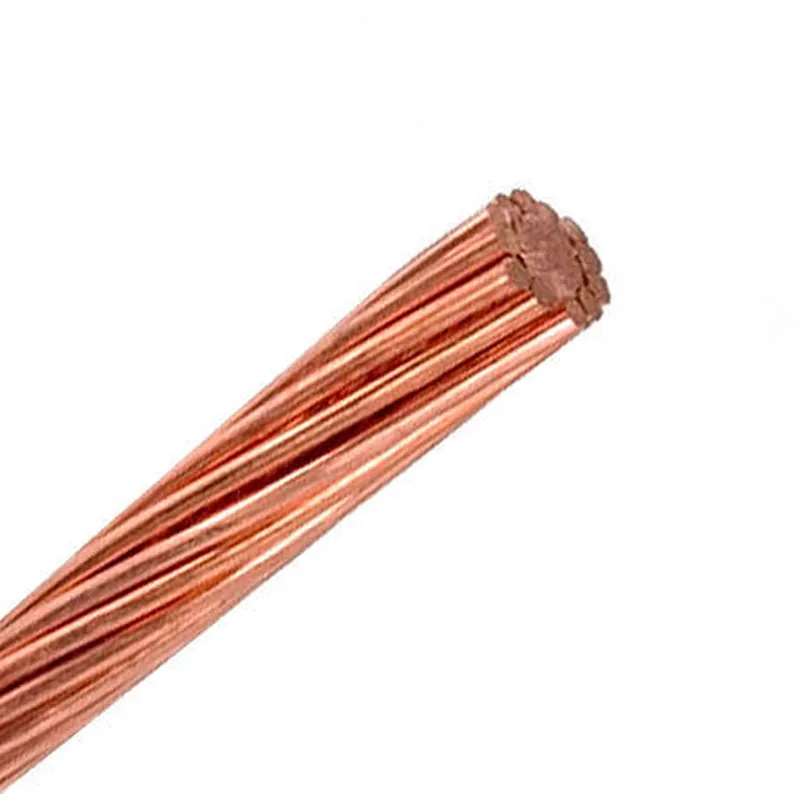

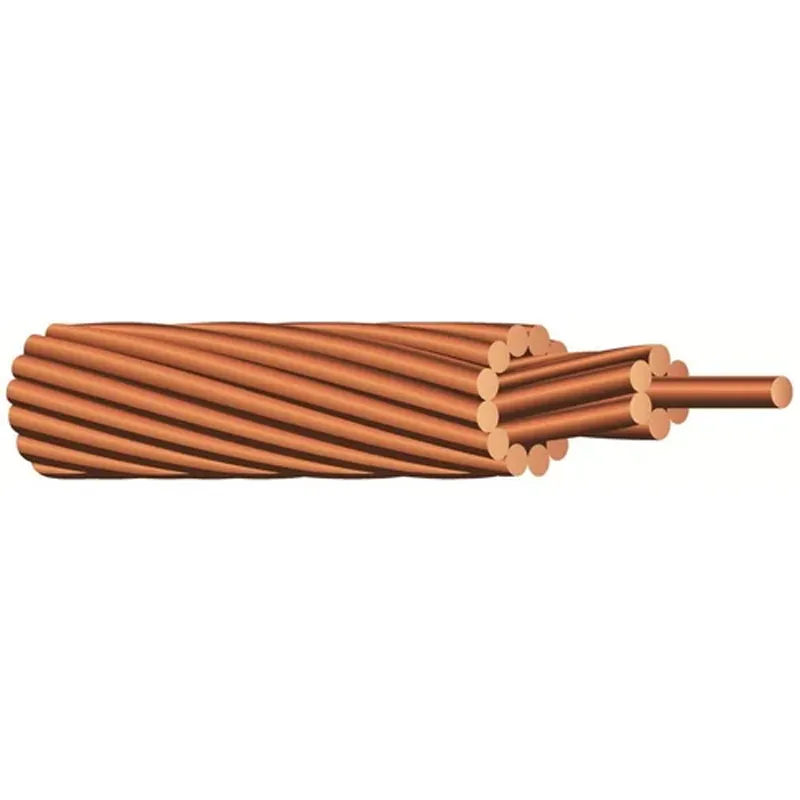

Stranding: 7/19/37/61 Strands (Customizable)
Diameter Range: 0.05mm - 10mm (AWG 40-4/0)

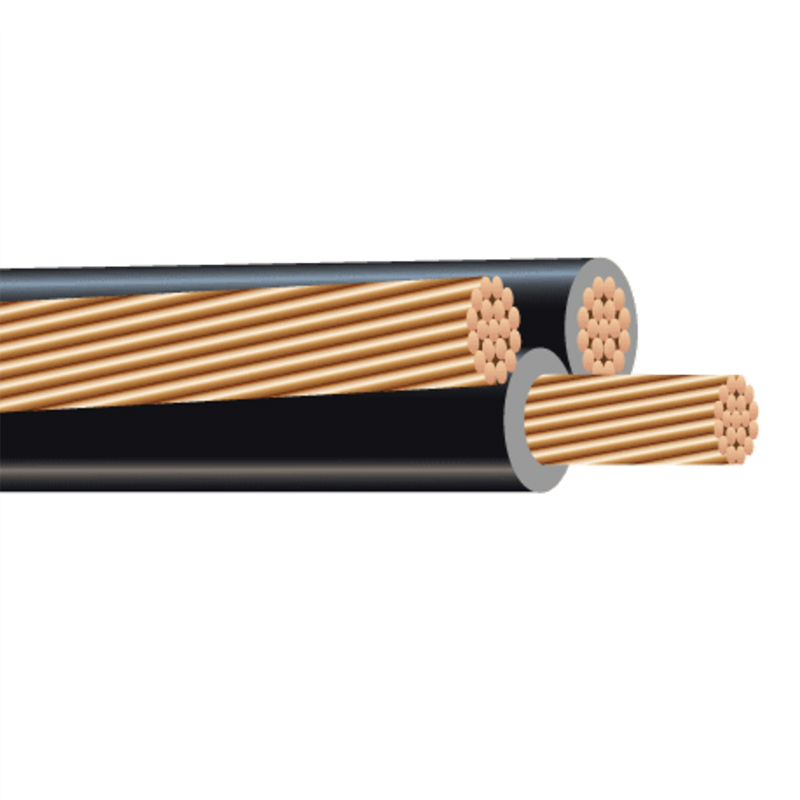

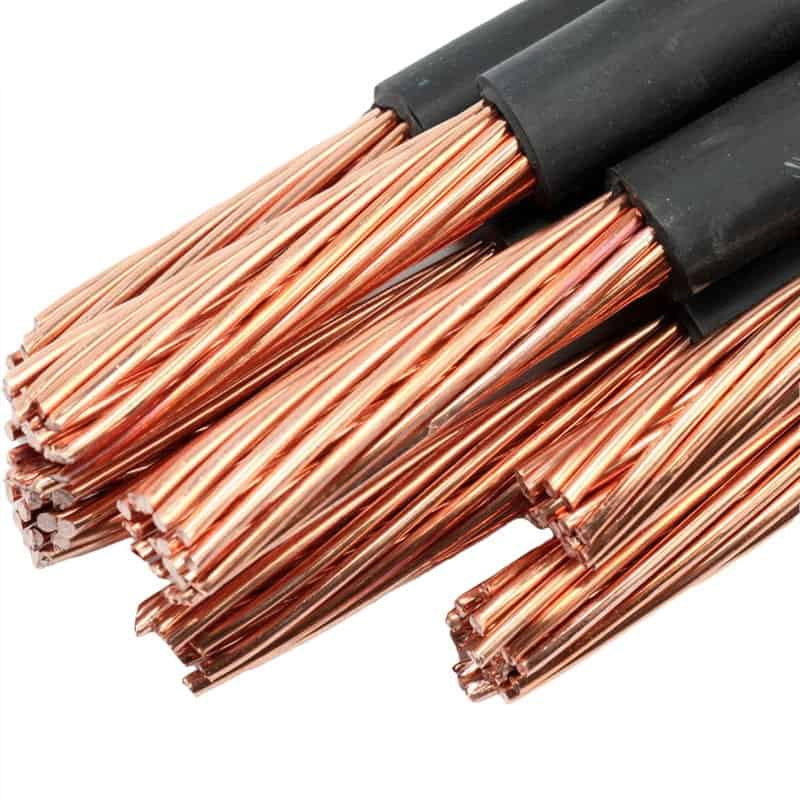

Insulation Options: PVC, PE, XLPE, Rubber
Voltage Rating: Up to 35kV

■ Product Parameters

Model	Product Name	Nominal Cross-Section	Structure (Strands×mm)	DC Resistance (20ºC)	Diameter	Weight
TJ-10	Hard-Drawn Copper Stranded Wire	10	7×1.33	1.83	4	89
TJ-16	Hard-Drawn Copper Stranded Wire	16	7×1.70	1.15	5.1	142
TJ-25	Hard-Drawn Copper Stranded Wire	25	7×2.12	0.727	6.4	222
TJ-35	Hard-Drawn Copper Stranded Wire	35	7×2.50	0.524	7.5	311
JKLYJ-50	XLPE Insulated Stranded Cable	50	19×1.78	0.387	13.2	540
JTM-35	Steel-Cored Copper Conductor	35+7	Copper 6×2.50 + Steel 1×2.50	0.635	9.2	420

■ Key Features & Applications

Superior Conductivity: Low resistivity (≤0.017241 Ω·mm²/m) ensures efficient power transmission.
Flexibility: Multi-strand design resists fatigue, ideal for dynamic applications.
Corrosion Resistance: Tinned/oxidized options available for harsh environments.
Wide Application: Electrical wiring, power distribution, renewable energy (solar/wind), and robotics.

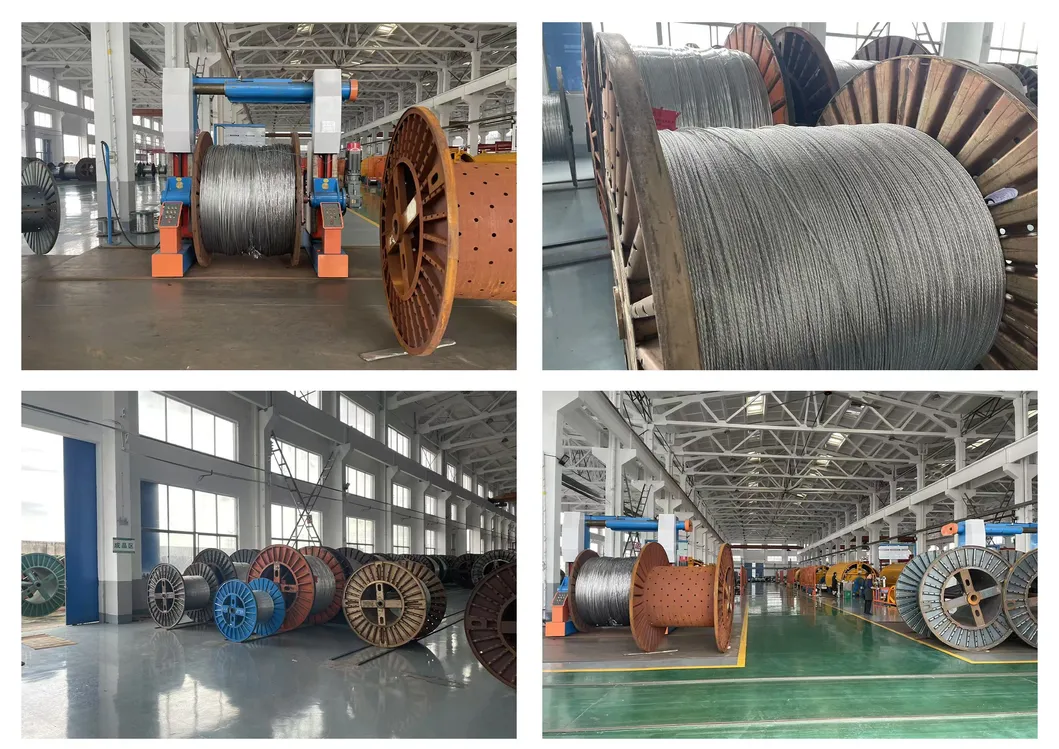

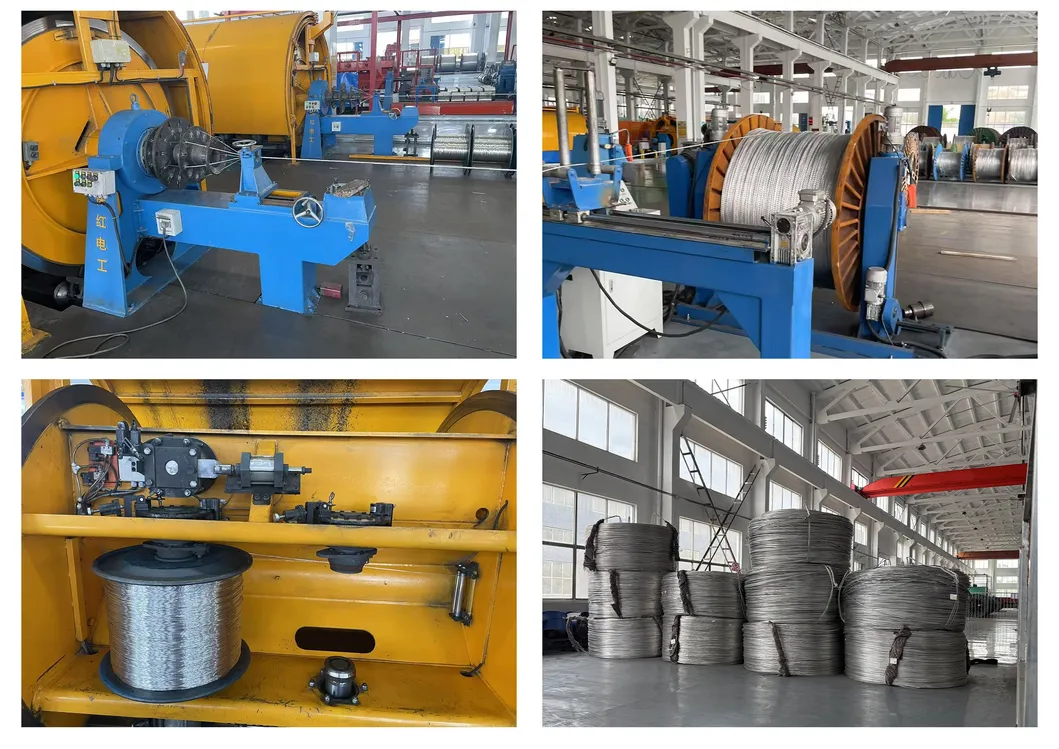

■ Product Display Area

■ Logistics & Support

Q1: What is the purity of the copper used?

A: We use 99.9% pure electrolytic copper (Cu-ETP) to ensure maximum conductivity and durability.

Q2: Can the stranding structure be customized?

A: Yes, we offer customizable stranding options including 7, 19, 37, and 61 strands based on your technical requirements.

Q3: What standards do your products comply with?

A: Our copper stranded wires comply with ASTM B1/B2/B3, IEC 60228, and are certified by ISO 9001, RoHS, UL, and CE.

Q4: Are there insulated versions available?

A: Yes, we provide various insulation options including PVC, PE, XLPE, and Rubber in customizable colors.

Q5: What is the typical lead time for orders?

A: The standard lead time is approximately 15 days, depending on the order volume and customization needs.

Q6: Do you provide third-party test reports?

A: Yes, certified third-party test reports are available upon request to ensure reliable quality.
