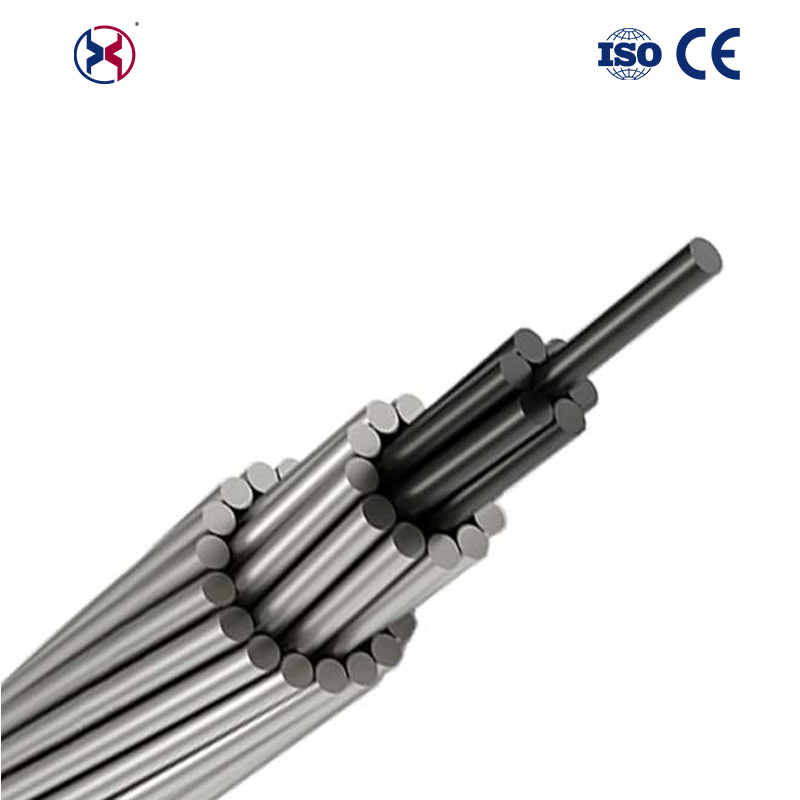

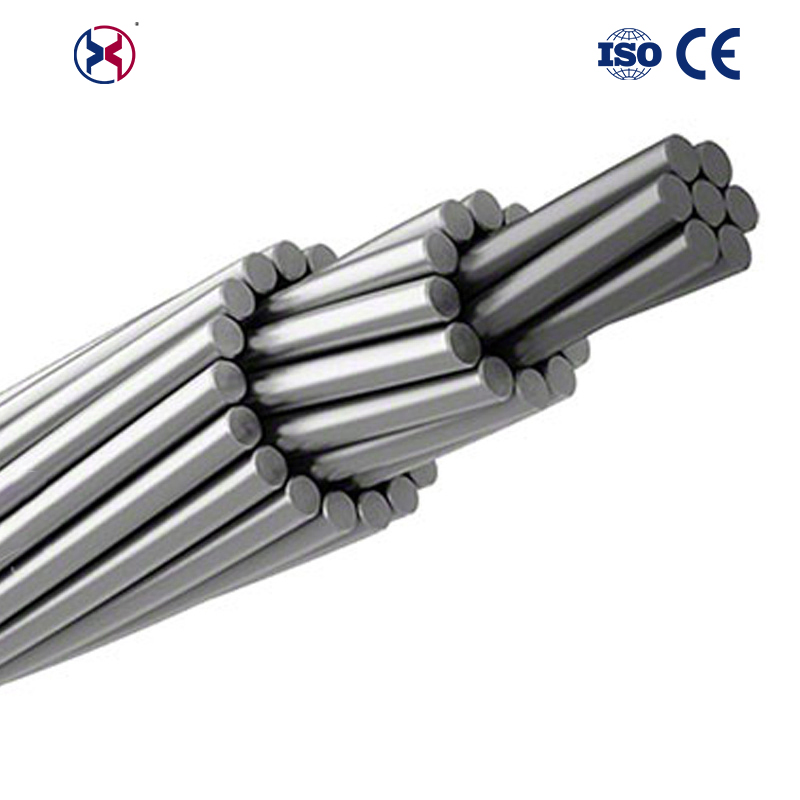

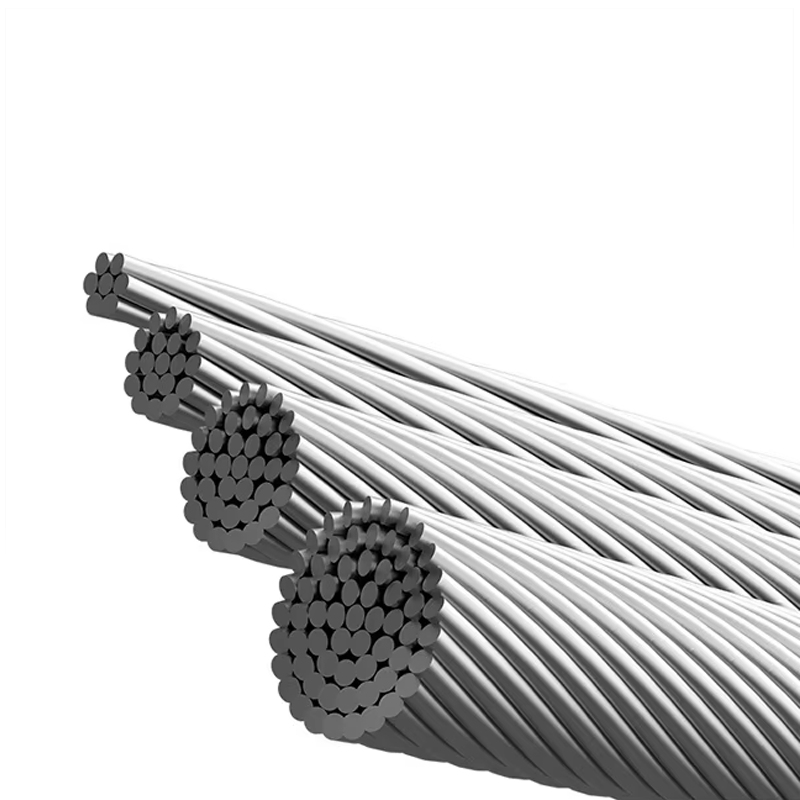

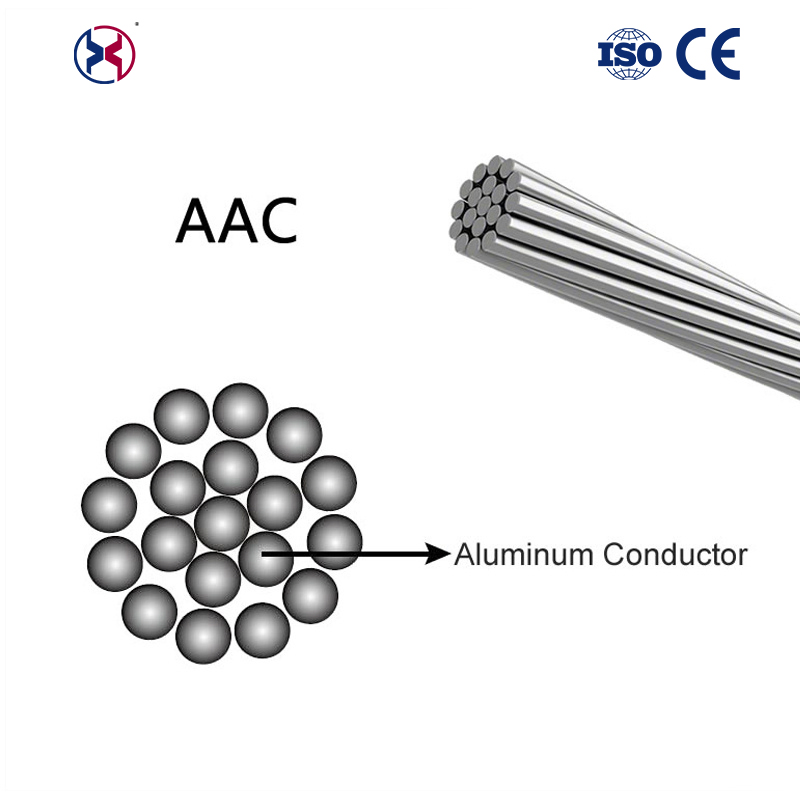

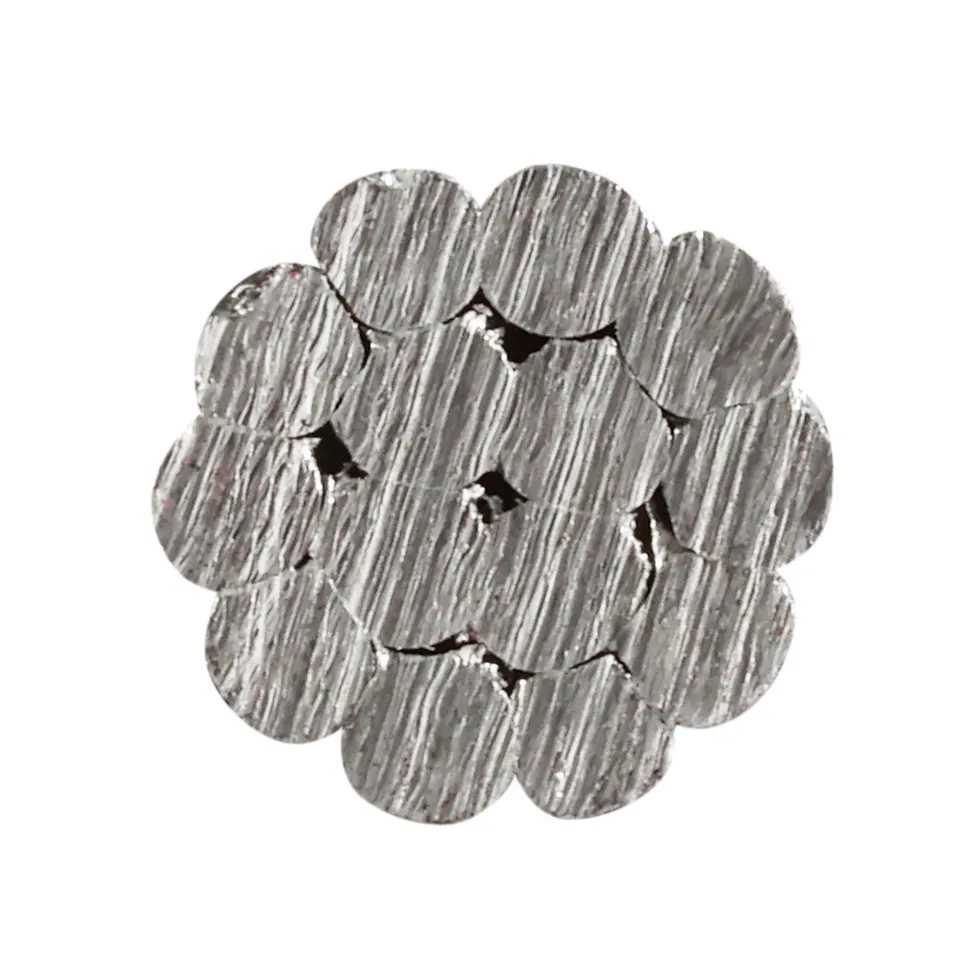

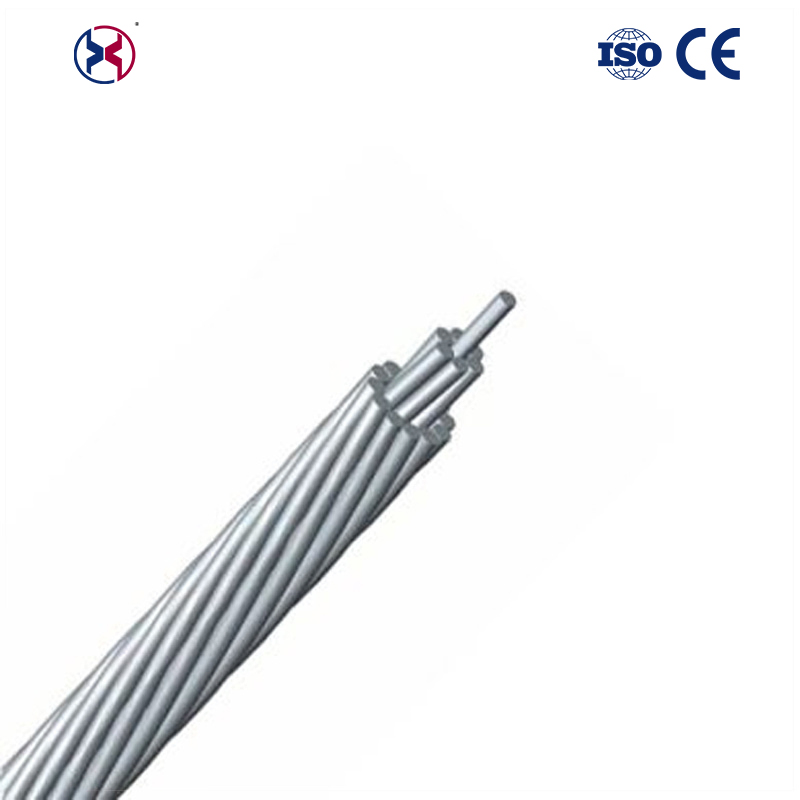

AAC (All Aluminum Conductor) is a high-quality overhead power transmission cable made from 99.7% pure electrolytic aluminum. Designed for long-distance power distribution, AAC conductor offers excellent conductivity, lightweight properties, and corrosion resistance, making it ideal for utility grids, urban power networks, and renewable energy projects.
| Code Word | Area (mm²) | Stranding (mm) | Diameter (mm) | Weight (kg/km) | Breaking Load (KN) | Resistance (Ω/km) |
|---|---|---|---|---|---|---|
| PEACHBELL | 13.29 | 7/1.554 | 4.67 | 37 | 2.49 | 2.1692 |
| ROSE | 21.16 | 7/1.961 | 5.89 | 58 | 3.96 | 1.3624 |
| IRIS | 33.61 | 7/2.474 | 7.42 | 93 | 5.97 | 0.8577 |
| PANSY | 42.39 | 7/2.776 | 8.33 | 117 | 7.32 | 0.6801 |
| POPPY | 53.48 | 7/3.119 | 9.36 | 147 | 8.73 | 0.539 |
| ASTER | 67.42 | 7/3.503 | 10.51 | 186 | 11 | 0.4276 |
| PHLOX | 85.03 | 7/3.932 | 11.8 | 234 | 13.47 | 0.339 |
| OXLIP | 107.23 | 7/4.417 | 13.26 | 296 | 16.98 | 0.2686 |

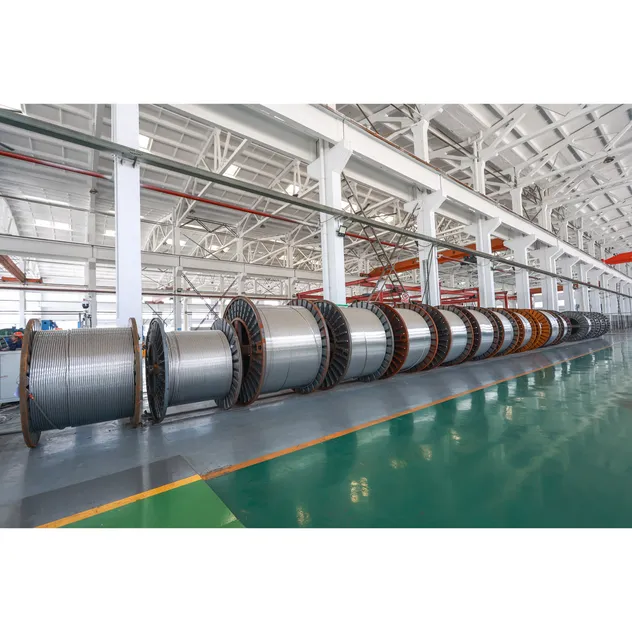

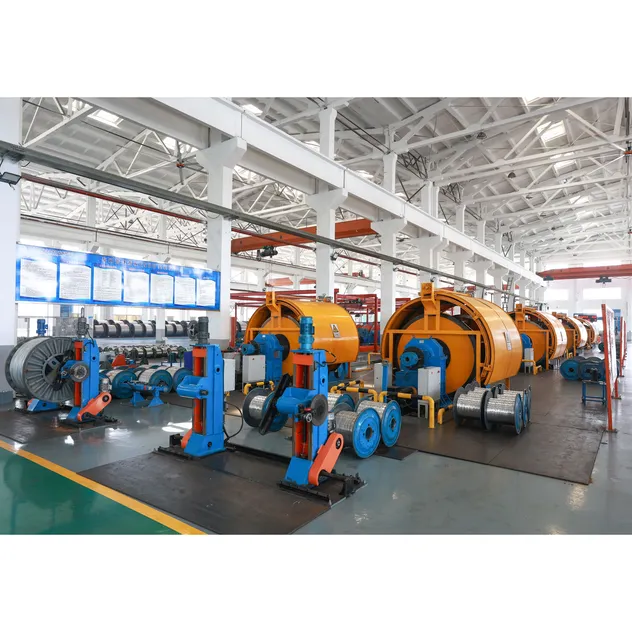

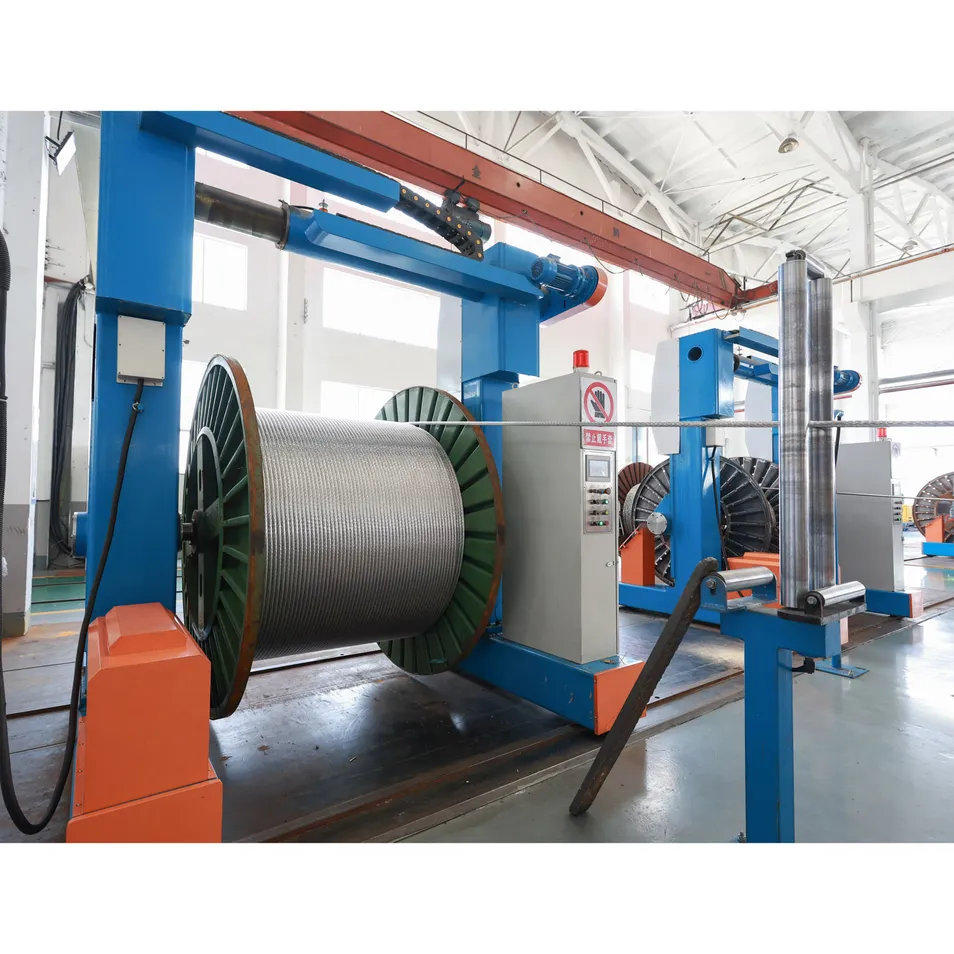

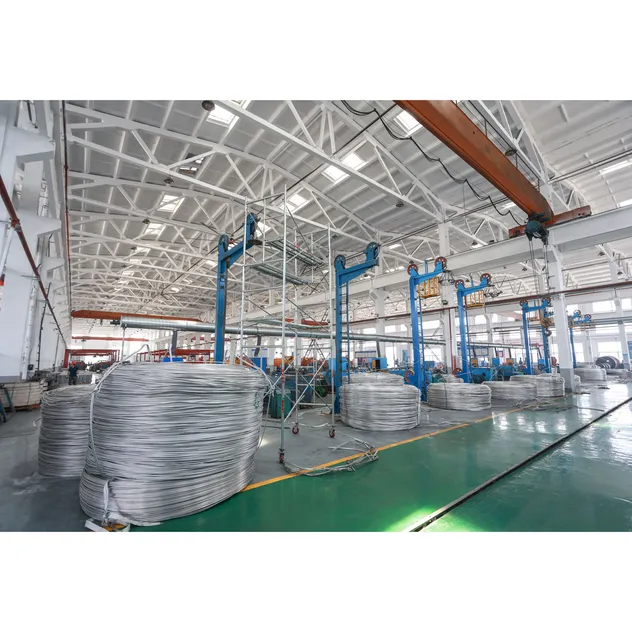

Our facility covers 16,000 m² with advanced production lines including 500/630-type frame stranding machines and wire drawing machines. We maintain strict quality control through 20+ testing devices such as digital tensile testers to ensure overhead bare conductors meet international standards.
A: AAC conductors offer high conductivity, are extremely lightweight, and provide superior corrosion resistance compared to other overhead cables.
A: They are ideal for urban areas with short spans and coastal regions where high corrosion resistance is required.
A: Our products are manufactured under ISO 9001, ISO 14001, and ISO 45001 quality and safety management systems.
A: Yes, we offer over 1,000 specifications with a maximum cross-section of up to 800mm².
A: Worldwide delivery typically takes between 30 to 50 days depending on the shipping method and destination.
A: Yes, we offer a 3-year warranty and 24/7 multilingual support, including remote diagnostics.
