| Module Dimensions | 1776*1052*35mm / 2094*1038*35mm |
| Weight | 18.9kg / 23.5kg |

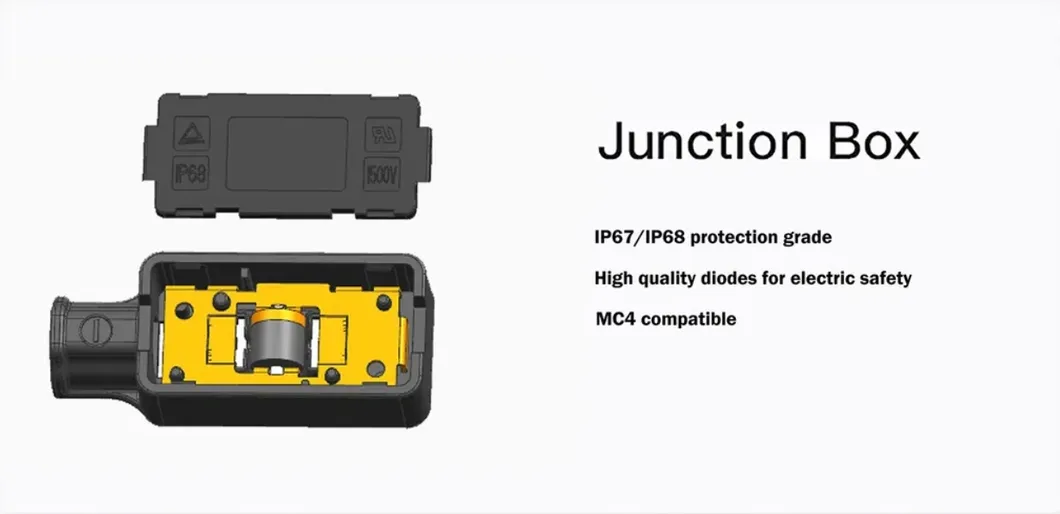

| Junction-Box | IP 67 or IP 68 rated |
| Cables | 4.0mm² |
| Module Warranty | 25-year (80% output); 10-year (90% output); 5-year materials |
| Test Approvals | Fire test, Ammonia corrosion, Salt mist corrosion |
| Electrical Characteristics (STC) | ||||

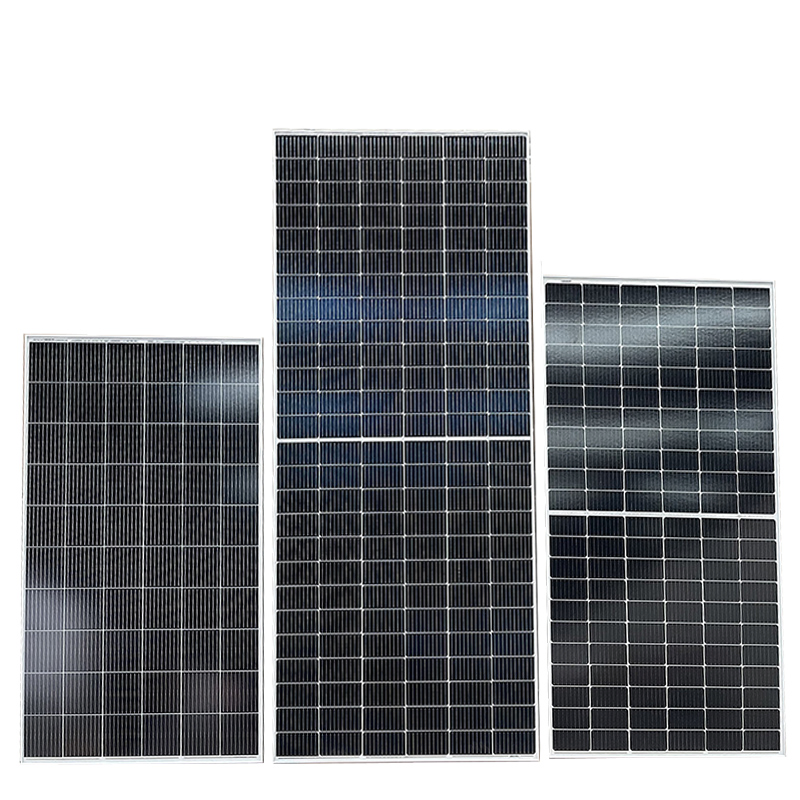

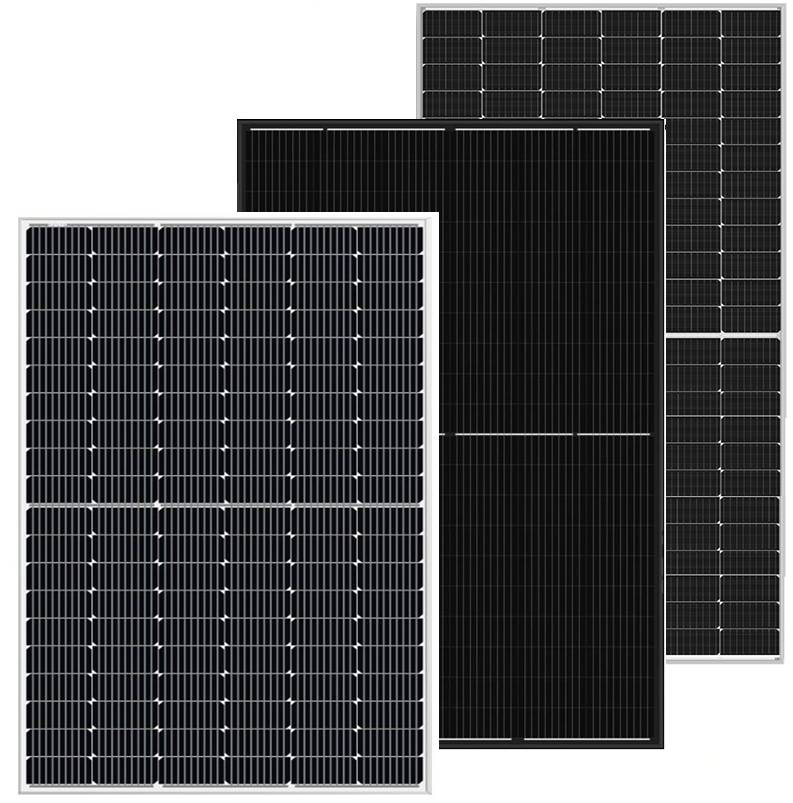

| Model Number | FSM425M | FSM435M | FSM445M | FSM455M |
| Max Power (Pmax) | 425W | 435W | 445W | 455W |
| Voc (V) | 48.3 | 48.7 | 49.1 | 49.5 |
| Isc (A) | 11.23 | 11.39 | 11.53 | 11.66 |
| Module Efficiency | 19.6% | 20% | 20.5% | 20.9% |
