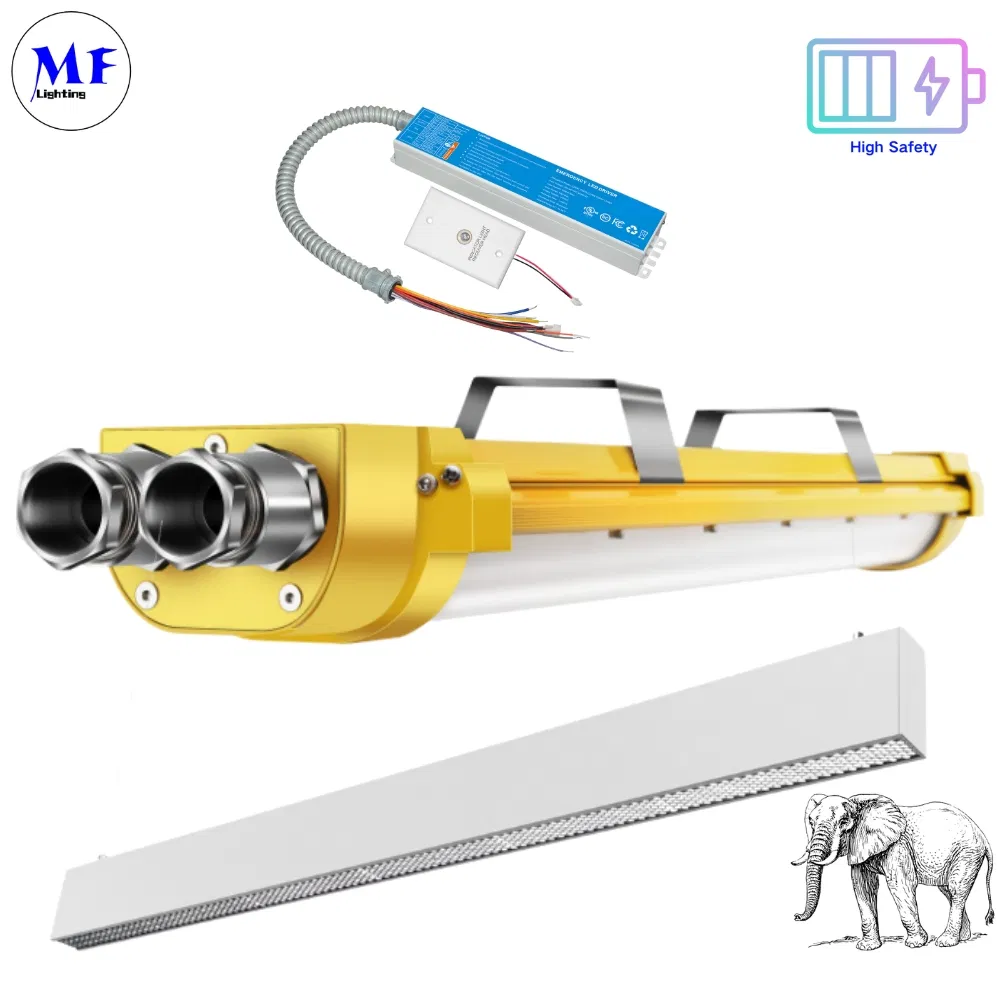

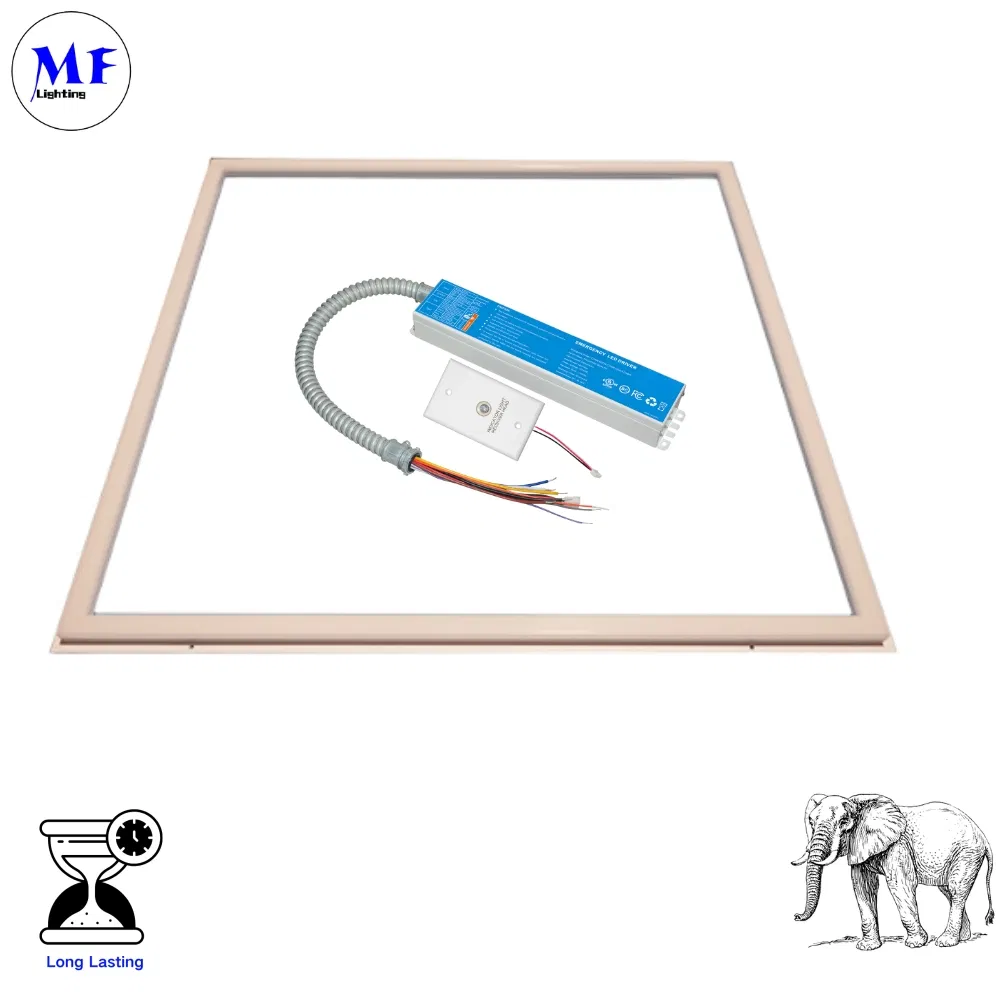

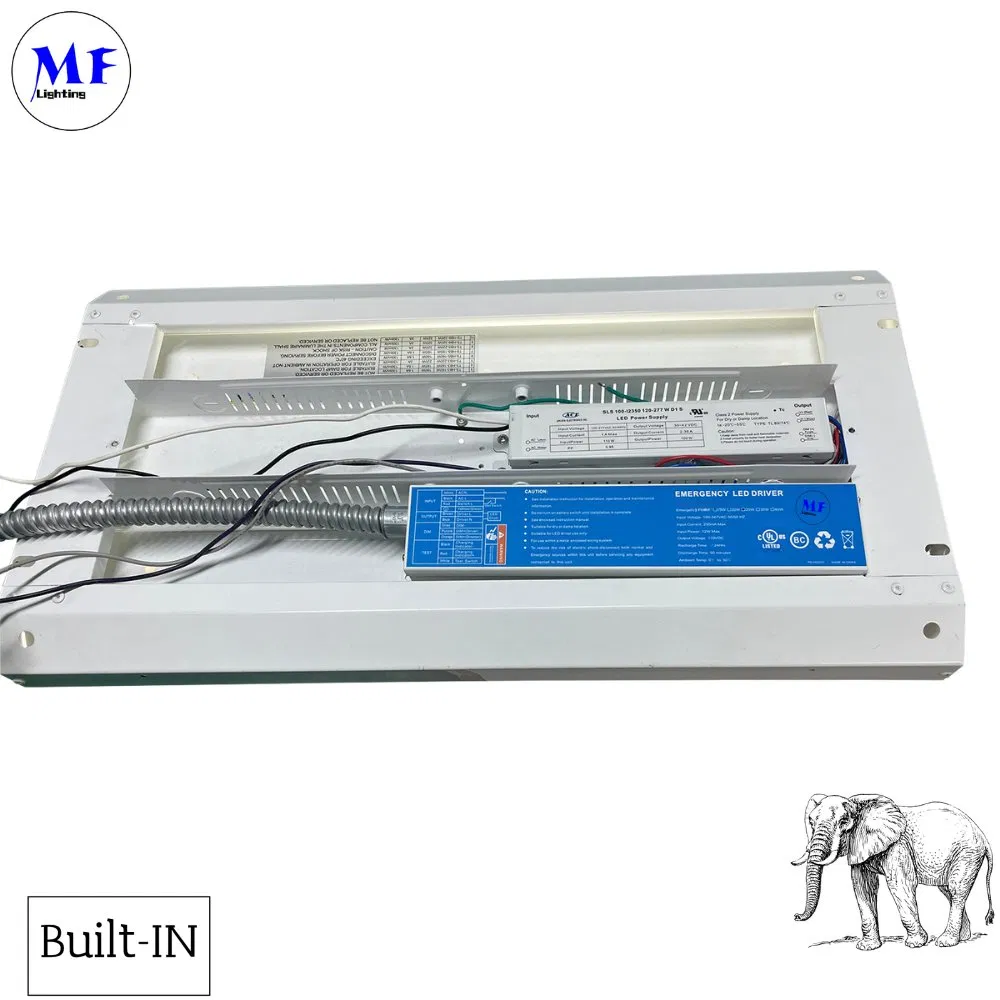

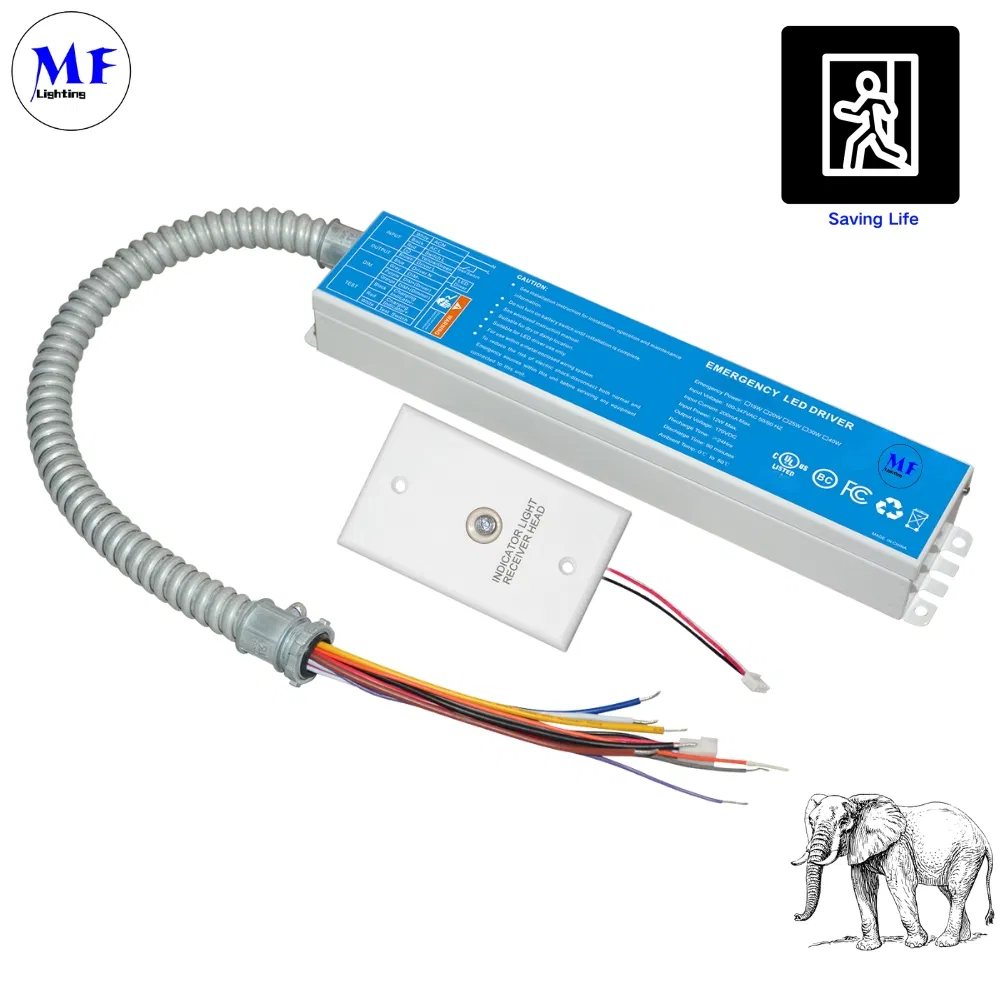

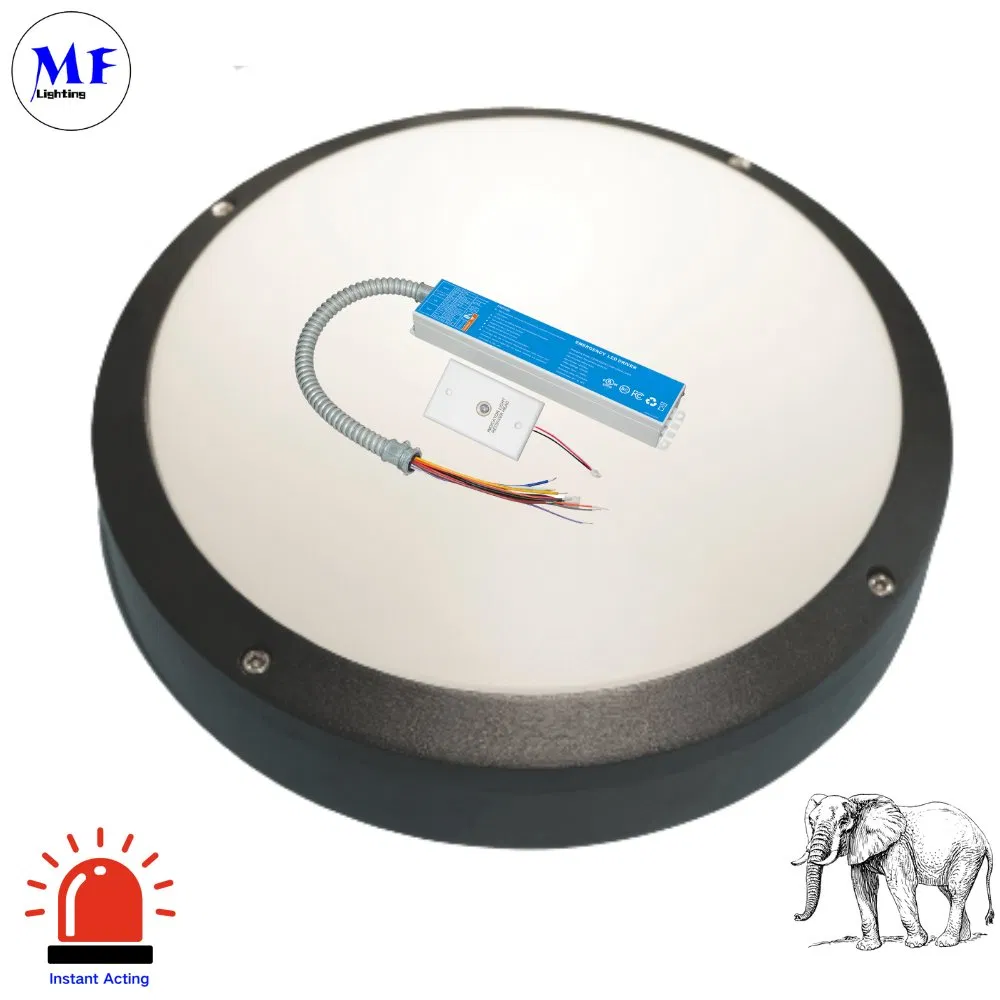

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
1 / 5
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light
Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
MF-EM-xxW-170
Input Current
200mA Max
Input Power
12W Max.
Output Voltage
170VDC
Emergency Power
15W/25W/30W/40W
Recharging Time
24hours
Discharging Time
90 Minute
Battery
Li-ion
Warranty
5 Years
Origin
China
Product Features
LED Emergency Panic Driver
  • UL Listed for US and Canada
  • Tested to CSA C22.2 NO.141 Field or factory installation
  • High voltage output for various fixtures
  • Low energy consumption CEC compliance
  • Constant output power performance

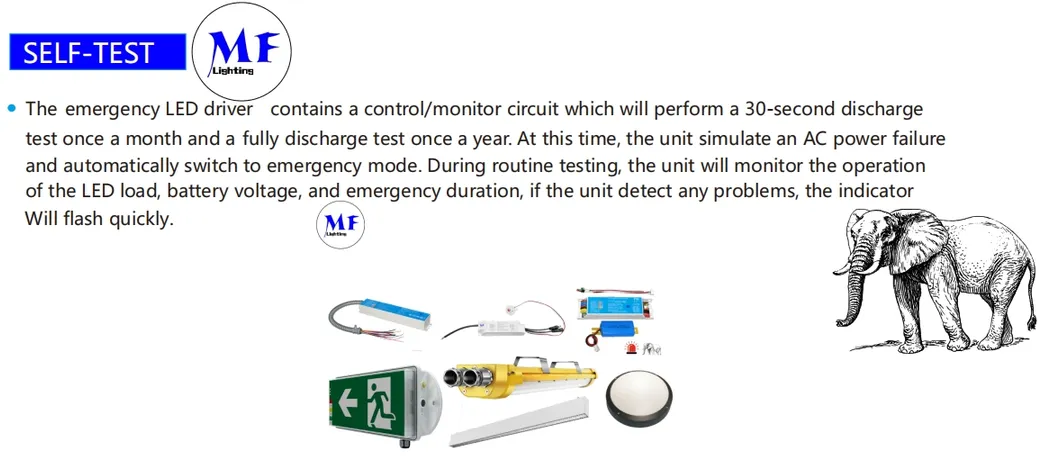

  • Integrated Self-testing function
  • Battery over-temperature protection
Technical Specifications
Parameter Details
Input Voltage100-347Vac, 50/60Hz
Input Current200mA max
Input Power Rating12W max.
Output Voltage170Vdc
Emergency Power15W/25W/30W/40W
Discharge Time90 minute
Ambient Temp32~122 F (0....+50 ºC)
Battery TypeLi-ion

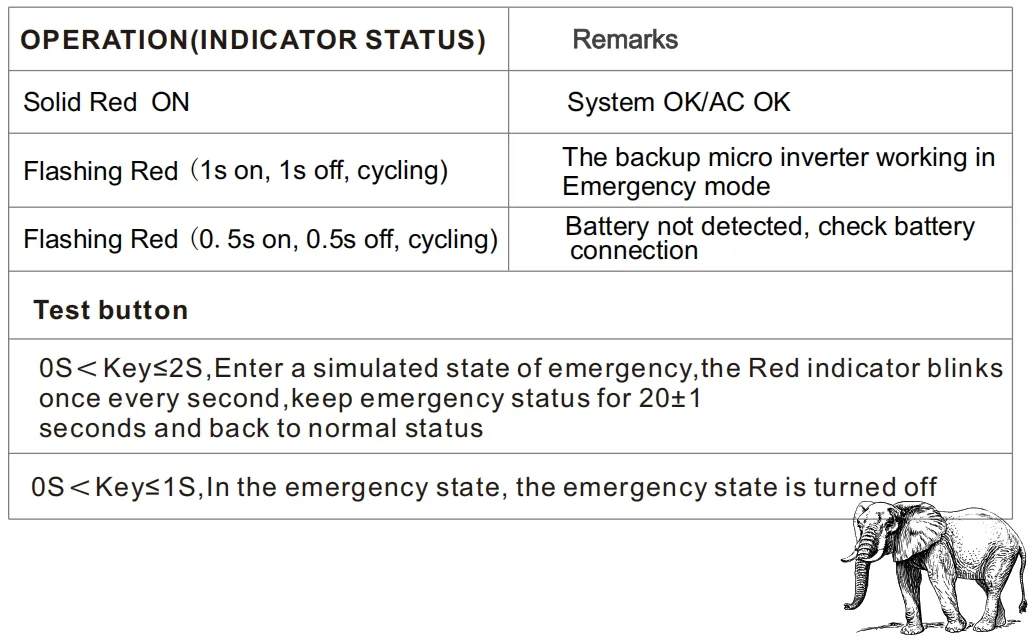

Product Technical Overview
Ordering Information
Emergency Power Emergency Time Battery Specification
8W 1.5H Li-ion 2600mAh 7.4V
15W 1.5H Li-ion 2500mAh 14.8V
Wiring Diagrams

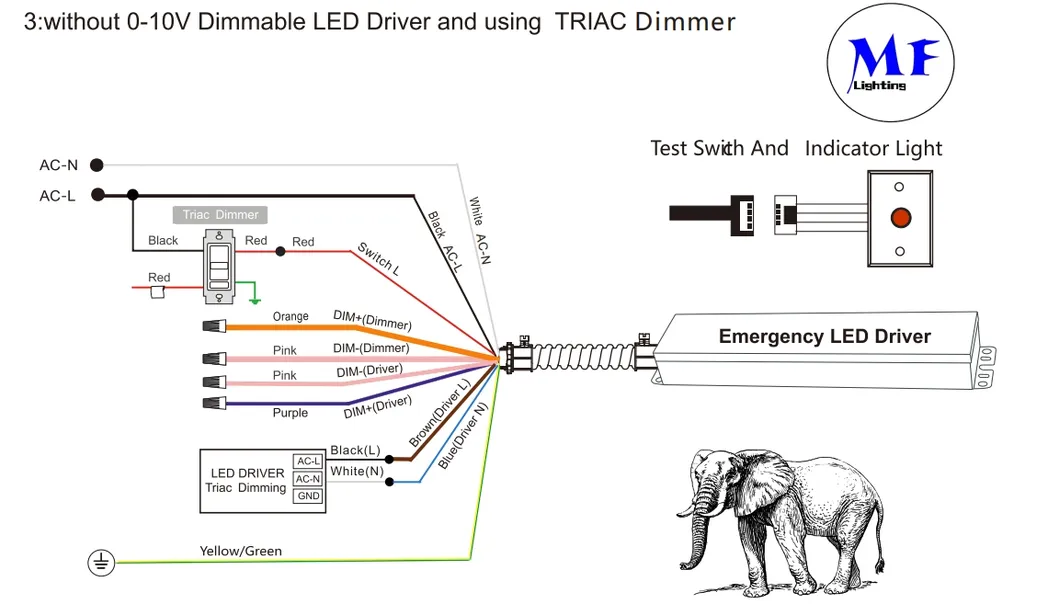

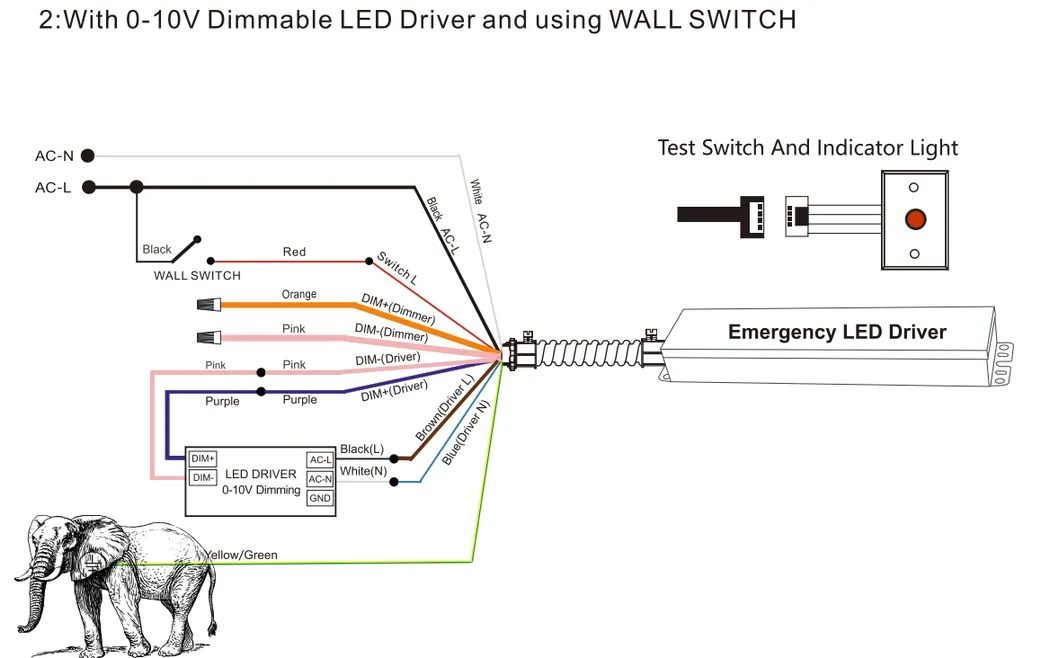

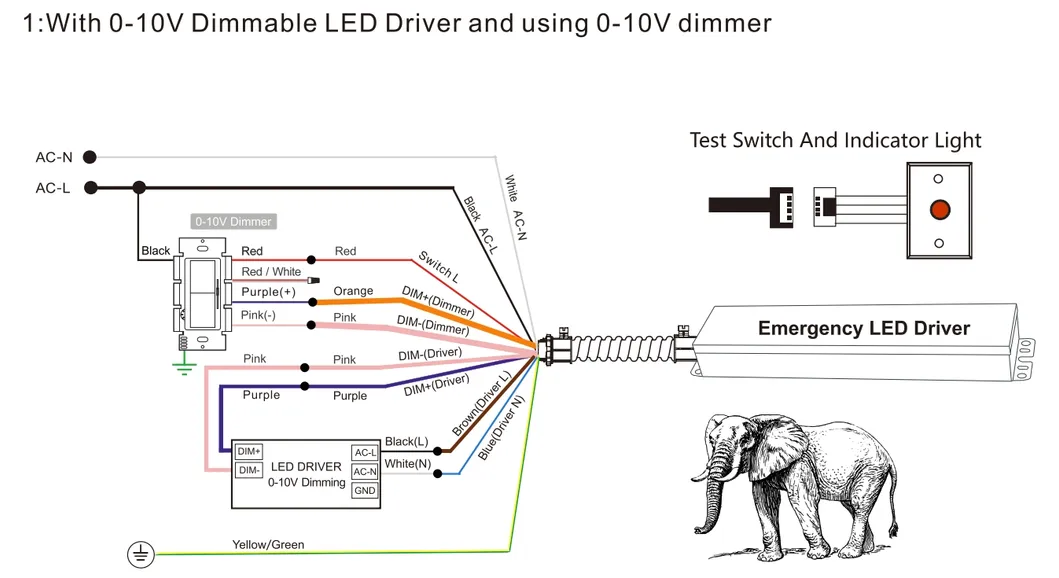

Wiring Diagram 1 Wiring Diagram 2 Wiring Diagram 3

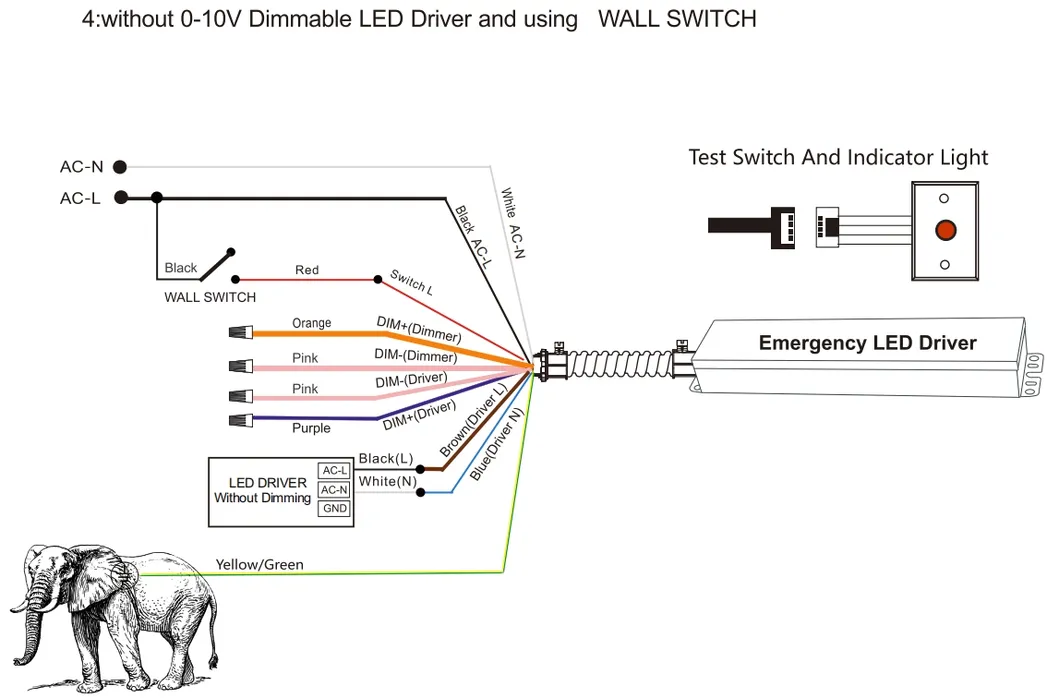

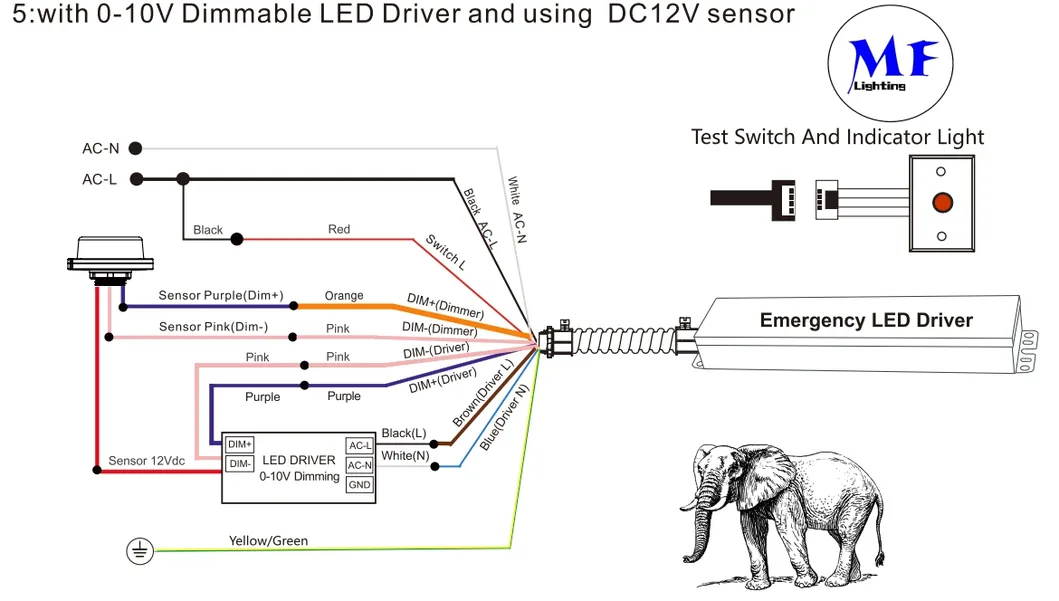

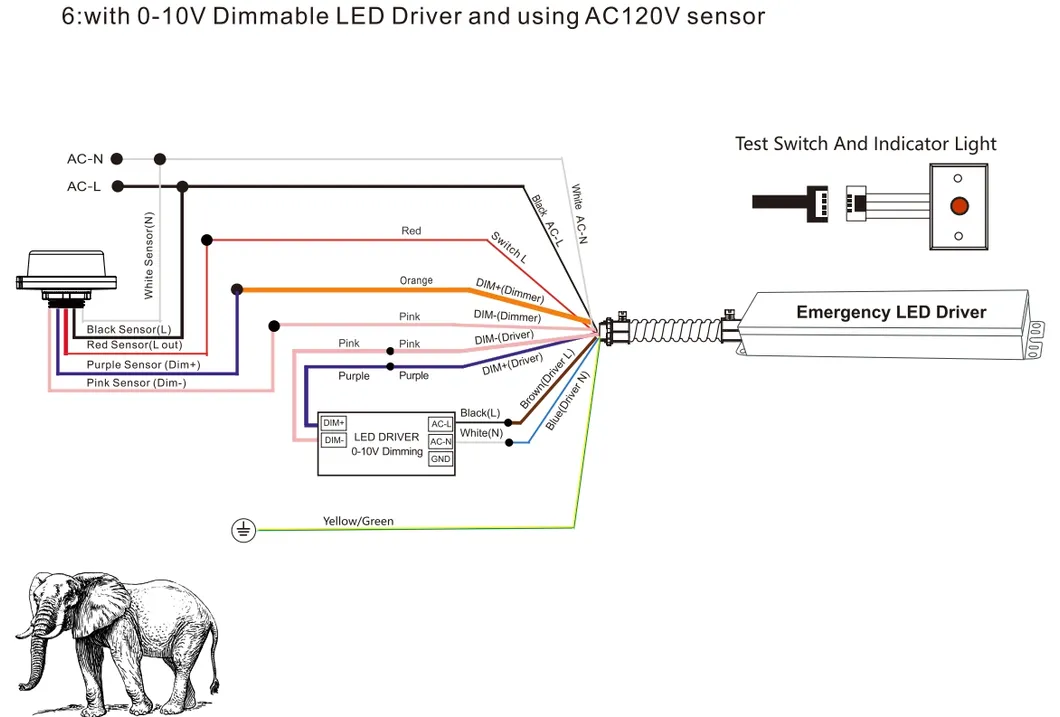

Wiring Diagram 4 Wiring Diagram 5 Wiring Diagram 6
Applications

Emergency Lighting for LED Fixtures: Provides reliable backup power for office buildings, schools, hospitals, and shopping malls. Ensures safety during power outages by illuminating exit signs and emergency paths.

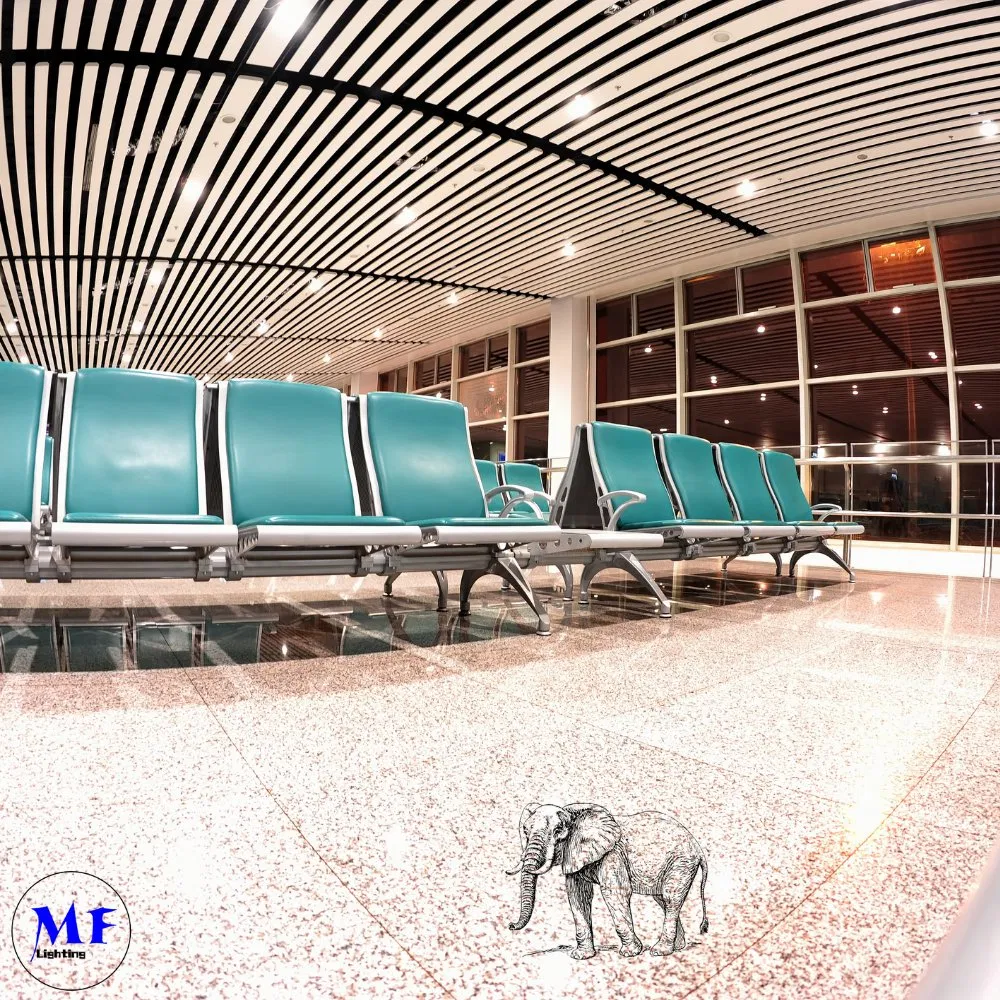

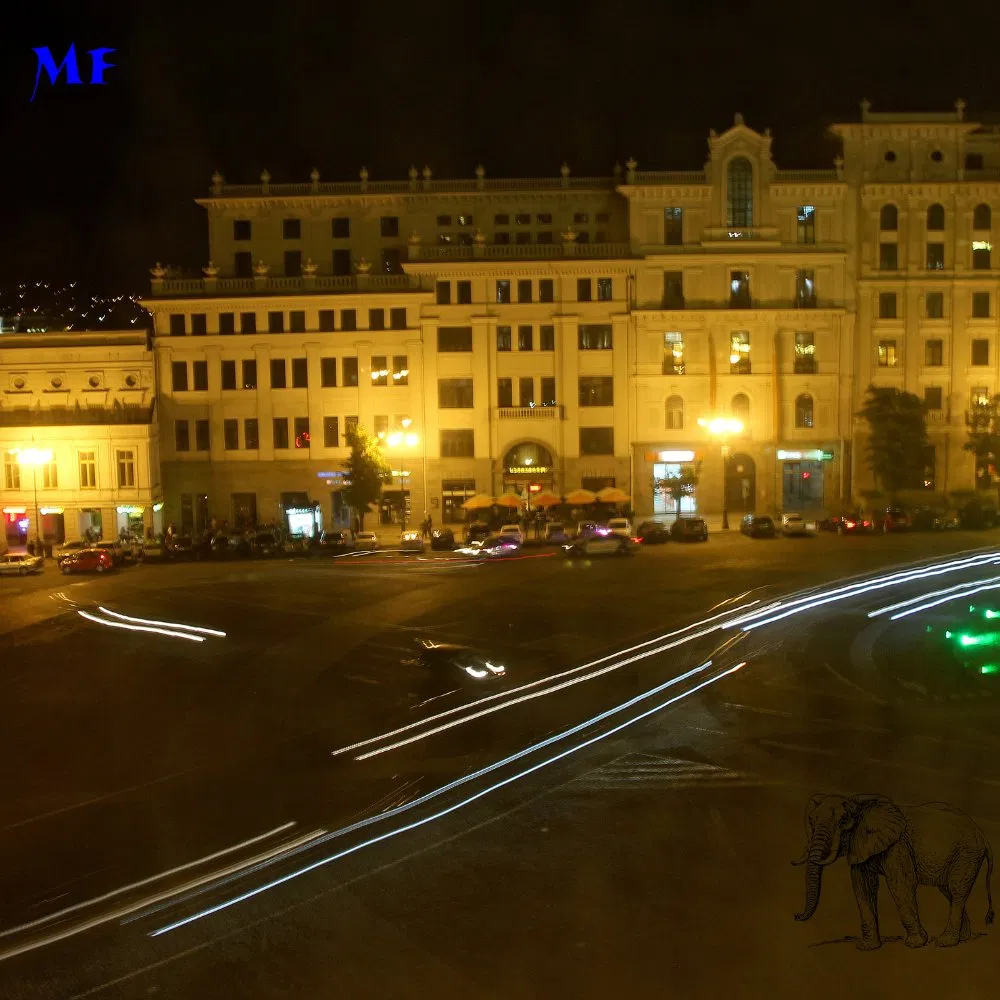

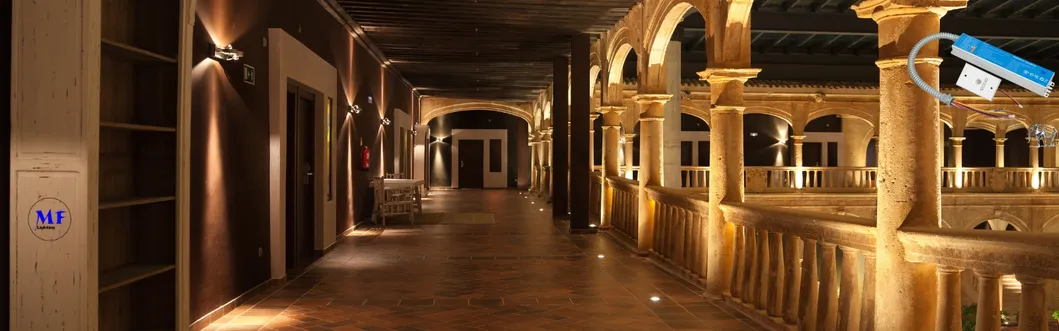

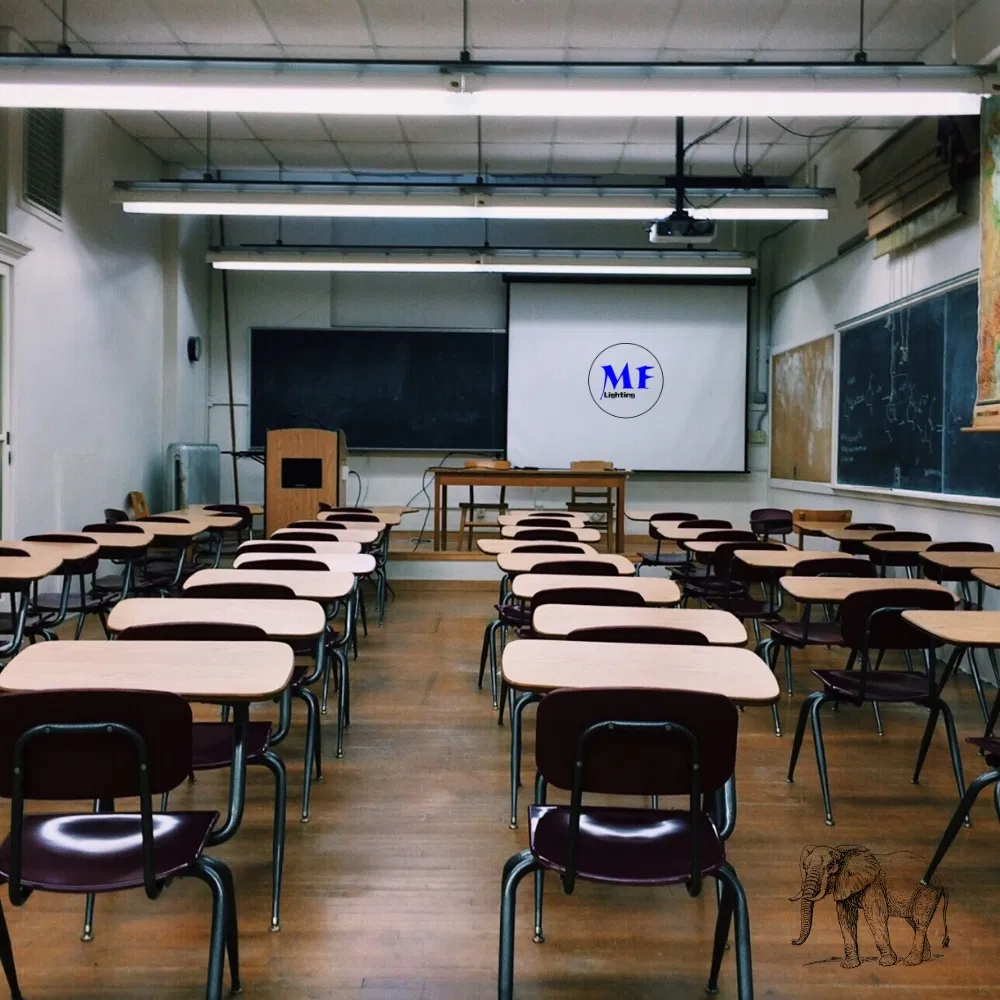

Application Scenario 1 Application Scenario 2 Application Scenario 3

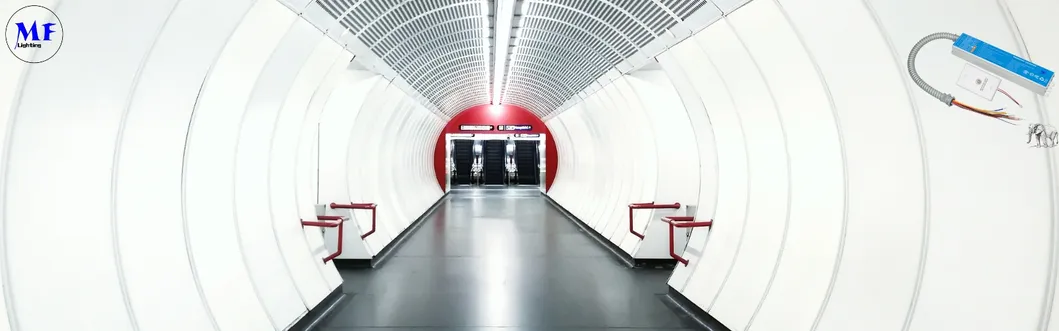

Application Wide View
Product Dimensions

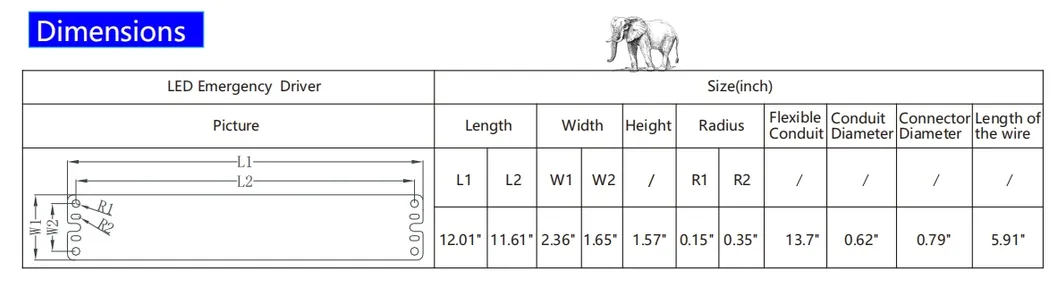

Dimensions Drawing Dimension Details
Production & Packaging

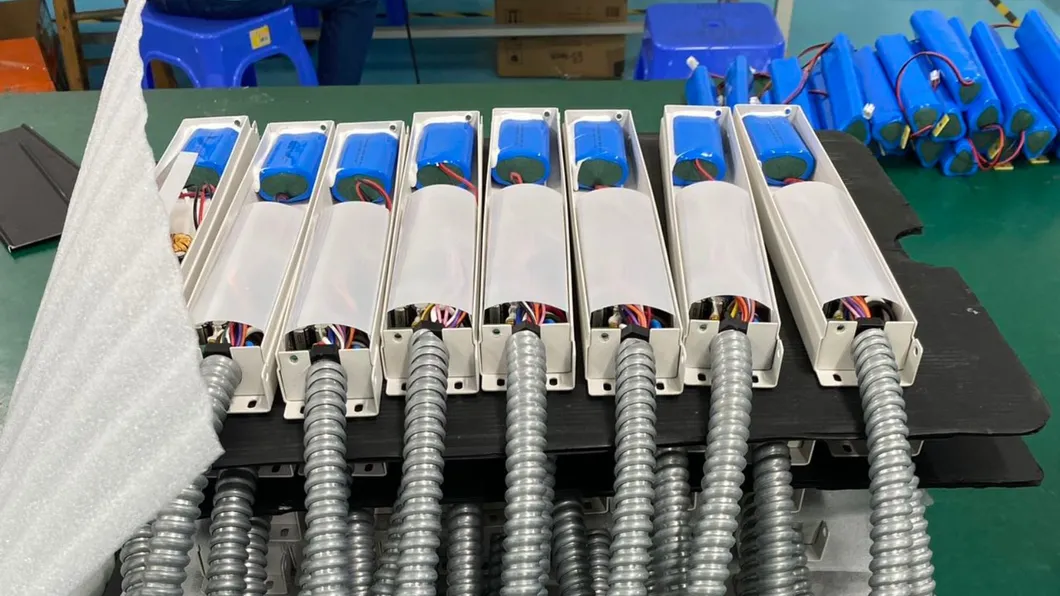

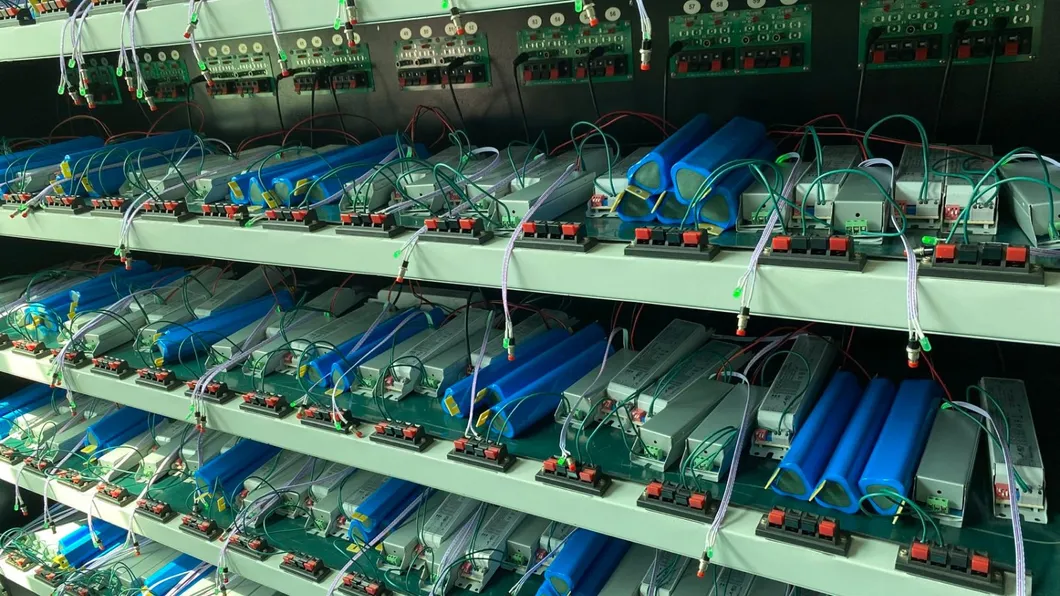

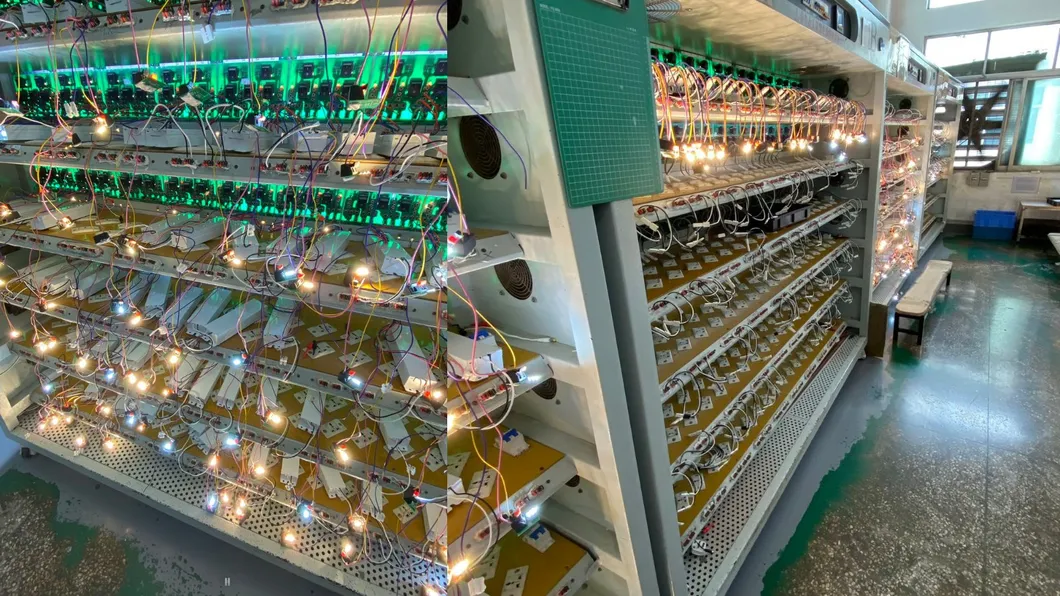

Production Line 1 Production Line 2 Production Line 3

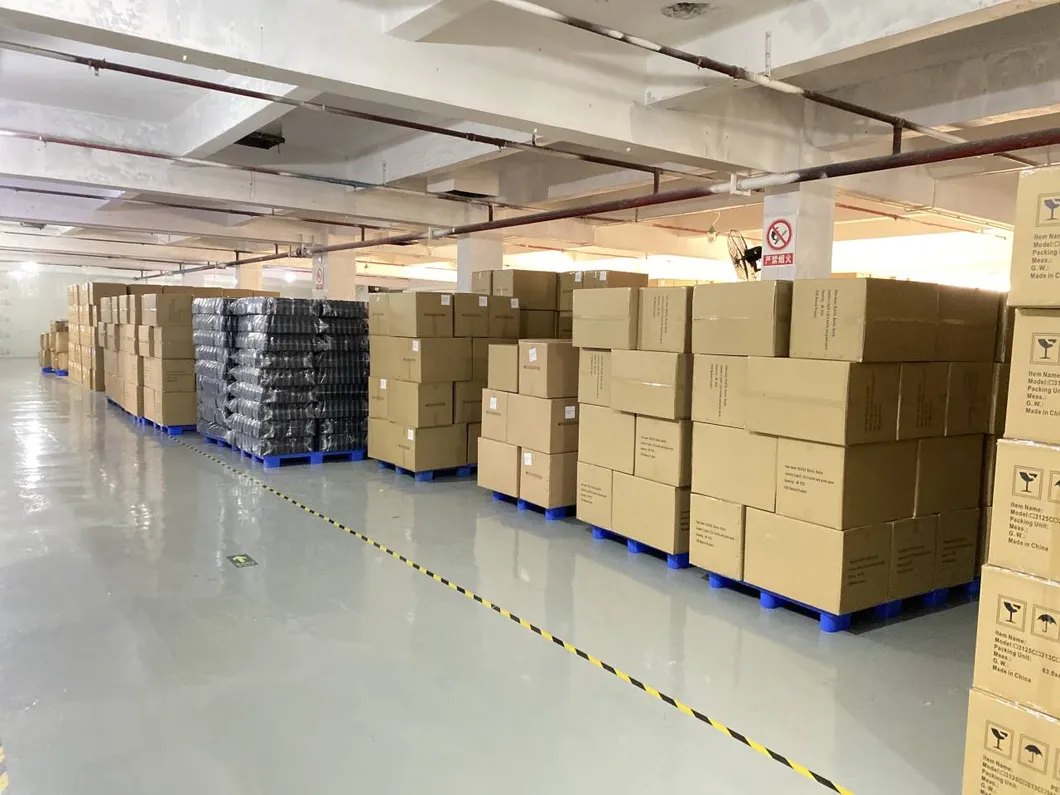

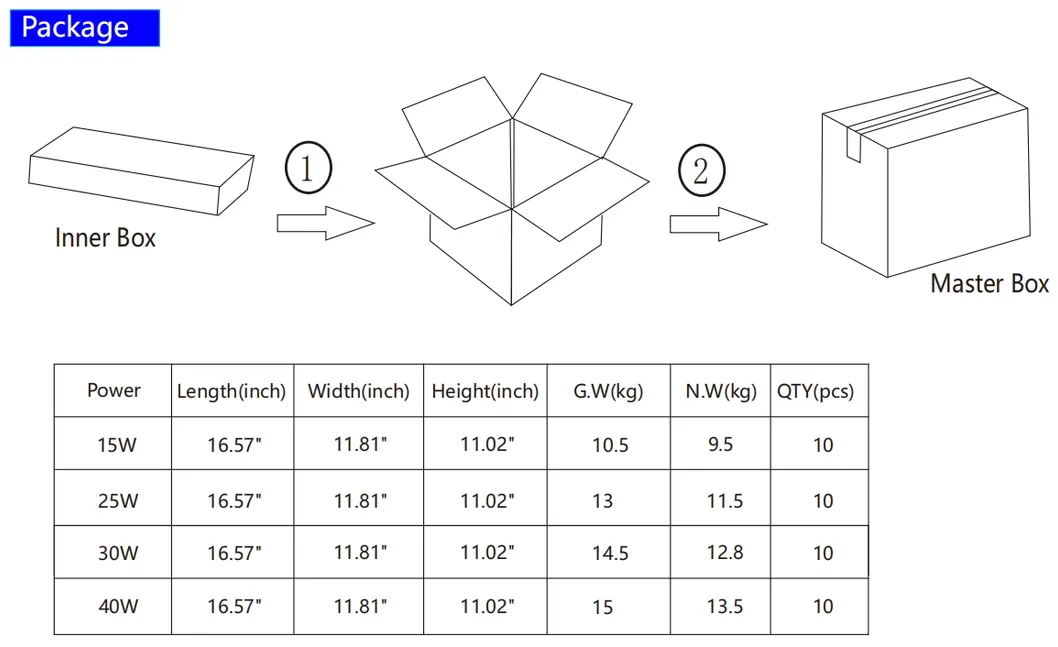

Packaging Box Package Details Shipping Preparation
Frequently Asked Questions
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience in LED lighting solutions.
What are your main products?
Our main products include LED Tri-proof lights, High Bay lights, Flood lights, Explosion Proof lights, and LED Emergency Drivers.
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity exceeds 1000 pieces.
What are the payment and shipping terms?
We accept T/T, Western Union, and Paypal. Shipping terms available are EXW, FOB, CIF, CNF, and DDP.
What is the standard delivery time?
Delivery takes about 5-7 working days for samples and 20-30 working days for mass production, depending on the order volume.
How are the products packaged for safety?
Each piece is packed in an individual color box and then placed in a reinforced master carton for secure transport.
