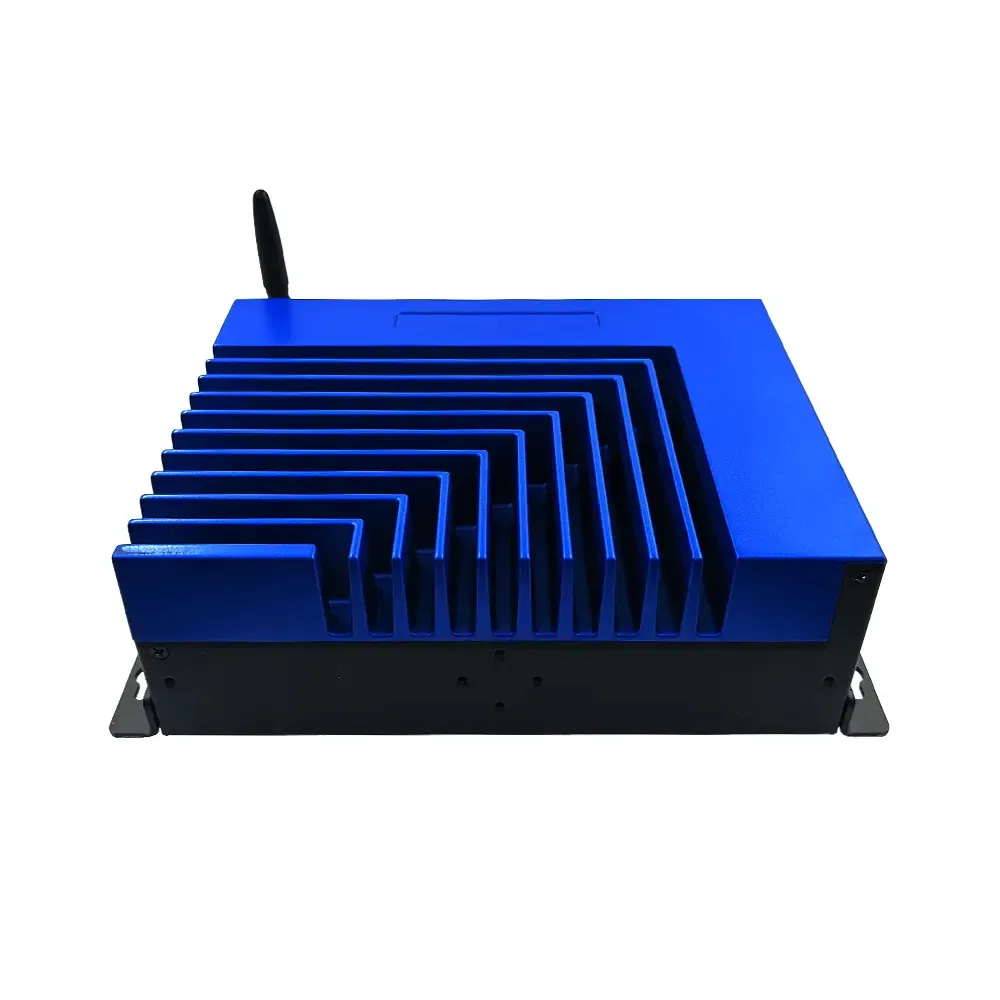

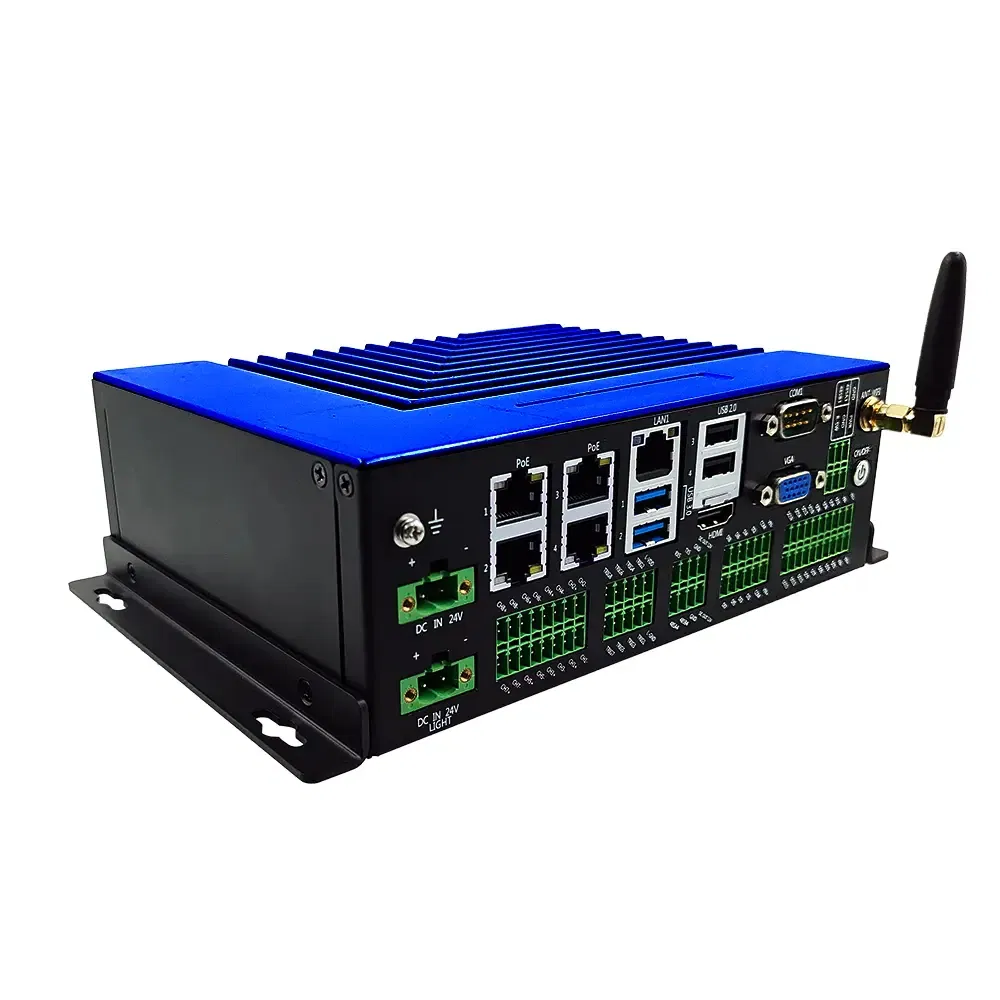

Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
1 / 5
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry
Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry

Vision Computer Industrial Ai Computing System Whole Inspection System for Laboratory and Industry

Customization: Available
Brand: Sihovision
Form Factor: Mini Barebone System
Send Inquiry

Product Description

Basic Info.
Model NO.:SM709-1-IO
Operating System:Windows 10
Processor:Intel N95
Ports:HDMI, VGA
Storage Type:SSD
Temp Range:-20 to 70 Celsius
Warranty:2 Years
Certificate:CE, FCC, RoHS
Production:5000piece/Month
Vision Computer Industrial AI System

Vision Computer Industrial AI Computing System Whole Inspection System for laboratory and industry.

Main Products Banner
Product Display
Features
  • Intel N95 / N305 Processor Options
  • 4* POE (Intel I226V)
  • IO Optional for Visual inspection application
  • 24V Power supply, Fanless Design
  • Industrial grade working temperature -20ºC to 60ºC
Product Specifications
PC Component Specifications
CPUIntel® N95, 4 Cores, Turbo 3.4GHz, Fanless
GraphicsIntel® UHD Graphics
Memory1* DDR4 SO-DIMM (Max 16G)
Storage1* M.2 2280 SATA SSD
Display1* HDMI, 1* VGA
Network1* LAN (RTL8111H) + 4* PoE (Intel I226V)

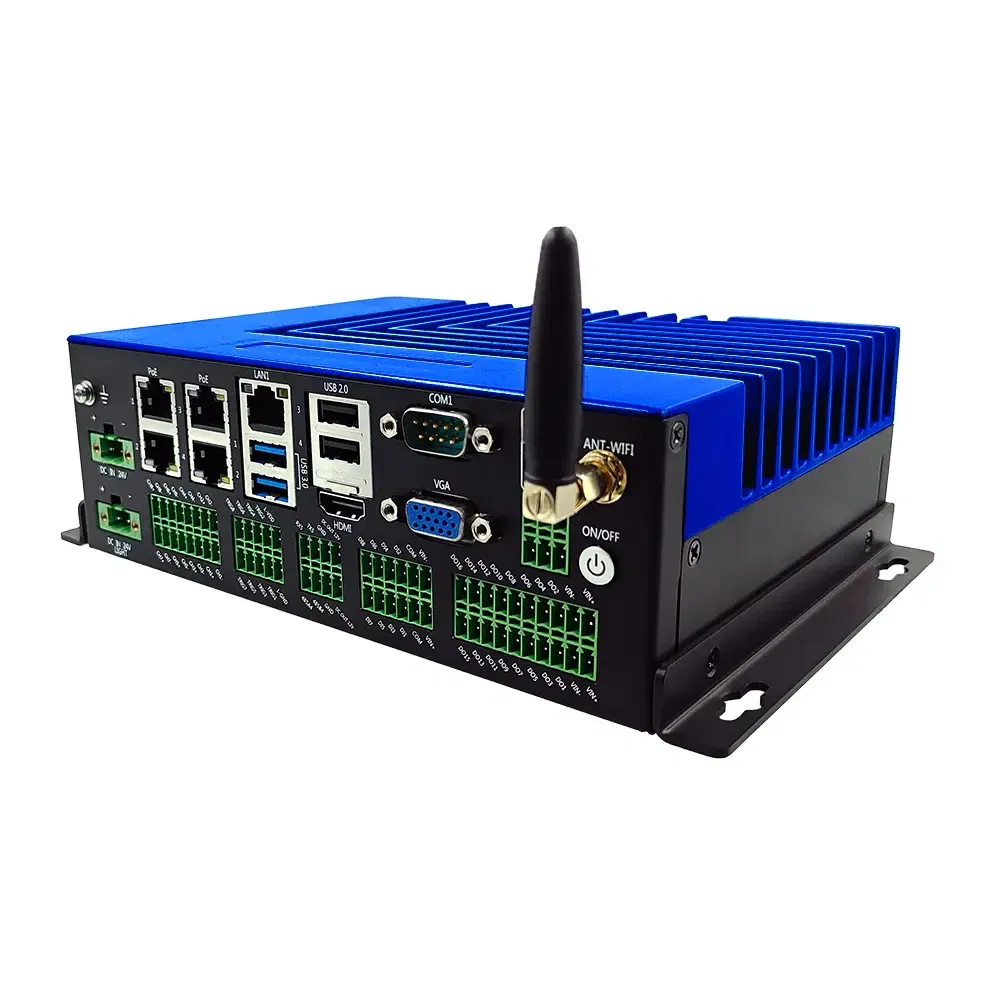

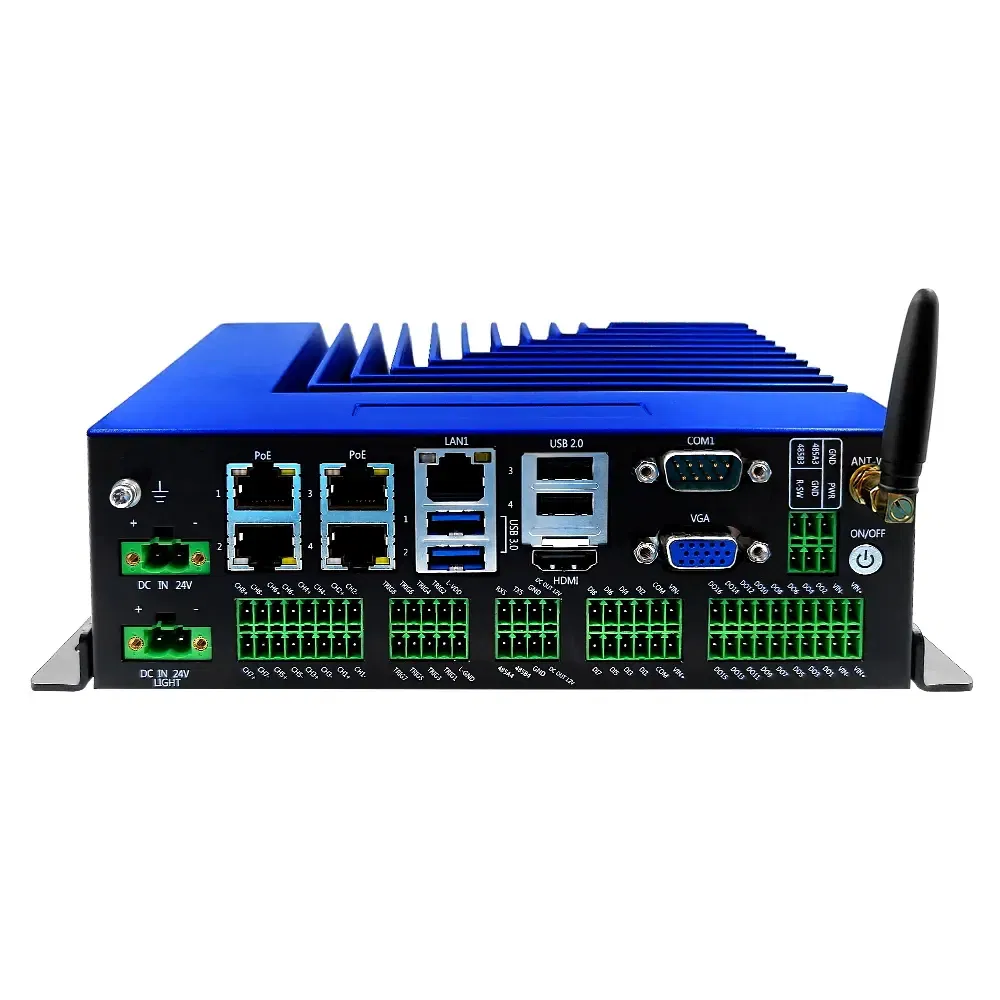

I/O Ports1* RS232, 1* RS485, 2* USB 3.0, 2* USB 2.0, Remote ON/OFF
OS SupportWindows® 10, LINUX
IO Board & Power
Digital Input8*DI (NPN/PNP, DC 10V-30V)
Digital Output16*DO (500mA per channel, DC 10-30V)
Light Control8*Light Source interfaces (Max 1A/Single)
Triggers8*Light source trigger interfaces
Power InputDC 24V
MaterialAluminum Alloy (Blue and Black)
Product Gallery & Feedback
Feedback
Customized
Certifications & Quality
Certifications
Application & Logistics
Production

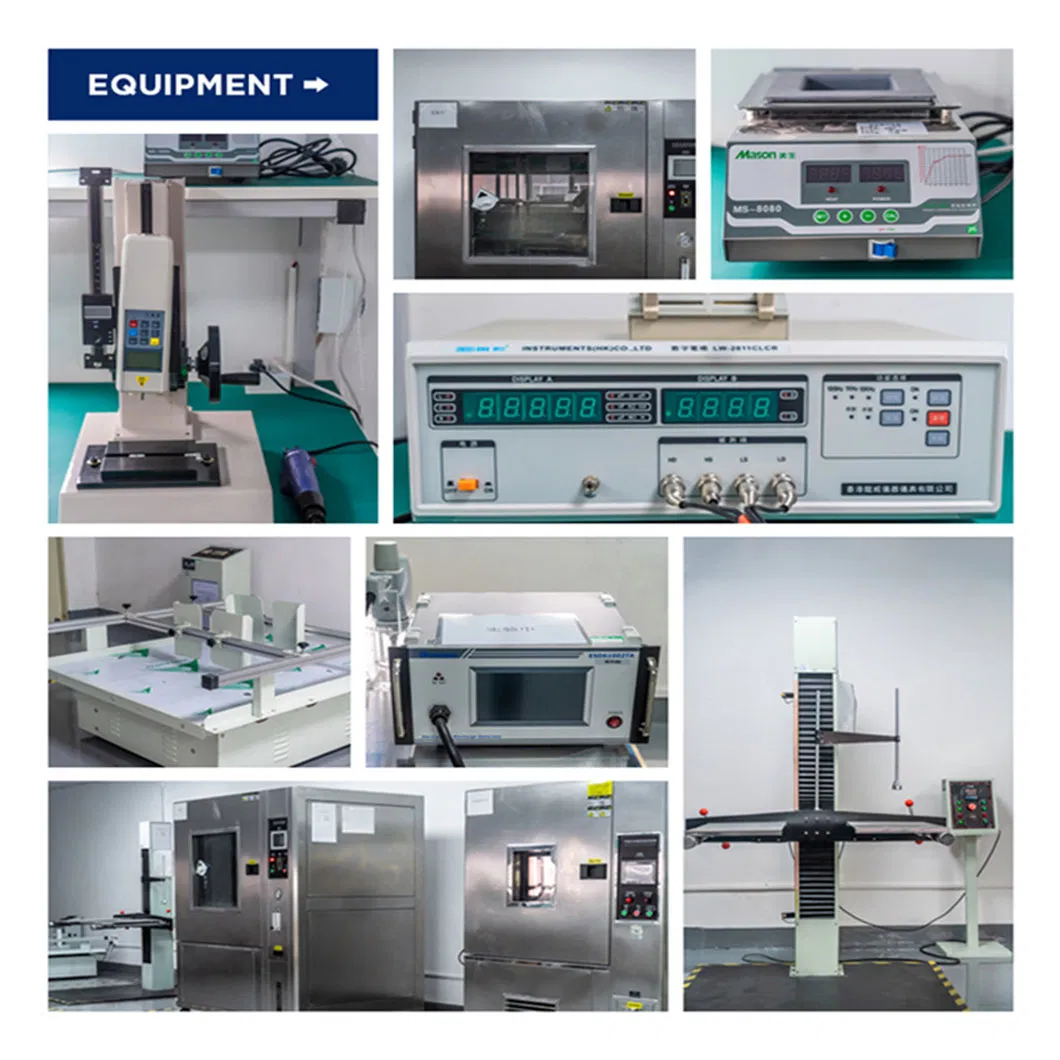

Factory
Inspection
Frequently Asked Questions
What is the operating temperature range for this industrial PC?
The system is designed for industrial environments with an operating temperature range of -20°C to 60°C and storage capabilities from -30°C to 70°C.
Does the system support POE (Power over Ethernet)?
Yes, it features 4* RJ45 POE ports powered by Intel I226V controllers, ideal for vision inspection cameras.
What mounting options are available?
The factory default is horizontal installation. However, it also supports wall-mounted and DIN rail installation (please specify requirements before shipping).
Is the system fanless?

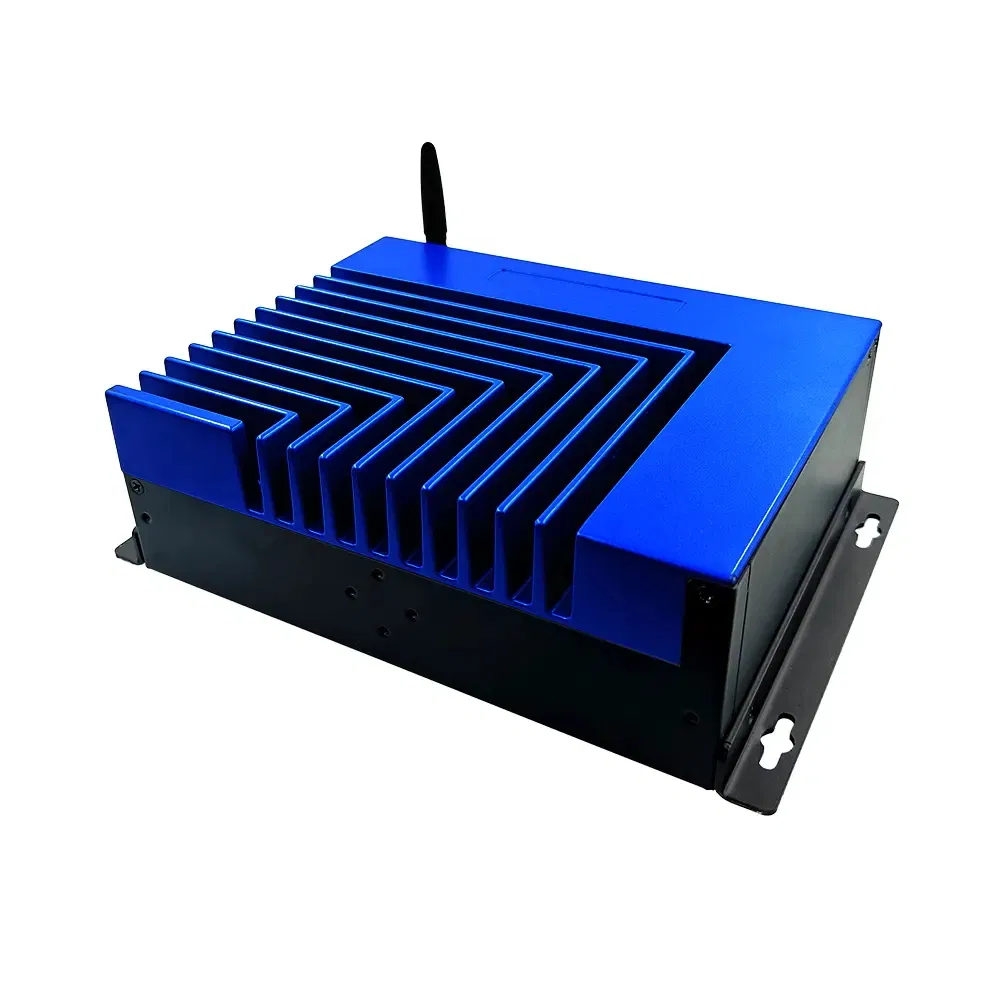

Yes, the system utilizes a fanless cooling design with an aluminum alloy enclosure to ensure reliability in dusty or harsh environments.
What is the warranty period for this product?
This industrial AI computing system comes with a standard 2-year warranty covering manufacturing defects and hardware performance.
What operating systems are compatible?
The hardware fully supports Windows 10 and various LINUX distributions for flexible software deployment.
