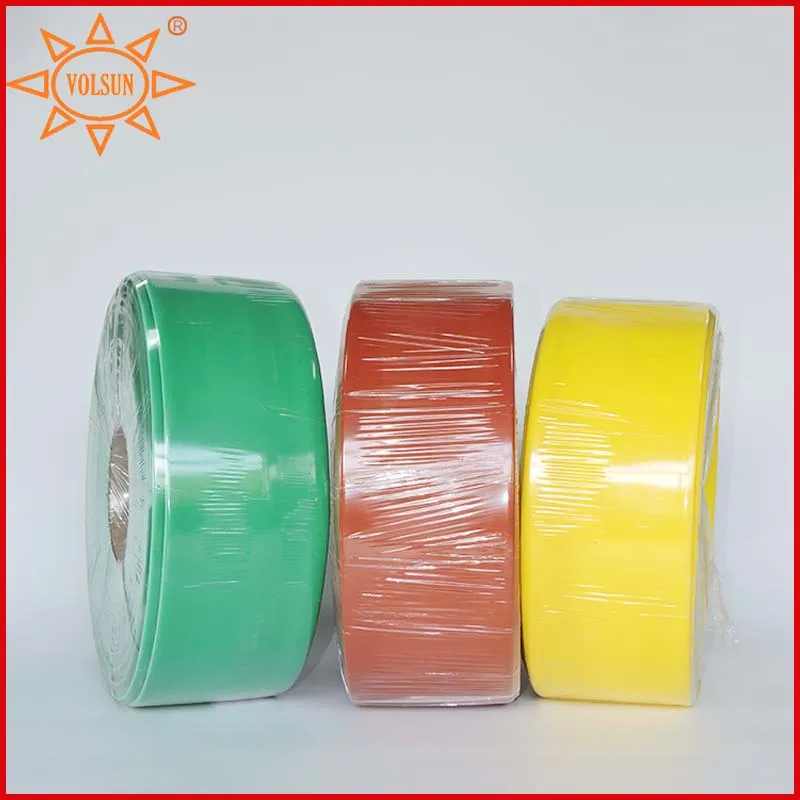

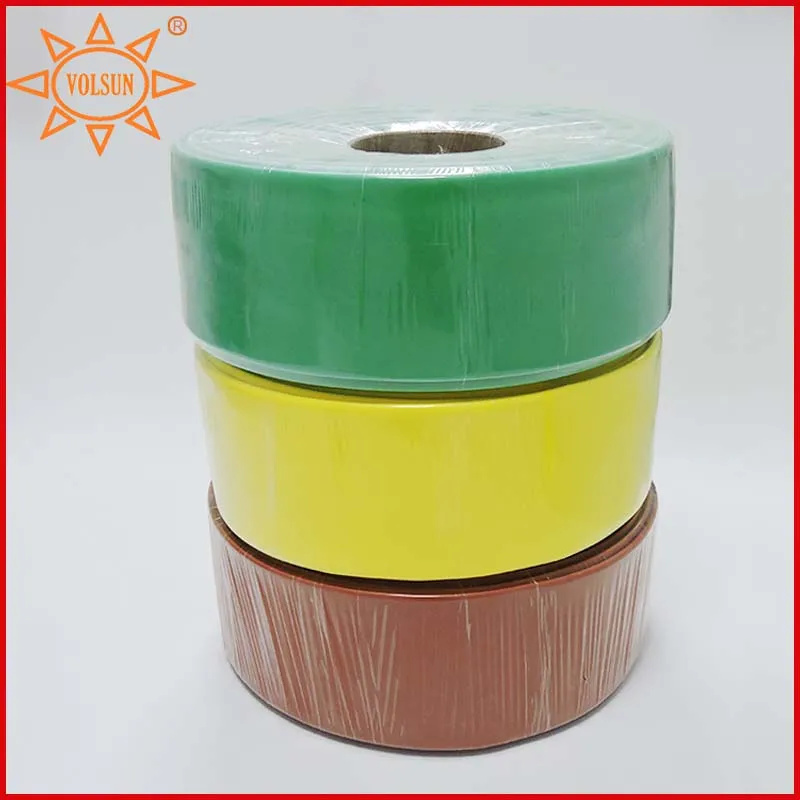

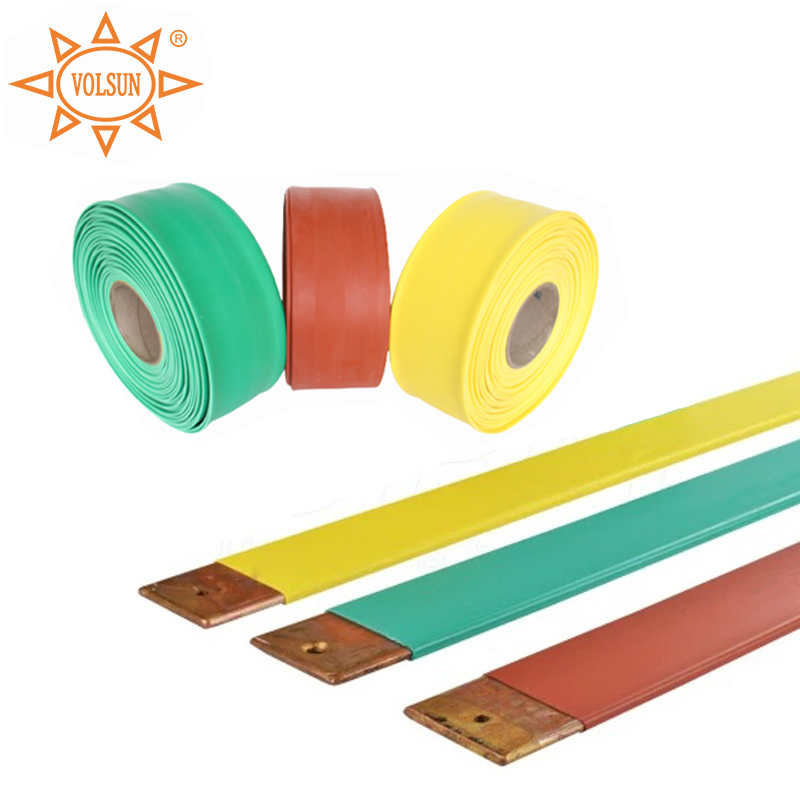

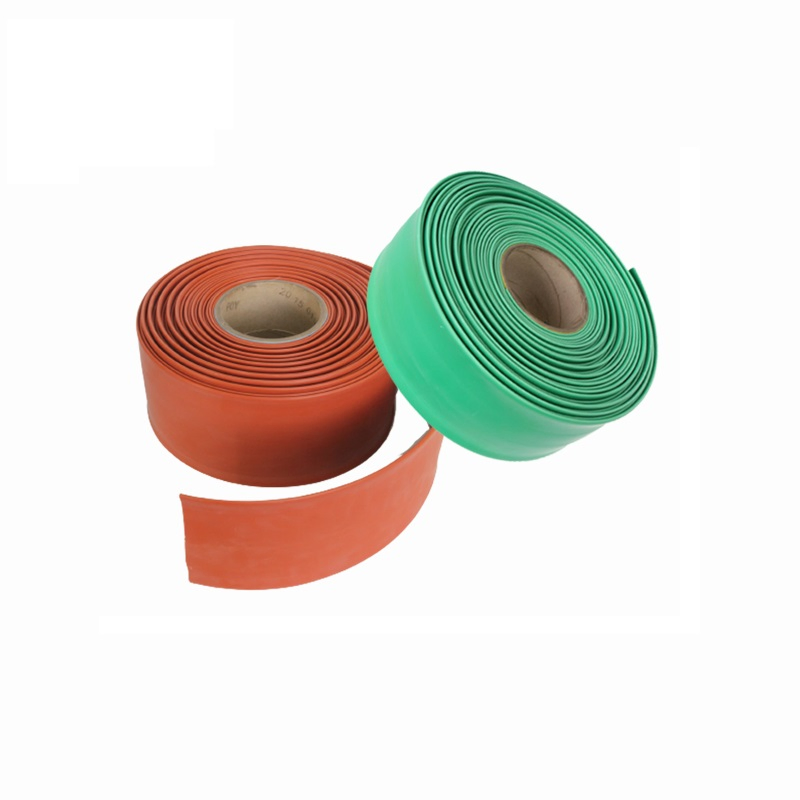

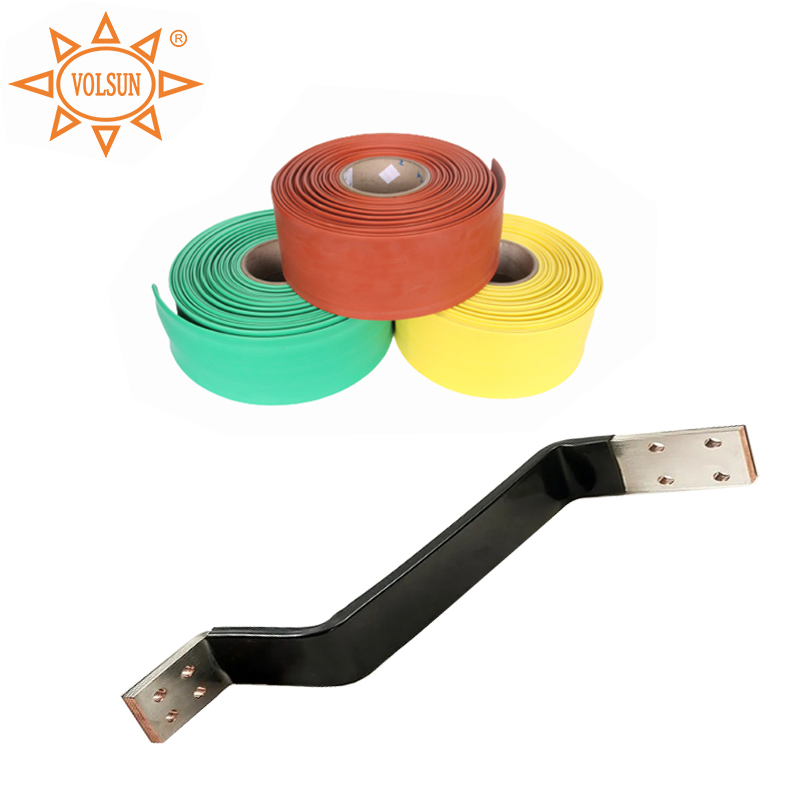

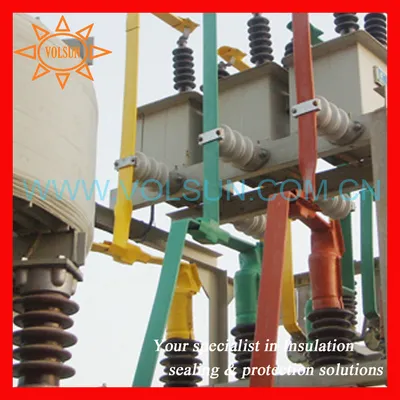

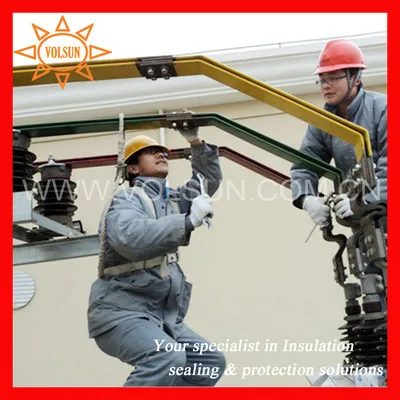

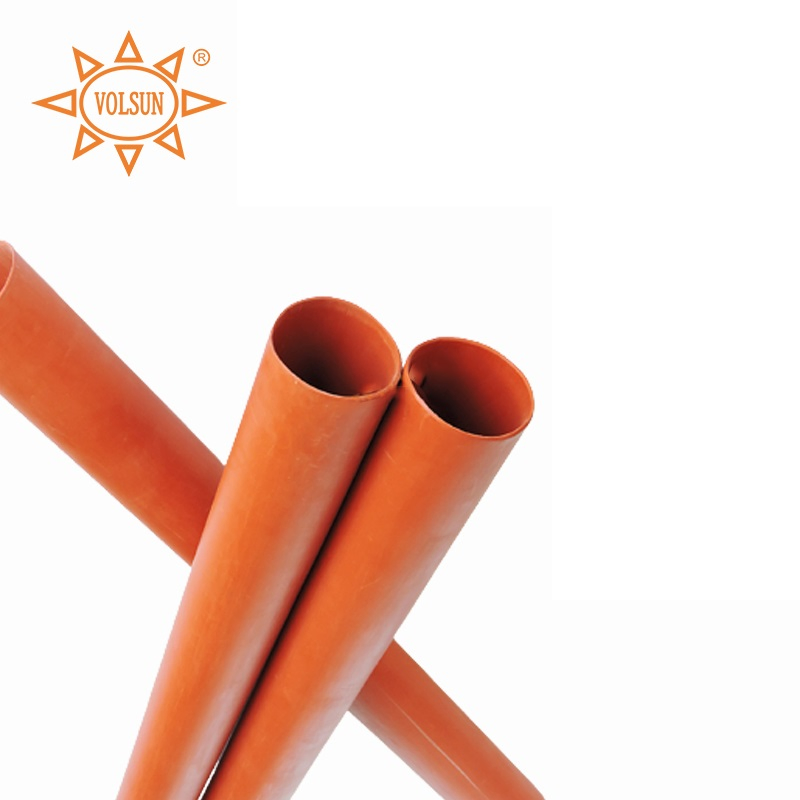

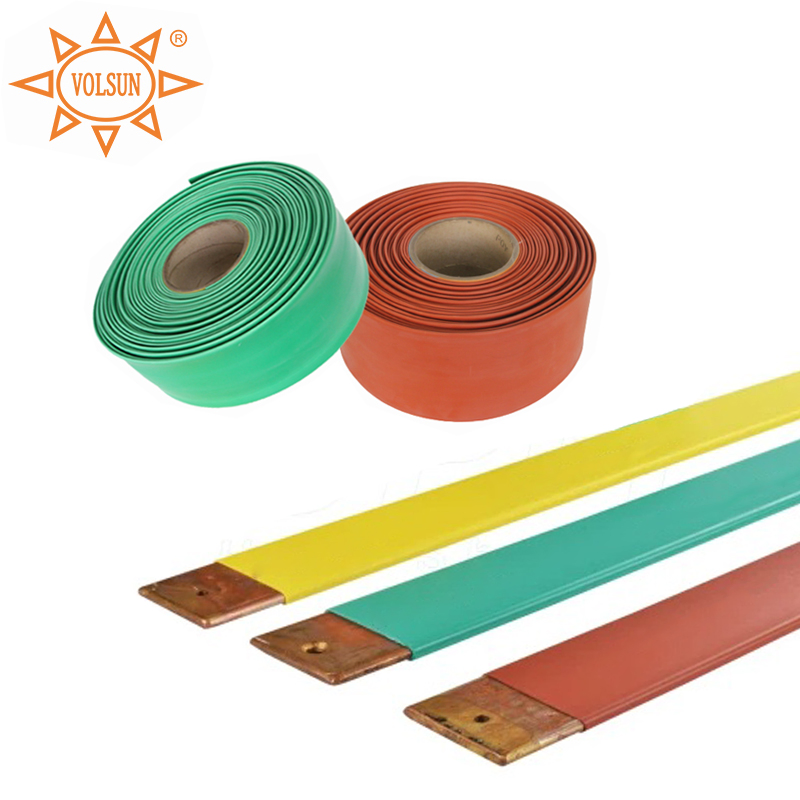

Tracking resistant busbar heat shrink tube, made of radiation cross-linked polyolefin. Typical applications include insulation of electrical bus bar with 1KV or lower voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
| Size | Expanded ID (mm) | Recovered ID (mm) | Wall Thickness (mm) | Packing (m/spool) |
|---|---|---|---|---|
| 10kV 15/6 | ≥15 | ≤6.0 | 2.5±0.20 | 25 |
| 10kV 25/10 | ≥25 | ≤10.0 | 2.5±0.20 | 25 |
| 10kV 50/20 | ≥50 | ≤20.0 | 2.8±0.30 | 25 |
| 10kV 100/40 | ≥100 | ≤40.0 | 2.8±0.30 | 25 |
| 10kV 300/120 | ≥300 | ≤120 | 2.8±0.30 | 15 |
| Trade Terms | FOB, EXW, CIF, DDU, DDP, CFR |
| Supply Capability | 100,000 mts per month |
| Lead Time | Usually 5-7 working days |
It is designed for the insulation protection of electrical bus bars with voltage ratings of 1KV or lower, suitable for various shapes including rectangular, square, and round.
The product features a 2:1 shrink ratio, ensuring a tight and secure fit over the busbar once heat is applied.
Yes, the sleeve is made from radiation cross-linked polyolefin and meets the VW-1 flammability rating.
The minimum shrink temperature starts at ≥ 84°C, with full recovery achieved at ≥ 120°C.
Yes, while standard sizes are available, custom sizes can be manufactured to meet specific project requirements.
The product is RoHS compliant and manufactured under quality systems such as IATF16949 and ISO9001.
