Basic Specifications
Certification
CE, TUV, ISO
Temperature Range
-70°C to 150°C
Humidity Range
10%Rh - 98%Rh
Transport Package
Wooden Box
🔍
Product Overview

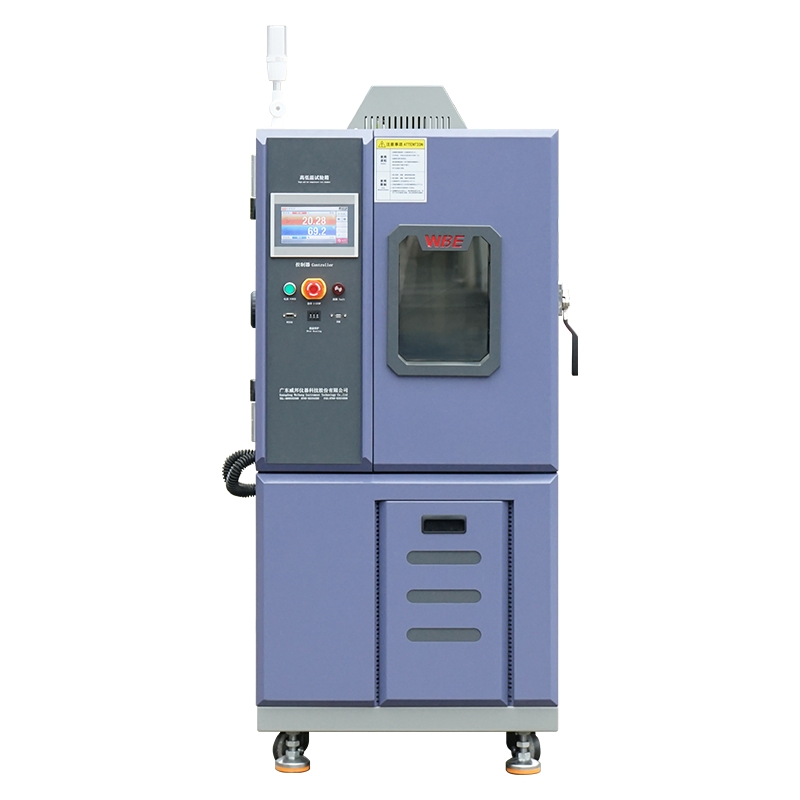

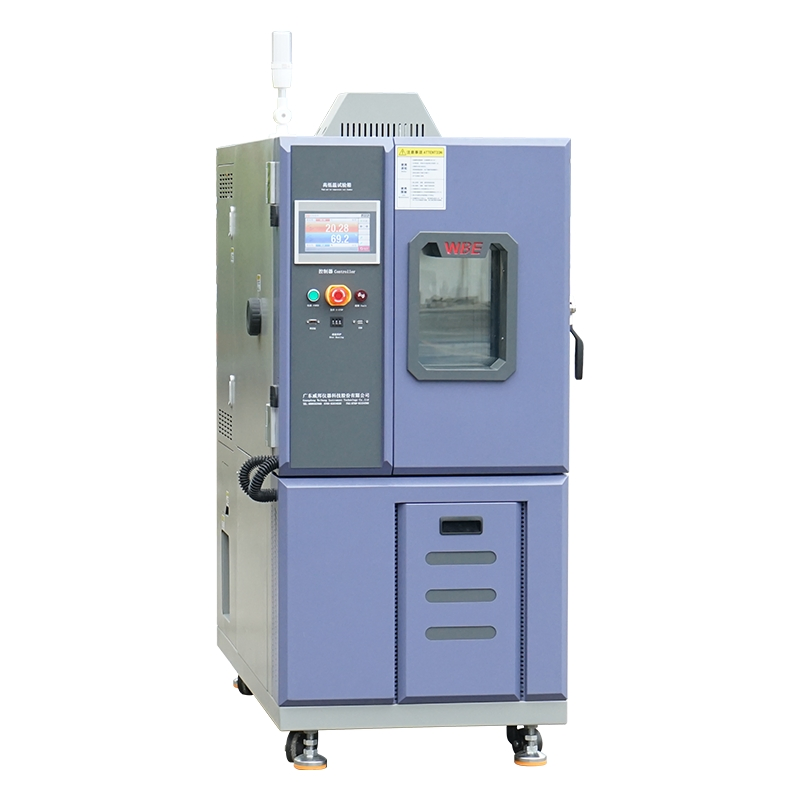

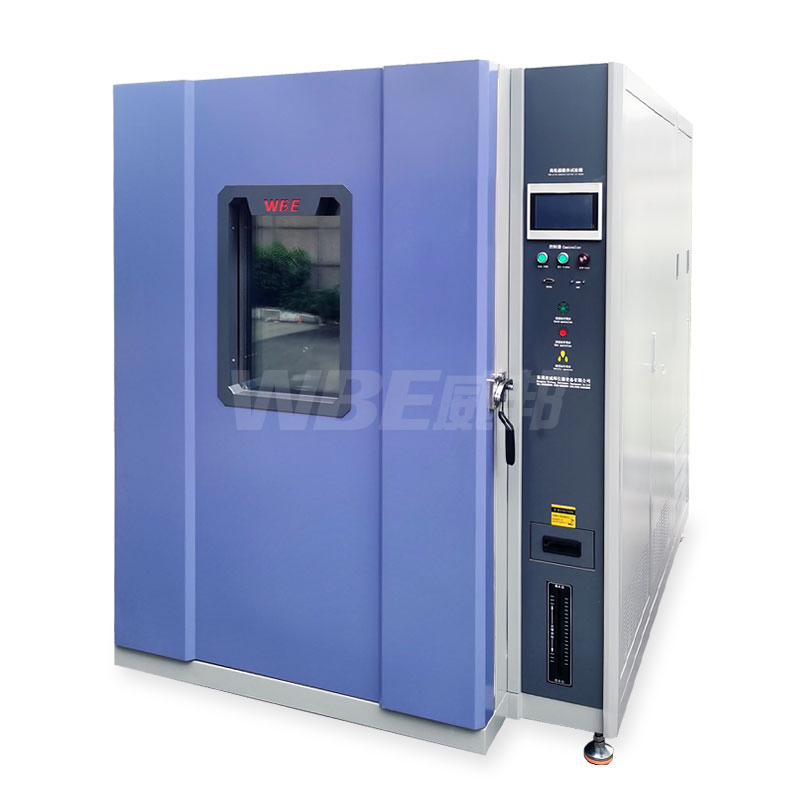

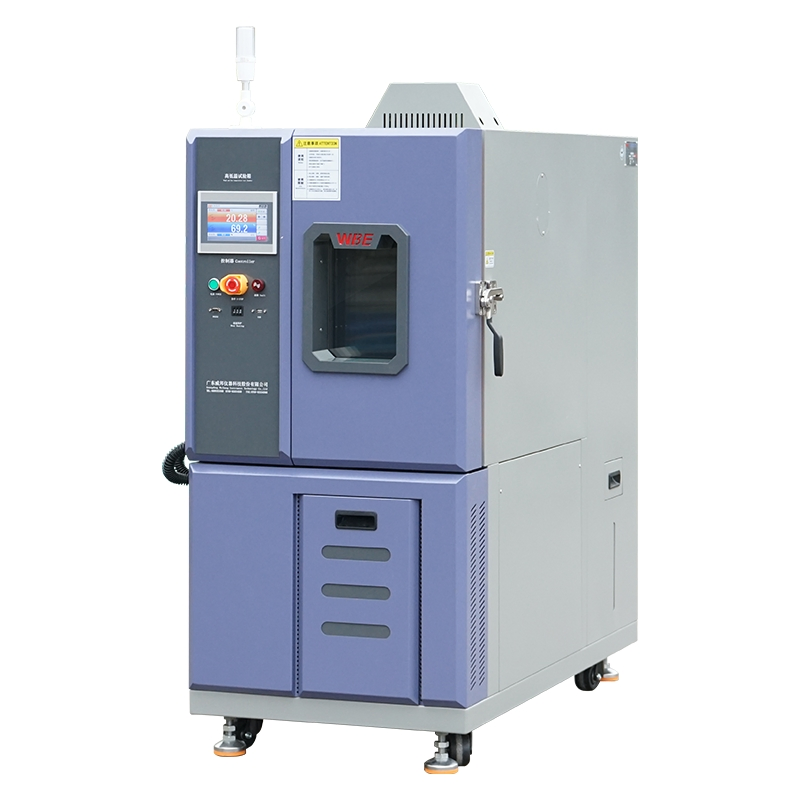

WBE-SGD1500L Floor-standing High and Low Temperature Test Chamber
Designed for reliability testing and quality management of large components or complete assemblies, this chamber simulates extreme high/low temperatures or temperature cycling conditions to evaluate products, parts, and materials. It complies with major testing standards including MIL, STD, GB, GJB, JIS, JEDEC, and IEC.
🚀 Application Areas
Widely used across high-tech industries such as semiconductor chips, academic and research institutions, quality inspection, new energy, optoelectronic communications, aerospace and defense, automotive, LCD display, and medical technology.
🛠️
Core Features
- Fluid Simulation Technology + Innovative Structural Design extends equipment lifespan by over 1/3.
- Scientific Airflow Design ensures rapid temperature/humidity stabilization.
- Advanced Servo Flow Regulation Technology reduces energy consumption by approximately 45%.
- Extra-large test space accommodates batch testing of components or large assemblies.
- Automatic Load Adjustment ensures stable performance during continuous operation.
📊
Technical Parameters
| Model |
Volume(L) |
Inner Size (W*D*H) mm |
Outer Size (W*D*H) mm |
Power (KW) |
| WBE-SGD80L | 80 L | 400*400*500 | 600*1140*1530 | 3.6 / 4 / 4 |
| WBE-SGD150L | 150 L | 500*500*600 | 700*1530*1630 | 3 / 3 / 3 |
| WBE-SGD225L | 225 L | 600*500*750 | 800*1530*1800 | 3 / 3 / 5 |
| WBE-SGD408L | 408 L | 800*600*850 | 1000*1600*1890 | 5 / 5.5 / 6 |
| WBE-SGD1000L | 1000 L | 1000*1000*1000 | 1200*1800*2080 | 6 / 7 / 8.5 |
🖼️
Product Gallery
❓
Frequently Asked Questions
Q1: What temperature ranges are available for the WBE-SGD series?
A: We offer standard ranges of -20°C, -40°C, and -70°C up to +150°C. Custom temperature ranges are also available upon request.
Q2: Does the equipment support humidity control?
A: Yes, the standard humidity range is 20% to 98% R.H., with special models supporting as low as 5% R.H.
Q3: How energy-efficient is this test chamber?
A: Thanks to our Advanced Servo Flow Regulation Technology, the energy consumption is reduced by approximately 45% compared to traditional models.
Q4: What testing standards does the chamber comply with?
A: It complies with multiple international standards including GB/T 2423, IEC60068-2, GJB 150, and MIL-STD-202G.
Q5: What is the lead time and warranty for the equipment?
A: We provide a 2-year warranty. Our production capacity is 500 sets per month, ensuring timely delivery for both standard and customized models.
Q6: What materials are used for the chamber construction?
A: The inner box is made of high-quality SUS #304 stainless steel, while the outer box features cold-rolled steel with an electrostatic spraying process.
