Buddy robotics
Buddy robotics
| Model NO. | AVI-E |
| Measuring Shaft Quantities | 1 |
| Accuracy Grade | 0.2G |
| IP Rating | IP67 |
| Certification | ISO |
| Data Transmission Interfaces | RS422 |
| Production Capacity | 1000/Month |
| Origin | China |
| HS Code | 9031809090 |
| Package Size | 50.00cm * 40.00cm * 40.00cm |
| Package Gross Weight | 30.000kg |
| Transport Package | Box and Sponge |

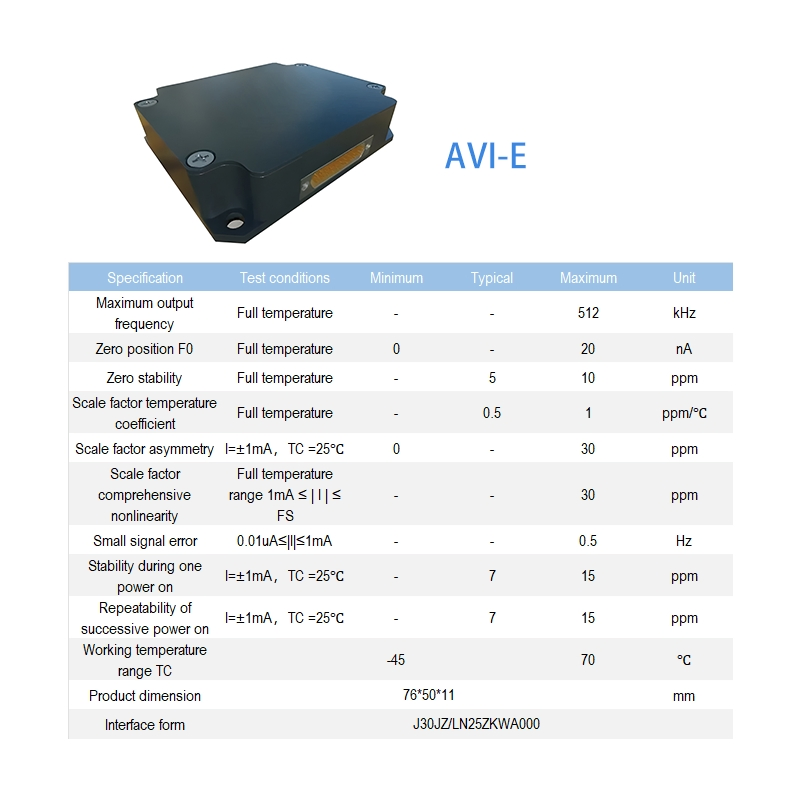

| Parameter | Test conditions | Typical | Max | Unit |
| Maximum output frequency | Full temperature | - | 512 | kHz |
| Zero position F0 | Full temperature | - | 20 | nA |
| Zero stability | Full temperature | 5 | 10 | ppm |
| Scale factor temp coefficient | Full temperature | 0.5 | 1 | ppm/℃ |
| Scale factor asymmetry | I=±1mA, TC=25℃ | - | 30 | ppm |
| Successive power on repeatability | I=±1mA, TC=25℃ | 7 | 15 | ppm |
| Working temperature range | - | -45 to 70 | - | ℃ |

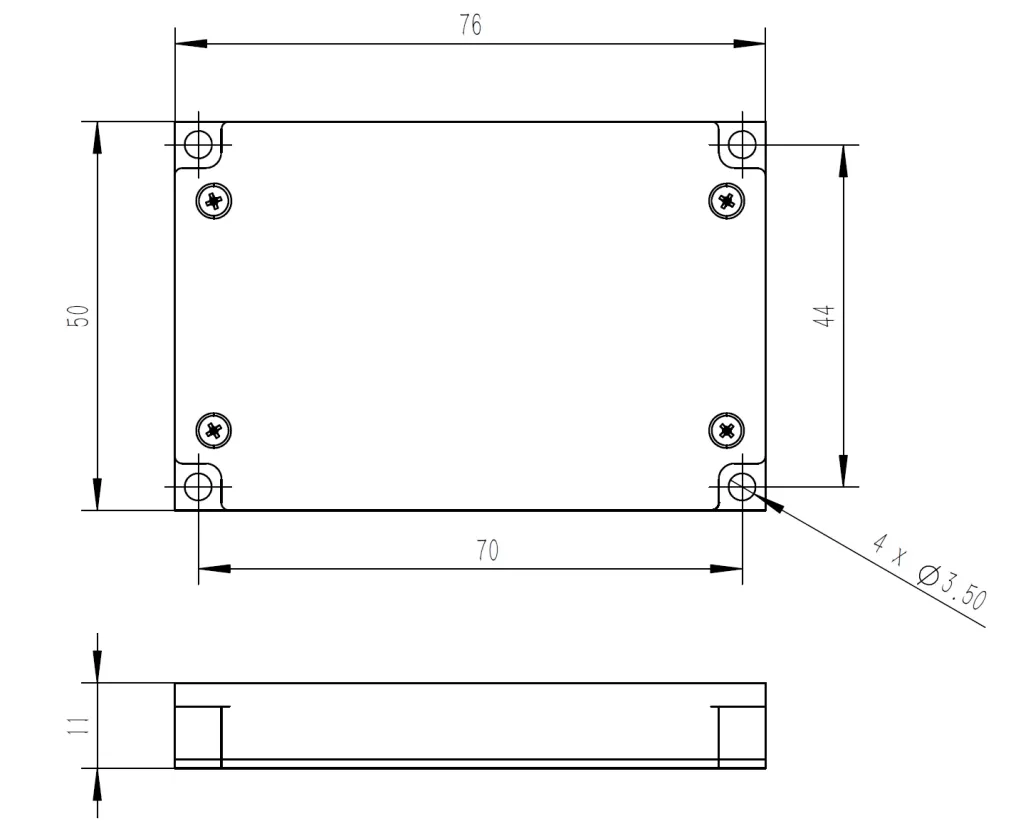

| Product dimension | - | 76*50*11 | - | mm |
I/F conversion module: AVI-E
The AVI-E series I/F conversion module is a high-precision current/frequency converter that uses charge integration to continuously convert the current signals of three accelerometers simultaneously. The components used are all 100% produced with a range of ± 20mA and adjustable scaling factor. It features small zero position, low power consumption, and low temperature sensitivity.
