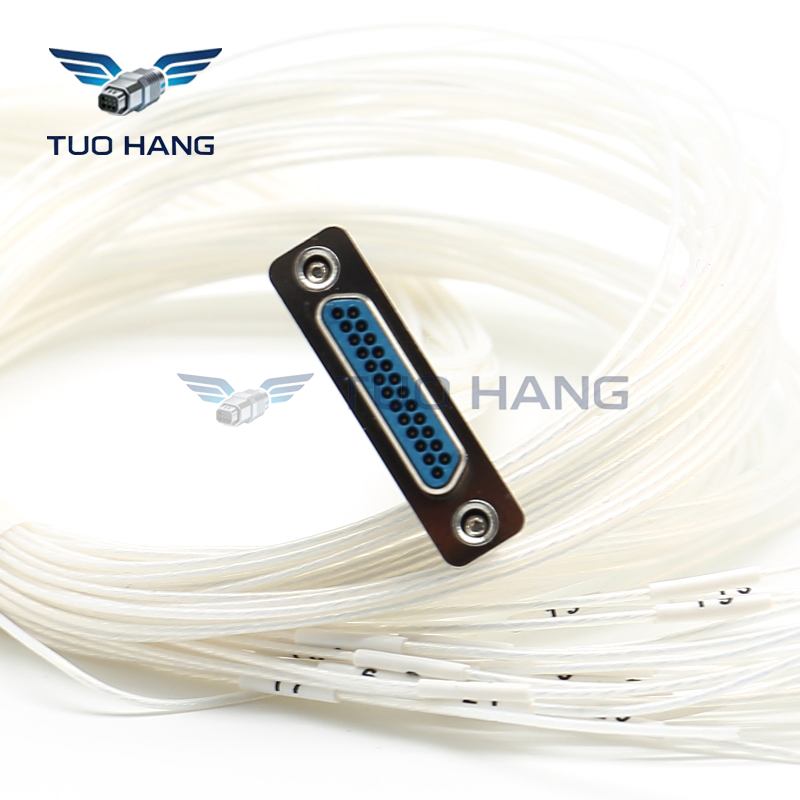

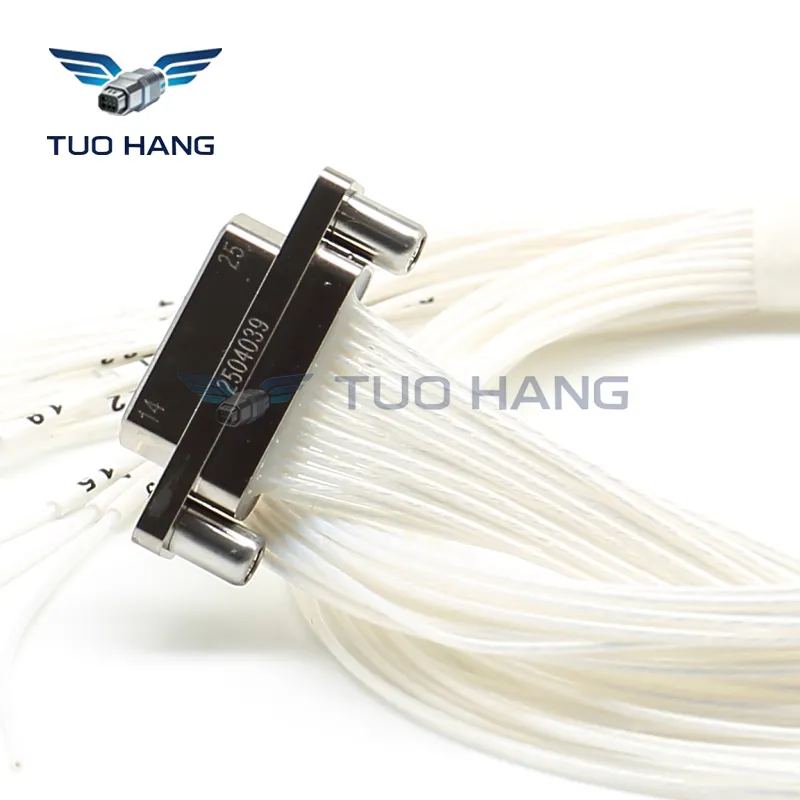

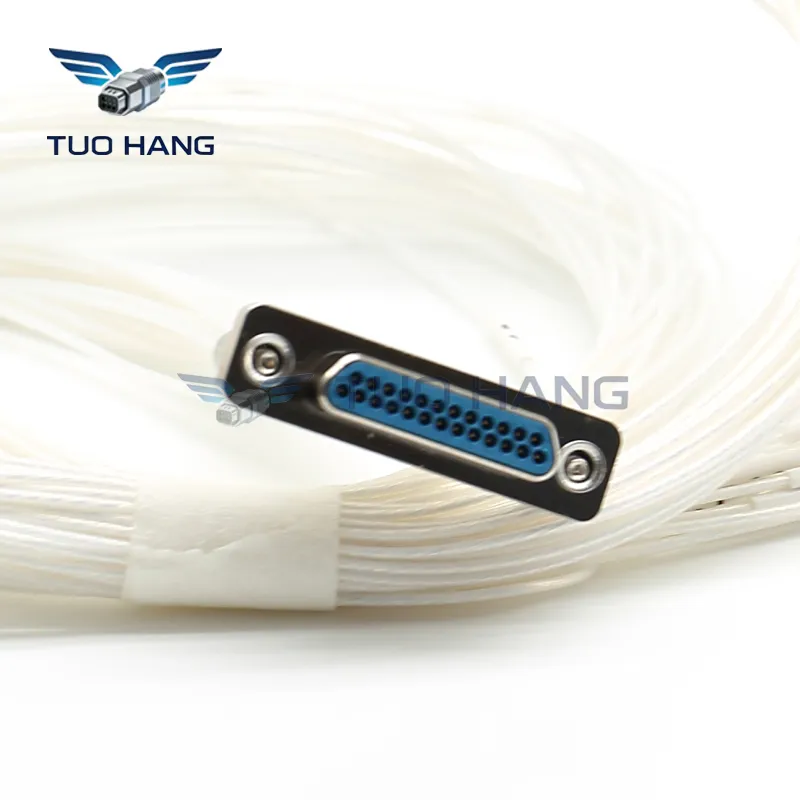

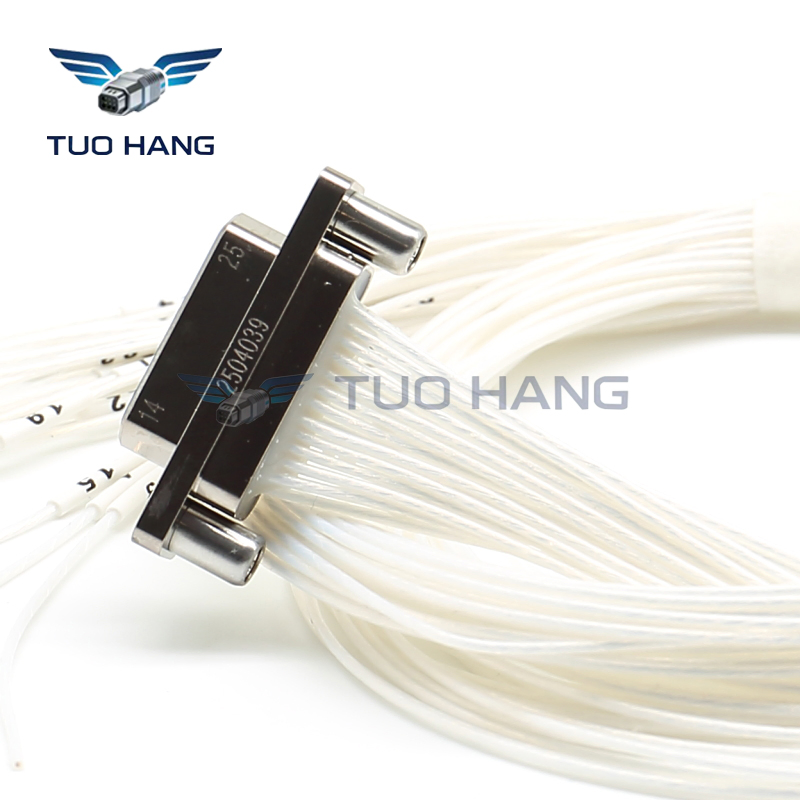

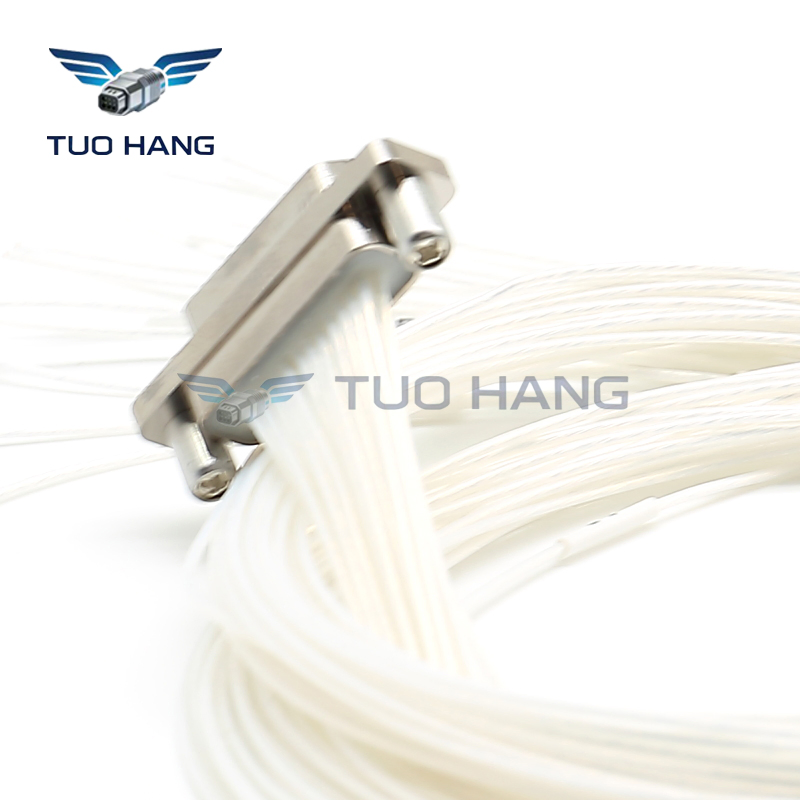

The J30J-25TJL is a microminiature rectangular plug featuring 25 contacts in a dual-row arrangement. It utilizes the industry-standard Twist Pin contact system, which provides multiple points of electrical contact to ensure signal continuity even under extreme vibration and shock.
| Plug type | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| J30J-9TJ | 19.6 | 14.3 | 7.6 |
| J30J-15TJ | 23.5 | 18.2 | 7.6 |
| J30J-25TJ | 29.8 | 24.5 | 7.6 |
| J30J-51TJ | 36.4 | 30.86 | 8.7 |
| J30J-100TJ | 54.7 | 45.7 | 9.7 |

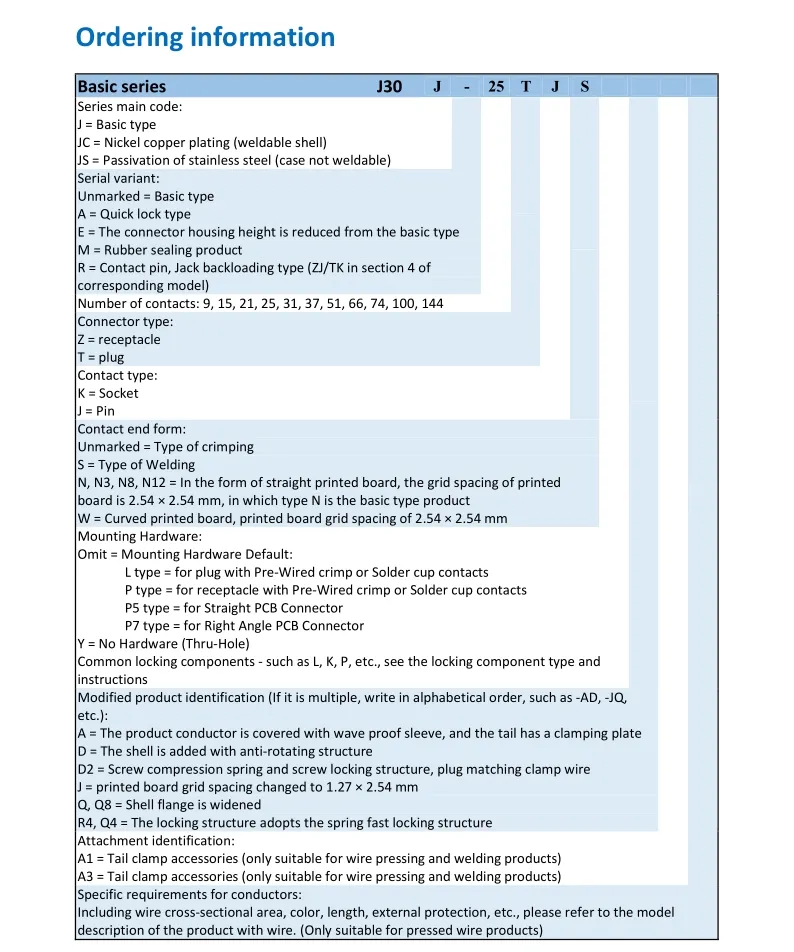

| Code | Segment | Description |
|---|---|---|
| J30J | Series | Microminiature Rectangular Connector (MIL-DTL-83513 equivalent) |
| 25 | Contacts | 25-pin dual-row configuration |
| T | Type | Plug (Male housing) |
| L | Termination | Solder Cup (Designed for wire attachment) |
Materials: Shell Body (Aluminum Alloy), Insulator (LCP/PPS), Contacts (Beryllium Copper with Gold plating).
Common Applications: Satellite & Spacecraft, Missile Guidance, Avionics, and Military Robotics.
