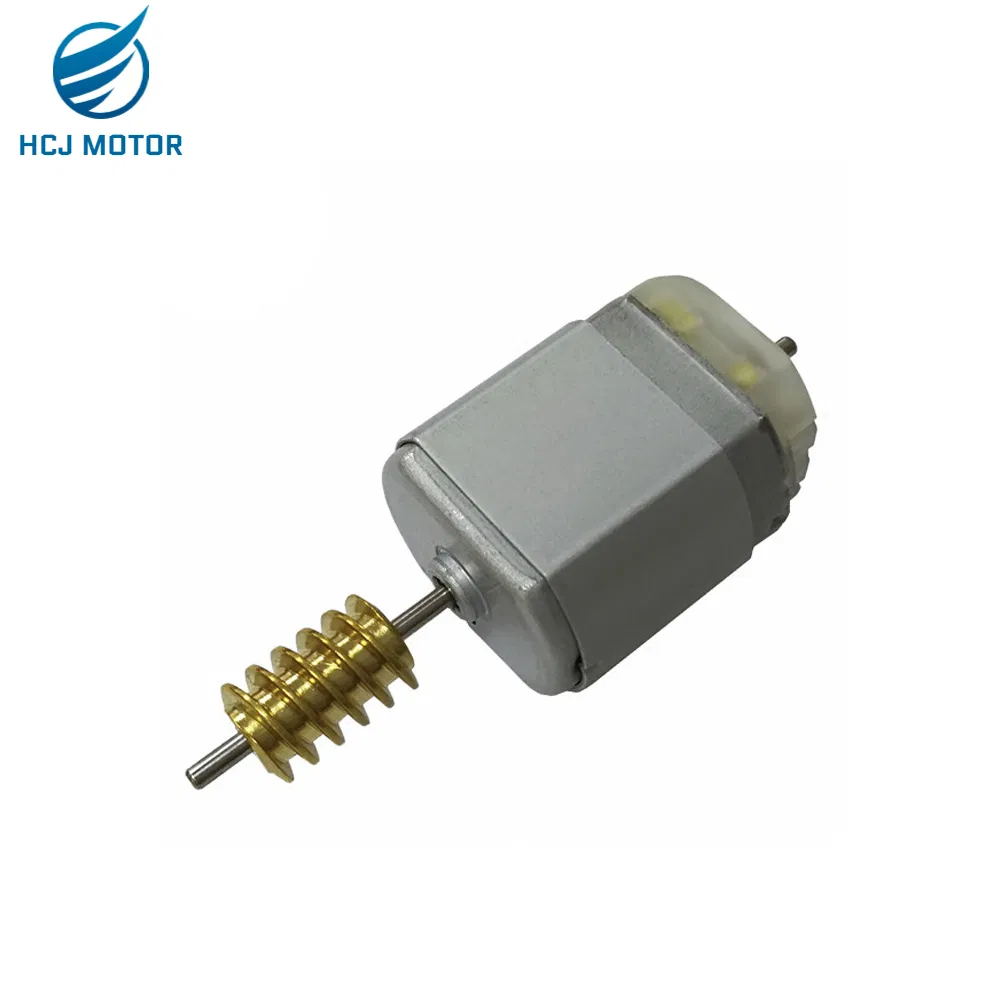

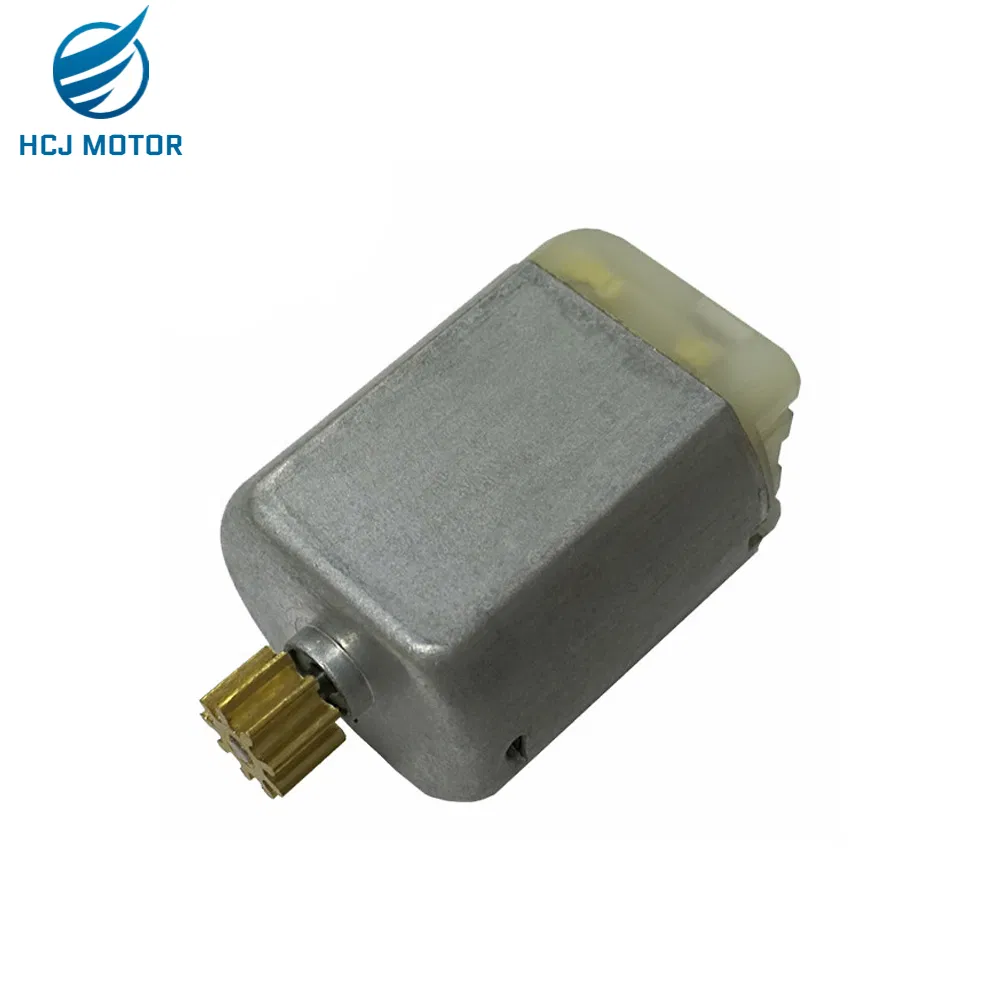

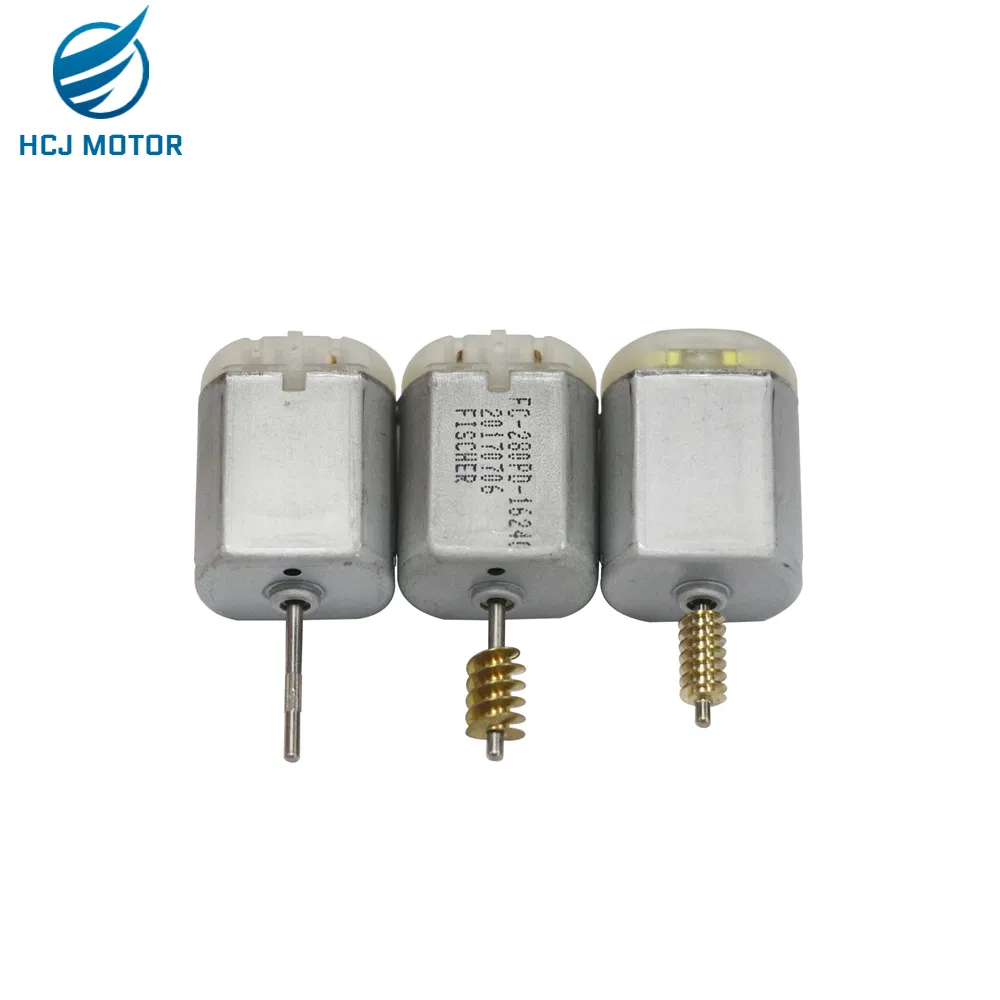

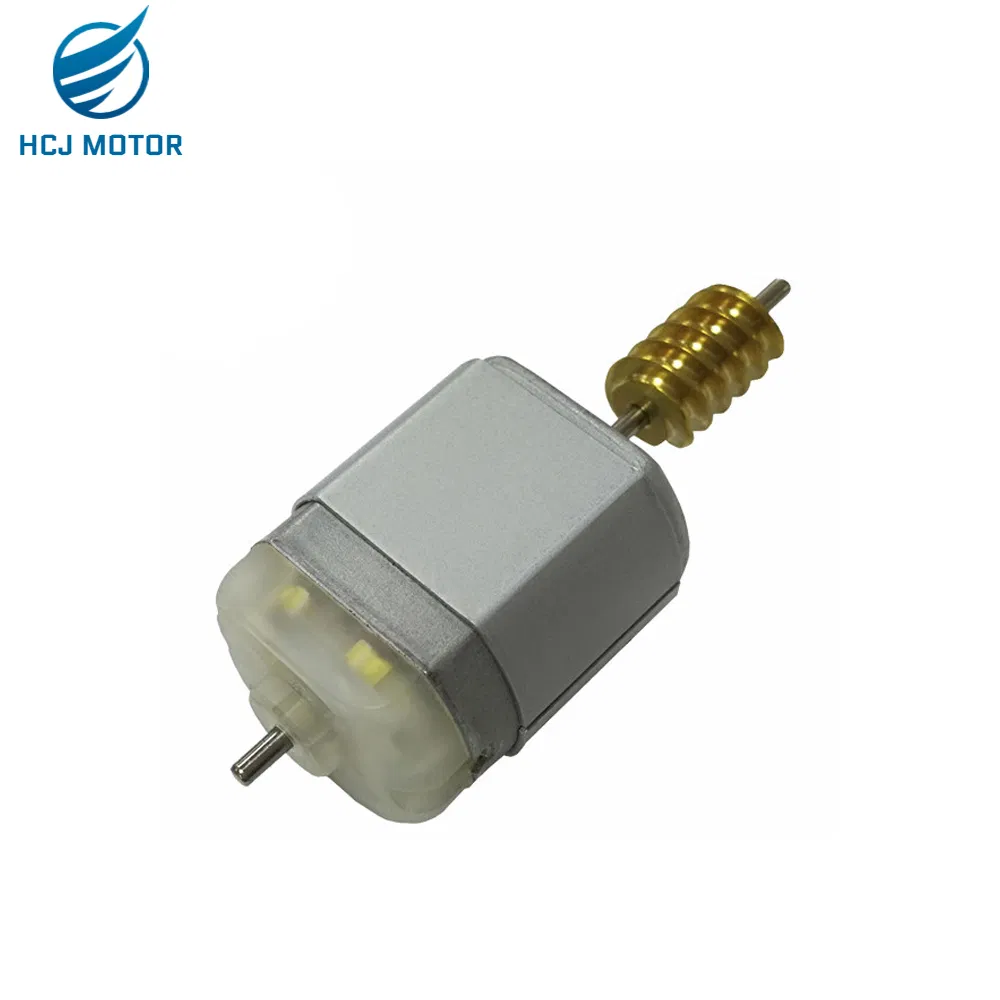

Micro FC-280 12V Electric DC Motor
Key Parameters:
• Motor Type: Brush DC Motor
• Features: High Torque, High Rpm, High Efficiency
• Motor Diameter: 24.2mm
• Primary Application: Car Central door lock, Car rearview mirror

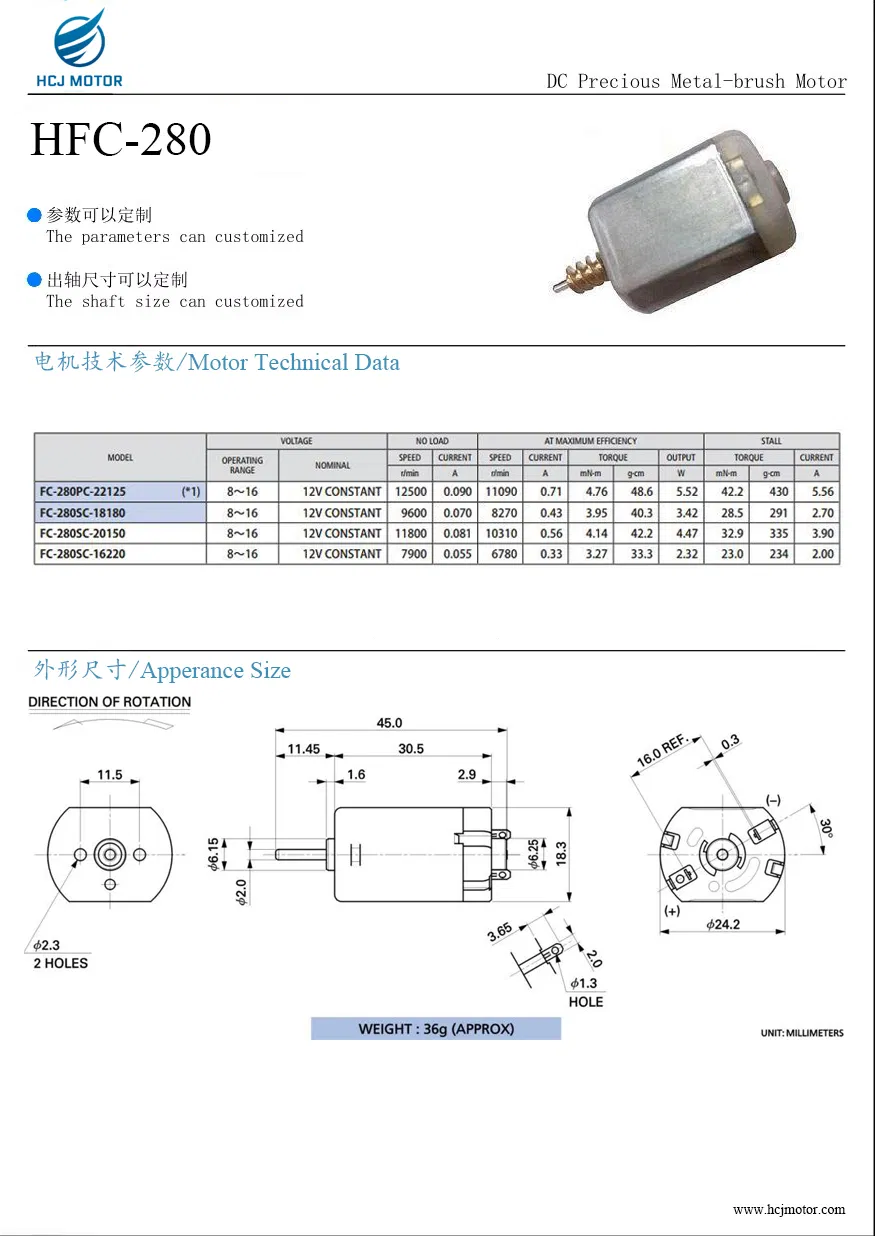

| Technical Specifications - HFC-280 |
| Voltage Range | 8~16V |
Nominal Voltage | 12V |
| No Load Speed | 5000~20000RPM |
No Load Current | 0.055A - 0.090A |
| Max Efficiency | Speed: 5000~15000rpm; Torque: 30~100g·cm |
Stall Torque | 200~500g·cm |
| Shaft Length | Customizable |
Net Weight | Approx 36g |

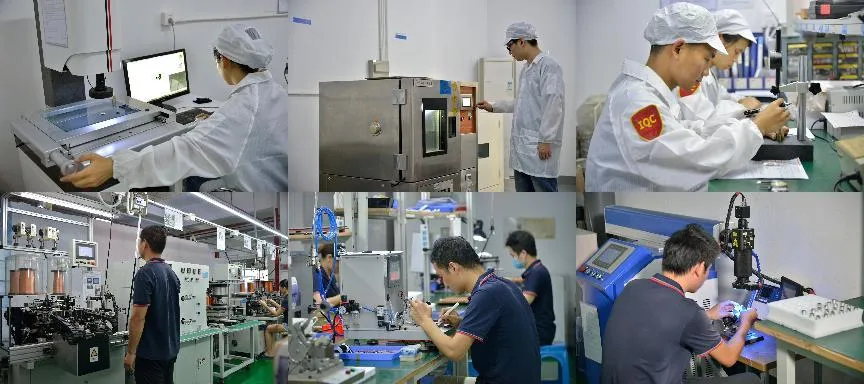

Specializing in the research, development, and production of micro DC gear motors, brushless motors, coreless motors, and brush motors. We provide technical support and customized solutions for various industries including medical, automotive, and smart home sectors.
Our Advantages:
1. High Quality: Strict quality control system from raw material to assembly.
2. Professional R&D: Engineers with 15 years of experience in the DC motor industry.
3. Fast Dispatch: Samples in 7 days, production orders in 25 days.
4. OEM/ODM: Full customization services available.
Can you make motors with custom specifications?
Yes. We have strong R&D capabilities and a team of experienced engineers to meet custom requirements for voltage, speed, torque, and shaft dimensions.
Do you provide samples?
Yes, we can provide samples for testing. The delivery time for samples is typically 5-15 days depending on the specifications.
Do you have items in stock?
All products are manufactured based on specific orders to ensure quality and specification accuracy; we do not typically hold finished stock.
What information is needed to select a suitable motor?
Please provide details such as voltage, speed, torque, motor size, working mode, expected lifetime, and noise level requirements.
What are the payment terms?
We accept T/T in advance (usually 50% deposit, balance before shipment). PayPal and credit cards are also accepted for sample orders.
Do you provide technical support?
Yes, our company has a professional engineering team that provides full technical support and consulting for your motor integration.
