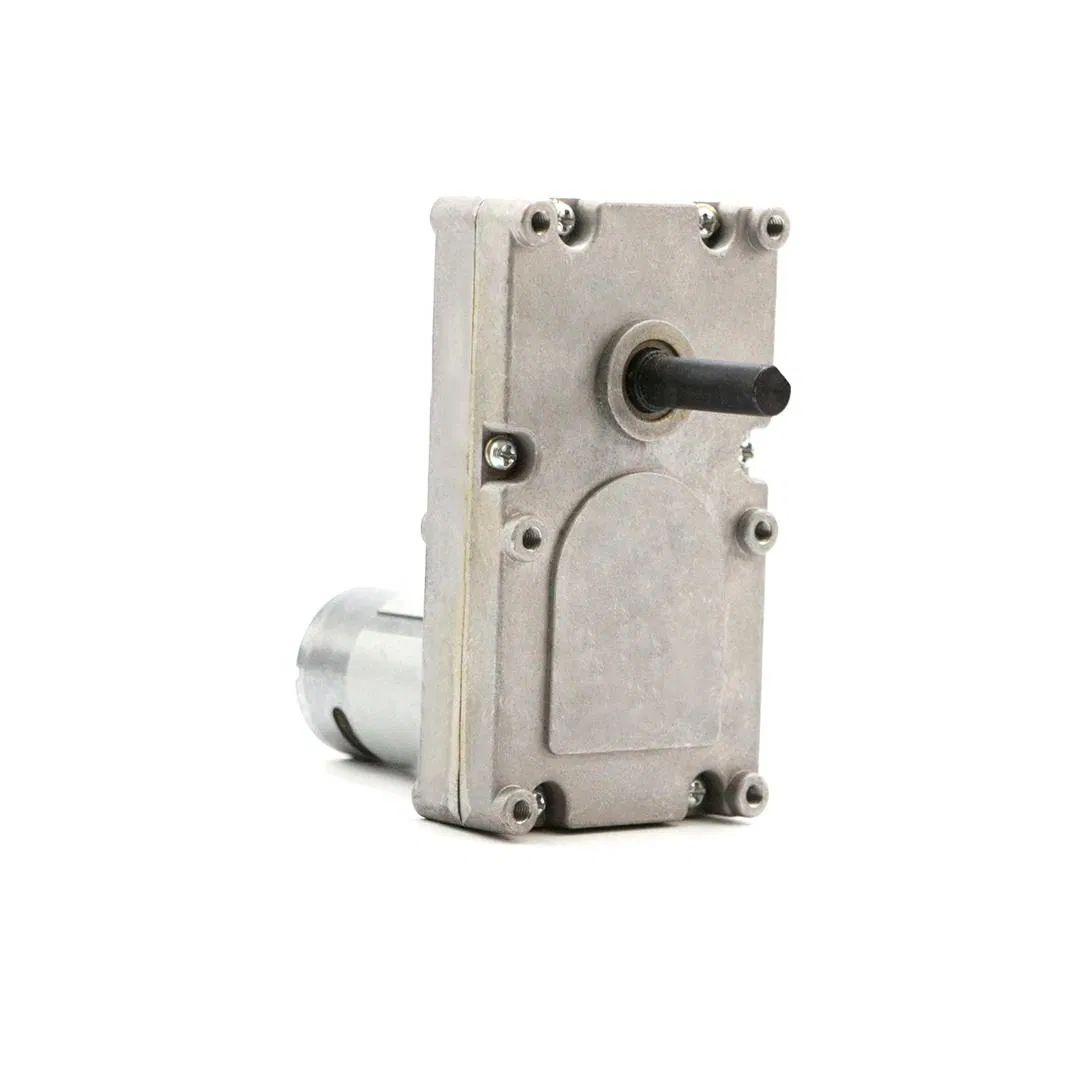

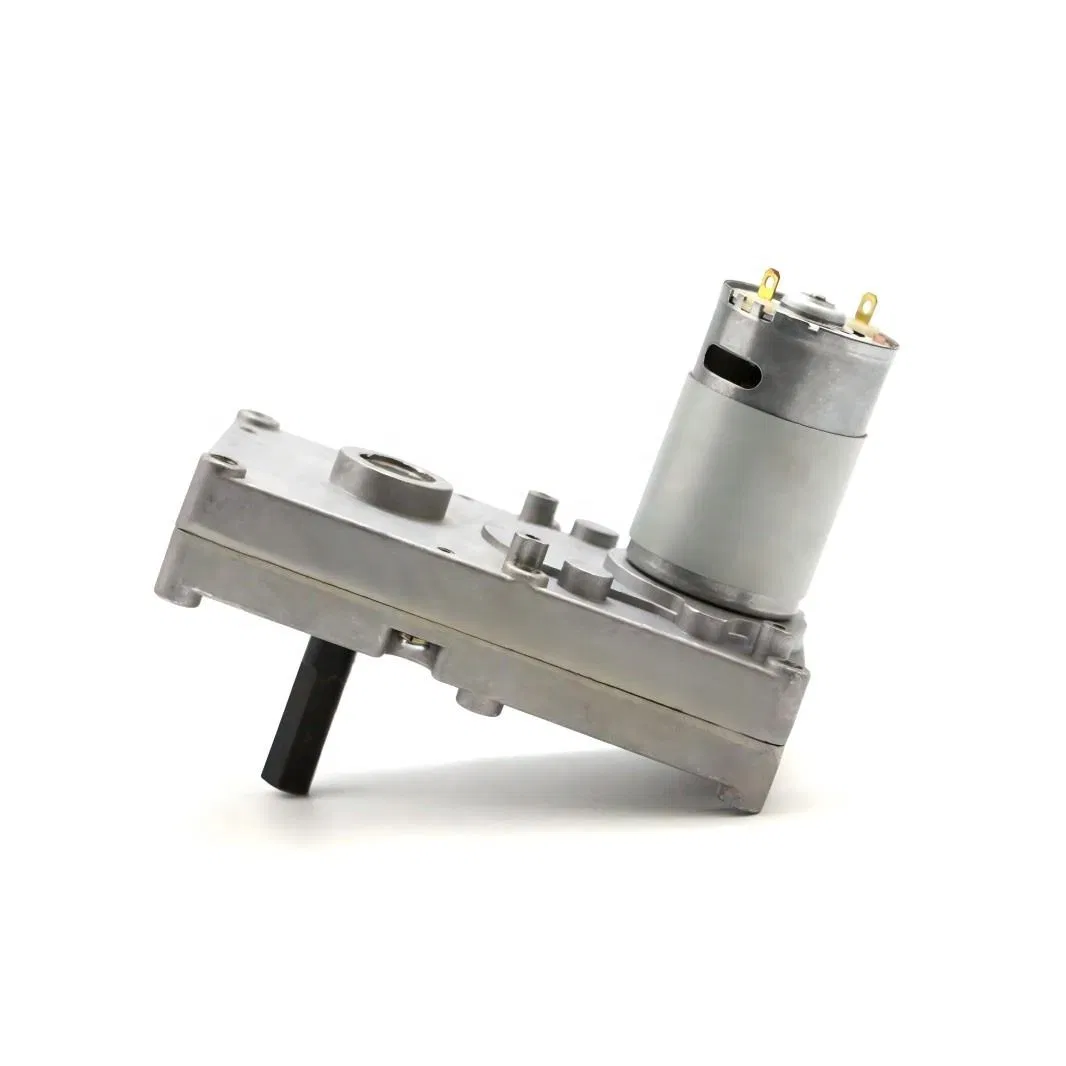

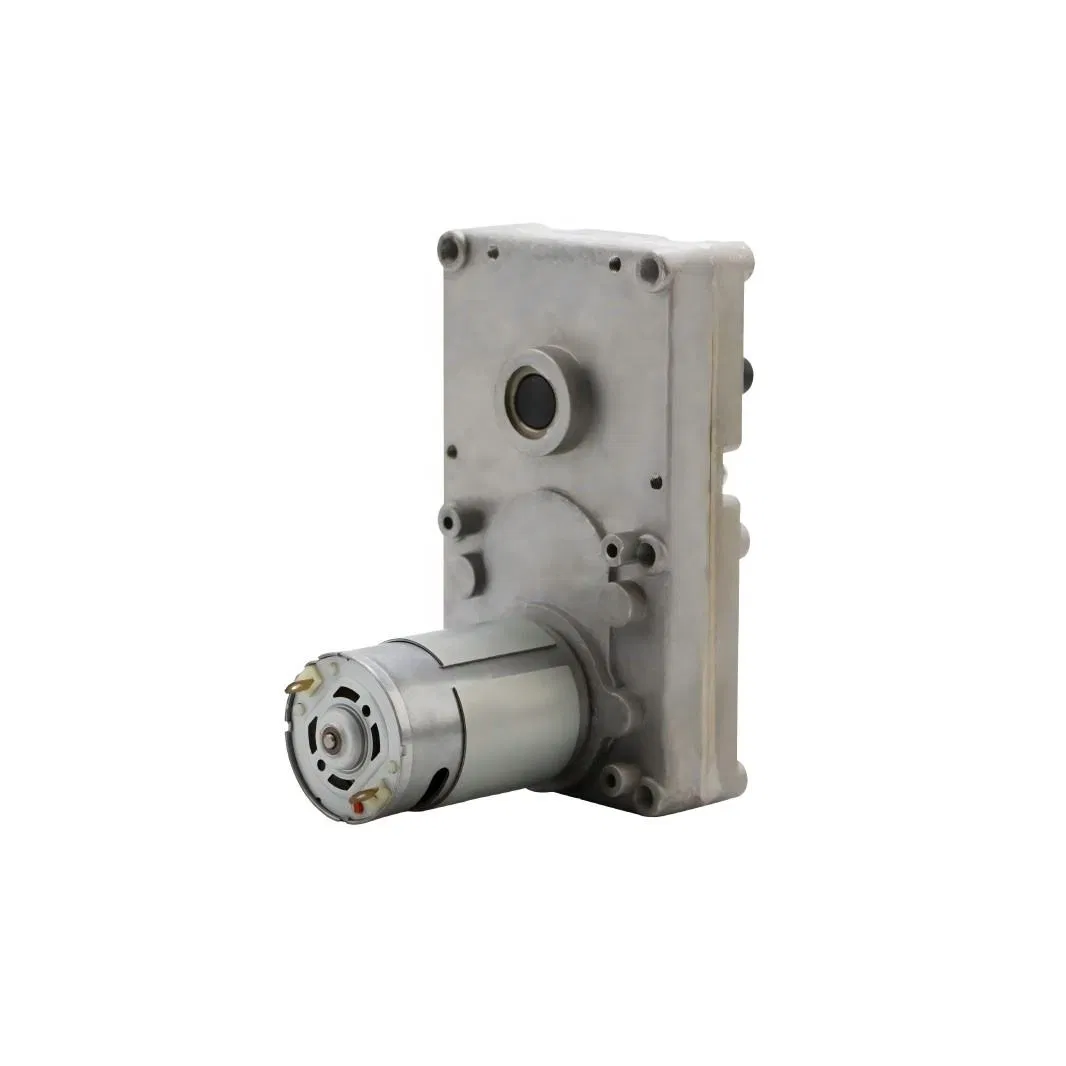

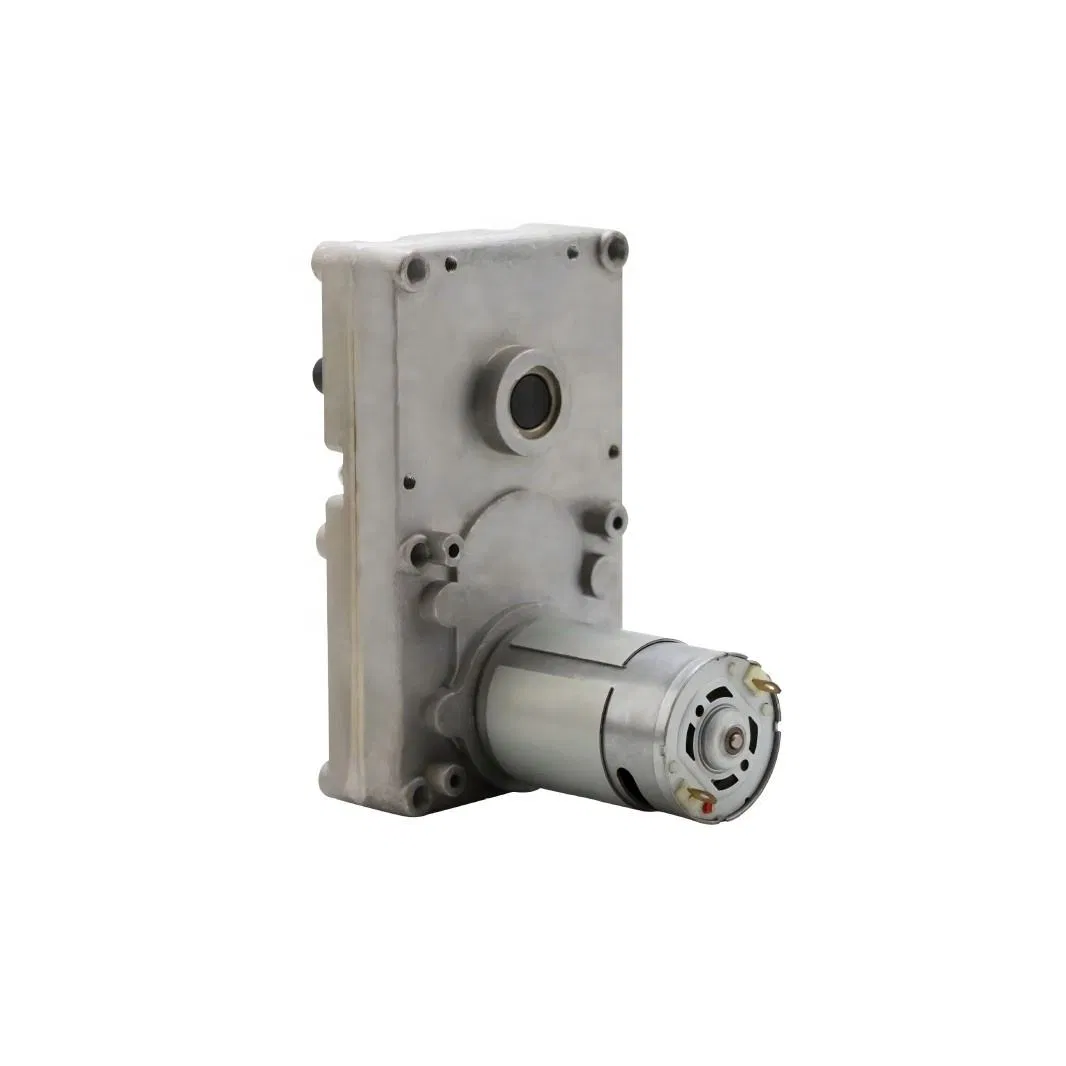

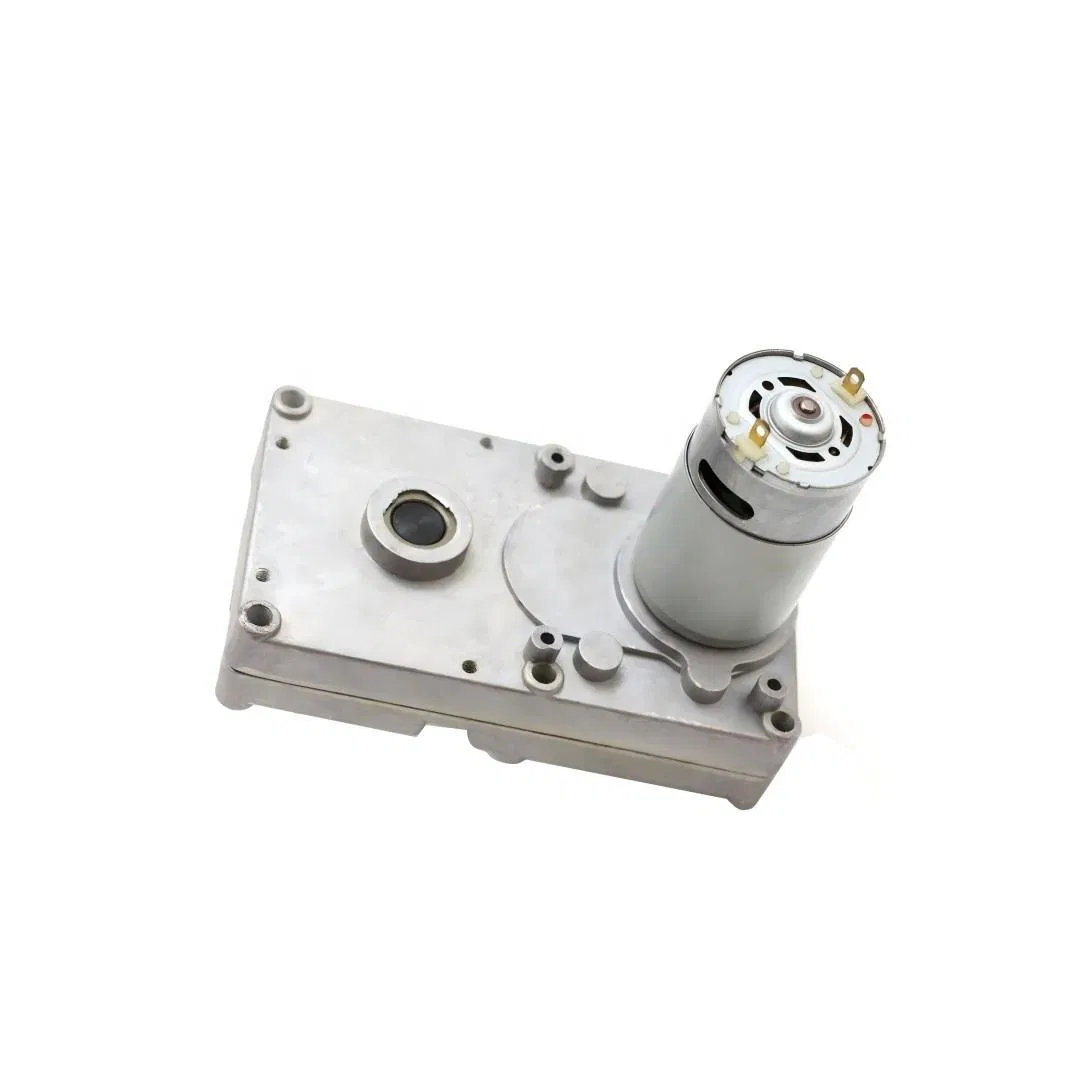

MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
1 / 5
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor
MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor

MC12170GF4276 12V 25rpm 8n/M Micro DC Worm Gear Motor

Customization: Available
Application: Industrial, Power Tools
Operating Speed: Low Speed
Send Inquiry

Product Description

Basic Specifications
Model NO.
MC4276GF
Type
Gear Motor
Voltage
12V/24V (Customizable)
Speed
25rpm
Torque
8n.m
Efficiency
85%
Gear Type
Worm Gear
Certification
CE / ISO9001
Construction
Permanent Magnet
Protect Feature
Totally Enclosed
Product Features

💎Main Features: Small size, high torque and low noise.

🛠️Customization: Voltage, speed, torque, shaft, and gearbox size can be customized to meet various performance requirements.

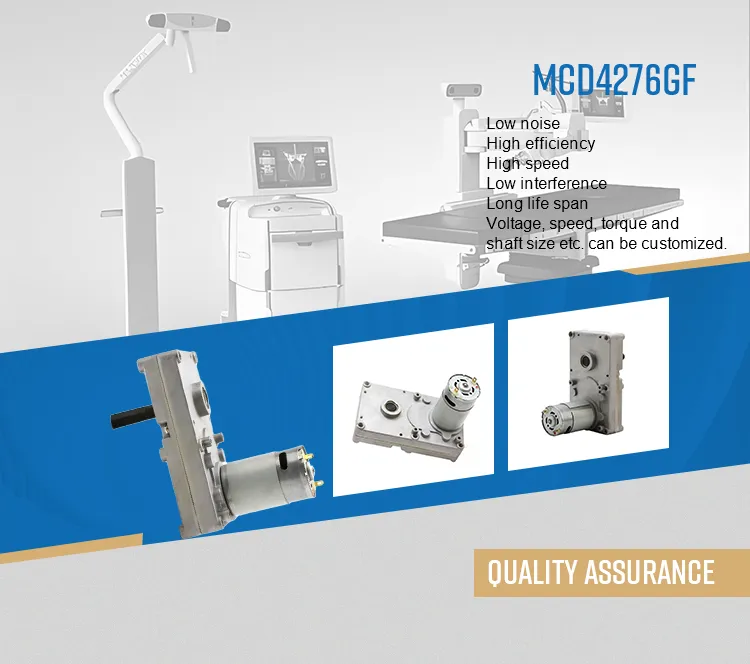

DC Worm Gear Motor View 1

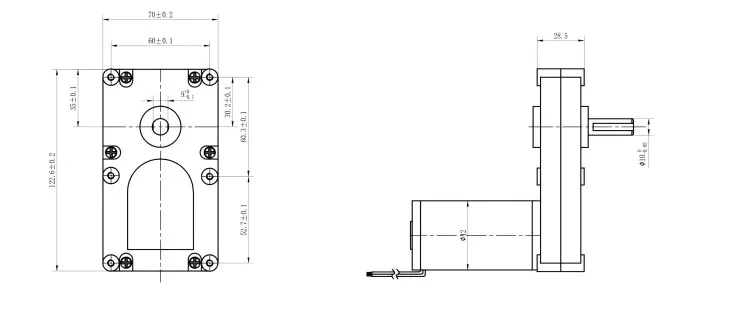

DC Worm Gear Motor View 2

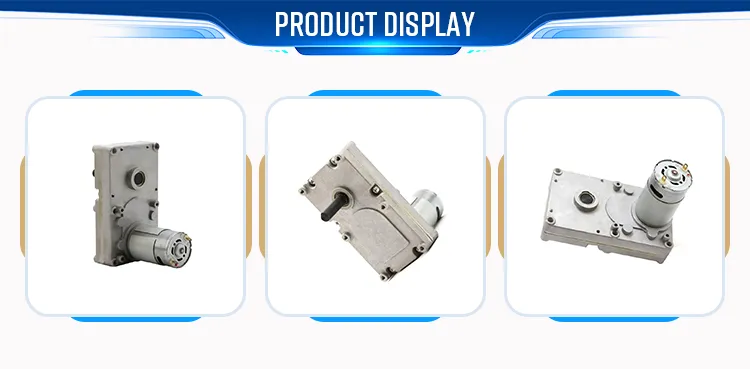

DC Worm Gear Motor View 3
Performance Test Report (12V DC CW)
12V/DC CW PERFORMANCE TEST REPORT
No-load speed25±3 RPM Load speedN/A Voltage withstand600VAC 1SEC 5mA
No-load current1.3A Max Load currentN/A Axial clearance<=0.1 mm
Load torque8 N.m Noise≤58dB
Separator 1
Separator 2
Applications & Technical Scope
dc worm gear motor 24v dc worm gear motor high torque motor micro gear motor customized dc motor brushless worm gear 12v worm drive
Technical Specifications Drawing
Frequently Asked Questions
Q: Which motor data can be customized? A: Voltage, speed, torque, power, dimensions, and shaft can all be customized. Kindly share your detailed requirements for evaluation.
Q: What is the normal lead time for samples and production? A: It takes 15-20 days for regular samples and 25-30 days for customized ones. Mass production typically takes about 45 days after sample confirmation.
Q: How do you guarantee product quality? A: We always produce according to confirmed drawings and samples, with a 100% final inspection before shipment.
Q: Do you supply motor accessories? A: Yes, we can help source accessories such as patch cords, encoders, and PCBs if required.
Q: What certificates do your products have? A: All materials are RoHS compliant. We can apply for specific certificates like CE, UL, or ETL based on your request.
Q: What is the warranty period? A: Normally we provide a one-year guarantee after the goods reach your hand.
Manufacturing Details
