| Model NO. | KW-1004 | Out-Wire | 6-Wire |

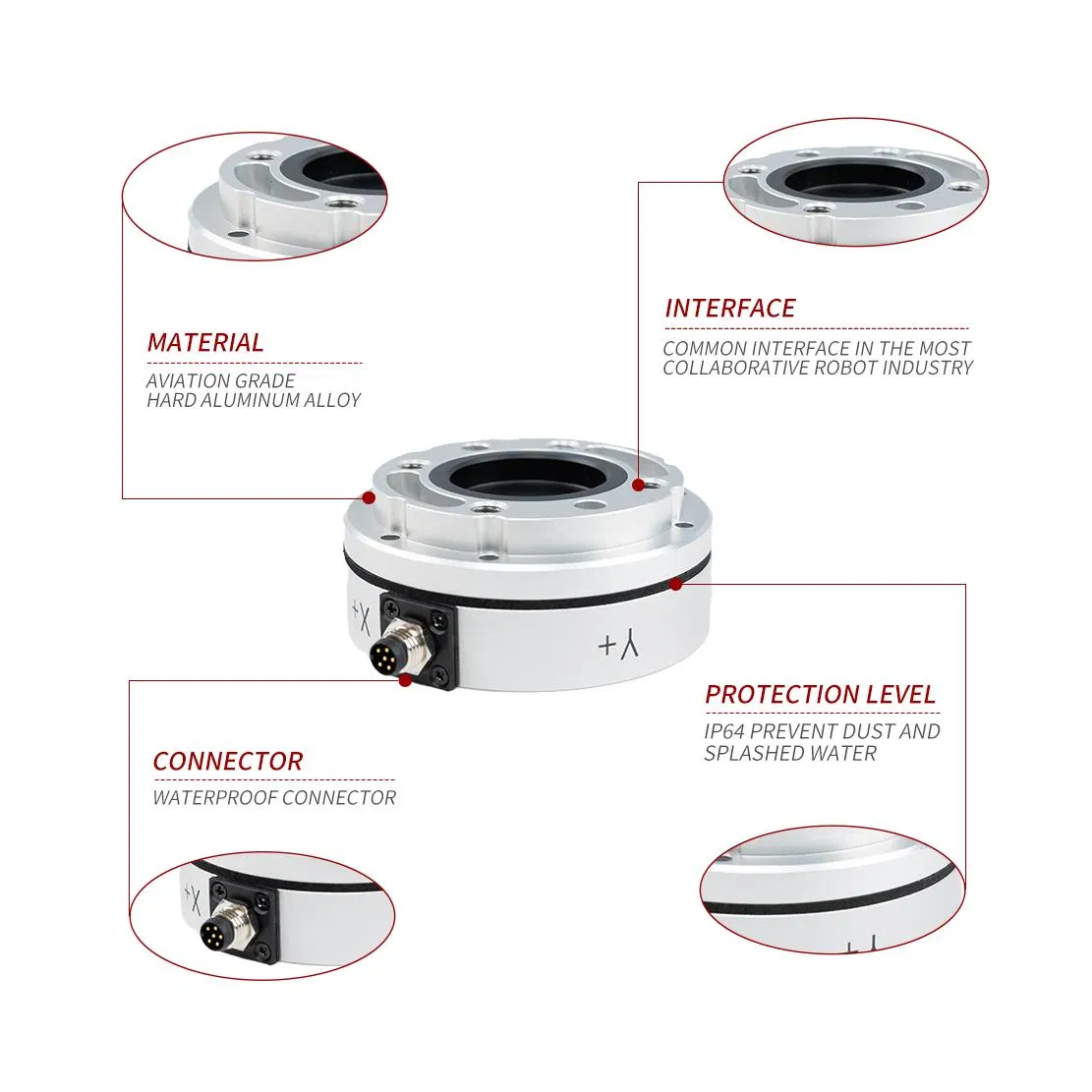

| Output Signal Type | Digital Type | Feature | Water/Dust/Corrosion Resistant |
| Material | Aluminum Alloy | IP Rating | IP64 |
| Certification | CE, RoHS, ISO9001 | Precision | 0.1%Fs |
| Working Temperature | 0~80℃ | Communication | RS422/RS485/Ethernet/USB/Can |

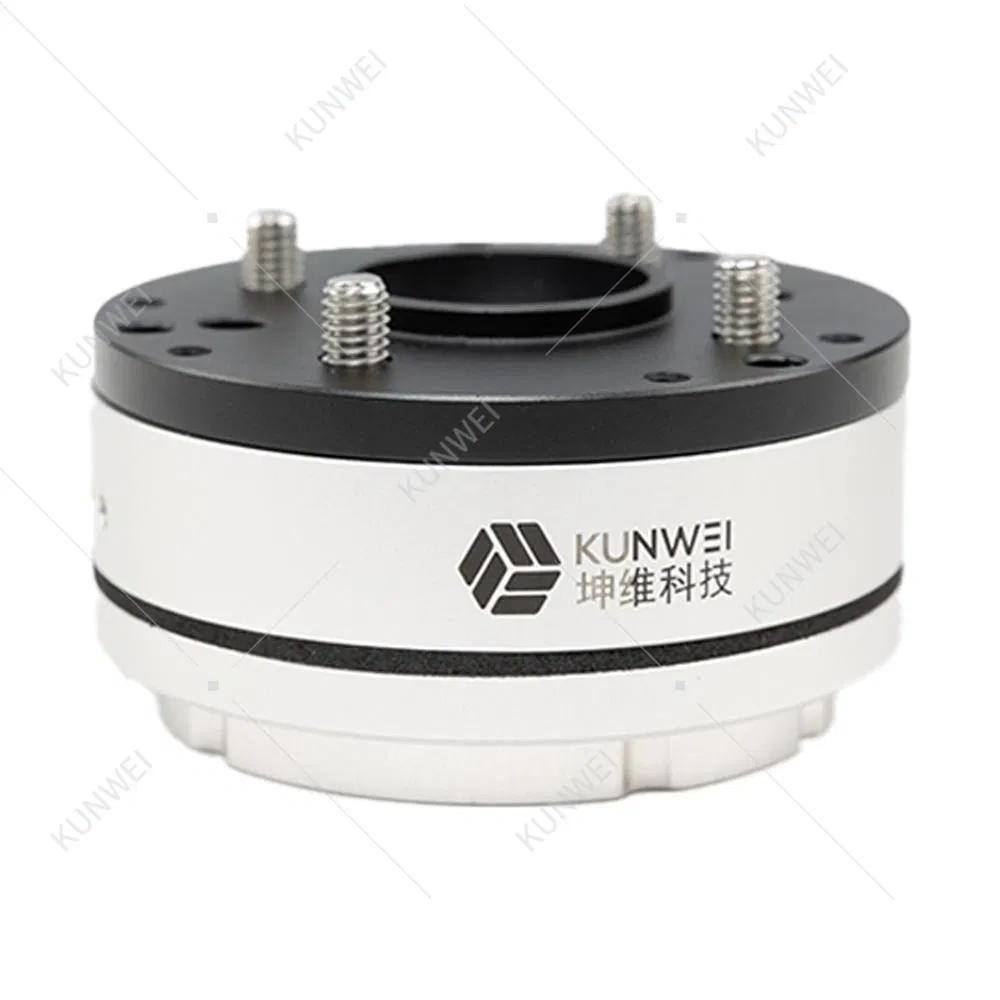

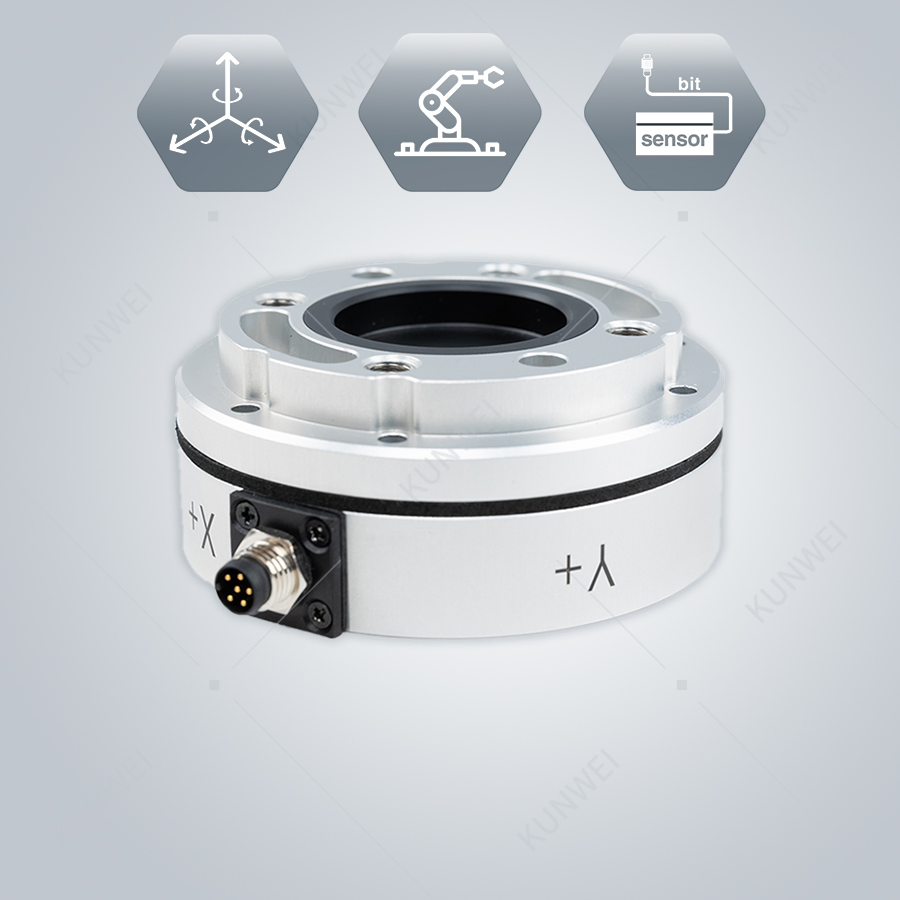

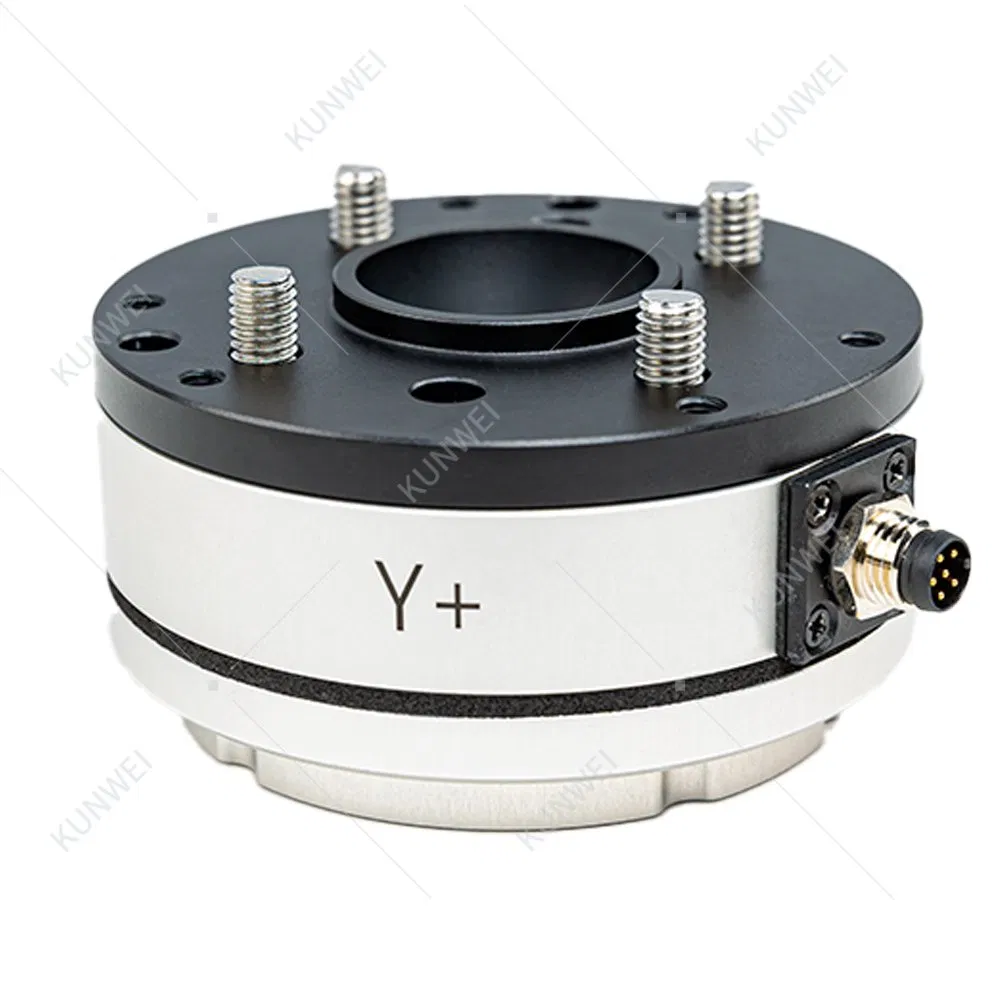

Hot Sale Micro Six Axis Force Sensor for Robot
KWR75 series transducer is embedded in highly precision intelligent circuits, it is equipped with adapter flange, the customer could install flexibly according to their own needs. The series is available in several models, measuring range from 30N to 400N. The product uses digital signal (serial port) output by default, and can be embedded in analog signal data acquisition module to support analog signal (such as 0-10V, 4-20mA, etc.) receiving equipment.

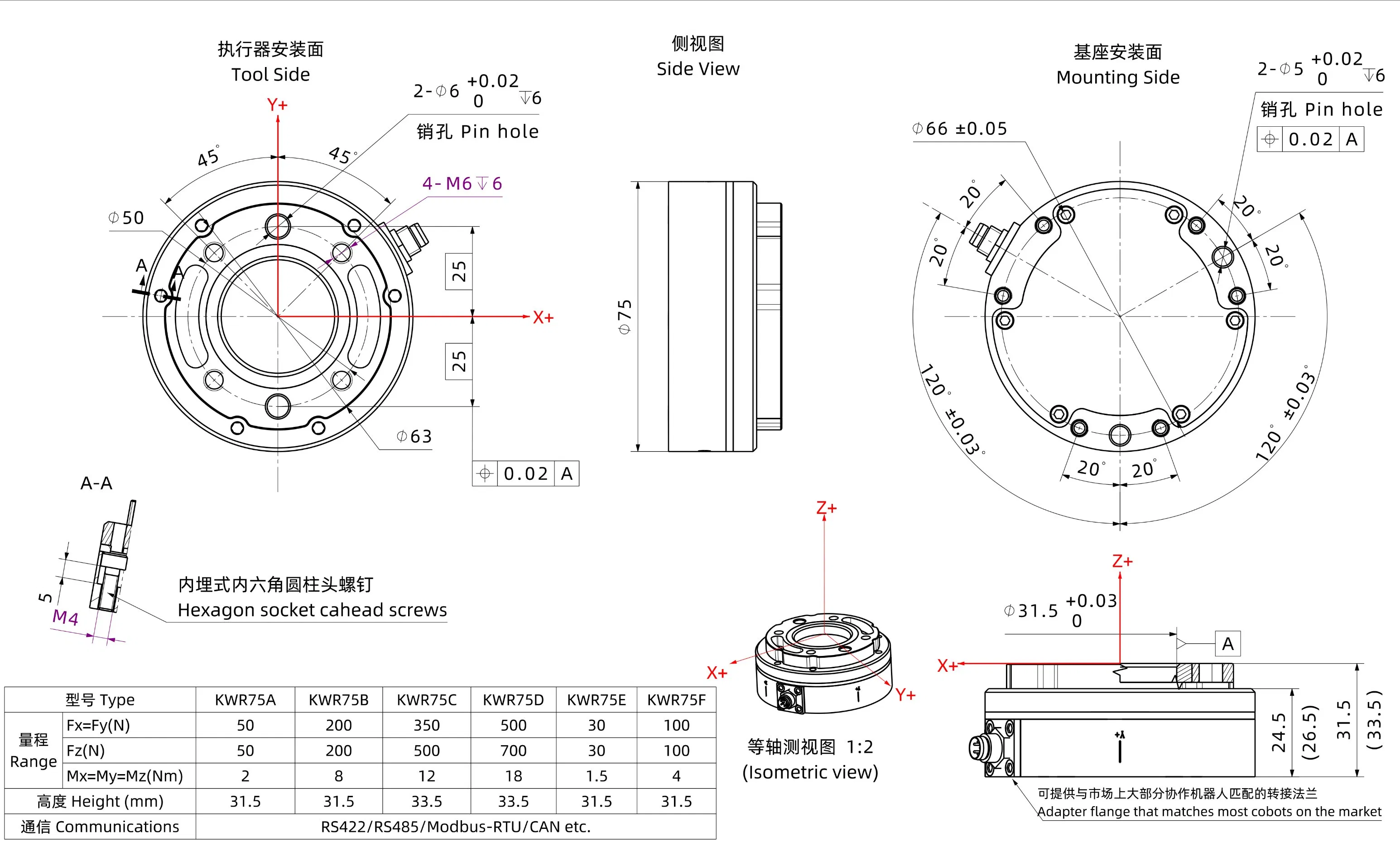

| Parameter | Unit | Model | |||||
|---|---|---|---|---|---|---|---|
| KWR75A | KWR75B | KWR75C | KWR75D | KWR75E | KWR75F | ||
| Fx, Fy | N | 50 | 200 | 350 | 500 | 30 | 100 |
| Fz | N | 50 | 200 | 500 | 700 | 30 | 100 |
| Mx, My | Nm | 2 | 8 | 12 | 18 | 1.5 | 4 |

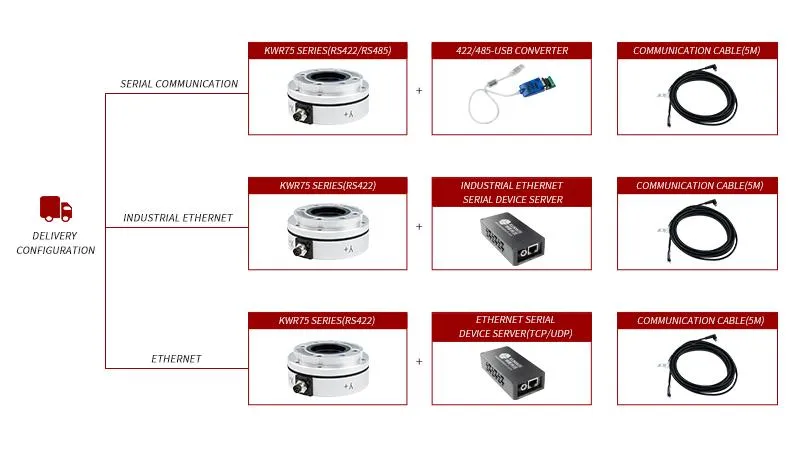

| Communication | RS422/RS485/Modbus/CAN/Industrial Ethernet/USB/etc. | ||||||
| Items | 6 Axis F&T Sensor | 3 Axis F/T Sensor | 1 Axis F/T Sensor |
| Measuring Accuracy | High | High or Medium | High or Medium |
| Budget | High | Medium | Low |
