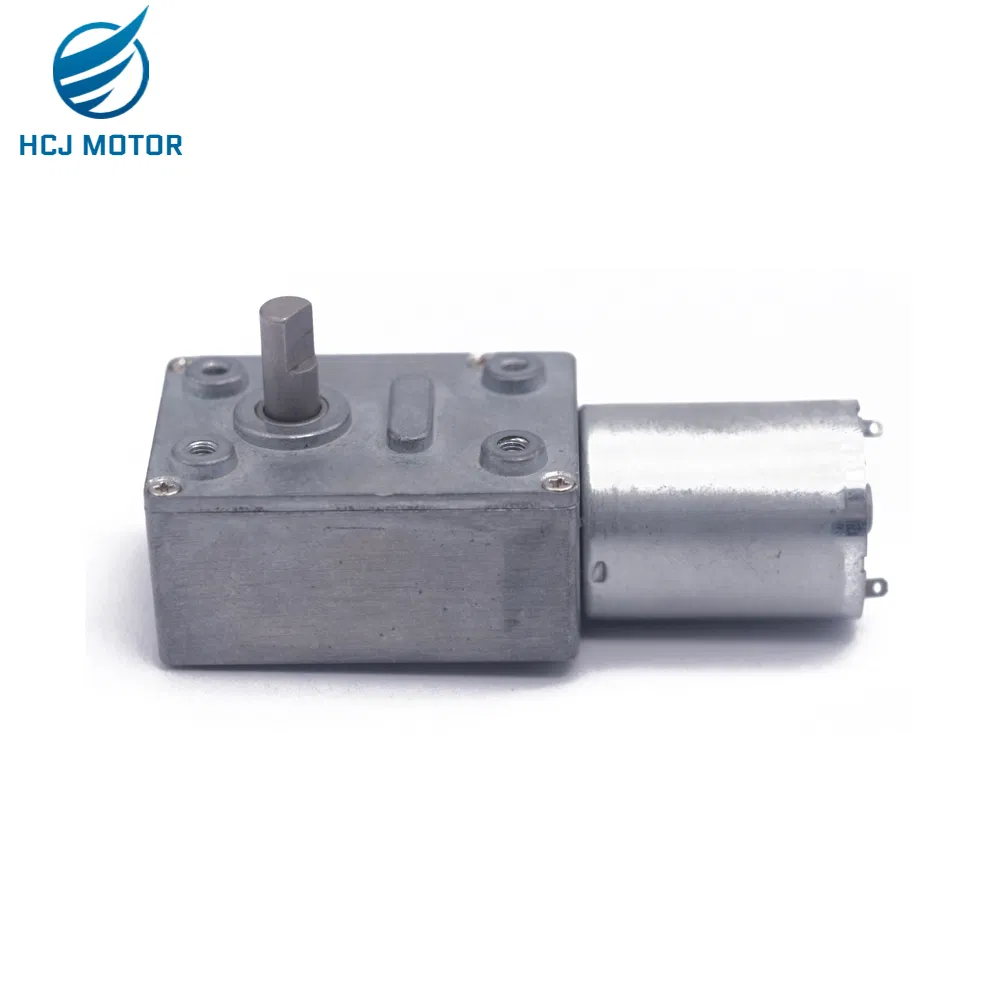

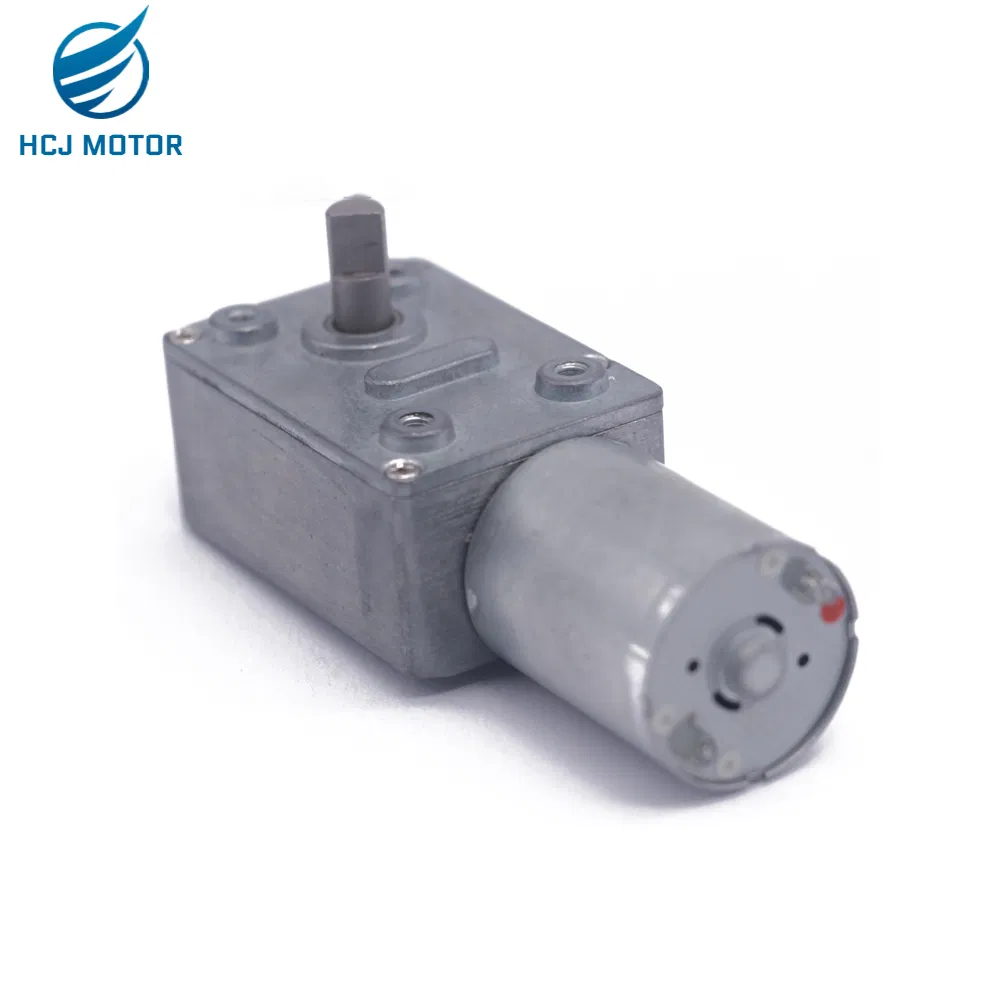

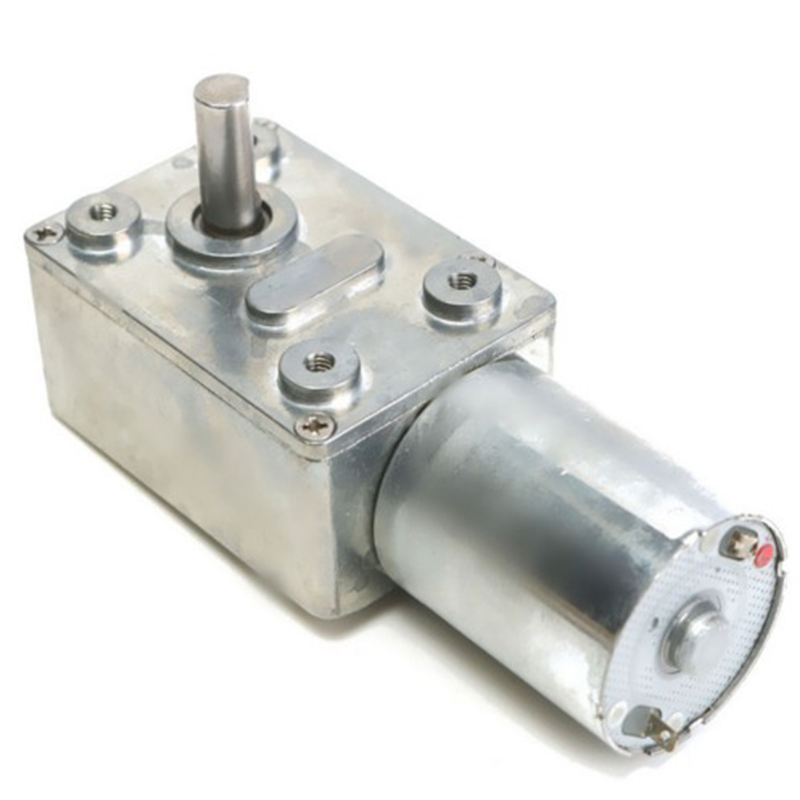

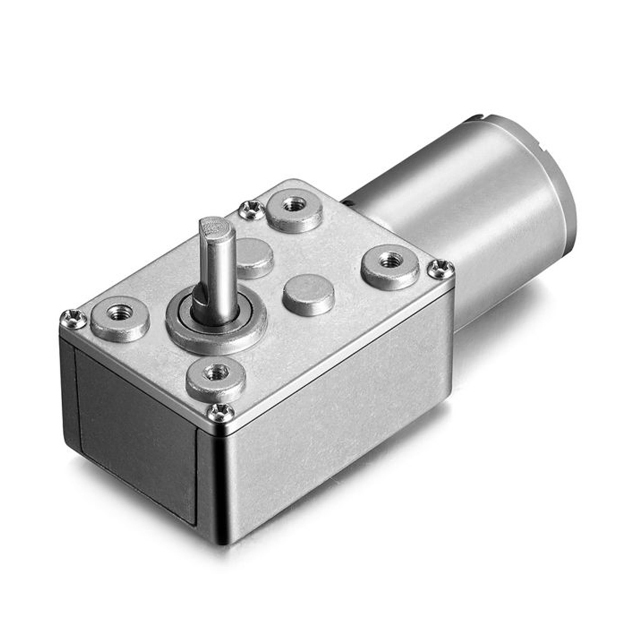

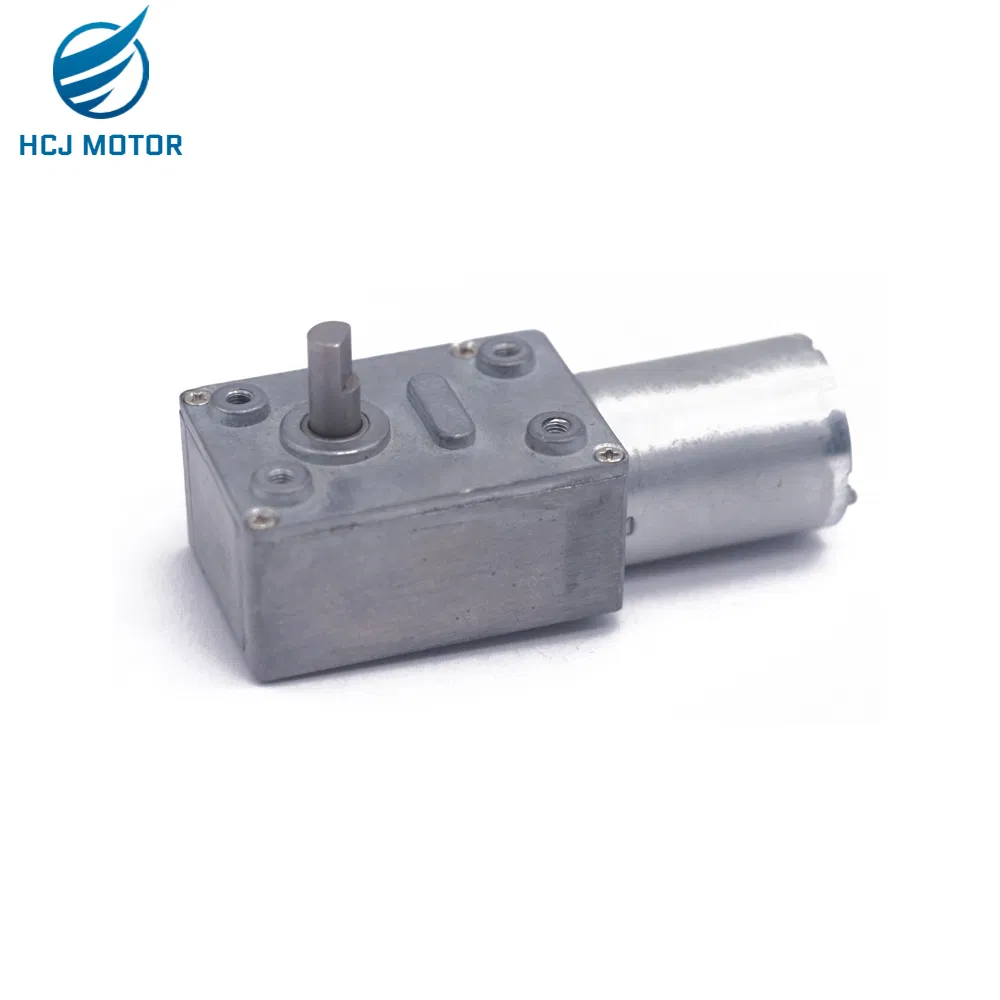

Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
1 / 5
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer
Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer

Micro 46mm * 32mm Square Gearbox Motor 6V 12V 24V 1rpm 10rpm 30rpm Right Angle DC Gear Motor with Reduction Reducer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HGM4632-370
Function
Driving
Casing Protection
Protection Type
Structure
Brush
Type
PMDC Motor
Certification
ISO9001, CE, RoHS, Reach
Ratio
1:50 ~ 1:1687
Feature
High Torque
Motor Type
DC Reduction Gear Motor
Gearbox Material
Metal
Shaft Type
Round, D Cut
Specification
76*32*28MM
Product Description

Micro 46mm * 32mm square Gearbox Motor 6V 12V 24V Right Angle DC Gear Motor with Reduction Reducer

DC Gear Motor
Parameter Specifications:
• Gearbox Type: Right Angle Gearbox with Straight Teeth
• Gear Ratio: 1/50 ~ 1/1687 (Customizable)
• Matched Motor: Brush DC Motor
• Reducer Dimensions: 46mm * 32mm
• Applications: Automation Machine, Home Application, Industrial Equipment, Pet feeder
Style No. HGM4632-370
Voltage Range 3.0~28.0V Nominal Voltage 6V / 12V / 24V
No Load Speed 2~200RPM No Load Current 0.060A / 0.110A / 0.045A
Efficiency Speed 1~150 rpm Stall Torque 2.4~20kg·cm
Stall Current 0.53A / 3.8A / 0.26A Net Weight 350g Approximately

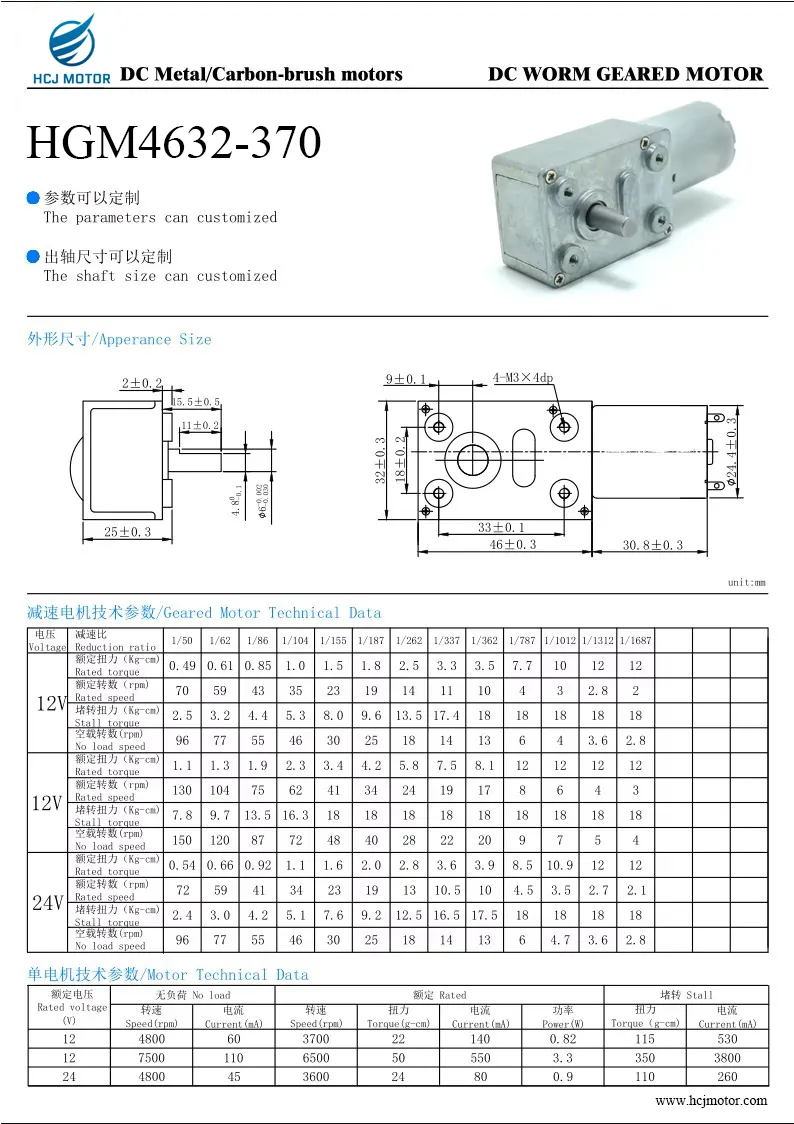

Motor Specification
Applications
Category Details
Business Machines Intelligent robot, Copiers, Scanners, 3D Printers, Advertising machines.
Electric Equipment Electric tools, Electric curtains, Razors, Cosmetic instruments.
Smart Home Window openers, Vacuum cleaners, Smart locks, Water pumps.
Medical Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Robotics Sweeping Robot, Food delivery robot, Inspection robot, Underwater robot.
Application 1
Application 2
Production & Quality
Certifications
Our Advantages:
✅ High Quality: Strict quality control from raw material to assembly.
✅ Professional R&D: Engineers with 15 years experience for OEM/ODM service.
✅ Fast Dispatch: Samples within 7 days, production within 25 days.
✅ Fast Response: Inquiries replied within 12 hours.

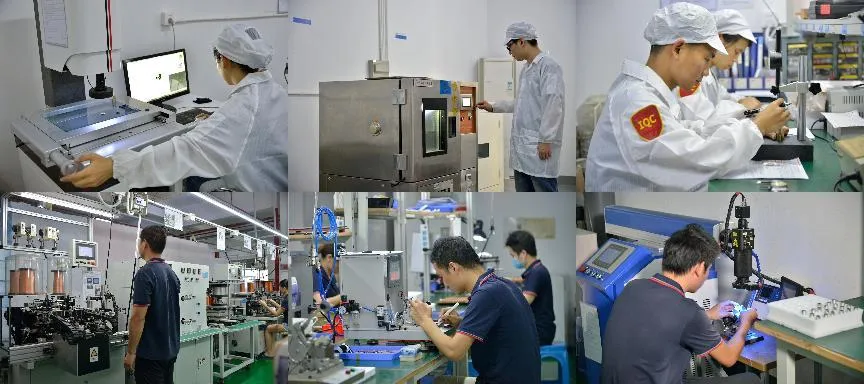

Factory Ability
Packaging & Shipping

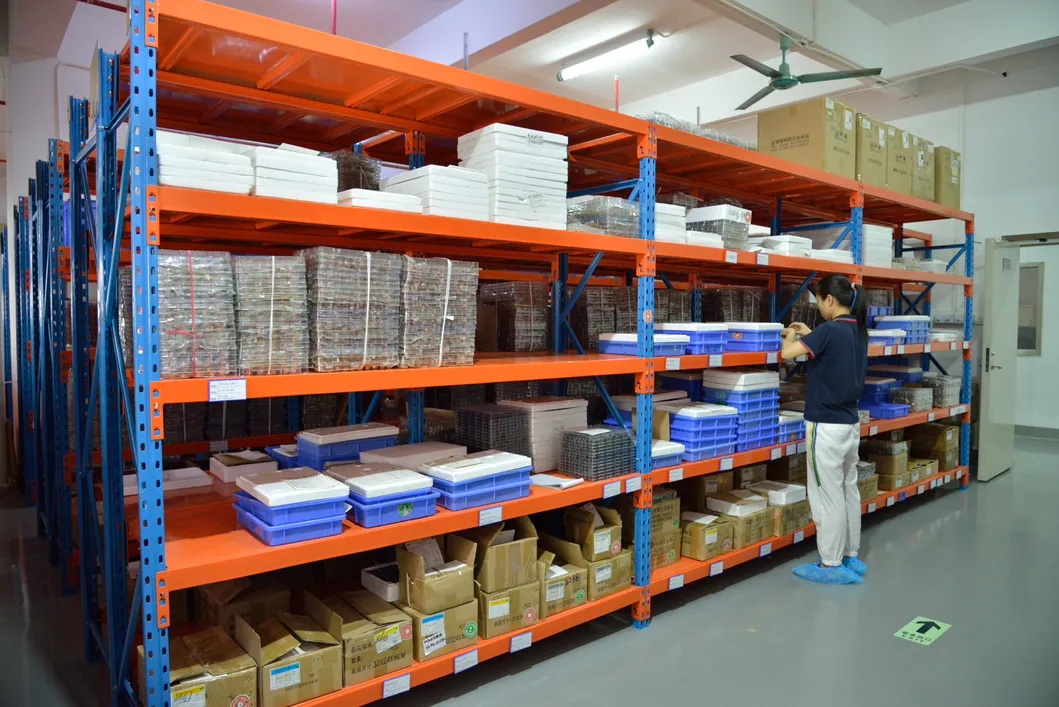

Packaging
Shipping

• Crate, carton or pallet packaging.
• Shipping via air, sea or express.
• Delivery time: 7-30 working days.

FAQ
Can you make the Gearbox with custom specifications?
YES. We have strong R&D capability and a professional engineering team with many years of experience to handle custom requirements.
Do you provide samples of DC Geared Motors?
YES. We can provide samples within 5-15 days depending on the specific gearbox requirements.
Do you have items in stock?
No, we do not keep stock. All products are manufactured based on specific customer orders.
How do I select a suitable DC Gear Motor?
Please provide your requirements such as voltage, speed, torque, motor size, and application environment, and our team will recommend the best solution.
Do you offer customized services for standard models?
Yes, we can customize voltage, speed, torque, shaft size/shape, and add connectors or wires as needed.
What are the accepted payment methods?
We accept T/T in advance, as well as PayPal and credit card payments.
