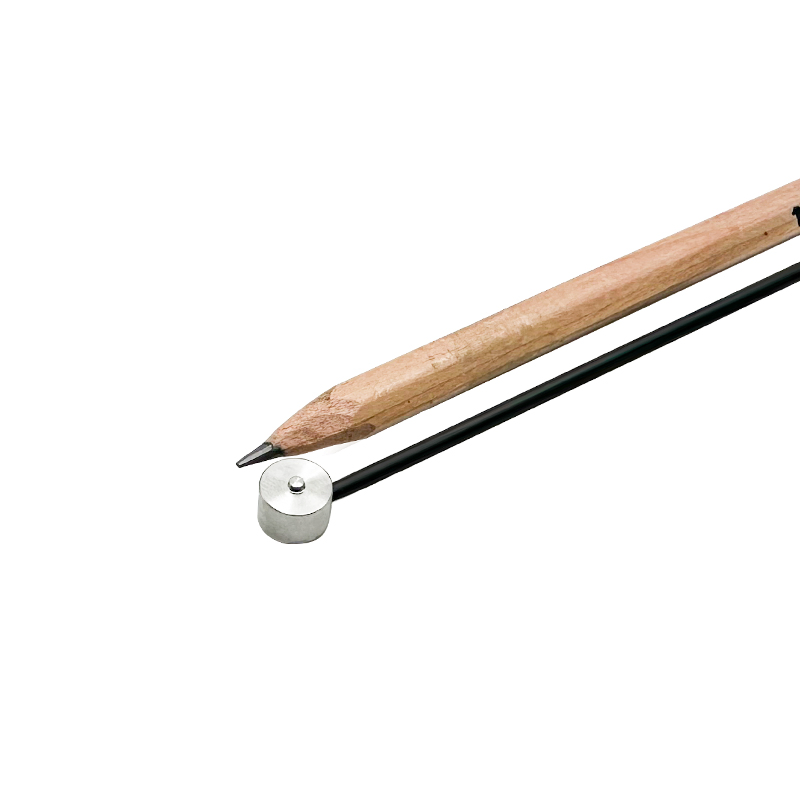

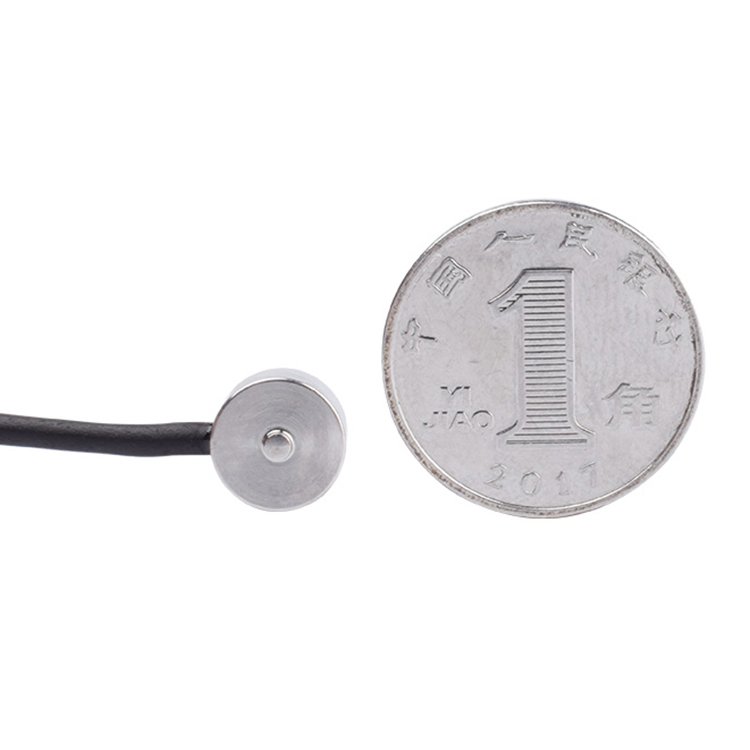

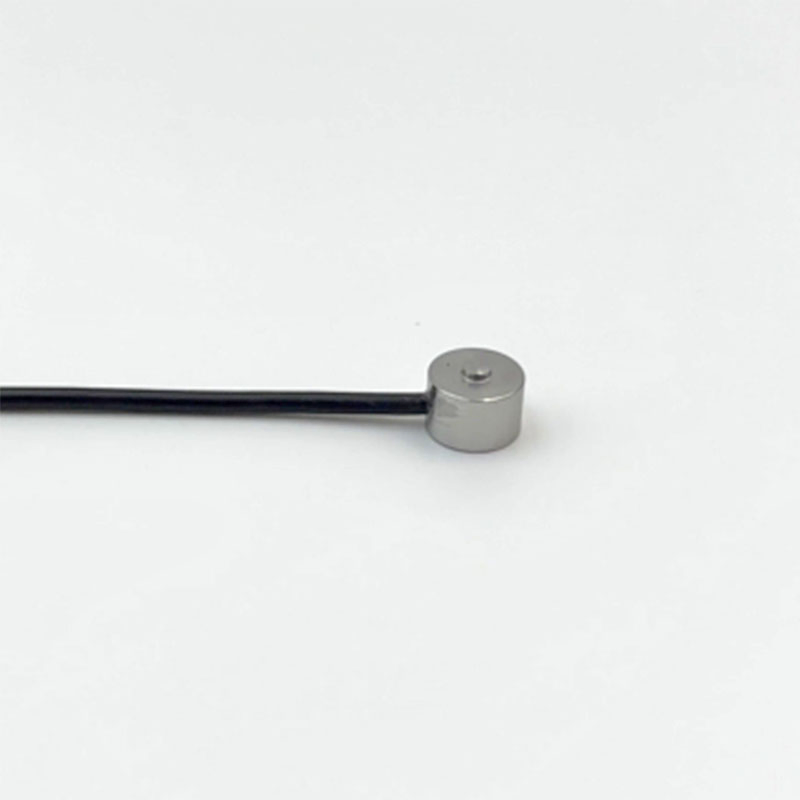

Stainless Steel Micro Load Cell 50n 100n

1 / 5

Stainless Steel Micro Load Cell 50n 100n

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

FA101

For

Strain Gauge Pressure Transmitter

Output Signal

Analog Type

Production Process

Integration

Material

Stainless Steel

Thread Type

Wiring Type

Five-Wire

IP Rating

IP68

Non-Linearity

≤0.5%F.S.

Safe Overload

150%F.S

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 8.00cm

Gross Weight

1.200kg

Production Capacity

50000 PCS/Month

Product Description

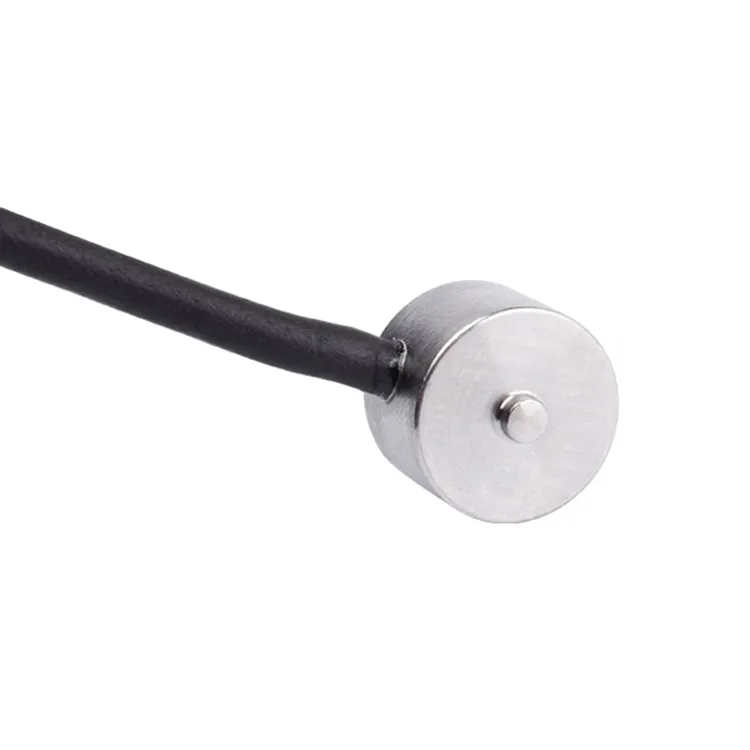

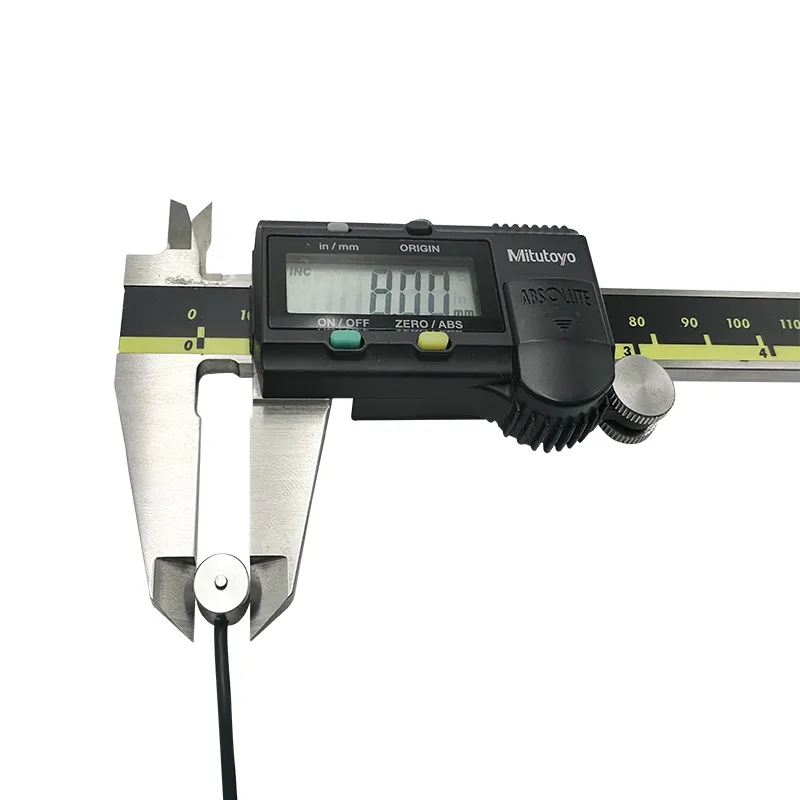

Mini button 50N 500N stainless steel weighing 1kN load cell

Advantages of Microsensing Pressure Sensors

Small size and light weight
Low power consumption
Good performance
Easy mass production and low cost
Easy integration and multi-functionalization
Improved sensorization and intelligence levels

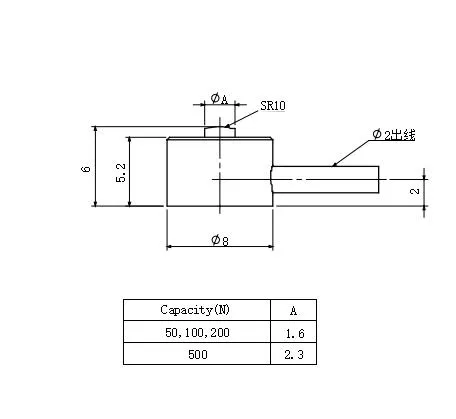

Product Parameters

Specifications	Technique
Capacity	100, 200, 500N
Sensitivity	1.0±20%mV/V
Zero balance	±1%F.S.
Non-linearity	≤0.5%F.S.
Hysteresis	≤0.5%F.S.
Repeatability	≤0.5%F.S.
Input/Output impedance	600~800Ω
Insulation	≥5000MΩ/100VDC
Compensated temp range	-10~60ºC
Operation temp range	-20~80ºC
Material	Stainless steel

Description & Applications:
Automotive press-fit, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial test, measurement and control systems.

Certifications

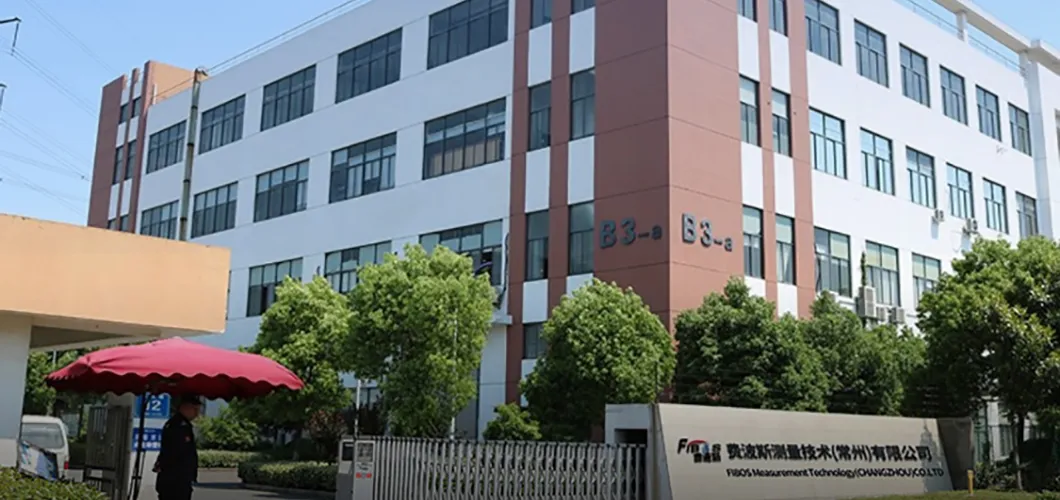

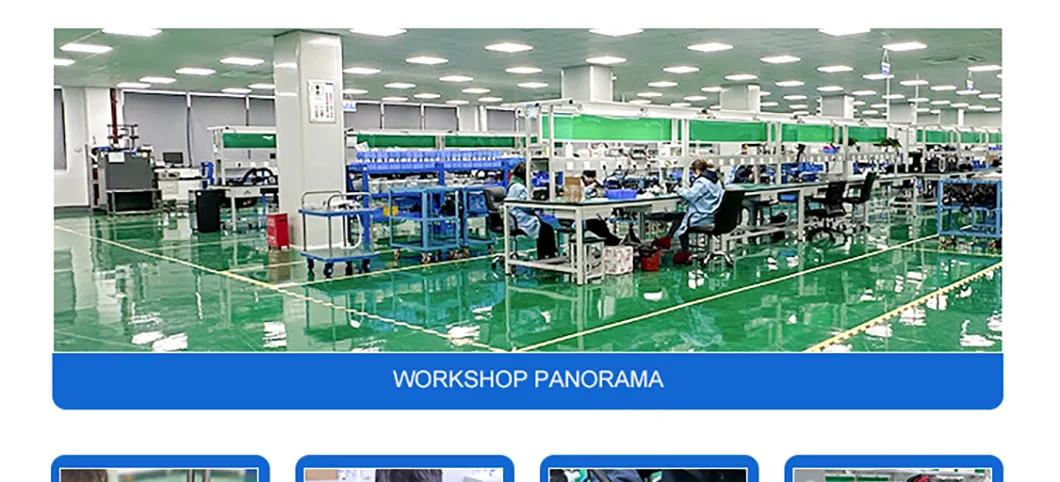

Production Facilities

A technical service enterprise specializing in force measurement technology research, product R&D, production, sales, and service. Specializing in micro force sensors, high-precision load cells, and multi-dimensional force sensors with modern workshops and professional R&D teams.

Frequently Asked Questions

How can I get a quotation?

Please send your inquiry through our contact interface with your specific requirements.

What information is needed for an order?

We require the capacity, intended usage, and other related technical parameters specific to your application.

Is there a discount for bulk orders?

Yes, we support bulk orders. For large quantities, please contact us to discuss volume-based pricing.

Are samples available?

Samples can be provided depending on future order commitments; please consult with our team for availability.

What certifications do your products have?

Our products are CE and RoHS certified, ensuring compliance with international quality and safety standards.

What is the lead time for production?

Production usually begins immediately upon payment. We maintain stock for many materials to ensure the shortest possible lead time.
